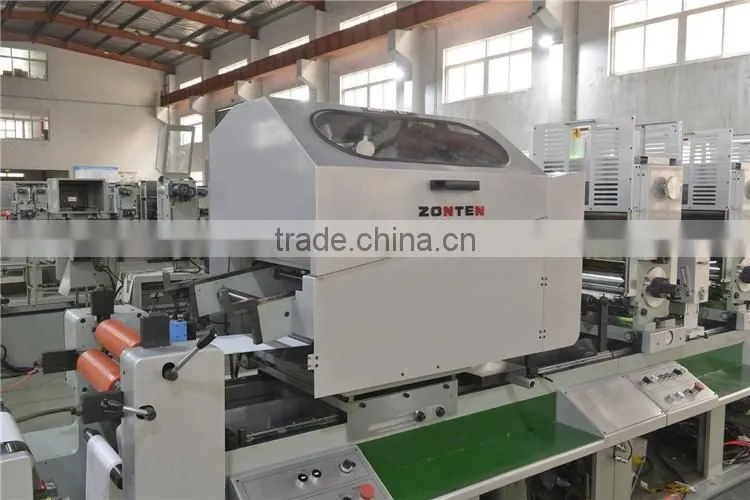

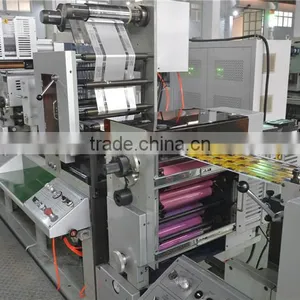

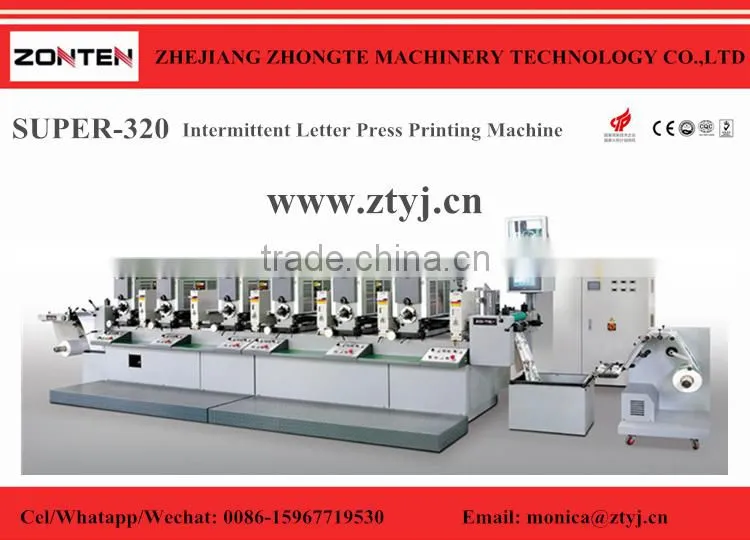

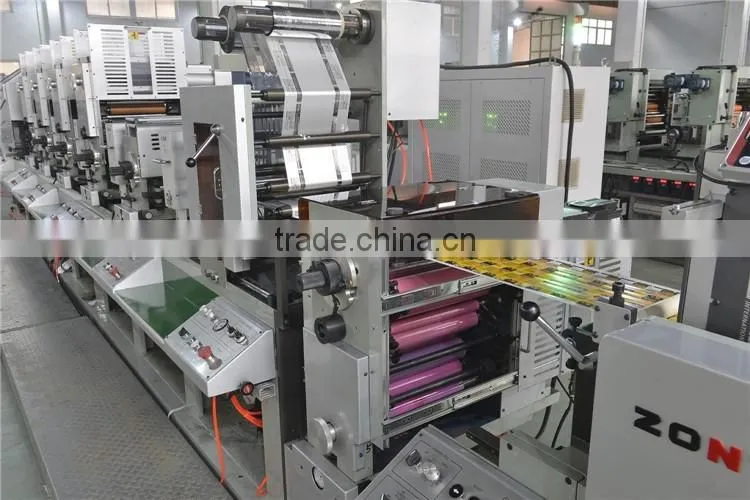

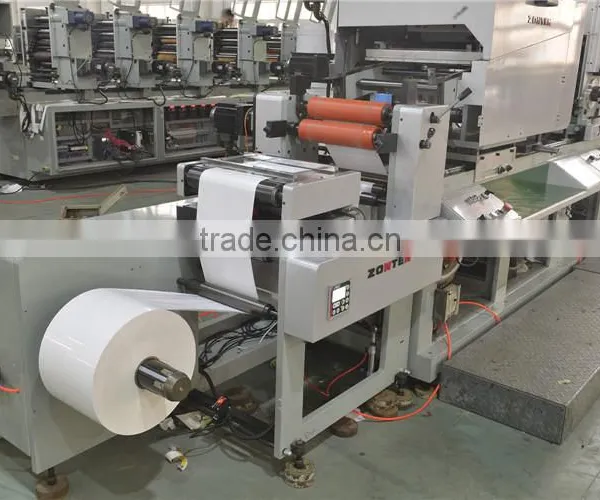

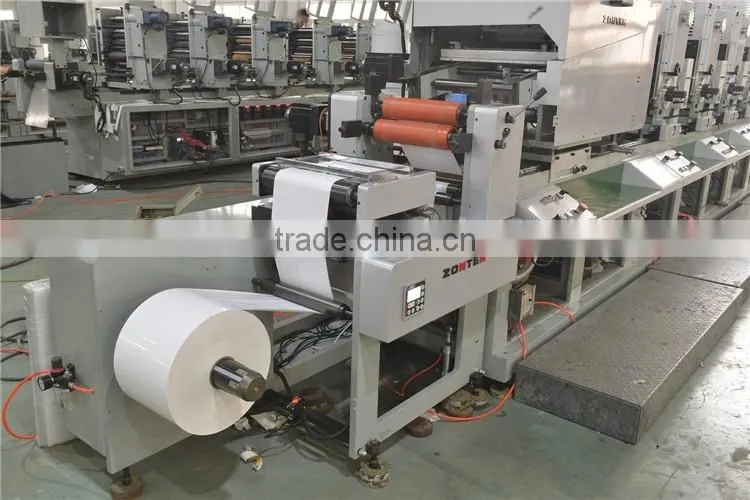

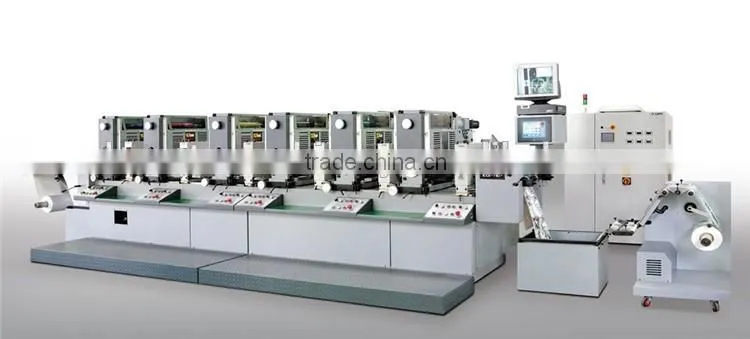

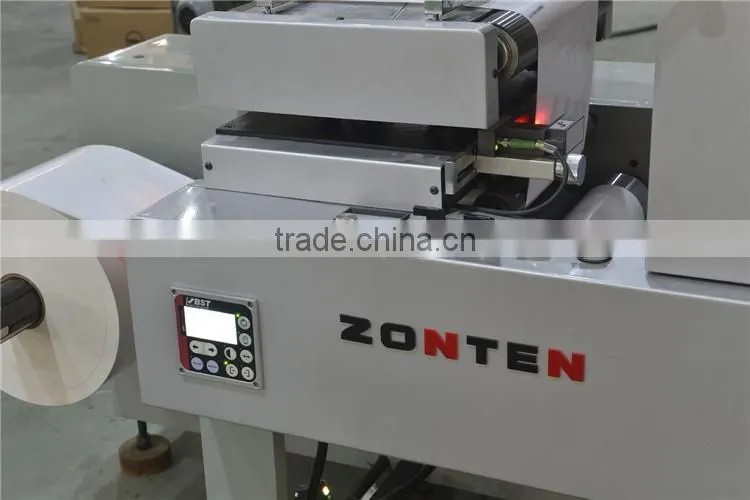

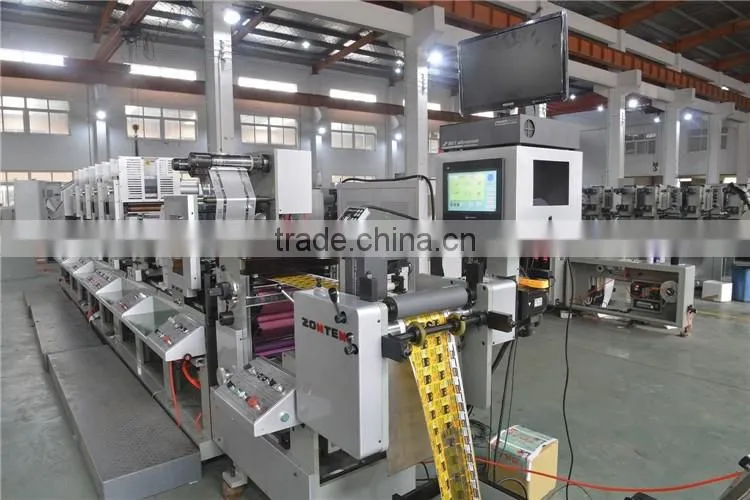

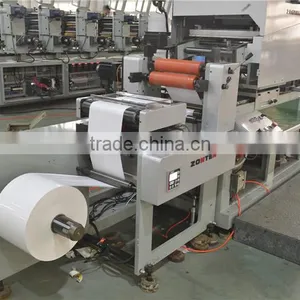

Super-320 Wine Label Daily Chemical Label Paper Film Label Relief Printing Machine
Characteristics :

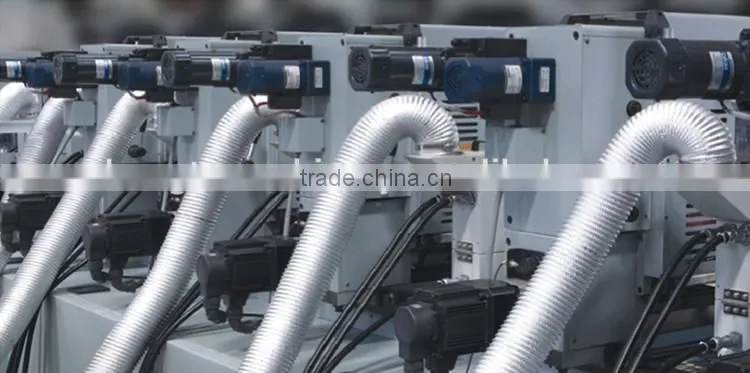

1. Servo-control System Achieves Optimization Control Of Machine, Which Assure High Accuracy And Stability For Registration.

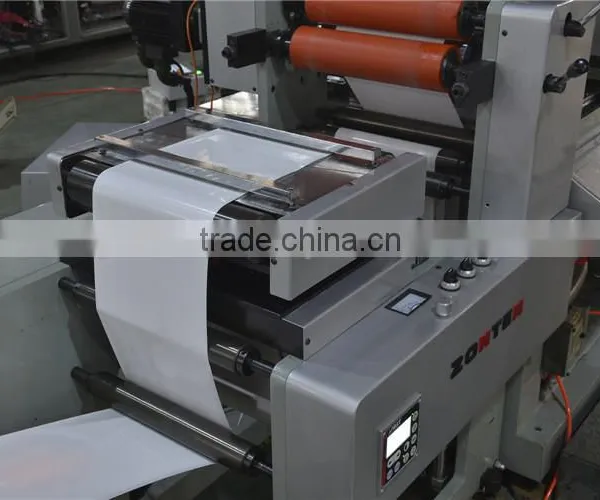

2. Creative Front & Back Vacuum Driving Roller And Ceramic Roller In Paper-feeding System Saves Extra Substrate For Removing Rider Wheels.

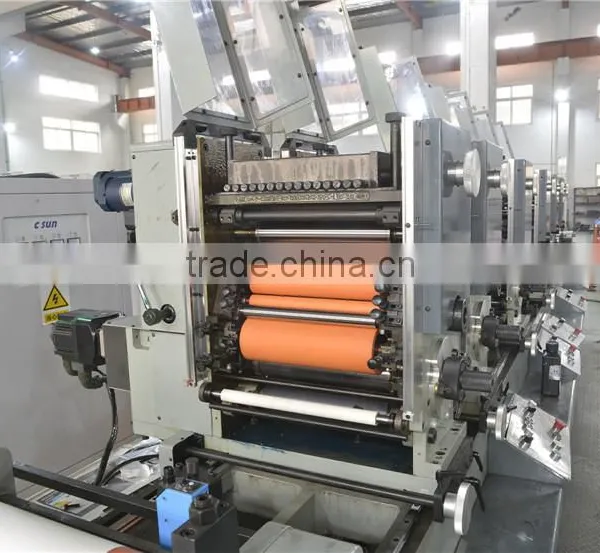

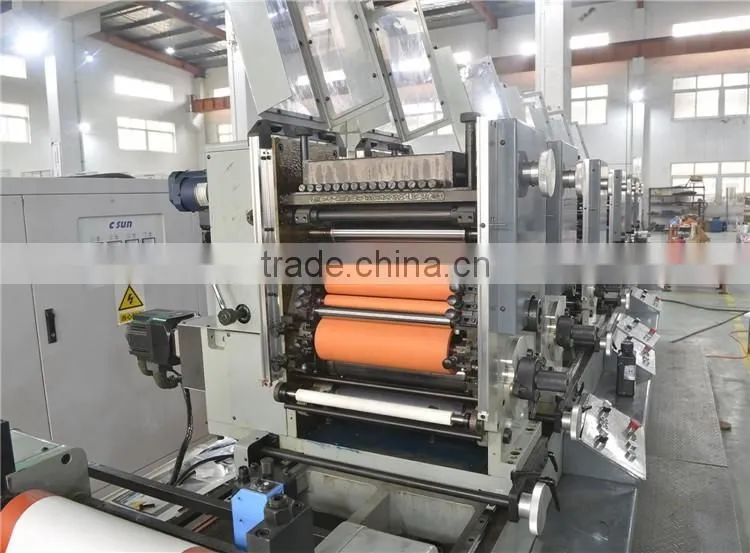

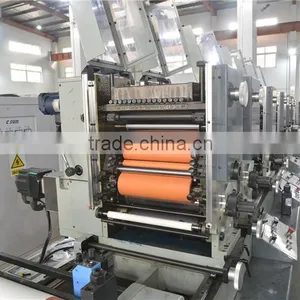

3. Special Printing Unit Combined Rotary Letter Press & Intermittent Printing, Convert Both Functions Easily On One Machine.

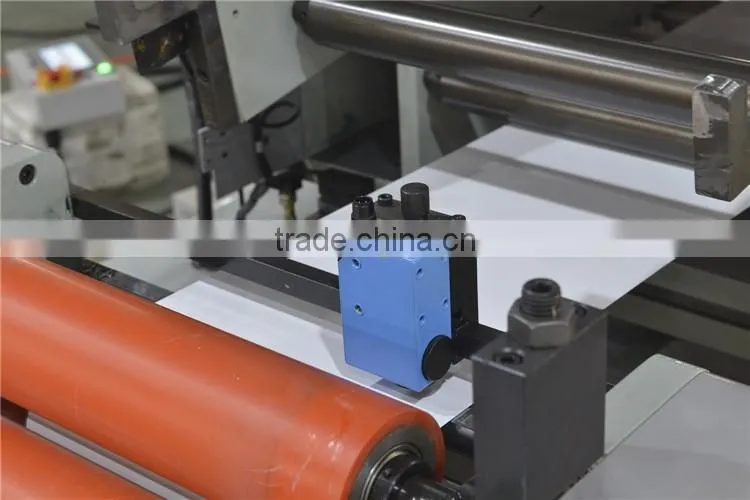

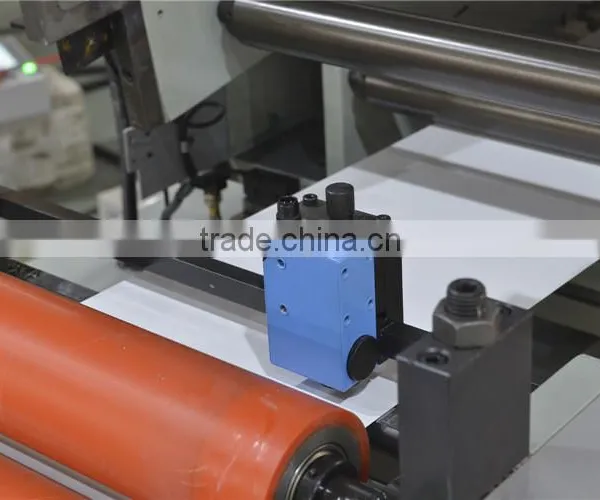

4. Creative Lateral & Lineal Registration System Electrical Controlled Can Be Adjusted Easily Through The Panel On Printing Unit Or Center Control Screen.

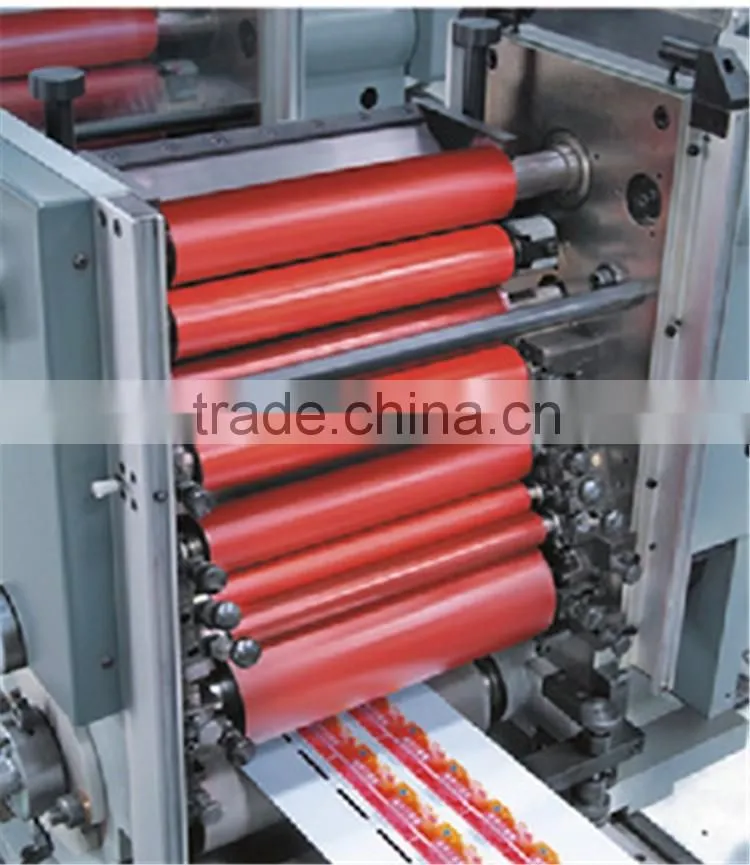

5. Creative Ink Distributing System Avoids Bar Marking And Ghosting, Inks Volume Varies With Printing Speed Automatically.
6. This Machine Is Best One To Print Middle & Top Class Labels In Large, Medium And Small Batch Of Production.
7. Indicate Malfunction Of Machine On The Center Control Screen To Speed Up The Maintenance Of Machine.
MACHINE VIDEO:
----1). Printing Machines:
1. ZTJ-330/520 intermittent offset label printing machine: https://youtu.be/LAKyvQ9HiPg.
2. Super-320 intermittent letterpress label printing machine: https://youtu.be/4Tc-reNyngQ.
3. LRY 330/450 stack flexo label printing machine: https://youtu.be/CD4SB5Lk9To.
4. RY-330/450 flexographic label printing machine: https://youtu.be/ksr9OxenLK4.
5. flexo plate making machine: https://youtu.be/cNNZZlKWKsY.
----2). Die Cutting Machines:
1. MQ-320 die cutting machine: http://youtu.be/63abqFREC58.
2. FQ-330/450R rotary die cutting and slitting machine for blank label: https://youtu.be/n0-Z77_6LLk.
3. ZMQ-320 semi rotary die cutting machine: https://youtu.be/sgYOmfpyCPE.
----3). Slitting Machines
1. FQ-320/450 label slitting and rewinding machine: https://youtu.be/75z0rzozqkw.
----4). inspecting machines
1. ZJP inspecting machine: https://youtu.be/9H751zeIT5o.
Technical specification :
| Max. Web width | 310mm |
| Max. printing width | 300mm |
| Printing repeat | intermittent 50-260mm rotary 55~96T(174.6-304.8mm) |
| Color | 2-9 colors |
| Thickness of substrate | 0.1~0.3mm |
| Machine speed | intermittent 250r/min rotary 75m/min |
| Max. unwind diameter | 700mm |
| Max. Rewind diameter | 700mm |
| Total capacity | 17.3KW (Not Including UV) |
| Power | 380V/AC. Three-phase 50/60H 50A |
| Overall dimension(L*W*H) | 6800*600*400mm |
| Machine weight | 6800kg/6 colors |
| Notes: With the viriation of the length to be printed, machine speed should be changed. *Its overall dimension and manufacturing Process are subject to change without further notice. | |
Below machines are good partners for label production line, please click it, to get more information.
