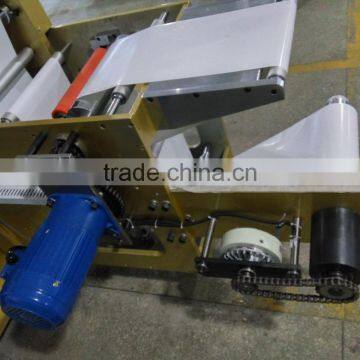

Help CenterCH-320 UV Dryer Multicolor Label Rotary Printing Machine
Related Products
-
CH-300 China Hot Sale Automatic Die Cut Label Printing Machine for Print Vinyl Stickers at HomeUS$ 85,000 - 158,066MOQ: 1 Set -
CH-300 China Hot Sale Automatic Die Cut Stamping Label Printing Machine Roll StickerUS$ 85,000 - 158,066MOQ: 1 Set
-
CH-300 China Low Price Adhesive PET Film Paper Label Printing Machine Manufacture Looking for AgentUS$ 85,000 - 158,066MOQ: 1 Set
-
CH-300 China Roll to Roll Small Paper Sticker Label Letterpress Printing Machine PriceUS$ 85,000 - 158,066MOQ: 1 Set
-
CH-300 High Quality UV Adhesive Label Sticker Printing Machines With Die Cutting and Cold StampingUS$ 85,000 - 158,066MOQ: 1 Set
CH-320 Six colors intermittent label machine
Specification:
| Model | CH-320 | CH-300 |
| Max Paper width | 320mm | 300mm |
|
Max Full Rotary Printing Area |
300x327mm | 275x327mm |
| Max Intermittent Printing Length | 300x280mm | 275x280mm |
| Maximal Printing Speed(times/h) | 12000 times/h | 12000 times/h |
| Max Unwinding Diameter | 700mm | 700mm |
| Max Rewinding Diameter | 700mm | 700mm |
| UV Driver (power) | 4.8kw | 4.8kw |
| Rated Voltage(V) | 380V | 380V |
| Physical Dimensions(mm) | L4900XW1620XH1500 | L4900XW1620XH1500 |
| Machine Weight(KG) | 5500KG | 6000KG |
| Packing Size | 20CBM | 25CBM |
| STANDARD ACCESSORIES | ||
| Plate Cylinder | 12sets | 12sets |
| Paper Feeder | 1 set | 1 set |
| Tools | 1 set | 1 set |
| Rotator | 1 set | 1 set |
| UV Rubber Roller | 6 sets | 6 sets |
| Wash Tray | 1 set | 1 set |
| Paste Plate Machine | 1 set | 1 set |
Features:
Computer controlled ink supply system spreads ink stably and exactly.
Complete function and hight quality printing.
With yaskawa servo system to control the running smoothly.
High speed and accurate registe, with high stability during accelerating and deccelerating.
Low backlash high precise gear, high speed running, low noise.
UV dryer holder can automatichly switch power.
High speed ey tracking is adopted to ensure high quality on secondary printing, reduce printing waste.
Max intemittent printing dimension is 280mm, minimum dimension is 30mm.
Our Services:
Engineers are available for overseas installation and training as well as after-sales service.
Our certificates:
Our products highly meeting CNCA's requirements of ISO9001:2008.
Contact us:
Account Manager
Laura Zeng
Shenzhen Changhong Hexie Machinery Equipment Co.,ltd
Address: No.21, XiantianRoad, Xinsheng Comunity, Longgang District,Shenzhen City, China.518172
Mobile: 86-13826203191 Wechat/Whatsapp: 86-13826203191
Office: 86-755-28986010 Fax: 86-755-28986853
Web Site: http://cnchlm.en.china.cn
Send Inquiry to This Supplier
