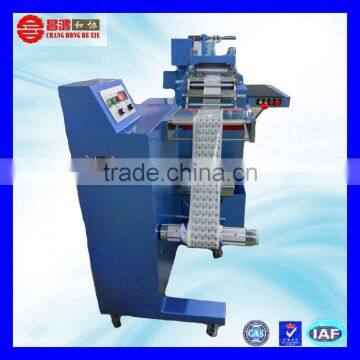

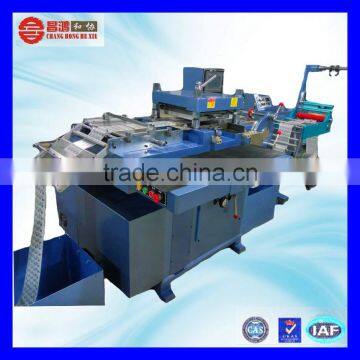

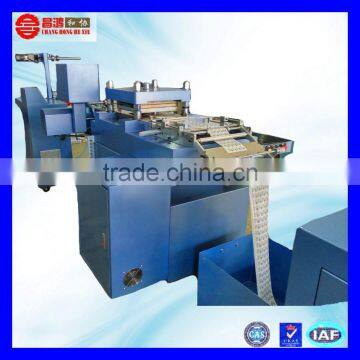

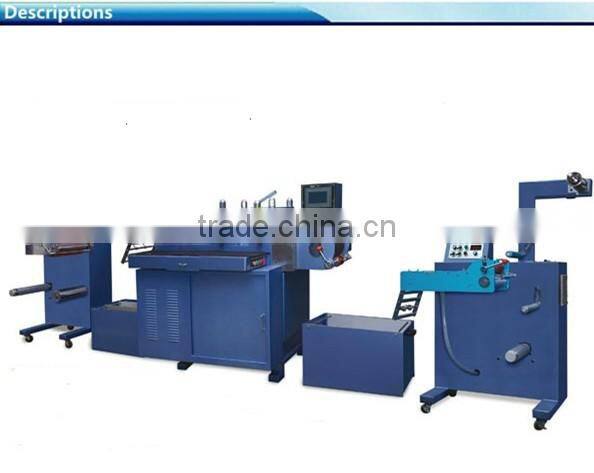

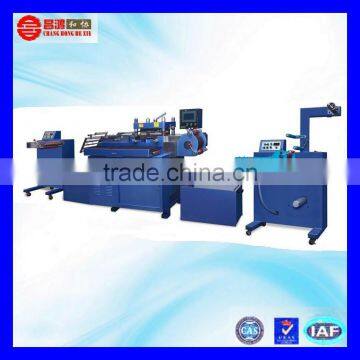

CH-360 Factory low price Shenzhen label high speed flatbed die cutting machine
1. Specifications:
| Specification | CH-250 | CH-320 | CH-360 |
| Max. Film Width (mm) | 270 | 340 | 370 |
| Max Die Cutting Area(mm*mm) | 250*250 | 320*320 | 360*360 |
| Max Die Cutting Speed (round/minute) | 30~400 | 30~400 | 30~400 |
| Die Cutting Precision (mm) | ±0.05 | ±0.05 | ±0.05 |
| Main Driver Motor power (KW) | 2.2 | 3.7 | 3.7 |
| Rated Voltage(V) | 220 | 220 | 220 |
| Size of the Machine(mm) | 1600*1300*1600 | 1600*1500*1600 | 1650*1550*1600 |
2. Feature:
1.With CNC driving system, simple to operate, high efficient, energy saving and with low noise.
2.With stable performance and multi-function on printing, hot stamping, laminating, die-cutting, rewinding and waste discharge.
3.Easy to maintain, with automatic oil supplying system to keep machine running smoothly without worn out. With max 24000 times/hour speed, suitable for high speed efficient die cutting job.
4.Can put any die cutting data into the operating system, machine will beeze and stop when it reaches setting number, very accurate and convenient.
5. Imported with original Japanese servo motor to keep high precise die cutting accuracy(0.03mm), German Photocell sensor for tracking and multiply die cutting.
6.Two feeding types: automatic feeding or seperated feeding, also we could make solo-die cutting machine or solo-hot stamping machine for you.
3. Standard Configuration:
| Feeding Machine | 1 set |
| Cutting Machine | 1 set |
| Main Machine | 1 set |
| Standard Tools | 1 set |
| Die Cutting Upper/Lower Board | 1 set/each |
4. Application:
Die cutting machine is useful for self-adhesive label, Dacron film, laser anti-false label, Punching and mulity compounding on electronic industry, PET, PP, PVC, Viscose, non-woven, insulation materials, shielding materials...etc.
Our products are all packed with strong fumigated wooden case with film and canvas cover and strong container, all examed by 3 groups of inspection teams before packing. It usually takes about 30-40 days to delivery, we will give you every detail to assure you our delivery process.
Payment Terms |
T/T, L/C, Western Union, Money Gram, Cash |
| Supply Ability | 10 sets/month |
| Delivery Time | 30-40 days |
| FOB Port | Shenzhen |
