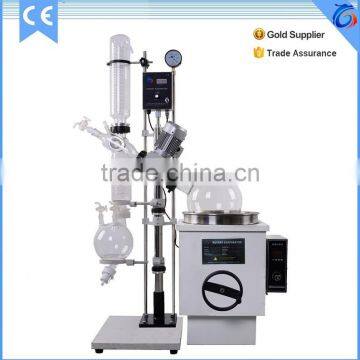

20L Rotary Evaporator With Manual/Auto Lifting Water Bath

20L Rotary Evaporator With Manual/Auto Lifting Water Bath thumbnail-1
20L Rotary Evaporator With Manual/Auto Lifting Water Bath photo-1
US$ 1,800 - 2,250 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Distillation
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Shanghai Yuhua Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Distillation
Power Source Electric
Process Vacuum Distillation
Place of Origin Shanghai, China
Brand Name YUHUA
Model Number RE-2002
Voltage 220V/50HZ
Power(W) 180W
Dimension(L*W*H) 1450*500*480mm
Weight 160kg, 160kg
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas
Product Application

20L Rotary Evaporator


They are the ideal tools for many everyday laboratory applications including:

• Concentration of solutions

• Reclamation of solvents

• Vacuum drying of wet solids

• Degassing liquids

Mainly used in pharmaceutical, Biotechnology and Chemistry.


Product Description

Brief Introduction of  20L Rotary Evaporator


Rotary Evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the


 liquid material to get your target solvent.


Rotary Evaporator is widely used in the process like Concentration, Refining, Separation, Crystallization, etc. Waste


Water Evaporator mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.


The Main Features of 20L Rotary Evaporator


1. Frequency conversion rotation speed regulation

2. Ex-motor optional

3. PTFE rotary seal assembly

4. Tandem type continuous receiving system

     -Realize no vacuum wave continuous receiving during evaporating process

5. Liftable bath with intelligent temperature controller, Manual lift or electric lift optional

6. PTFE Cork, no pollution to solvent

Model
RE-1002
RE-2002
RE-3002
RE-5002
Rotary Flask (L)
10L
20L
30L
50L
Collection Flask (L)
5L Bottom Discharge
10L Bottom Discharge
20L Bottom Discharge
20L Bottom Discharge
Motor Power
180W
250W
Condenser Surface (㎡)
0.57
1
1.5
1.5
Rotation Speed (rpm)
3~110



Evaporating Speed（H2O）
>3L/h
>5L/h
>9L/h
>9L/h
Reachable Vacuum Rate
<133Pa (1.33mbar, 1 Torr)
Bath Power (kW)
3kW
3kW
6kW
6kW
Static Temp. Control Range& Wave（℃）
0-99(180) ±0.2
Power
Single Phase 220V/50HZ
Detailed Images

Charging Valve


New structure and material applier, is


able to offer purely clean charging


 process and durable use experience.


Anti-corrosion&wearable sealing system

Specially designed and precisely manufactured. Enable system ultimate vacuum rate reaching 133pa. 90% user don’t need to replace rotary seal in one year.

PTFE discharging valve

PTFE structure, which is anti-


corrosion, no vacuum grease, no


pollution to solvent received.

Related Products

               Chiller


High and Low Temperature            Circulating Device

                 Vacuum Pump



Packing & Delivery

Packing


-Export wood case or carton case

-Fumigation certification, certification of original

-According to the requirements in your country

Shipping


-We can ship goods by sea, bu air, by train, smaller


  goods or spare parts will be shipped by express.


-You can choose to use your own forwarder.

Company Info
FAQ

1. Are you manufacturer or trading company?

A: We are professional manufacturer of lab instruments with a history of 8 years.

     A video call to show you our factory and products is always available.


2. How to choose suitable equipment ?
A: You tell us your work flow and special requirements (For example: capacity, temperature range,

     pressure, power supply, etc ), we will recommend you suitable equipment according to your

     requirements, application experience and feedback from our clients.


3. How long is your date of delivery?
A: Within 5 working days after payment confirmed, customized products need 10~15 working days.

4.  How to solve the equipment trouble during using ?
A: Please send us email of the problem, pictures or a small video will be much better,

     we will find the problem and help you to solve it.
     If there is a broken, we will send you a new part via express, and it is free in the warranty period.

5. Will you provide service beyond the warranty?
A: Yes. We provide lifetime service for our products, but it won’t be free beyond the warranty period.

Our Service

Pre-Sales Service

-According to your requirements and practical application.


-Find the best solution.


-Beautiful and practical.


-OEM Service.

After-Sales Service

-One year from the deliver date.


-Provide lifetime service for whole equipment.


-24 hours technical support by e-mail.


-Calling or door to door service.


-Use-friendly English software,use manual and detailed  videos.
