Home > Products > Heating Mantle > 100ml Cheap Heating Mantle/Physical Science Lab Equipment
100ml Cheap Heating Mantle/Physical Science Lab Equipment
- 500 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Laboratory Intelligent Digital Stirring Heating Mantle
-
ZNHW series lab heating mantle with digital
-
25ML Hydrothermal Synthesis Reactor with Stainless Steel Shell
-
25ML Hydrothermal Teflon Vessel from Shanghai
-
304 Stainless Steel Hydrothermal Vessel from Shanghai Yuhua
-
25ML Mini Stainless Steel Hydrothermal Synthesis Reactor
Product Details
Brand Name | YUHUA | Model Number | ZNHW-100 | |
Place of Origin | Shanghai, China |
Product Description
100ml Cheap Heating Mantle/Physical Science Lab Equipment
Specifications of Heating Mantle:
1.High-quality material processed and electrostatic spraying surface.
2.Advanced electronic silicon controlled circuits to facilitate regulation
on heating power and heating speed, to directly control the temperature
of the using machine.
3.Adopt nickel- chromium alloy resistance wire by sealing it in heat resisting insulating layer,weaves the sealed resistance wire into hemispherical internal heater.
4.It has advantages of large heating area, quick heating-up, no flame, high heating evenness, step-less adjustment, energy saving, safety and good effect etc.
Model | Spec(ml) | voltage | Power(W) | Temperature range | Temperature control mode | Temperature accuracy | Catchy diameter(mm) | Sets Depth(mm) | Shell diameter(mm) | Shell height Parameter (mm) |
ZNHW-50 | 50 |
220V 50Hz
| 110 |
RT~399°C
| Temperature control voltage regulator
| ±5°C
| 58 | 35 | 160 | 50 |
ZNHW-100 | 100 | 130 | 75 | 40 | 160 | 50 | ||||
ZNHW-150 | 150 | 180 | 80 | 40 | 200 | 50 | ||||
ZNHW-250 | 250 | 210 | 95 | 60 | 230 | 140 | ||||
ZNHW-500 | 500 | 230 | 115 | 70 | 230 | 155 | ||||
ZNHW-1000 | 1000 | 530 | 145 | 85 | 260 | 165 | ||||
ZNHW-2000 | 2000 | 650 | 180 | 105 | 270 | 190 | ||||
ZNHW-3000 | 3000 | 730 | 215 | 125 | 300 | 200 | ||||
ZNHW-5000 | 5000 | 1100 | 253 | 145 | 340 | 230 | ||||
ZNHW-10000 | 10000 | 2100 | 305 | 175 | 400 | 260 | ||||
ZNHW-20000 | 20000 | 3000 | 384 | 205 | 480 | 320 | ||||
ZNHW-30000 | 30000 | 4500 | 405 | 260 | 580 | 360 |

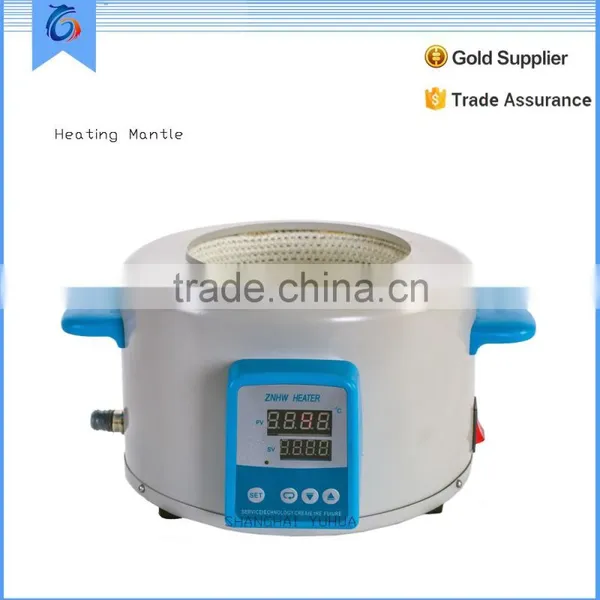

Pictures of Heating Mantle:
Packaging
- Export wooden case or carton case
- Both neutral and customized packaging can be available
Shipping
Depends on the dimensions of the package and your requirements, we can deliver
the goods by air, by sea, by train or by express.
Warranty:
- One year from the deliver date
- Provide lifetime service for whole equipments
Customized Service:
- According to your requirements and practical application
- Find the best solution
- Beautiful and practical
Also OEM Servic is available.
Shanghai Yuhua Instrument Equipment Co., Ltd was established in 2008, with more
than 7 years development, we accumulated rich customer groups and huge amount
of product application experiences.
With rich experience and feedback from customers, we have manufactured series
equipemnts, and widely used in Laboratory, Medical and other pilot plant. Our main
products are: Rotary Evaporator, Glass Reactor, and its related Heating and
Cooling Circulators.
1. Are you manufacturer or trading company?
A: We are professional manufacturer of lab instruments with a history of 7 years.
2. How to choose suitable equipment ?
A: You tell us your requirements (For example: capacity, temperature range, pressure, etc ), we will
recommend you the best suitable equipment.
3. What’s your delivery time?
A: Within 5 working days after payment confirmed, customized products need 10~15 working days.
4. How to solve the problem of your equipment?
A: Please send us email of the problem, pictures or a small video will be much better, we will find
the problem and tell you how to solve it.
If there is a broken, we will send you a new part, and it is free in the warranty period.
5. Do you still provide service beyond the warranty?
A: Yes. Our warranty is one year from the delivery date, we also provide service beyond the
warranty period, but it will not free for the broken parts.
