DINGLI Rational Designed Rotary Tube Sand Dryer!!
US$ 7,000 - 150,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Drum Drying Equipment
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN QINGDAO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Supplying of Rotary Drum Sand Dryer Widely ApplicationUS$ 7,000 - 150,000MOQ: 1 Set -
Rotary Drum River Sand Dryer, FREE Installation &Operation Training! Turnkey Service!US$ 12,000 - 25,000MOQ: 1 Set
-
Rotary Drum DryerUS$ 8,000 - 25,000MOQ: 1 Set
-
Rotary Drum Dryer Specification Rotary Dryer ParametersUS$ 8,000 - 25,000MOQ: 1 Set
-
Rotary Tube Dryer IntroductionUS$ 8,000 - 25,000MOQ: 1 Set
Condition
New
Type
Drum Drying Equipment
Place of Origin
Henan, China
Brand Name
DINGLI
Model Number
SZ1200
Voltage
380v, 415v, 440v, 460v
Power(W)
7.5kw
Dimension(L*W*H)
10x1.2x1.2m
Weight
2.9-75 tons
Certification
ISO, CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas

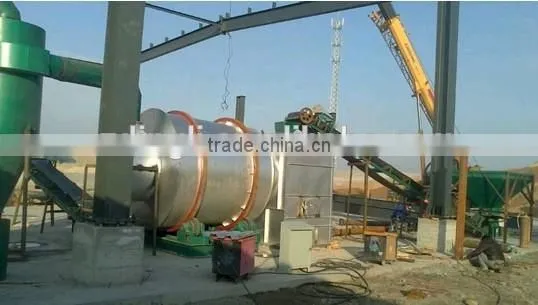

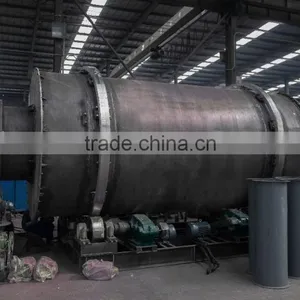

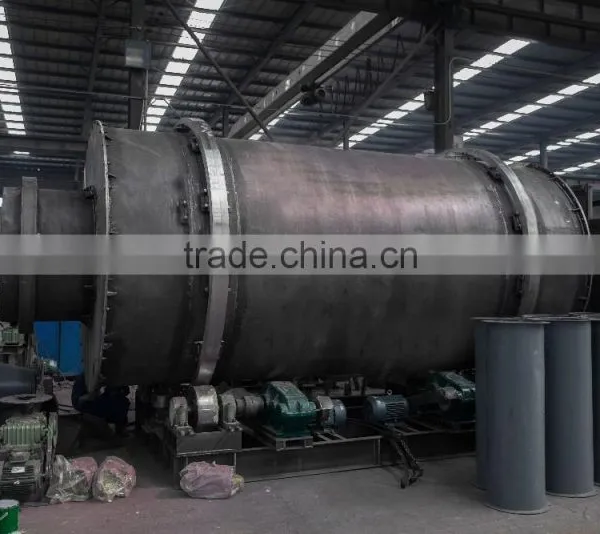

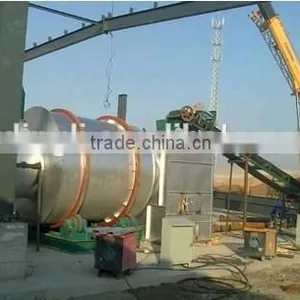

Rotary Tube Sand Dryer in Rational Design
1. Brief Introduction of rotary sand dryers:
The rotary sand dryer is a kind of machine which can process large amount of material. It has the advantages of reliable operation, large elasticity of operation, strong adaptability, large capacity, etc. The rotary sand dryer is suitable for drying granular materials in general, especially for drying river sand, yellow sand, quartz sand, which has very good drying excellent results. The rotary sand dryer can also be used to dry artificial sand, mineral powder, coal cinder, cement clinker, clay, gangue, mixed motar, fly ash, gypsum, limestone, etc.
2.Structure of Rotary Sand Dryers:
1, shell; 2, front roll ring; 3, rear roll ring; 4, gear; 5, block roller; 6, drag roller; 7, pinion 8, discharging part; 9, lifter; 10, speed reducer; 11, motor; 12, hot air furnace, 13, feed chute; 14 furnace body parts. We can also according to user requirements design coal gasifier, the combustion chamber, or bucket elevator, belt conveyor, constant feeder, cyclone, induced draft fan, etc.
3. Working principle of Rotary Sand Dryers:
The raw materials plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour that ultimatly discharged into the atmosphere. Then the materials would be dryed. After sand is dried by the dryer, usually cyclone is required to collect the material carried by hot air and to further reduce exhaust dust content, but also through the bag dust collector or put emissions after wet dust collector
4.Technical Specification of Rotary Sand Dryers:
Model (mm) |
Gradient (%) |
Rotation speed (r/min) |
Input temperature (℃) |
Motor power (kw) |
Output (t/h) |
Weight (t) |
Remarks |
SZ-600 |
3-5 |
3-8 |
≤700 |
3 |
1-2 |
2.9 |
|
SZ-800 |
3-5 |
3-8 |
≤700 |
4 |
1.5-3 |
3.5 |
|
SZ-1000 |
3-5 |
3-8 |
≤700 |
5.5 |
2.5-5.5 |
5.6 |
|
SZ-1200 |
3-5 |
3-8 |
≤700 |
7.5 |
4-8 |
14 |
|
SZ-1500 |
3-5 |
2-6 |
≤800 |
15 |
10-18 |
17.8 |
|
SZ-1800 |
3-5 |
2-6 |
≤800 |
18.5 |
18-22 |
22 |
|
SZ-2000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
18-26 |
28 |
|
SZ-2200 |
3-5 |
1.5-6 |
≤800 |
22 |
22-37 |
36 |
|
SZ-2400 |
3-5 |
1.5-5 |
≤800 |
37 |
32-46 |
52 |
|
SZ-3000 |
3-5 |
1.5-5 |
≤800 |
75 |
43-58 |
65 |
