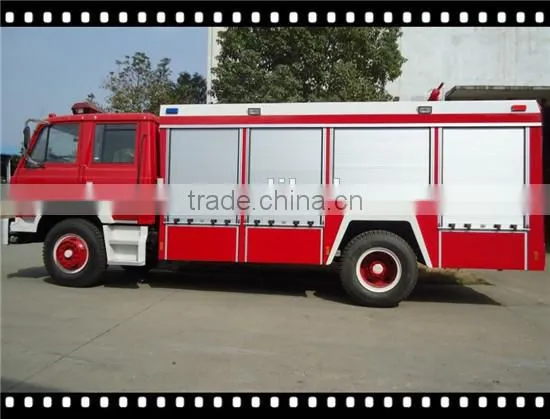

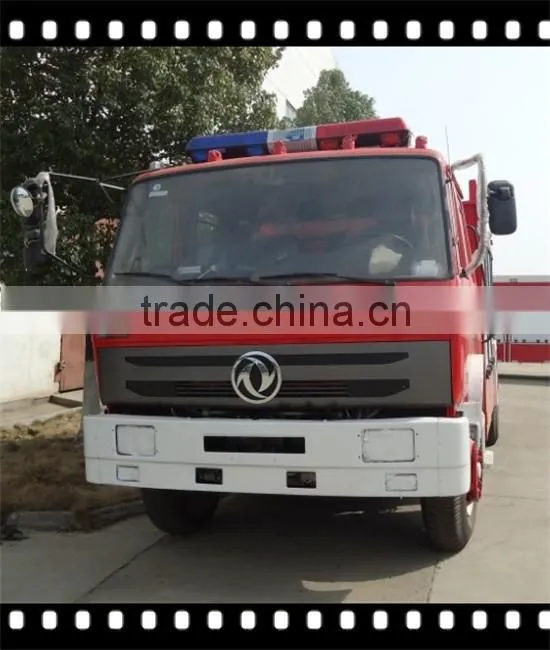

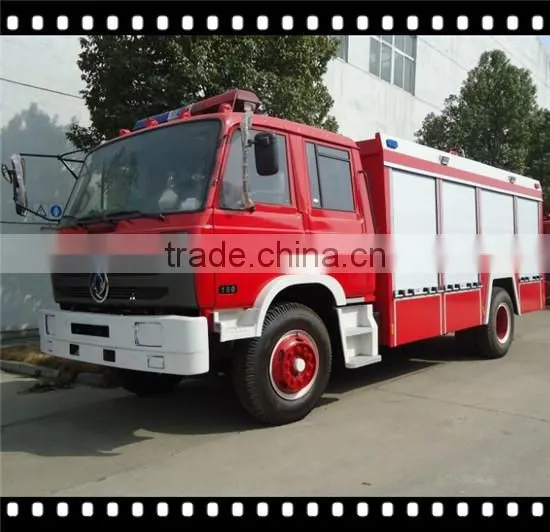

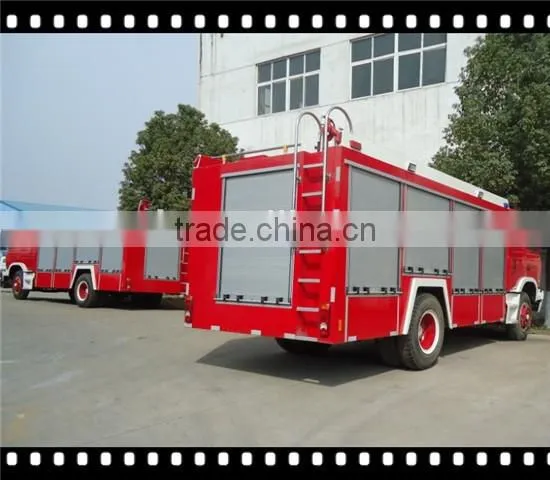

fire fighting truck 5-6tons ,antique fire trucks for sale
Fire truck, also known as fire fighting truck, is used in fire fighting or other emergency rescue. Fire truck can be divided into pumped truck(pumping water truck), aerial ladder fire truck and other special fire fighting truck. Fire truck is equipped with a varity of fire equipment and fire fighting apparatus. Fire truck is the main tool for fire men to fight the fire, and it is the most basic mobile fire fighting equipment.
| MAIN TECHNICAL PARAMETERS | |||
| product name | fire trucks | tank volume(m³) | 4.130 |
| gross vehicle weight(kg) | 14900 | dimensions(mm) | 7900×2470×3390 |
| rated loading weight(kg) | 6070 | passenger number in cab | 2+4 |
| whole vehicle weight(kg) | 8380 | approach/departure angle(°) | 25/15 |
| suspension Front/Rear(mm) | 1205/2135 | axle number | 2 |
| wheelbase(mm) | 4500 | axle loading(kg) | 4900/10000 |
| top speed(km/h) | 85 | ||
| NOTE | 1.the water tank of the truck can load liquid 4130kg, tank effective volume:4.130 cubic meters, tank overall dimensions (length x width x height) (mm) : 2405×1380×1300. B type foam tank can load liquid 1940kg, tank volume:1.717cbm; tank overall dimensions(length*width*height)(mm):1000*1380*1300, B type foam density is 1.13g/ml; 2.Protective materials: Q235, skirt structure , the back protective height from ground (mm) : 540. | ||
| CHASSIS TECHNICAL PARAMETERS | |||
| chassis model | EQ1141KJ | chassis name | the loading goods truck chassis(class 2) |
| brand name | Dongfeng | manufacturer | Dongfeng Automobile Co., Ltd |
| dimensions(mm) | 7600×2462×2710 | tire number | 6 |
approach/departure angle(°) | 25/18 | tire parameters | 10.00-20,10.00R20 |
| spring number on steel plate | 8/10+8 | front gauge(mm) | 1940 |
| fuel type | diesel | track rear(mm) | 1860 |
| displacement standard | GB17691-2005, national third standard(China) | ||
| engine type | manufacuture enterprise | displacement(ml) | powe(Kw) |
ISBE185 30 | Dongfeng Cummins Engine Co.,Ltd | 5900 | 136 |
ISDe180 30 | Dongfeng Cummins Engine Co.,Ltd | 4500 | 132 |
ISDe185 30
| Dongfeng Cummins Engine Co.,Ltd | 6700 | 136 |
ISDe210 30
| Dongfeng Cummins Engine Co.,Ltd | 6700 | 155 |
B190 30
| Dongfeng Cummins Engine Co.,Ltd | 5900 | 140 |
B190 33
| Dongfeng Cummins Engine Co.,Ltd | 5900 | 140 |
material of fire trucks
1.water tank material: steel,carbon steel,stainless steel, manganese steel (the material can be choosen according to our customer's request)
2.the protective material: Q235
CLASSIFICATION
1.According to appearance
single axle fire truck, double axle fire truck, flat head fire truck, convex head fire truck
2.According to the chassis brand
Dongfeng fire truck, FAW fire truck, FOTON fire truck, SHACMAN fire truck, SINOTRUK fire truck
Nude Packed and polish with wax, delivery by roro ship or bulk ship.
1. Factory Supply:
a. one of the biggest special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: can produce according to your demand, the material, the size, the color and the logo is optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: 24-hour hotline and email.
5. Fast Delivery: 1-10 days after payment, safe and quick delivery.
ChengLi Special Automobile Co.,Ltd which is appointed by the Development and Reform Committee of China is a famous manufacturer producing all kind of special trucks for 10 years. Labels registered CLW has roundly passed the ISO9001-2008 and the 3C(China Compulsory Certification).Our company has independent export right and has a lot of overseas clients. Our leading products are more than 300 kind of trucks such as Water truck, LPG truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
1. Price term: FOB, Shanghai, China.
2. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T.
3. Delivery time: 1-10 working days after payment is received.
4. Standard Steering:Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.
Contact and others
More specs , photos, price, delivery time and other need, please contact
CHENGLI SPECIAL AUTOMOBILE CO.,LTD
All our customers are becoming our good friends and long term parters.
Welcome to visit our company! Suizhou,Hubei ,China!
