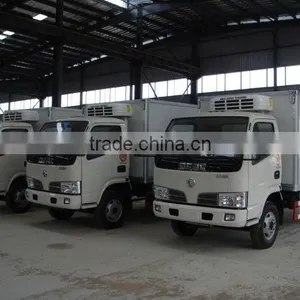

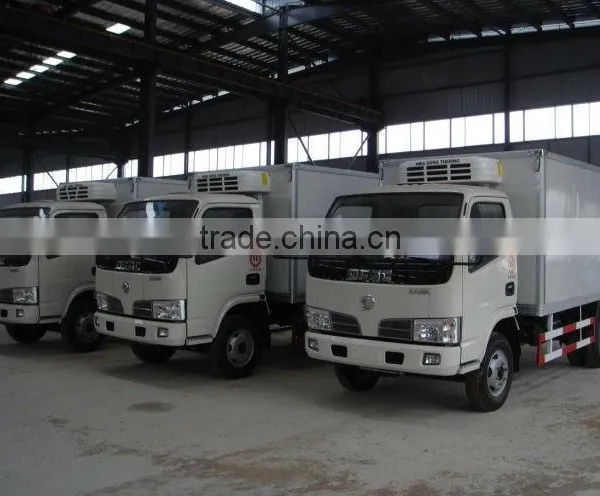

Dong-feng Xiao Ba Wang Refrigerator Truck
ⅠChassis Description
Chassis model: EQ1060TJ20D3
a) Overall dimensions: 5995x1930x2950mm
b) G.V.W: 4050 Kg
c) Mass in working order: 2455Kg
d) Fact load capacity: 3500Kg
e) Wheelbase: 3300mm
f) F/R track base: 1380/1458 mm
g) Approach/departure angle: 23/15°
h) Exhaust/hp: 2398ml/ 66Kw
i) Max. Speed: 95km/h
j) Tire specification: (6 pieces) 7.00-16
k) Engine type: CY4102-C3F,Dong-feng Chaoyang Brand
l) Number of axles: 2
m) Leaf spring:5/8+4
n) Allowable passengers in cab: 2
o) Horse Power: 90ps
Ⅱ Body Description
It is made with professional techniques and FRP compound panel. New type FRP was used as outer skin of roof, wall and door. The panel used for the van was constructed in type of sandwich. The middle layer of the sandwich is plywood or polystyrene foam. The sandwich panel is fixed to the steel frame with high strength adhesive and screws. The thermal insulation layer is 20-50mm thick, which offers a very good thermal insulation performance. The van body is tight and solid with a very high mechanical strength, smooth and nice appearance, anti-corrosion, shock-proof, standing wear and easy to be washed.
The van is built in a full close steel frame structure. All panels are adhered with high strength structural adhesive to achieve the most reliable conjunction, sealing and insulation properties. This structure is also easy and fast to be assembled.
The van feature at preserving heat, heat-insulated and can effectively minimize concussions on the basis of international new technology. It is proof to air, water, acid, alkali, salt and some other caustic materials.
(1)Van body dimension of this truck is as following:
LxWxH: 4150x1750x1720mm
The van is with two full opening doors at the real part. While the customer can choose side door at the side wall of the van .
Ⅲ Truck refrigerator
Temperature scope: 15~-18 degree
Refrigerator Type: DT-150S
Evaporator
Main parameters for DT-150S
Unit model | DT-150S | ||
Applicable temperature (°C) | -5~-18 | ||
Applicable volume(m3) | 4-6 | ||
Cooling capacity | Environmental temperature | 0°C | 2850 |
-18°C | 1450 | ||
Voltage (V) | 12/24 | ||
Current (A) | 27/17 | ||
compressor | Displacement (cc/r) | 105 | |
condenser | Air flow (m3/h) | 550 | |
Fan type | Axial fan | ||
number | 1 | ||
evaporator | Air flow (m3/h) | 1000 | |
Fan type | Axial fan | ||
number | 2 | ||
refrigerant | R134a/R404a | ||
Refrigerant charge amount(Kg) | 0.8 | ||
Defrost type | Hot gas defrost | ||
Dimensions(mm) | evaporator | 575x425x170 | |
Condensing utensil | 910x385x170 | ||
Weight(KG) | evaporator | 12 | |
Condensing utensil | 23 | ||
Remark | Optional to install for 380v store electric power | ||
