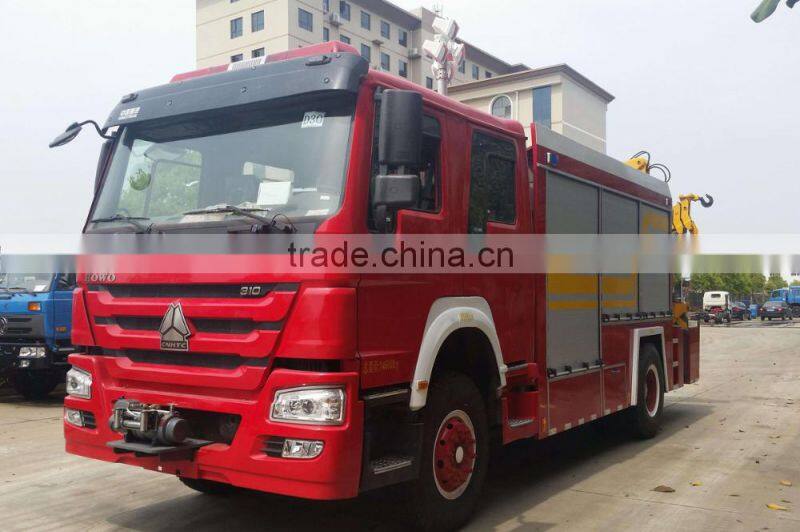

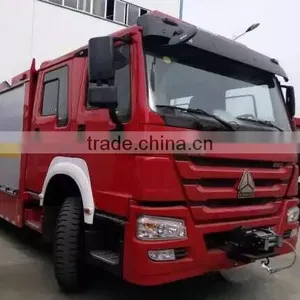

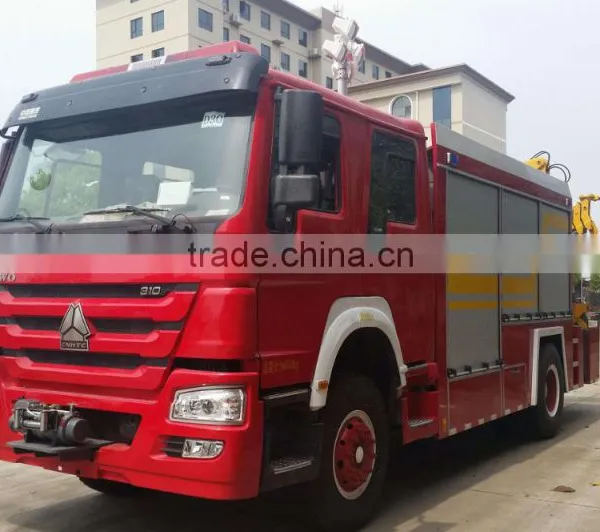

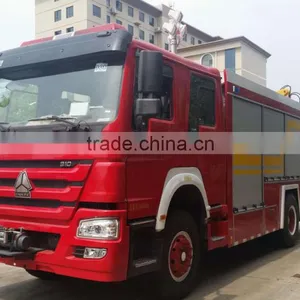

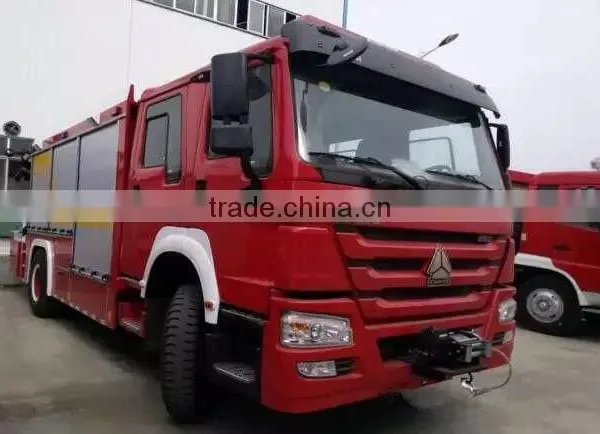

Fire Department Pumper Connection Fire Fighting Truck Price with 6000Kg Fire Truck Water Capacity
| Main Technical Parameters | |
| Overall | |
| Product name | Fire Department Pumper Connection Fire Fighting Truck |
| Model | CLWZZF17419-FTP |
| Overall size (mm) | 10160*2500*3660 |
| Total capacity(kg) | 6000 |
| Max / Curb weight(kg) | 25000 / 19000 |
| Engine | |
| Engine model/type | MC11.36 |
| Emission standard | Euro3 |
| Power(KW/HP) | 268/360 |
| Displacement (L) | 10518 |
| Chassis | |
| Chassis brand | SINOTRUK |
| Chassis model | ZZ2257N4657 |
| Wheelbase (mm) | 4600+1400 |
| Driving type | 6×4 |
| Tire | 14.00R20 |
| Driving room | Double row seats(6 seats; suitable for 6 people) |
| Highest speed(km/h) | 90 |
| Spring quantity | 4;12 |
| Front/ Rear tread(mm) | 2087/2087 |
| Front/Rear suspension(mm) | 1578/2152 |
| Approach/Departure angle | 31/12(°) |
| PTO | Full power sandwich type |
| Fire fighting system | |
| Water tank capacity(kg) | 6000 |

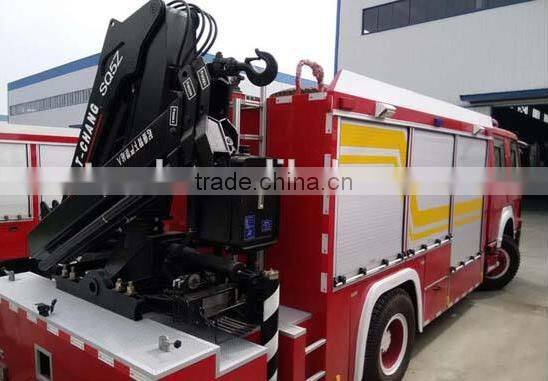

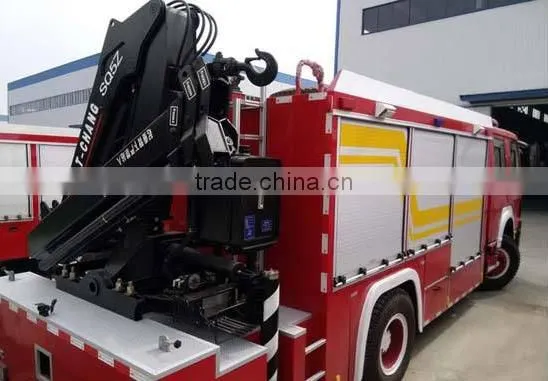

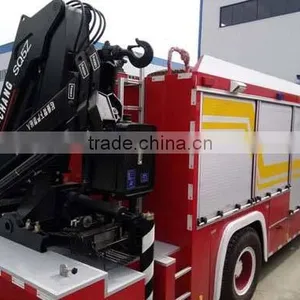

| Crane type | Folding arm type |

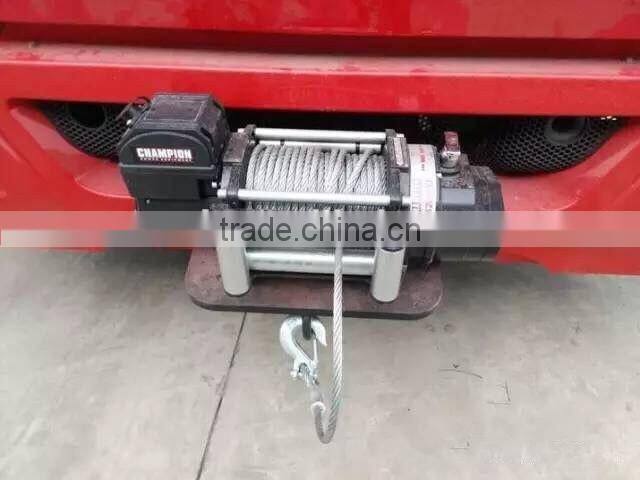

| Capstan | Hydraulic or electrodynamic type |
| Generator | Axle bag type or independent |
| Dry powder tank material | 16MnR steel |
| Dry powder gun model | PF30 |
| Water pump model | CB10/40 |
| Water gun model | PL32;Adjustable multi-fuction water gun |
| Speed of flow | 32L/s |
| Flightshot(m) | Water ≥60 |
| Foam ≥55 | |
| Turning angle(degree) | Level:360 |
| Elevation:-30 to 80 | |
| Lenghth of Sebific duct(m) | 40m |
| water suction time/Depth | ≤50s /≥7m |
| Design/Work/Open pressure(MPa) | 1.7 / 1.4 / 1.4MPa |
| Vacuum drop value per minuter(kPa) | ≤2.6 |
| Maximum vacuum degree(kPa) | ≥85 |
--- Packing: Waxed or nude
--- Shipping: in RO-ROship or bulk ship
CLW GROUP
ChengLi Special Automobile Co.,Ltd, is the headquarter of CLW GROUP. We are the biggest manufacture of Special Purpose Vehicles in Suizhou city. And Suizhou city is the biggest Chinese production base of special purpose vehicles.
CLW is our trademark. As the biggest manufacture in Suizhou city, we have been awarded many honors, for example, CLW Group is the 19th in the top 100 private enterprises in Hubei province. CLW Group is also 500 private enterprises in China."High-tech enterprises in Hubei province", " Best credit enterprises".CLW sprinkler truck was named "Hubei famous brand"; "CLW" won the Hubei famous brand, A Well-Known Trademark in China.
Our leading products include Water truck, Fire truck, Garbage truck, LPG vessel/truck/trailer, Refrigerator truck, Dump truck, Concrete mixer truck , Sewage truck, Crane Truck, Van truck, etc.
With high quality and low price, our products are widely exported to Africa, Asia and South America every year.
1. Is your company a factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Any more questions,please feel free to contact me directly!
