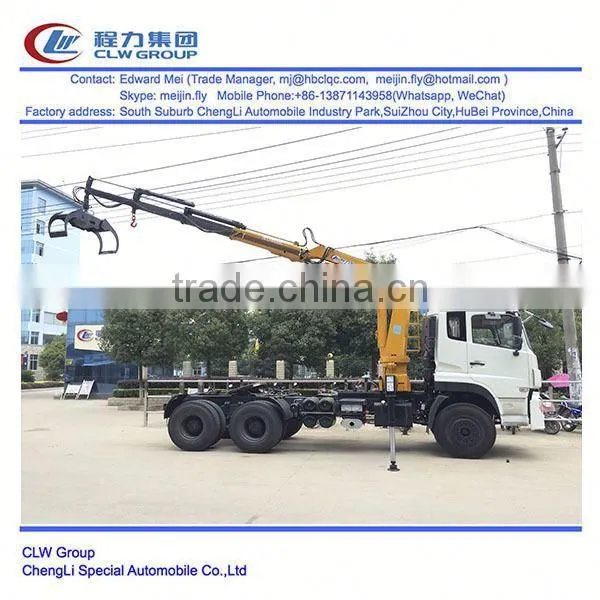

Dongfeng 6*4 truck tractor with crane 200 ton liebherr truck crane
CLW Group, CLW Special Automobile Co.,Ltd, which is a big and famous special function truck manufactuere in China, We produce many kind of special vehicles, also include the Truck mounted crane, Crane Truck,mobile crane Truck, This kind of special truck is mainly used for transporting cargo.
In order to Convenient transporting, it install the crane to lifting the cargo. crane style model foldable,telescope.
Currently our company produce the Crane truck from 3 tons~40 tons model.

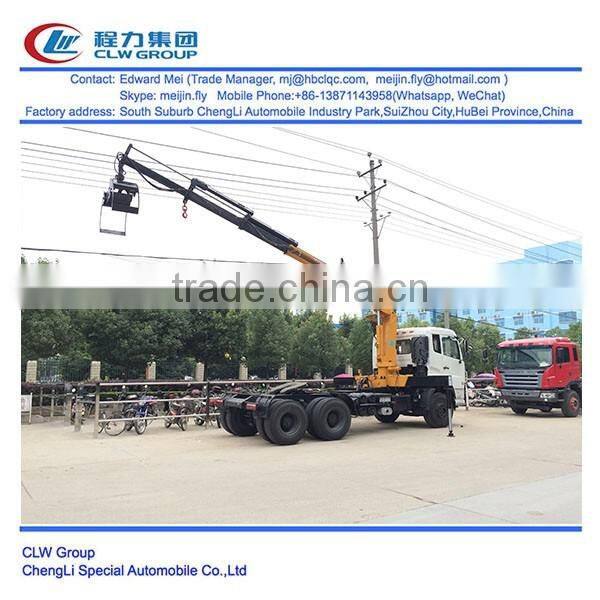

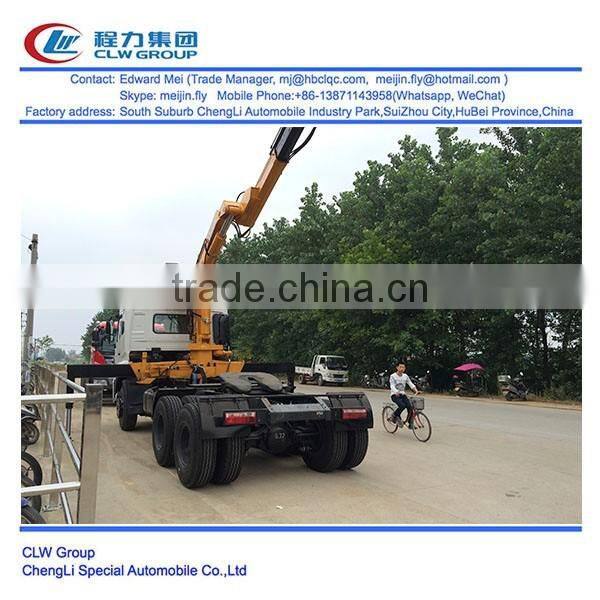

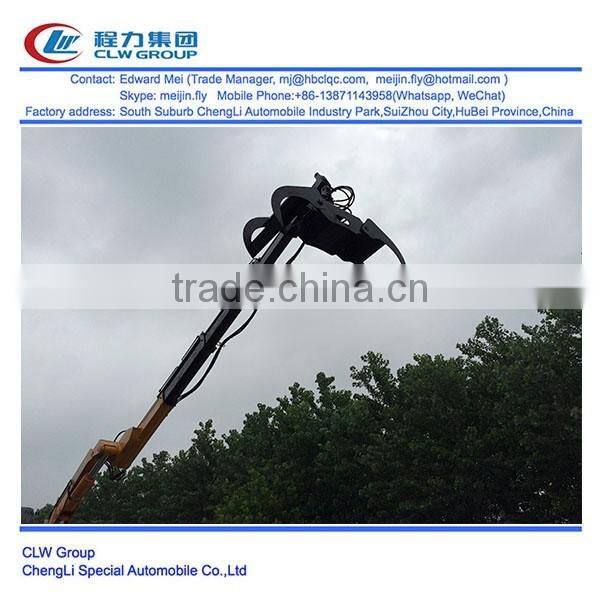

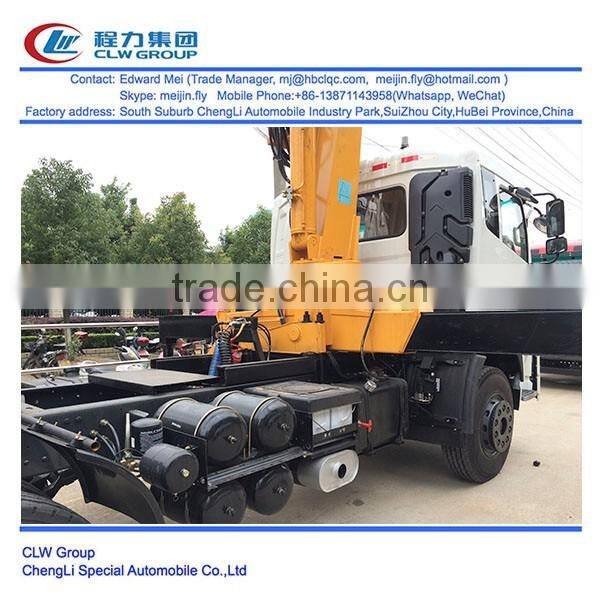

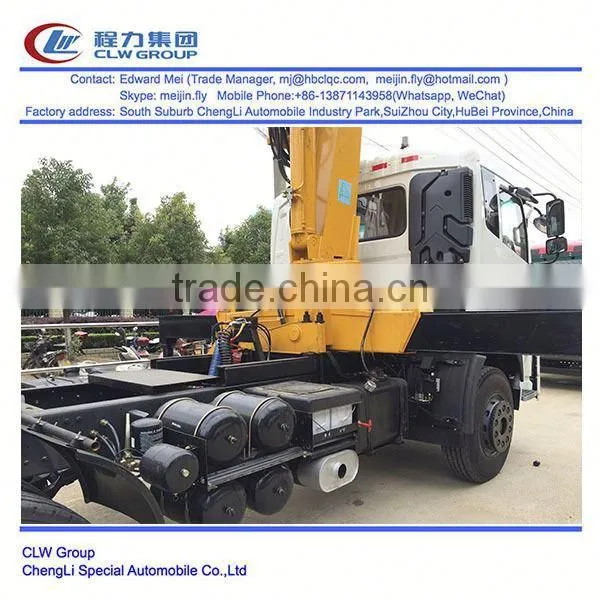

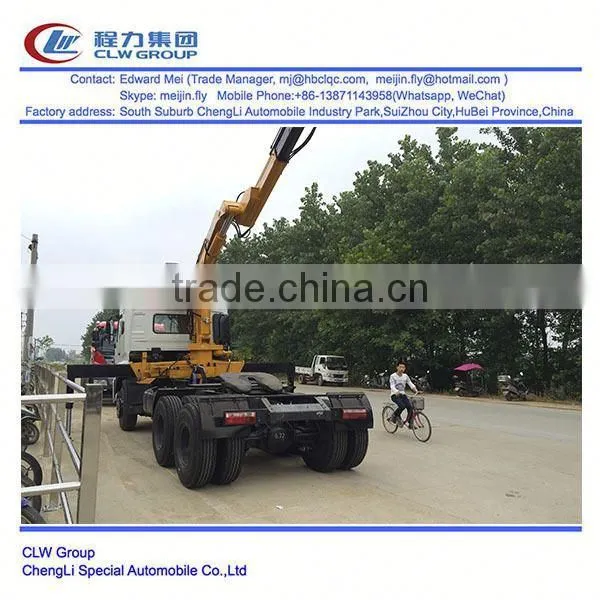

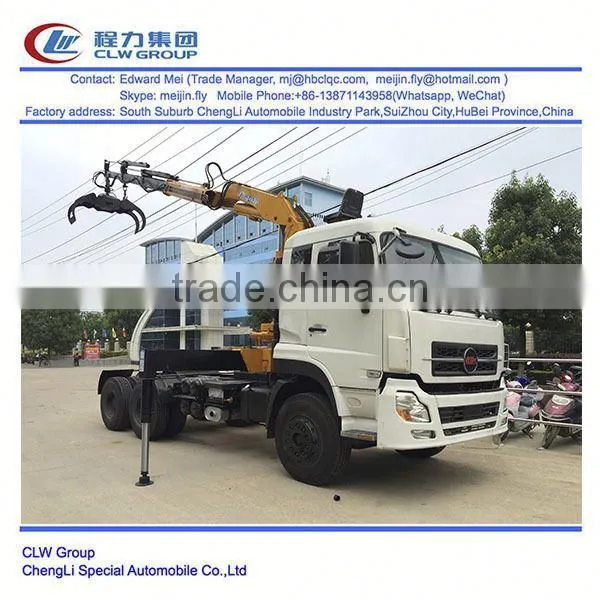

Dongfeng 6*4 truck tractor with crane 200 ton liebherr truck crane
| Item | Unit | Description | ||||||||
| Model | Dongfeng brand Truck mounted crane | |||||||||
| Dimension | mm | 7060*2500*3700 | ||||||||
| Curb Weight | Kg | 11200 | ||||||||
| Tow Design | Kg | 40000 | ||||||||
| Wheel Base | mm | 3400+1350 | ||||||||
| F/R track base | mm | 2027 / 1820 | ||||||||
| F/R Axle-Load | Kg | 7000 / 13000 / 13000 | ||||||||
| Suspension | Steel Spring | |||||||||
| Approach/Departure angle | . | 18 / 32 | ||||||||
| Traction system | Type | 6*4 | ||||||||
| Tire Specification | Model | 11.00R20 , 10 Unit +1 Spare Unit | ||||||||
| Max speed | Km/h | 85 | ||||||||
| Engine | Model | L340 | ||||||||
| Emission/Kw | 8900 cc, 250 Kw / 2100 r | |||||||||
| Horse Power | 340 Hp | |||||||||
| Power | 1425 N.m / 1100~1400 r/min | |||||||||
| Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
| Brand | Dongfeng Cummins Brand Engine | |||||||||
| Gear box | model | 12F & 2R with Synchronizer , Manual | ||||||||
| Brand | China Shanxi Gear box , 12JS160TA OD | |||||||||
| Clutch | Type | ¢430mm ,Hydraulic control with air booster, pulling | ||||||||
| Electronic | V | 24 | ||||||||
| Fuel Tank | Liter | 400 | ||||||||
| Brake System | Type | Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles , exhaust brake,ABS | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Electricity Reversable, Electricity Windows, | |||||||||
| Steering | Type | Powering | ||||||||
| Installing | LHD or RHD | |||||||||
| Fifth Wheel | Model | 50# or 90 # | ||||||||
| Air Condition | Yes | Radio, CD. | ||||||||
| Crane Specification | ||||||||||
| Model | Range(radius) | height | ||||||||
| SQS200 | 11.5 m | 13.5 m | ||||||||
| 8 Ton Crane, Support Leg , H Type, Front Two Legs, 5.4 m | ||||||||||
| brand , Four Arms | ||||||||||
| Length | 2.5 m | 6 m | 13.5 m | |||||||
| Lifting | 8000 kg | 3000 kg | 500 kg | |||||||
Dongfeng 6*4 truck tractor with crane 200 ton liebherr truck crane
Transporting mainly by Bulk ship and RORO ship.

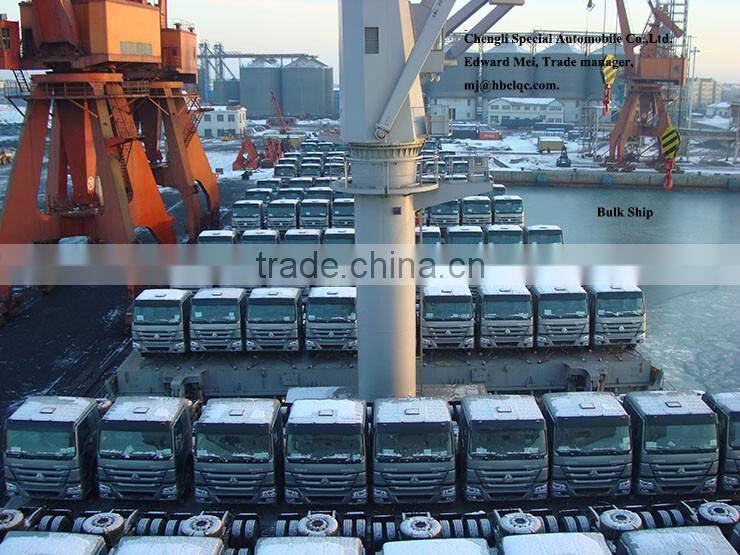

1. Bulk Ship loading photo showing.

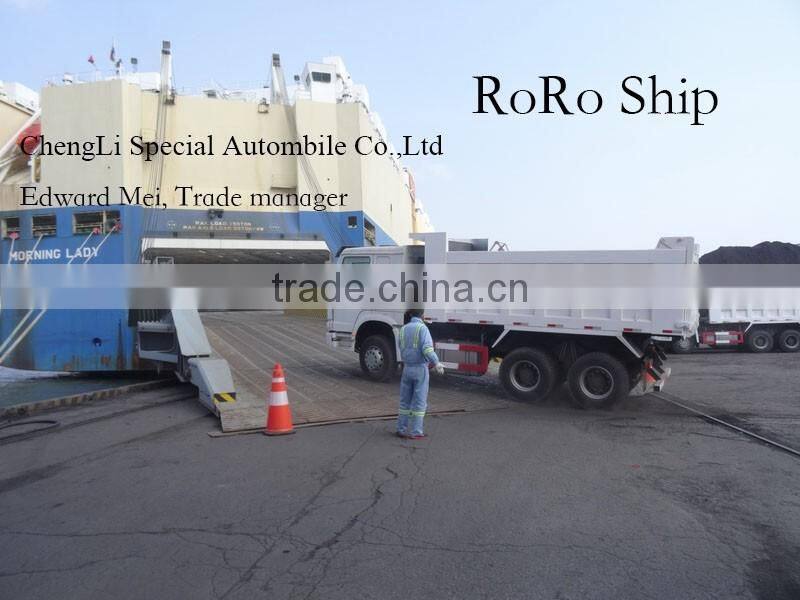

2. RORO Shipping loading photo showing.

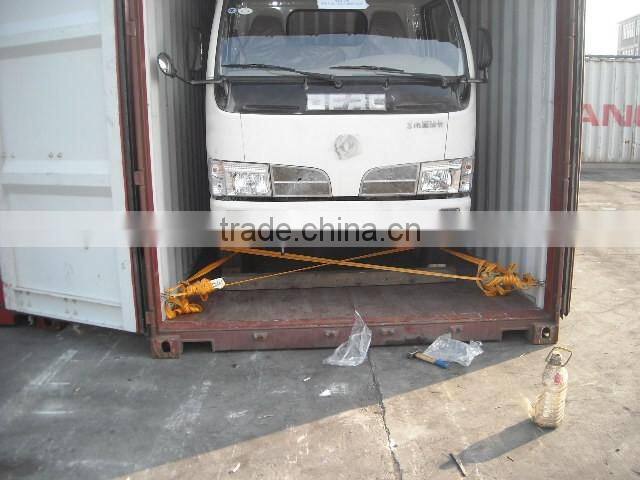

3. Special loading method, Some truck could loading into a container, GP type or HQ type container.

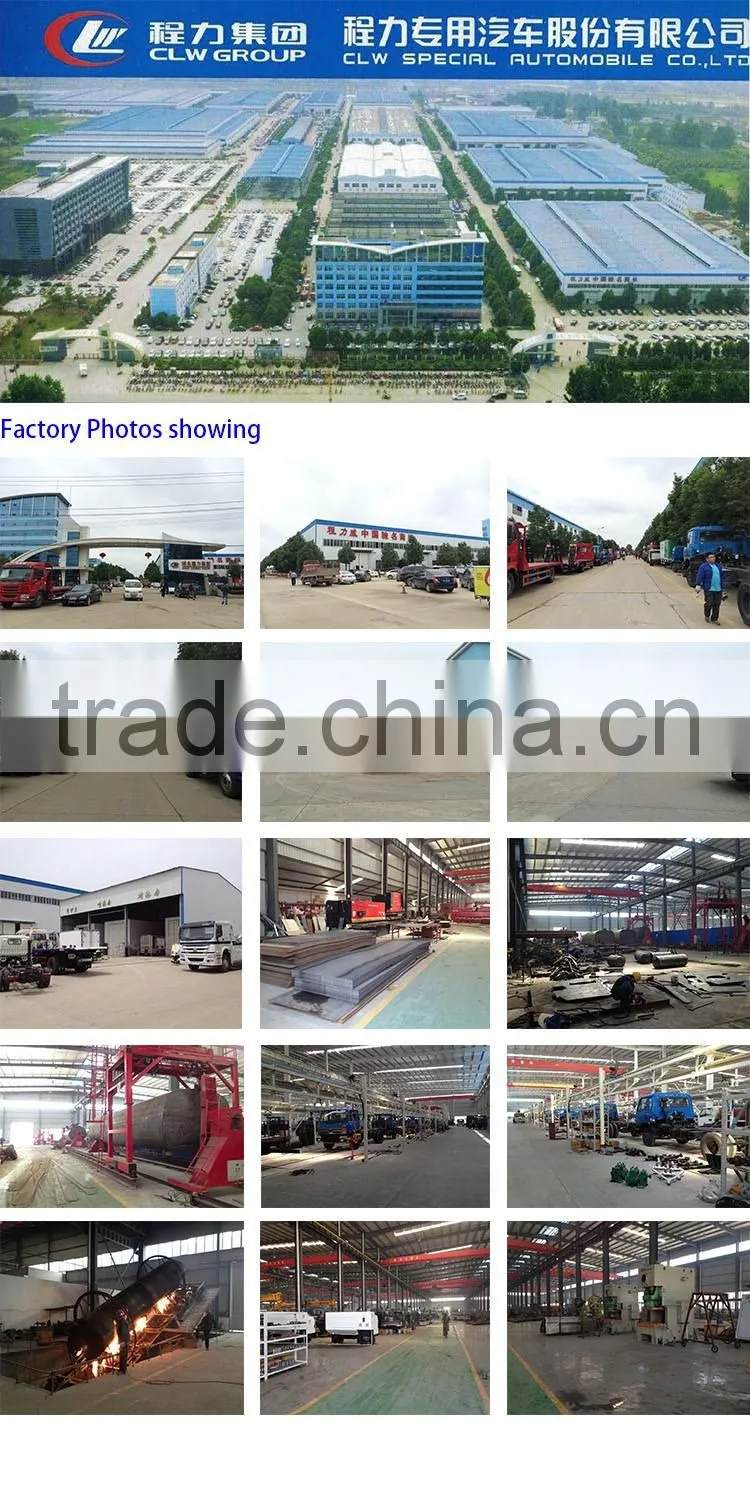

Our company is a big and famous special function truck manufacturer in China, We produce many kind of trucks, water tank truck
oil tank truck, oil tank trailer.
Vaccum suction truck.
Garbage Truck
high platform working truck.
Dump truck.
concrete mixer truck, concrete pump truck.
Refrigerator truck.
Wrecker truck.
Road sweeper truck.
Chemical liquid transporting truck.
All kind of semi trailer.
LPG gas tank, LPG truck and trailer.
Fire fighting truck.
Welcome to your inquiry.
CLW Group--- ChengLi Special Automobile Co.,Ltd
1. What do we do ?
We are an integreted special truck manufacturer and sale. all trucks are new customized according to customer requirement.
2.Is there any branch Company in oversea ?
Currently there is no oversea branch.
3.What's your warranty of your product ?
One year warranty time or 10000 Km driven.
4. How to buy a truck from your company ?
Welcome to your inquiry about our trucks, firstly please check with the sales manager for your demand in detail, then sales manager will make an offer to you according to your demand, If offer is acceptable, sales manager will send you proforma Invoice which will show our company account( we never provide personal account for customer), Please make the Transfer to our company account, then we will arrange production when confirming.
5. What about the payment method ?
We accept T/T, and L/C.
T/T 30 % in advance, we could arrange production, then left 70% should be done before truck loading on ship.
