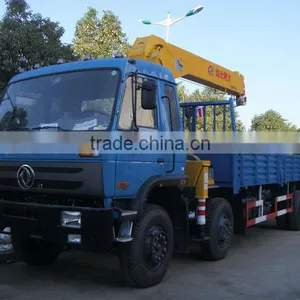

Dongfeng 15 Tons Truck Mounted Crane, Dongfeng 15 Tons Mobile Crane Truck, Dongfeng 15 Tons Telescoped Crane Truck

Chengli Special Automobile Co., Ltd.

US$ 10,000 - 45,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

1~20T

Rated Loading Capacity:

15T

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1~20T

Rated Loading Capacity 15T

Rated Lifting Moment 5000NS

Max. Lifting Load 12T

Max. Lifting Height 13m

Span 12m

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW

Certification CCC ,ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

dong feng 15 tons truck mounted crane, dongfeng 15 tons mobile crane truck, dongfeng 15 tons telescoped crane truck

Item	Unit	Description
Model		CLW5253JSQ3 Truck mounted Crane
Dimension	mm	1120025003850
Box dimension	mm	78002294550
Curb Weight	kg	10705
Loading Weight	Kg	Around 12 kg
Wheel Base	mm	1950+4550
F/R track base	mm	1940/1860
F/R Axles Loading	Kg	5000/5000/10000
Approach/Departure angle	.	22/11
Traction system	6x2	Tire Specification/Number	10.00-20 / 8 Units
Max speed	85 km/h	Number of axles	2
Engine model	B210-33	Emission/kw	5900ml /155 Kw , 210 Hp
	Diesel, 6 cylinders, direct-line, turbocharge-aftercooling
Engine brand	Dong Feng Cummins Engine Co.,Ltd
Operation control system	Electrically hydraulic	Transmission	6 speed with over drive
Cab passenger	3	Electric System	24V
Driven System	Left hand Or Right hand
Remark	Power steering. Fuel Tank : 250L , Color~ Option. Option~ 340 USD if installing air condition. Option~ Could also add dump function


Equipment
Original crane model	SQ16SA4	Option model	TO be Confirmed
16 tons, Five arms(two extendible arm)
