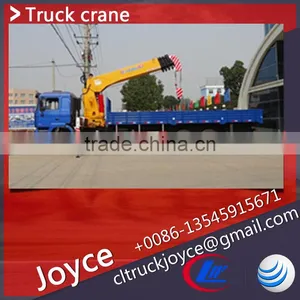

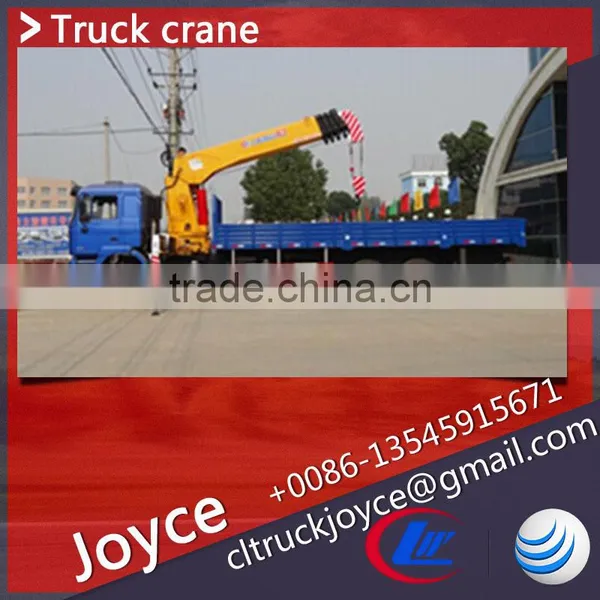

20-25 Ton Used Cranes for Sale in Dubai,new Truck Crane Price,rc Truck Crane

Chengli Special Automobile Co., Ltd.

US$ 29,000 - 35,500 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

construction,engineering,etc.

Rated Loading Capacity:

35000KG,15000

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction,engineering,etc.

Rated Loading Capacity 35000KG,15000

Rated Lifting Moment 60T*M

Max. Lifting Load 25 ton

Max. Lifting Height 14.7m

Span 12m

Place of Origin Hubei, China

Brand Name CLW

Model Number SQA25

Certification ISO & CCC &BV,ISO,CCC

Warranty 12monthes

After-sales Service Provided Overseas third-party support available

20-25 ton used cranes for sale in dubai,new truck crane price,rc truck crane

Truck crane Lifting height 25000

Maximum lifting weight 25000

engine capacity 9726ml horse power 336hp

Item	Unit	Description
Model		CLW5311JSQB3 Truck mounted Crane
Dimension	mm	1198025003500
Box dimension	mm	84002326800
Curb Weight	kg	17000
Loading Weight	Kg	Around 35000 kg
Wheel Base	mm	1800+4500+1350
F/R track base	mm	1939/1939, 1830/1830
F/R Axles Loading	Kg	6500/6500/13000 ( Two 13 tons axles concatenation of STR brand)
Approach/Departure angle	.	28/20
Traction system	8x4	Tire Specification/Number	12.00R20 / 12 Units
Max speed	85 km/h	Number of axles	4
Engine model	WP10.336	Emission/kw	9726ml /247Kw , 336 Hp
	Diesel, 6 cylinders, direct-line, turbocharge-after cooling
Engine brand	Weichai Power Engine Co.,Ltd
Operation control system	Electrically hydraulic	Transmission	9JS135, 9F&2R
Cab passenger	3	Electric System	24V
Driven System	Left hand
Remark	ZF8098 Power steering. Fuel Tank : 600L , Color~ Option.
	installing air condition.
	Option~ Could also add dump function
Equipment
Original crane model	SQSQ25ZA3	Option model	TO be Confirmed
25 tons, Five arms (Four extendable arms)
