CLW 3 axles 44000 Liter Fuel Tank Trailer
44000 Liter Fuel Tank Trailer is also called Multi-axis Fuel Trailer , Multiaxial Transport Semitrailer ,Semi -trailer truck ,semitrailer transport truck,is widely used in transporting kinds of van or tank container or tanker. It has large loading volume , efficient ,time-saving,etc features.
Production notes:
1 Factory direct sale
2 Competitive price
3 FUWA/ BPW axle
4 Optional European standard system, more warehouse to load different oil
5 with DONGFENG, FAW, SHACMAN,GENLVON, OUMAN, HOWO,HOWOA7, etc tractor, use more convenient
Main Parameter of CLW 3 Axles 44000 Liter fuel tank trailer
Main Technical parameter | |||
Product Model | CLW 44000 Liter Fuel Tank Trailer | Overall Dimension(L*W*H)(mm) | 12980×2500×3820 |
Tank Volume(L) | 44000 | Tank Dimension(mm) | Front-end(4200×2480×1800) rear-end(8300×2480×2000) |
Curb weight(kg) | 10150 | Approach/ departure angle (° ) | -/16 |
Payload(kg) | Approx 30000 | Leaf Spring number: | -/8/8/8 |
Axle number | 3 | Front/Rear axle load(Kg) | -/39000 (three-axis combined) |
Wheelbase(mm) | 7200+1310+1310 | Rear tread(mm) | 1840/1840/1840 |
Tire size | 11.00R20 12PR or 12R22.5 | Number of Tire: | 12 |
Warranty | 12 months, from the date of supply | ||

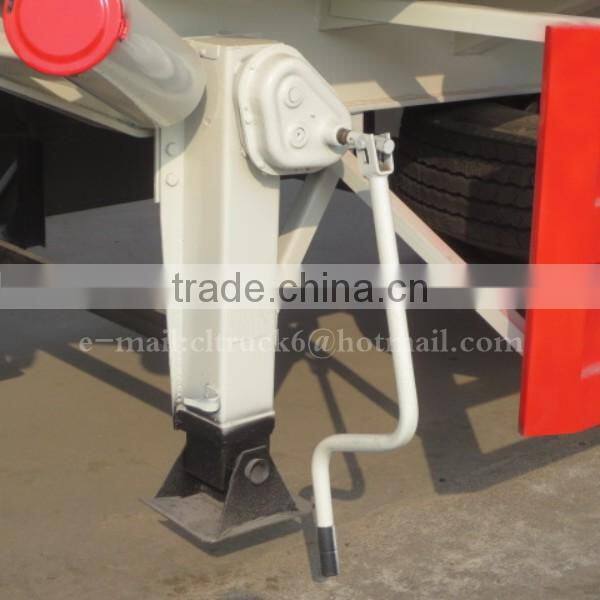

Remarks | 1. Tank material: 5mm carbon steel Q235, tank material optional stainless steel, Aluminum Alloy, 90# King pin ,28ton manual FUWA outrigger, 3 FUWA axles; | ||

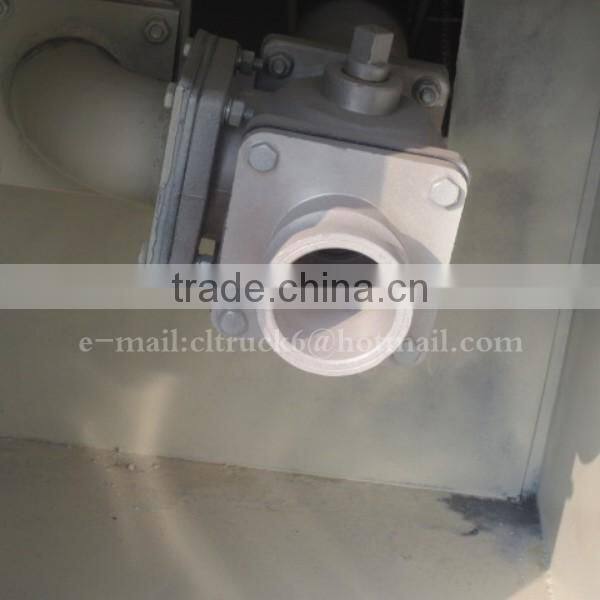

2. Equipped with 2 oil pipe, two Gravity mouth ,one tool box, two fire extinguisher, ground wire | |||
3. Protective material: carbon steel, storage medium: gasoline, etc | |||
4. This trailer can be separated more warehouses, load different fuel | |||
5 Optional equipped with. bottom filling system, oil and gas recovery system | |||

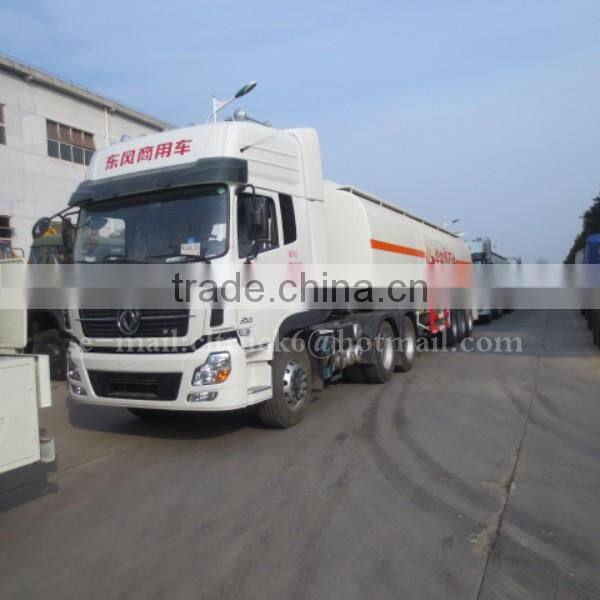

Main Parameter of 375Hp DONGFENG New design 6*4 truck trailer head
Main Technical Parameter | |||
Product Model | DONGFENGtruck trailer head | Overall Dimension(L*W*H)(mm) | 6960×2500×3700 |
Curb weight(kg) | 8800 | Total Mass of Quasi-trailer(Kg) | 40000 |
Wheelbase(mm) | 3300+1350 | Axle number | 3 |
Steering Type | LHD with Power steering | Max Speed (km/h) | 95 |
Approach/ departure angle (° ) | 18/32 | Front/ rear suspension(mm) | 1500/810 |
Cab capacity | 2,3 | Cab Type | High proof with two sleeper,air conditioning |
Chassis Technical Parameter | |||
Product Model | DFL4250 | Manufacturer | DONGFENG Motor Co., Ltd |
Gear Box | ZF Ecosplit 16S1650 (Fuller 16 speeds and 2 reserve | Transmission type: | Manual |
Brake System | Double-circulate brake system with ABS | Traction Type: | 6*4 |
Leaf Spring number: | 3/4,3/10 | Front/Rear axle load(Kg) | 7000/13000( rear two axles combined) |
Tire size | 315/80R22.5(vacuum tire) | Number of tire | 10 with a spare |
Engine specification | |||
Engine Model: | dCi375-30 (Six-cylinder in-line, four-stroke, four-valve, common rail direct injection, turbocharged and intercooled) | Engine Brand | DONGFENG ( technology from France Renault) |
Emission stand | Euro 3 | Displacement(ml) | 11120 |
Fuel type: | Diesel | Power(kw) | 276(375HP) |
Other equipment | 1.Gear Box optional FAST 12JS180TA(Fuller 12 speeds and 2 reserve) | ||
2.Equipped with ABS and driving recorder , 90# saddle | |||
3.Optional Equipped with speed limit device, (Limit speed 80km/h) | |||
Warranty | 12 months, from the date of supply | ||

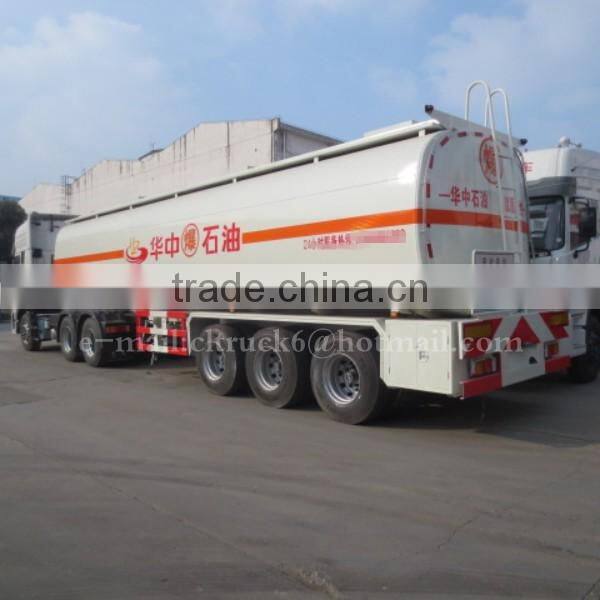

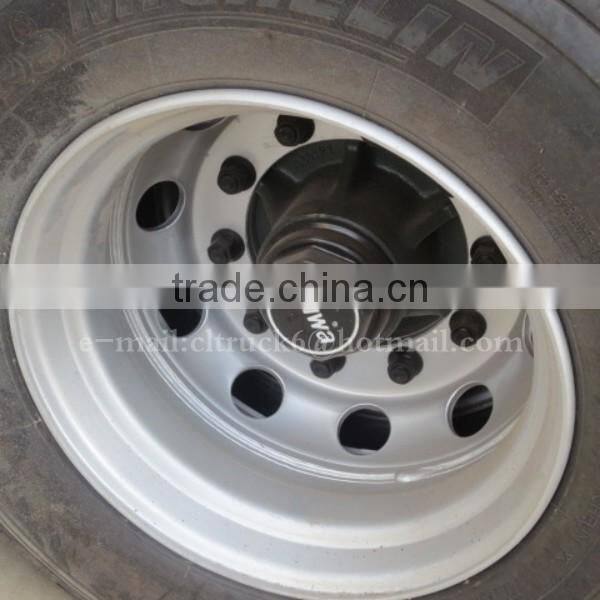

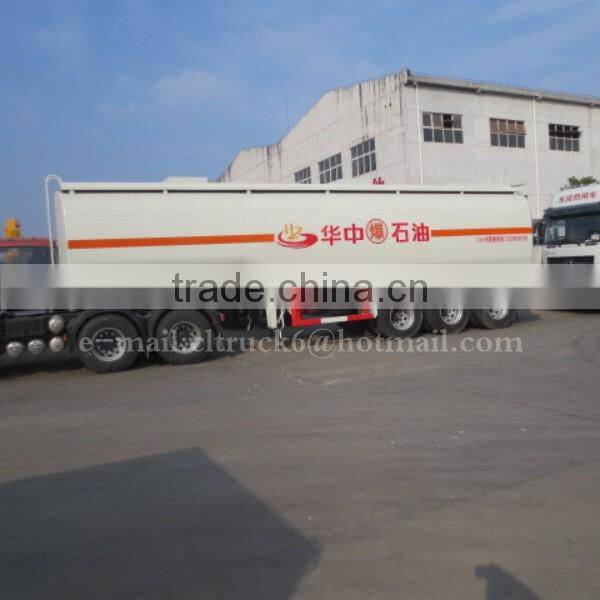

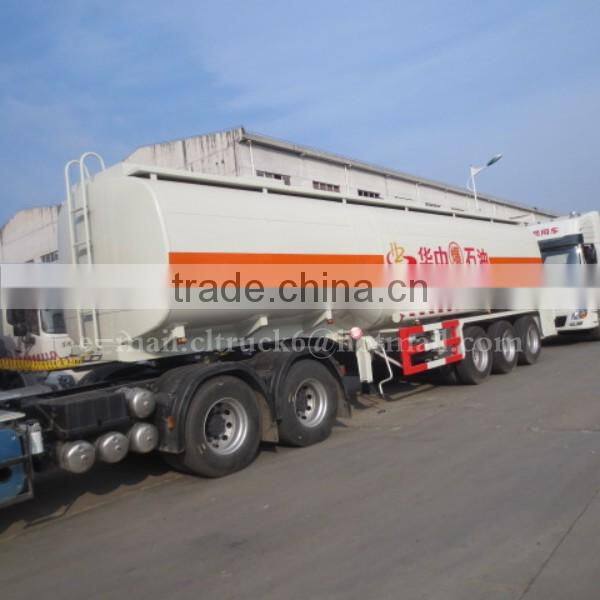

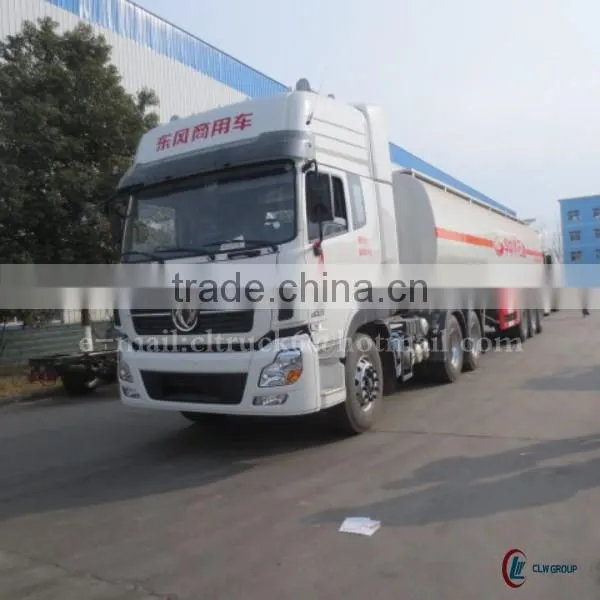

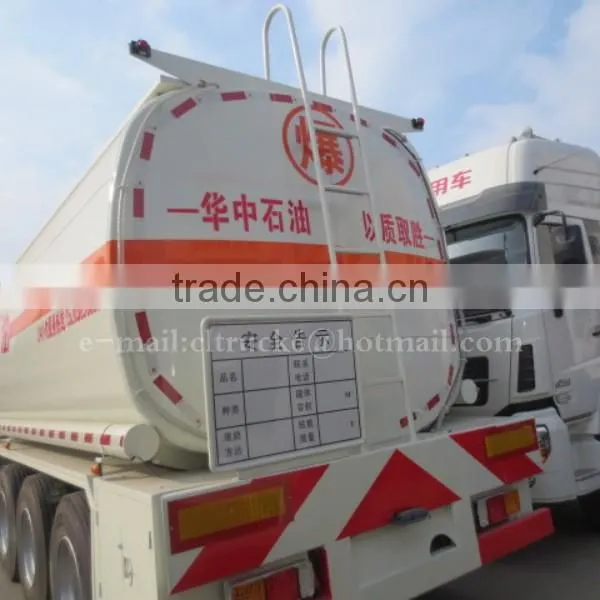

More Picture of CLW 3 Axles 44000 Liter fuel tank trailer :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our certificates;

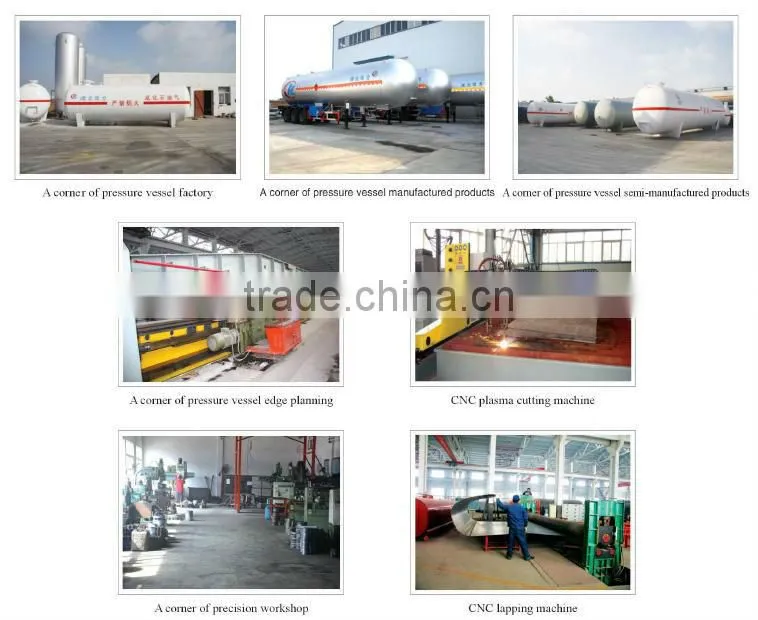

Production Equipments:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
