Home > Transportation > Trailer > Truck Trailer > 45 m3 Oil Tanker Semi Trailer 3 Axles

45 m3 Oil Tanker Semi Trailer 3 Axles

Chengli Special Automobile Co., Ltd.

45 m3 Oil Tanker Semi Trailer 3 Axles photo-1

US$ 10,000 - 48,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, 3C

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification Other, 3C

Size 12000*2500*3750

OEM No. CLW9404

Max Payload 40000

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW9404GYY

45 m³ Oil Tanker Semi Trailer 3 axles

Oil Tanker Semi Trailer is also called cargo semitrailer ,mobile transport truck,tanker truck semitrailer,etc, widely used in transporting and discharging gasline, diesel and other fuel product. We can supply tanker ranged from 4000L to 45000L,Tanker Semitrailer ranged from 30000L to 6000L. Experience of ten years of manufacturing pressure vessel ensure reliable quality. Use this type of semitrailer can improve transport efficiency 30-50%, reduce cost 30% -40%, reduce fuel consumption 20%- 30%.

Main Technical Parameter of 45 m^3 _OilTanker Semi Trailer 3 Axles

Product Model	CLW Oil Tanker Semi Trailer	*Overall Dimension(LWH)(mm)*	12000×2500×3750
Tank Volume(m³)	45	Tank Dimension(mm)	Front-end(385024901900) rear-end(765024902150)
Gross weight (kg)	40000	Approach/ departure angle (° )	-/16
Payload(kg)	31000	Front/ rear suspension(mm)	-/2000
Curb weight(kg)	9000	Leaf Spring number:	-/8/8/8,-/-/-/-,-/4/4/4
Axle number	3	Front/Rear axle load(Kgs)	-/24000(three-axis combined)
Wheelbase(mm)	6000+1310+1310	Rear tread(mm)	2040/2040/2040
Tire size	425/65R22.5 18PR,425/65R22.5 20PR	Tire No:	12 with a spare
Warranty	12 months, from the date of supply
Remarks	1.Protective material: carbon steel, storage medium: gasline
	2.Use the tractor equipped with speed limit device better
	3.Tank material: 6mm carbon steel, 90mm saddle

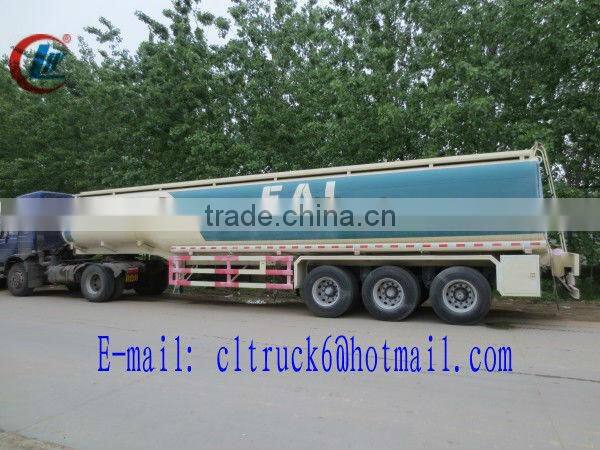

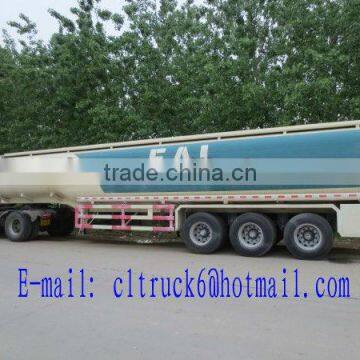

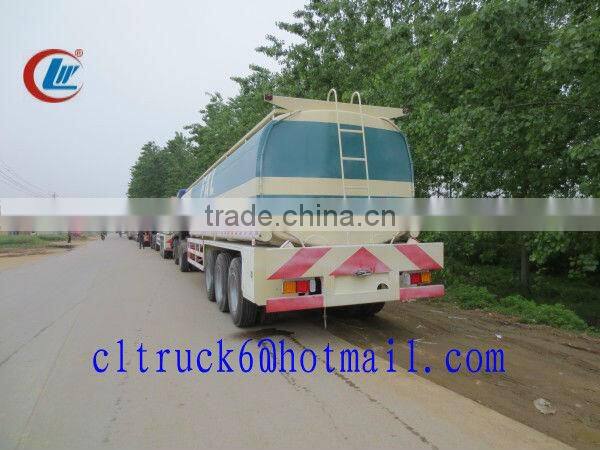

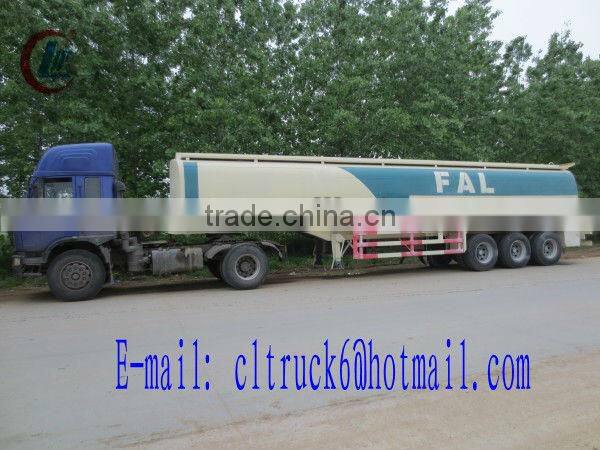

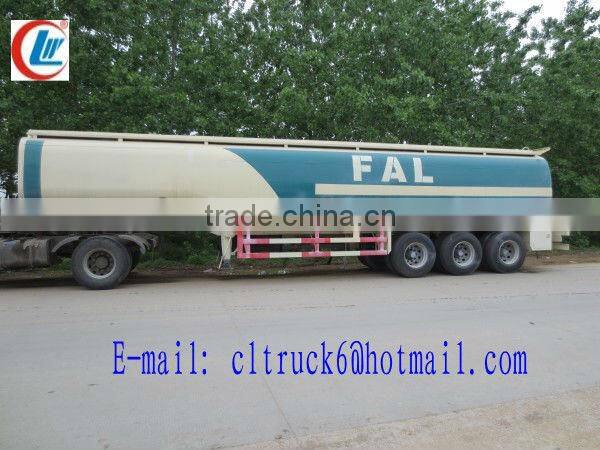

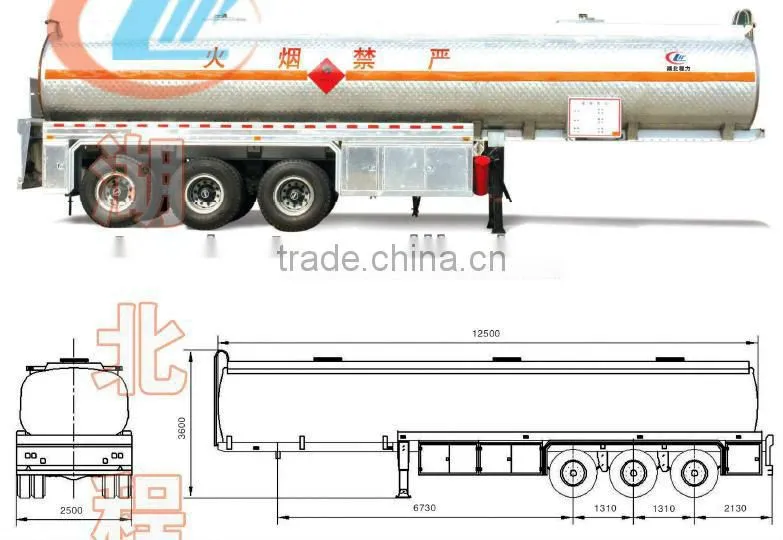

This Oil Tanker Semi Trailer show as following:

Breif Introduction of Company:

ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.

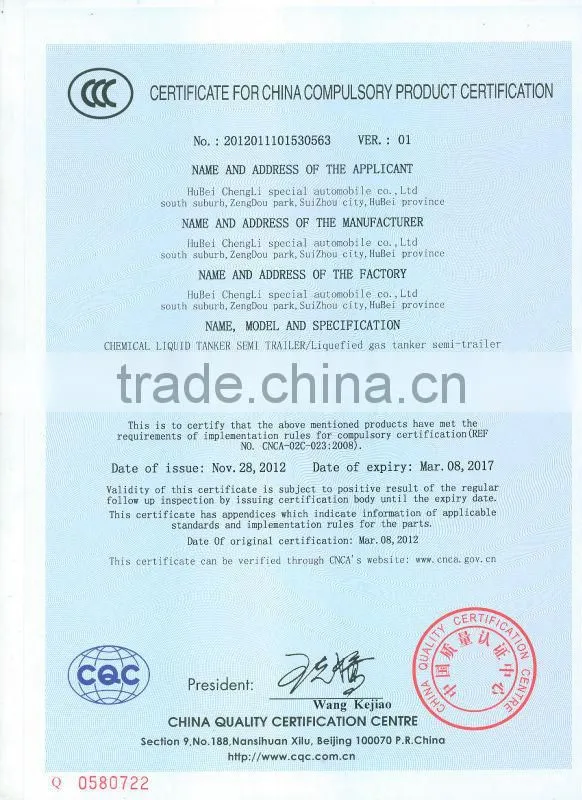

Our certificates;

Production Equippments:

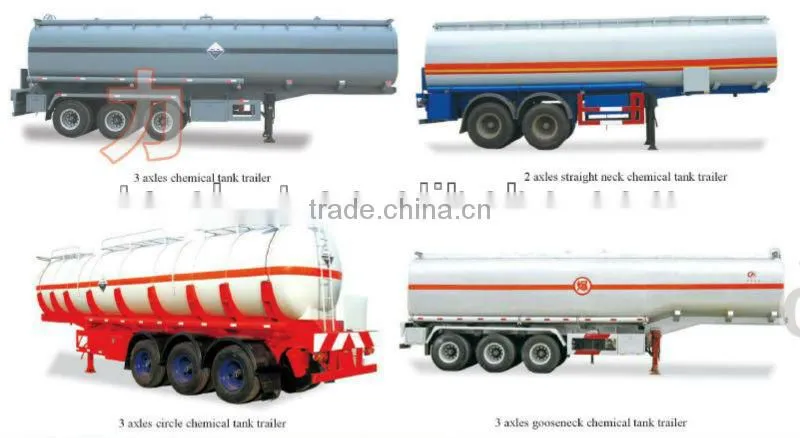

Oil Tranker Semi Trailer series:

If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
