375hp DONGFENG Kinland 6*4 Tractor Truck Head
Tractor Truck Head is called Tractor Trailer, Tractor truck ,terminal tractor truck ,semitrailer tractor.It always support the use of semi trailer, is widely used in transporting large volume, heavy quality, big bulk of the material. The tractor and the semitrailer is used simultaneously, can improve 30%-50% transport efficiency , reduce 30%-40% cost ,reduce 20%-30% fuel consumtion.
Product notes:
1 New design DONGFENG Kinland 6*4 chassis with flat proof with air conditioning cab
2 Competitive price
3 Reliable quality, France Renault technology engine, 375hp
4 Max towing 60ton
5 Engergy Efficient, Lightweight design, comfort, maintenance convenience
Main Technical Parameter of 375hp DONGFENG Kinland 6*4 Tractor Truck Head
Main Technical Parameter | |||
Product Model | DONGFENG Tractor Truck Head | Overall Dimension(L*W*H)(mm) | 6960×2500×3700 |
Curb weight(kg) | 8800 | Total Mass of Quasi-trailer(Kg) | 60000 |
Wheelbase(mm) | 3300+1350 | Axle number | 3 |
Steering Type | LHD with Power steering | Max Speed (km/h) | 95 |
Approach/ departure angle (° ) | 18/32 | Front/ rear suspension(mm) | 1500/810 |
Cab capacity | 2,3 | Cab Type | High proof with two sleeper,air conditioning |
Chassis Technical Parameter | |||
Product Model | DFL4250 | Manufacturer | DONGFENG Motor Co., Ltd |
Gear Box | ZF Ecosplit 16S1650 (Fuller 16 speeds and 2 reserve | Transmission type: | Manual |
Brake System | Double-circulate brake system with ABS | Traction Type: | 6*4 |
Leaf Spring number: | 3/4,3/10 | Front/Rear axle load(Kg) | 7000/13000( rear two axles combined) |
Tire size | 315/80R22.5(vacuum tire) | Number of tire | 10 with a spare |
Engine specification | |||
Engine Model: | dCi375-30 (Six-cylinder in-line, four-stroke, four-valve, common rail direct injection, turbocharged and intercooled) | Engine Brand | DONGFENG ( technology from France Renault) |
Emission stand | Euro 3 | Displacement(ml) | 11120 |
Fuel type: | Diesel | Power(kw) | 276(375HP) |
Other equipment | 1.Gear Box optional FAST 12JS180TA(Fuller 12 speeds and 2 reserve) | ||
2.Equipped with ABS and driving recorder , 90# saddle | |||
3.Optional Equipped with speed limit device, (Limit speed 80km/h) | |||
Warranty | 12 months, from the date of supply | ||

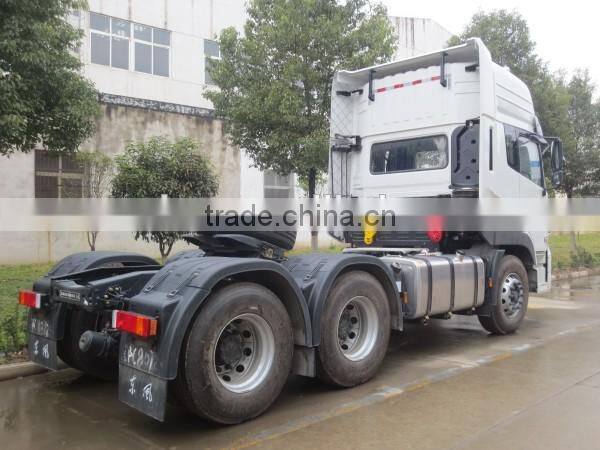

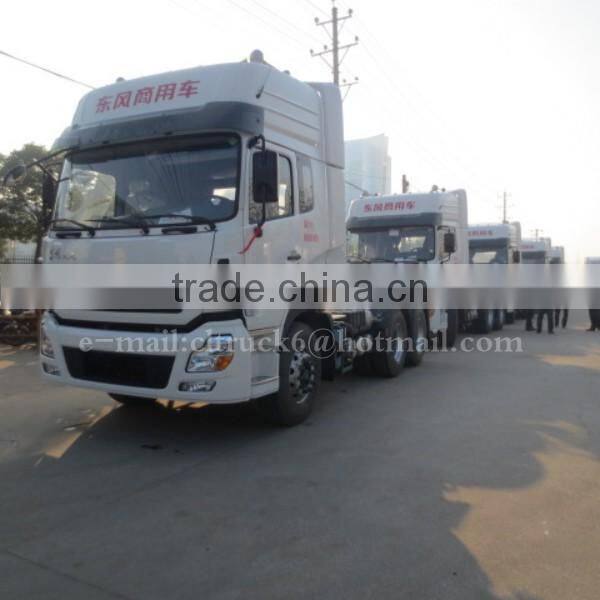

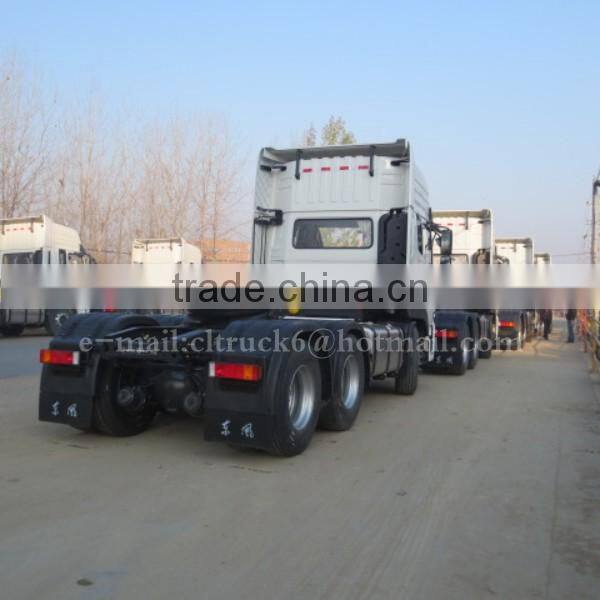

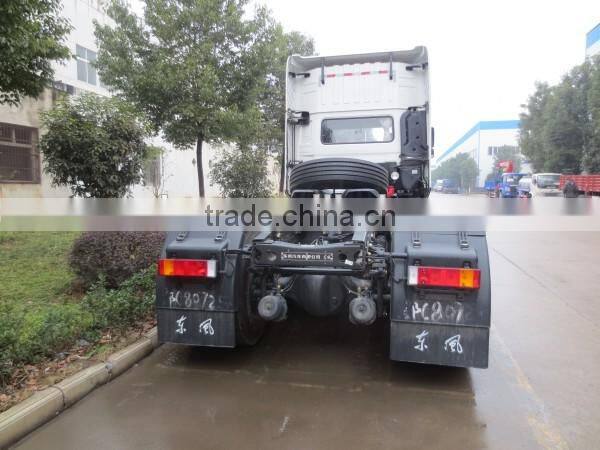

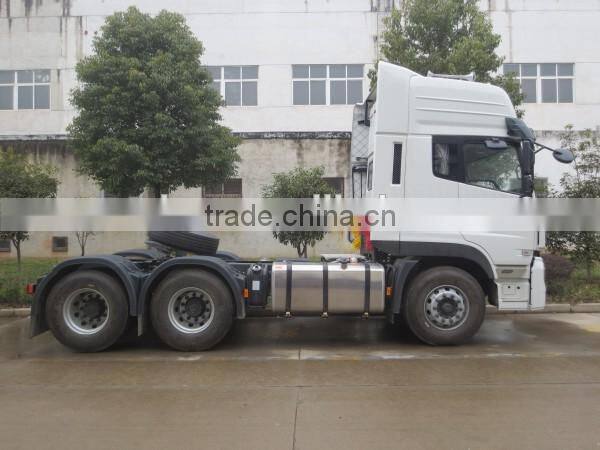

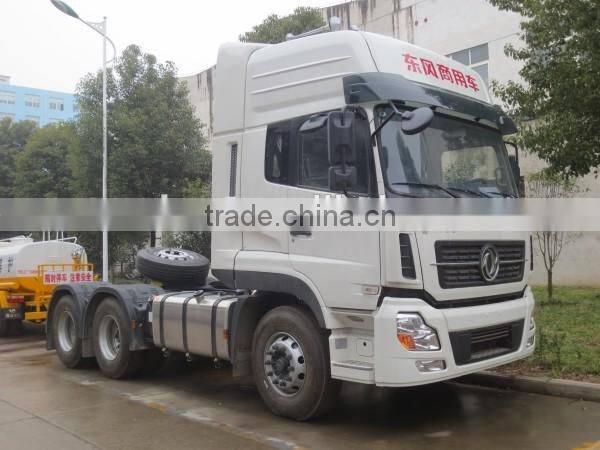

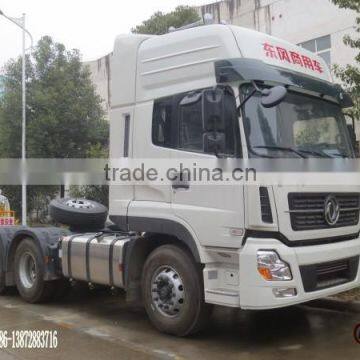

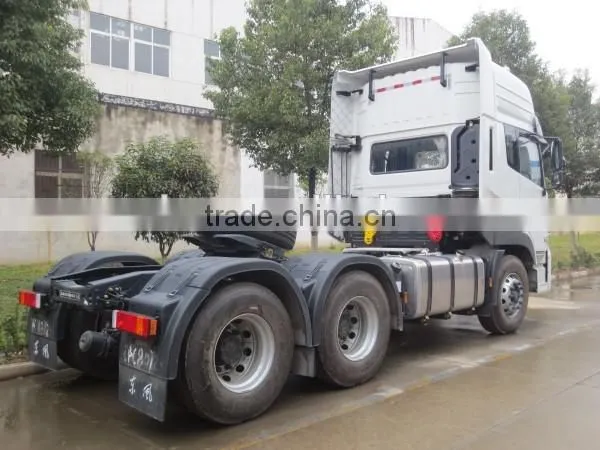

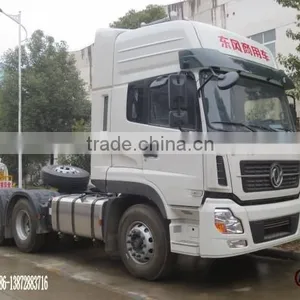

Product Picture of 375hp DONGFENG Kinland 6*4 Tractor Truck Head :
Brief Introduction of my company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
More truck trailer head show as following :
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
