North Benz V3 Series 340Hp-380 HP 6*4 Semi Trailer Tractor
Tractor truck, is called semitrailer tractor. It always support the use of semi trailer, is widely used in transporting large volume, heavy quality, big bulk of the material. The tractor and the semitrailer is used simultaneously, can improve 30%-50% transport efficiency , reduce 30%-40% cost ,reduce 20%-30% fuel consumtion.
Main Technical Parameter of North Benz V3 Series 340Hp-380 HP 6*4 Semi Trailer Tractor | |||
Product Model | ND42512B32J7 Semi Trailer Tractor | Overall Dimension(L*W*H)(mm) | 6905×2500×3795 |
Gross weight (kg) | 25000 | Approach/ departure angle (° ) | 16/60 |
Payload(kg) | / | Total Mass of Quasi-trailer(Kg) | 40000 |
Curb weight(kg) | 8800 | Max Speed (km/h) | 110 |
Cab capacity | 2,3 | Cab Type | V3 highproof with two sleeper |
Chassis Technical Parameter | |||
Gear Box | 12JSD160TA (Fuller 12 speeds) | Transmission type: | Manual |
Brake System | Double-circulate brake system with ABS | Leaf Spring number: | 3/4,9/13 |
Axle number | 3 | Front/Rear axle load(Kgs) | 7000/18000(double axle combined) |
Wheelbase(mm) | 3200+1350 | Front/Rear tread(mm) | 2045,1838/1838 |
Front/ rear suspension(mm) | 1515/840 | Steering Type | Power steering |
Tire size | 315/80R22.5 16PR (vacuum tire) | Traction Type: | 6*4 |
Engine specification | |||
Engine Model: |
WP10.340E32(optionalWp10.380E32,wp10.336E32,Wp10.375E32)
| Engine Brand | WeiChai |
Emission stand | Euro 3 | Displacement(ml) | 9726 |
Fuel type: | Diesel | Power(kw) | 250/340HP |
Other equipment or performance | Equipped with anti-lock braking system and ABS, diametre 90mm saddle ,North Benz 16T rear axle, 400L aluminum alloy fuel tanker | ||
Equipped with speed limit device, (Limit speed 80km/h) | |||
Warranty | 12 months, from the date of supply | ||

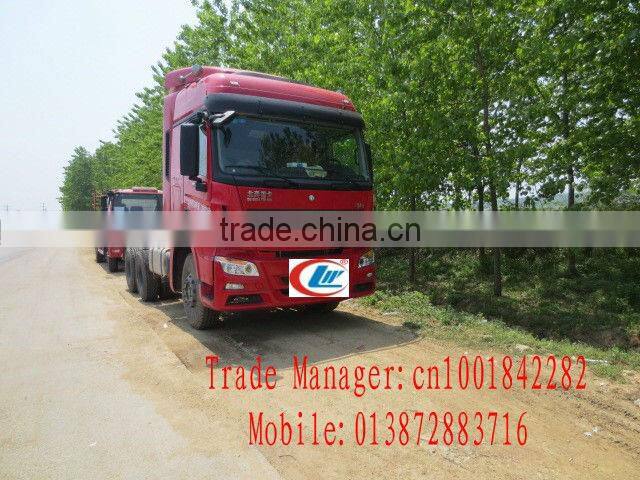

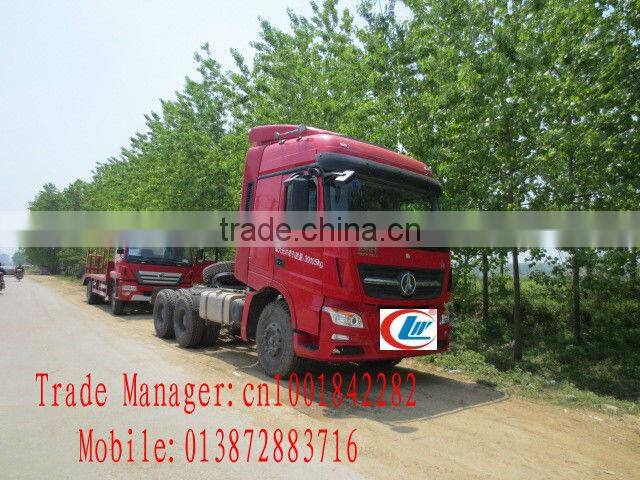

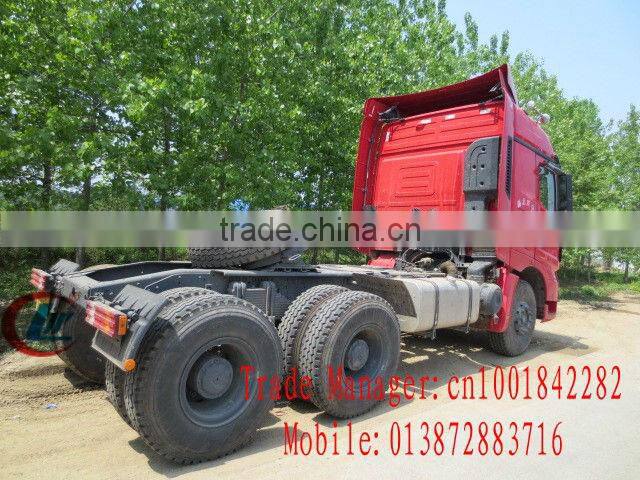

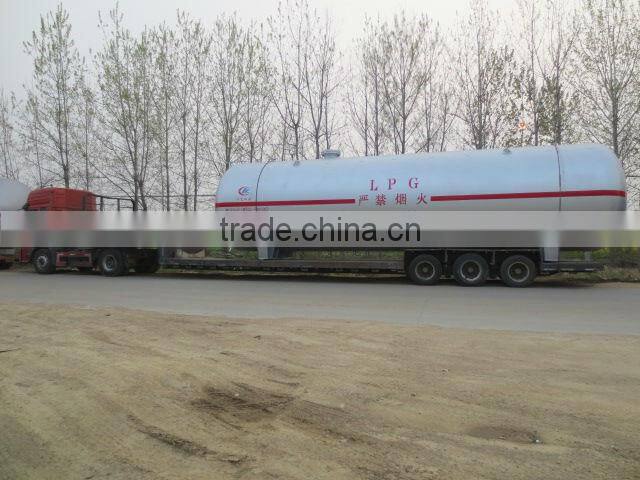

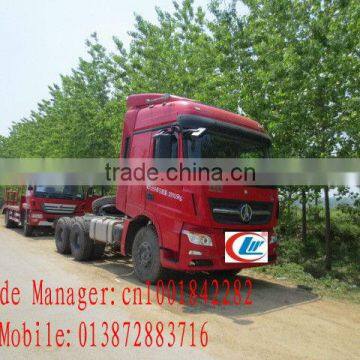

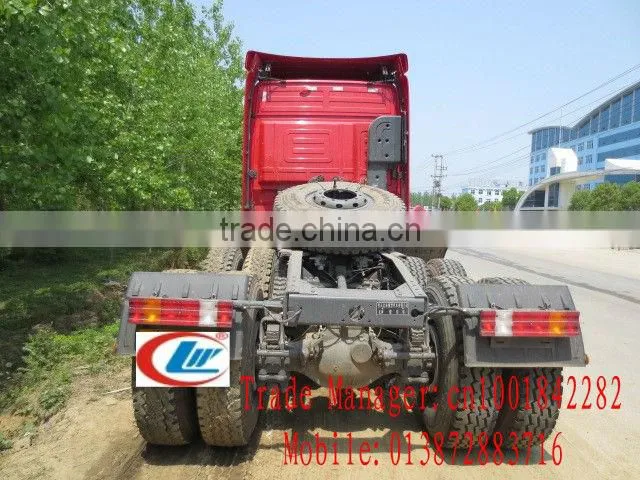

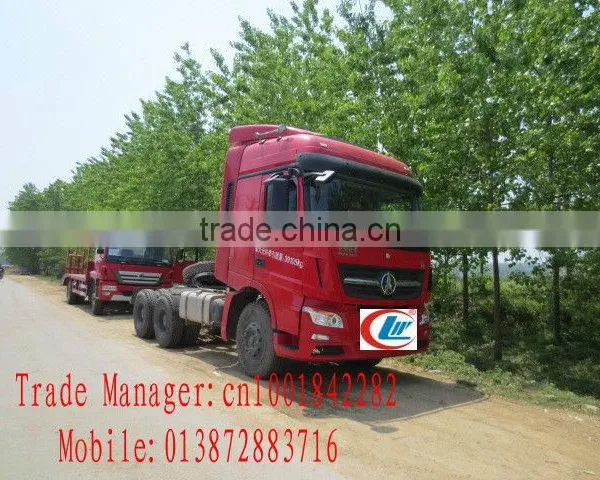

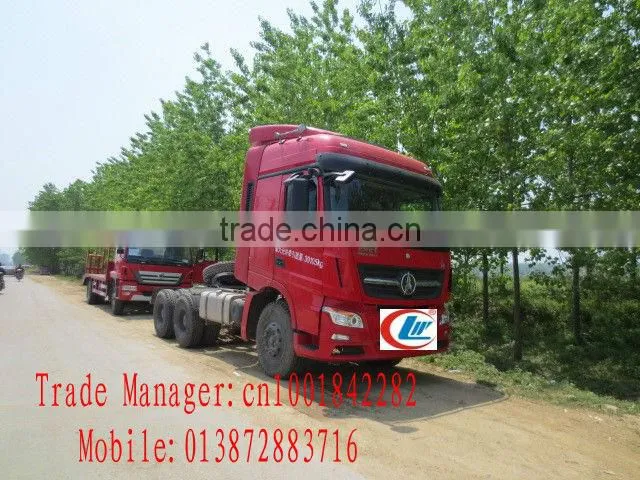

This semi trailer truck show as following:
Hubei ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
