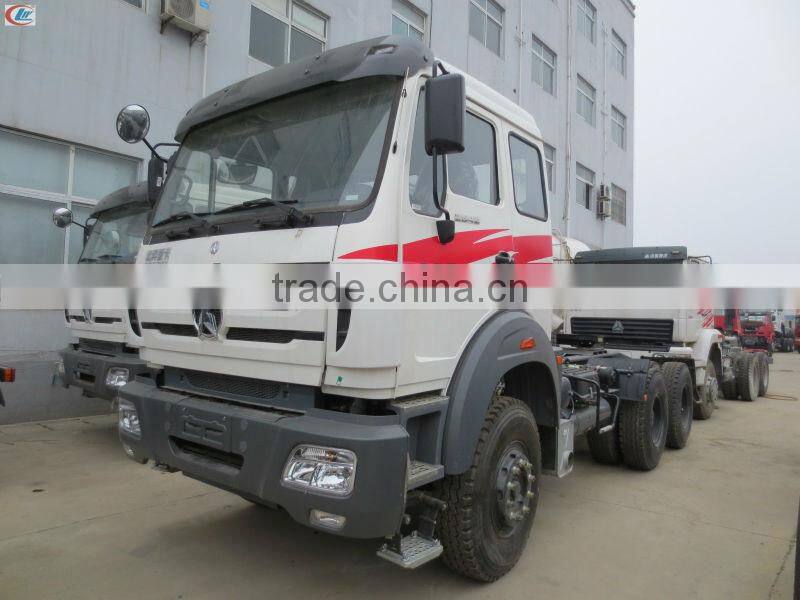

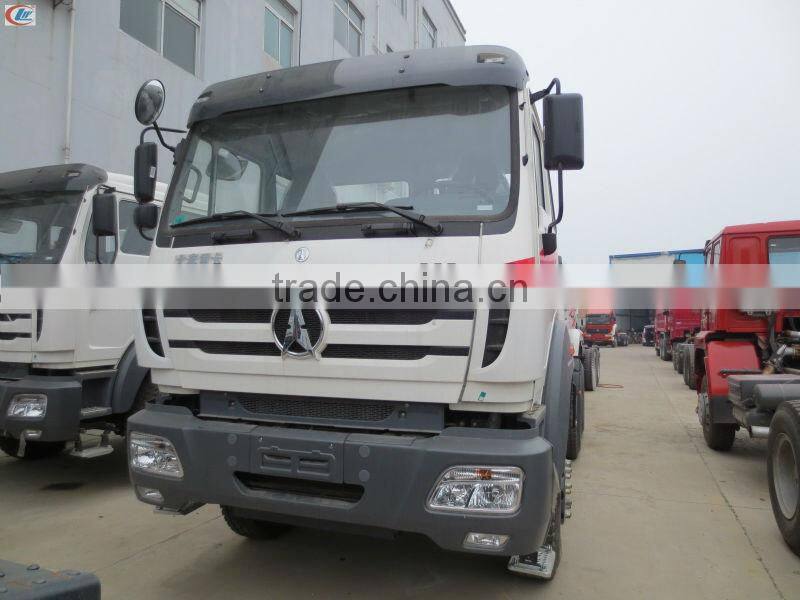

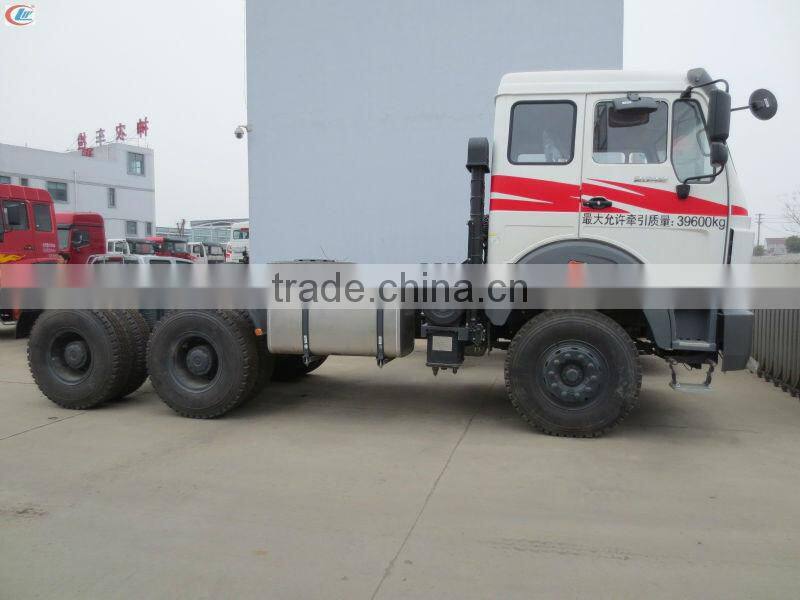

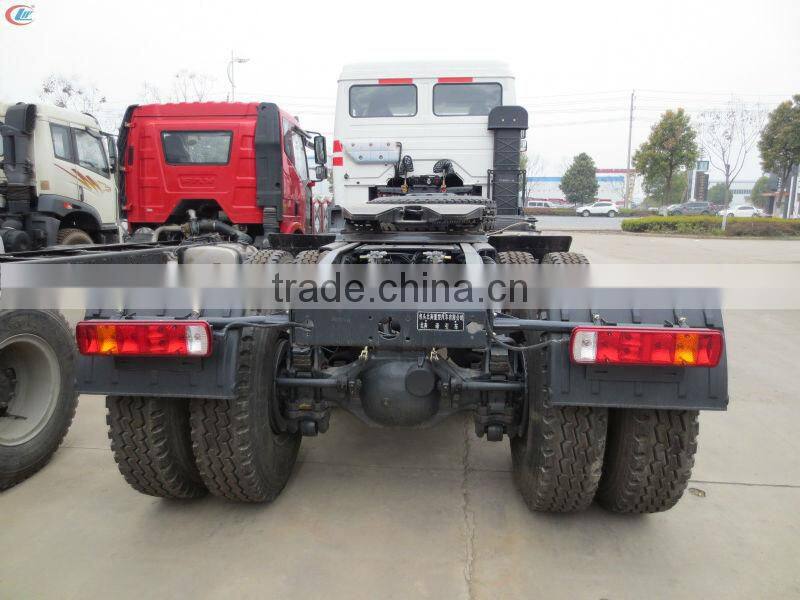

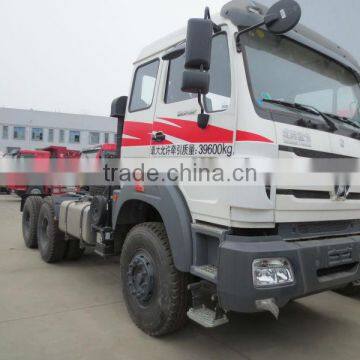

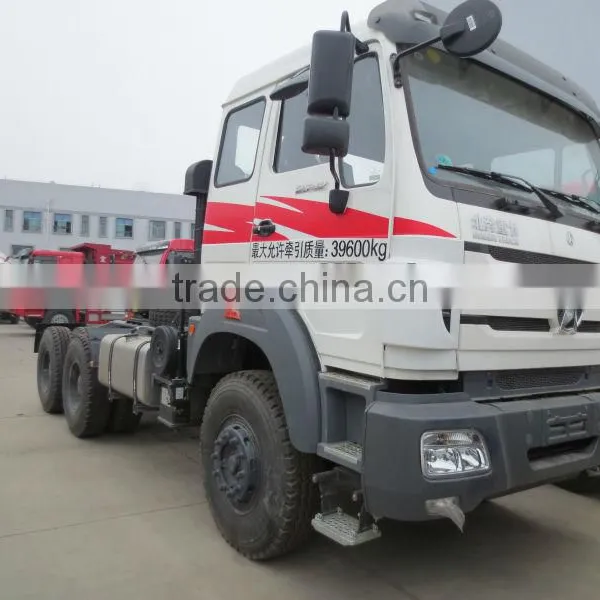

North Benz 380HP 6*4 Trailer Truck

Main Technical Parameter of North Benz 380 HP 6*4 Trailer Truck | |||
Product Model | ND4257B34J Trailer Truck | Overall Dimension(L*W*H)(mm) | 7135×2495×3180 |
Gross weight (kg) | 25000 | Approach/ departure angle (° ) | 26/64 |
Payload(kg) | / | Total Mass of Quasi-trailer(Kg) | 39600 |
Curb weight(kg) | 9200 | Max Speed (km/h) | 99 |
Cab capacity | 2 | Cab Type | optional |
Chassis Technical Parameter | |||
Gear Box | 12JS160T (Fuller 12 speeds) | Transmission type: | Manual |
Brake System | Double-circulate brake system with ABS | Leaf Spring number: | 13/13 |
Axle number | 3 | Front/Rear axle load(Kgs) | 7000/18000(double axle combined) |
Wheelbase(mm) | 3450+1450 | Front/Rear tread(mm) | 1995,1800/1800 |
Front/ rear suspension(mm) | 1410/825 | Steering Type | Power steering |
Tire size | 12.00R20 14PR | Traction Type: | 6*4 |
Engine specification | |||
Engine Model: | WP10.380E32 | Engine Brand | WeiChai |
Emission stand | Euro 3 | Displacement(ml) | 9726 |
Fuel type: | Diesel | Power(kw) | 280/380HP |
Other equipment | Equipped with anti-lock braking system and ABS | ||
Equipped with speed limit device, (Limit speed 80km/h) | |||
Warranty | 12 months, from the date of supply | ||
Hubei ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
