Faw J6P Heavy Duty Truck 390HP 6*4 Trailer Head Truck
Main Technical Parameter of Faw J6P Heavy Duty Truck 390HP 6*4 Trailer Head Truck | |||
Product Model |
CA4250P66K24T1A6E trailer head truck |
Overall Dimension(L*W*H)(mm) |
7190×2495×3060 |
Gross weight (kg) |
25000 |
Approach/ departure angle (° ) |
27/60 |
Payload(kg) |
/ |
Total Mass of Quasi-trailer(Kg) |
40000 |
Curb weight(kg) |
8800 |
Max Speed (km/h) |
120,79 |
Cab capacity |
2 |
Cab Type |
optional |
Chassis Technical Parameter | |||
Gear Box |
12JS180A (Fuller 12 speeds forward and 2 reverse) |
Transmission type: |
Manual |
Brake System |
Double-circulate brake system with ABS |
Leaf Spring number: |
9/12,9/-,3/4,3/12,4/4 |
Axle number |
3 |
Front/Rear axle load(Kgs) |
7000/18000(double axle combined) |
Wheelbase(mm) |
3450+1350mm |
Front/Rear tread(mm) |
2050,1830/1830 |
Front/ rear suspension(mm) |
1493/800 |
Steering Type |
Power steering |
Tire size |
315/80R22.5 |
Traction Type: |
6*4 |
Engine specification | |||
Engine Model: |
CA6DM2-39E3 |
Engine Brand |
YiQi Faw |
Emission stand |
Euro 3 |
Displacement(ml) |
11040 |
Fuel type: |
Diesel |
Power(kw) |
302/390HP |
Remarks: |
Front axle optional equipped with Disc brake |
||
Equipped with anti-lock braking system and ABS(VIE ABS-II) | |||
Equipped with speed limit device, (Limit speed 79km/h) | |||
Warranty |
12 months, from the date of supply |
||
Hubei ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:

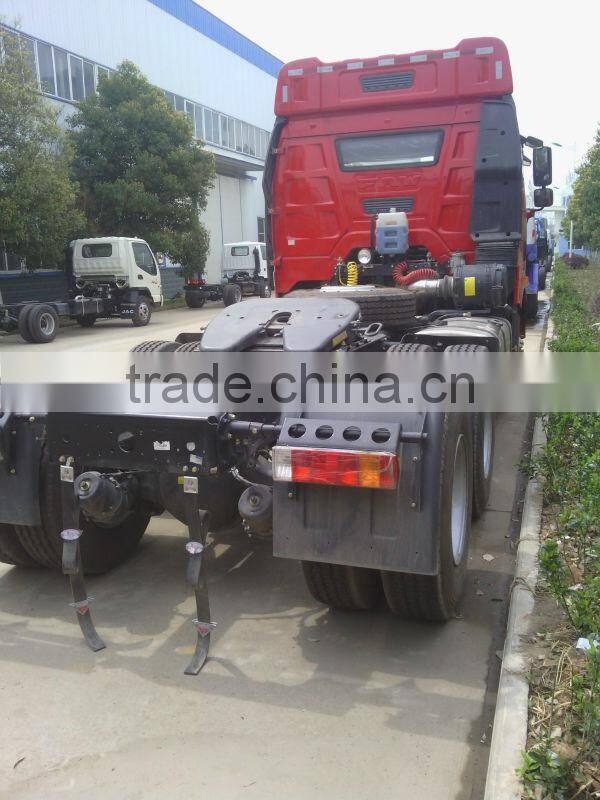

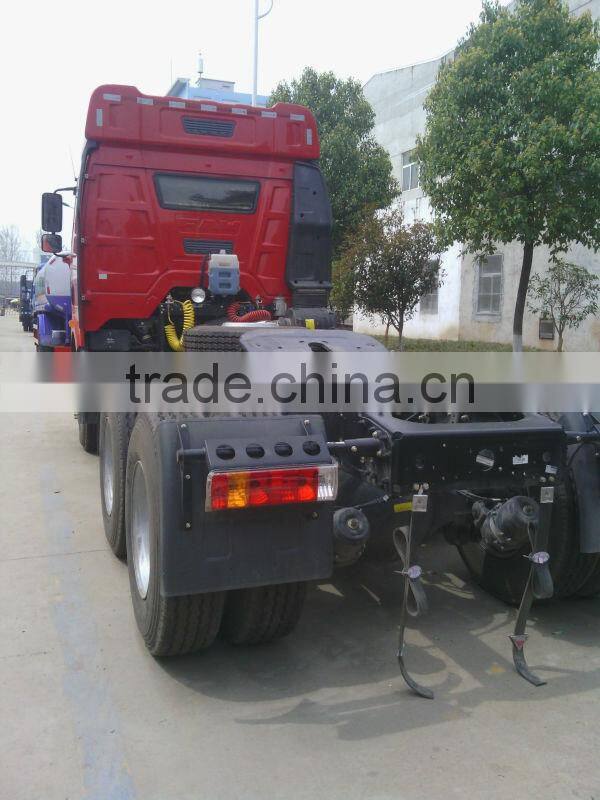

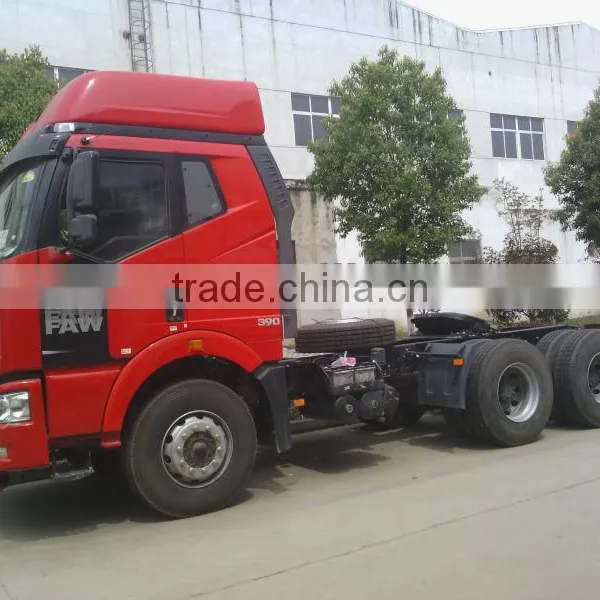

This trailer head truck show as following:
