Fonton forland 3-5cbm 4*2 small fecal suction truck
Fecal suction truck is called sewage suction truck, mainly used in pumping manure,polluted water,sludge,floating debris in all kinds of city's municipal sanitation, agricuture,factory,district,etc. It have many good features:self-priming, self-discharging, high efficiency.
Basic equipment: inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve Fecal suction gun, special vacuum pump(rating rotate speed=1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, steering:clockwise)
Main Features: self-priming, self-discharging, high efficiency,Time for full suction<5min
optional configuration: sprinklers or cargo compartments, watering, liquid full alarm device.
Tanks material optional:carbon steel, stainless steel, epoxy resin anticorrosive processing(in order to contain partial chemical sewage or industrial wastewater).
Main Technical Parameter of forland 3-5cbm 4*2 small fecal suction truck | |||
Product Model | HYS5040GXEB fecal suction truck | Overall Dimension(L*W*H)(mm) | 5990×1990×2350 |
Wheelbase(mm) | 3360 | Tank Dimension(L*L axle*S axle)(mm) | 3000×1150×660 |
F/ R suspension(mm) | 1100/1690 | Front/Rear tread(mm) | 1590/1525 |
Gross weight (kg) | 4400 | Number of Axles | 2 |
Payload(kg) | 1450 | Total Mass of Quasi-trailer(Kg) | / |
Curb weight(kg) | 2755 | F/R axle load(Kg) | 1760/2640 |
Approach/ departure angle (° ) | 23/17 | Max Speed (km/h) | 90 |
Cab capacity | 3 | Cab Type | With the optional chassis |
Chassis Model | BJ1043V9JE6-MS | Chassis manufacturer | Beiqi Fonton |
Gear Box | 5 shift | Transmission type | Manual |
Steering Type | Power steering | Traction Type | 4*2 |
Frame type | Side rails and riveted construction | Rear axle | 5 ton |
Brake System | Air brake | ||
Leaf Spring number | 4/6+7 | Tire size/type | 7.00-16,6.50-16 |
Engine Model | 4DW93-84E3 | Engine manufacturer | Wuxi diesel power |
Fuel type | diesel | Displacement(ml) | 2540 |
Emission stand | Euro 3 | Power(kw) | 67/91hp |
Operation System | Electrically Hydraulic Control | Electric system | 24V |
Equipment & Performance & Features | Basic equipment: inspect fecal window, gravity mouth, cleaning | ||
apparatus, fecal suction pipe, oil-water separators, overflow valve | |||
Fecal suction gun, special vacuum pump | |||
Tank material: carbon steel (optional) | |||
Warranty | 12 months, from the date of supply | ||

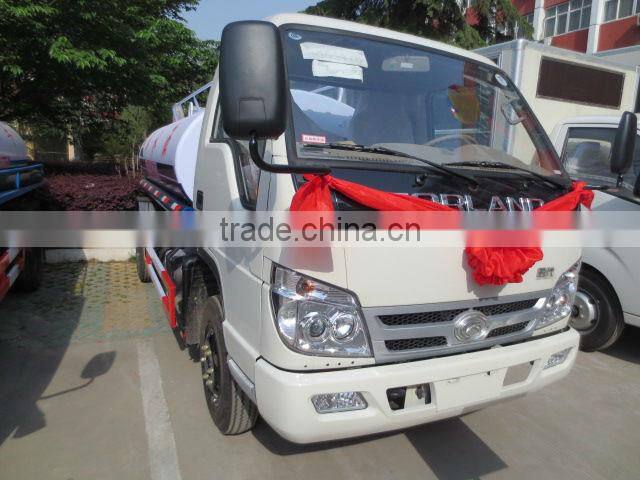

This fecal suction truck show as following:
ChengLi Special Automobile Co., Ltd , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Our leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, we have roundly passed the certificaton of ISO 9001-2008, the 3C Certification
Since our company was established in Sep.2004, we always strives for the survival by the quality, pursue of development by efficiency. In the past about ten years, we had 30% market share of the sanitation trucks in China market. From 2004 year, we have entered the international market. And we have established long-term cooperative relationship with many countries. In Kyrgyzstan, Papua New Guinea, Libya and Niger, you can find out many fuel trucks, LPG tankers and dump trucks made by our company. In Sudan, Nigeria, Congo and West Africa, you can find out many water trucks, garbage trucks and crane trucks made by our company. In North America, Ghanaian, Kazakhstan and Mongolia, you can find out many dump trucks, crane trucks and freezer trucks made by our company. Tomorrow, we hope we can find out our trucks in your country.
Our Certificates:
Production Equippments:
The above information is just for your reference, if you have any other questions ,please feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check my contact information as below:
