300hp HOWO Cab 4*4 SINOTRUK Sewage Suction Truck 8 ton
SINOTRUK Sewage Suction Truck is mounted with 4*4 truck chassis, is mainly used for sewage suction, transportation and discharge of sewage from septic tand and sludge from drains. It can be used to transport waste water, liquid sewage. It have strong off-cross performance, very suitable for driving on mountain area or country-side road.
Basic equipment: PTO, Vacuum Pump, High Pressure Pump,hydraulic sprayer, Hydraulic Cylinders,Multi-way valve, Pressure Gauge,Water-gas Seperator , Oil-gas Seperator, Level Inspection Window, Suction Hose, Hose Real,inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve Fecal suction gun, etc
Main Features: self-priming, self-discharging, high pressure flushing, high efficiency,Time for full suction<5min
Tanks material optional:carbon steel, stainless steel, epoxy resin anticorrosive processing(in order to contain partial chemical sewage or industrial wastewater).
Main Parameter of 300hp HOWO Cab 4*4 SINOTRUK Sewage Suction Truck 8 ton
Main Technical Parameter | |||
Product Model | SINOTRUK Sewage Suction Truck | Overall Dimension(L*W*H)(mm) | 8480×2500×3250 |
Wheelbase(mm) | 4600 | Fact volume(L) | 8000 |
Curb weight(kg) | 10150 | Number of Axles | 2 |
Actual Payload(kg) | 9000 | Approach/ departure angle (° ) | 16/14 |
Steering Type | LHD with Power steering | Max Speed (km/h) | 90 |
Cab capacity | 3 | Cab Type | Single sleeper, air conditioning |
Chassis Parameter | |||
Chassis Model | ZZ1167 | Chassis manufacturer | CNHTC |
Gear Box | HOWO 10 shift | Transmission type | Manual |
Truck axle | STR 16 ton | Traction Type | 4*4 |
Brake System | Air brake | Leaf Spring number | 10/9+6 |
Number of Tire | 6 with a spare | Tire size/type | 12.00-20 16PR,12.00R20 16PR |
Engine Parameter | |||
Engine Model | WD615.97E | Engine manufacturer | CNHTC |
Fuel type | diesel | Displacement(ml) | 9726 |
Emission stand | Euro 3 | Power(kw) | 221(300hp) |
Operation System | Electrically Hydraulic Control | Electric system | 24V |
Equipment & Performance & Features | 1. Sewage tank is equipped with 8T vacuum pump ,rear gravity mouth , inspect fecal window, Pressure gauge, hand-washing device | ||
2. Sewage Tank material: 5mm carbon steel | |||
3. With dump function, rear door is controlled by hydraulic | |||
Warranty | 12 months, from the date of supply | ||

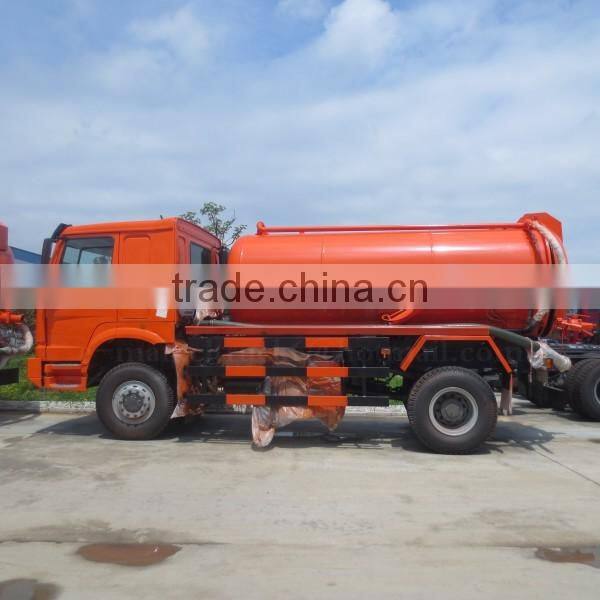

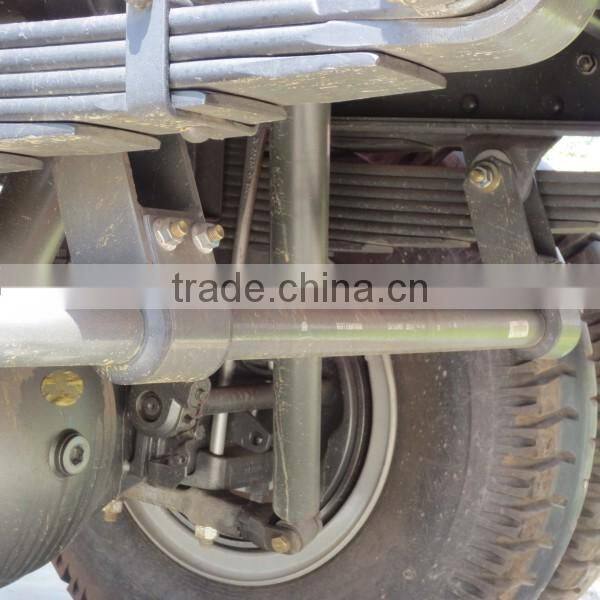

Multi-faceted Picture of 300hp HOWO Cab 4*4 SINOTRUK Sewage Suction Truck 8 ton :
Brief Introdution of Company:
ChengLi Special Automobile Co., Ltd , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Our leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, we have roundly passed the certificaton of ISO 9001-2008, the 3C Certification
Since our company was established in Sep.2004, we always strives for the survival by the quality, pursue of development by efficiency. In the past about ten years, we had 30% market share of the sanitation trucks in China market. From 2004 year, we have entered the international market. And we have established long-term cooperative relationship with many countries. In Kyrgyzstan, Papua New Guinea, Libya and Niger, you can find out many fuel trucks, LPG tankers and dump trucks made by our company. In Sudan, Nigeria, Congo and West Africa, you can find out many water trucks, garbage trucks and crane trucks made by our company. In North America, Ghanaian, Kazakhstan and Mongolia, you can find out many dump trucks, crane trucks and freezer trucks made by our company. Tomorrow, we hope we can find out our trucks in your country.
Our certificates:
Production Equipments:
Contact Information:
The above information is just for your reference, if you have any other questions ,please feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check my contact information as below:
