Dongfeng Special Cleaning with Vacuum Sewage Suction Truck
Special cleaning with vacuum sewage suction truck is a dual-function truck of sewer vacuum suction and high pressure cleaning. It mainly used for suction, septic material and sludge from drains
transportation and discharge of sewage from septic tank and sludge from drains.And also used for clean the drainage on the city underground sewers,the industrial pipes, walls and furthermore acts as a sprinkling.Moreover, it can be used to transport water, flush the equipment.
The special cleaning truck ,vacuum sewage suction truck is equipped with :
1.Chassis truck,
2.Vacuum tank( Back cover can be opened)
3.Power take off
4.Transmission shaft
5.Vacuum pump (rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg)
6.Pipe for sucking and discharging sewage(Time for full suction<5min)
7. Level inspection window for observing
8. Hydraulic Cylinders to dump the sewage quickly
9. Clean water tank
10.Hose real with 60m hose
11.Italy imported high pressure pump(pressure is 16Mpa, flow is 130L/min)
12.10pcs spray nozzle with different spec, can adjust to water column, drizzle, mist, etc.
13.Tool box
Picture of some parts of sewage suction and cleaning truck

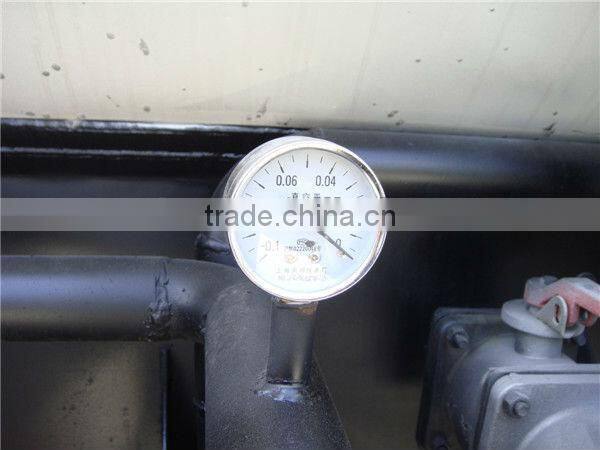

1. Pressure gauge

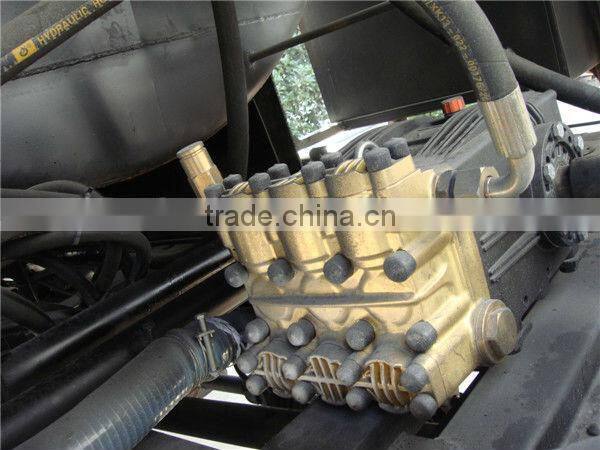

2. High pressure pump
3. Power-Take-Off

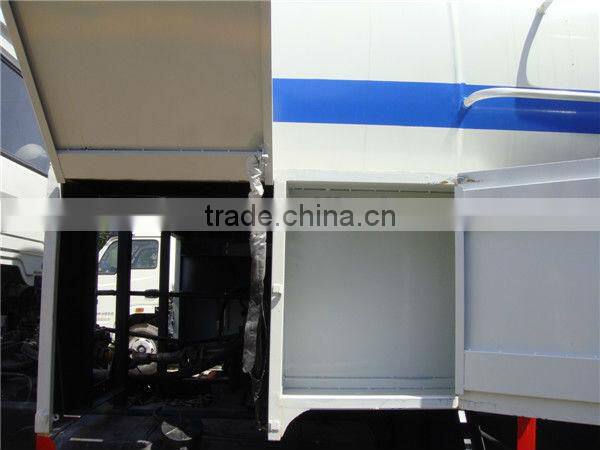

4. Tool Box
5. Cab Control Vave
6. Multi-way control valve
Technical Specifications of the Sewer Suction with Cleaning Truck
Main Technical Parameter | |||
Product Name |
Sewer Suction with Cleaning Truck |
Gross Vehicle Weight (kg) |
16000 |
Related Payload(kg) |
8000 |
Curb Weight (kg) |
7805 |
Overall Dimension(mm) |
7980x2490x3380 |
Cab Allowed Persons |
3 |
Axle No. |
2 |
Wheelbase (mm) |
4500 |
Appr/Dep Angle(º) |
20/10 |
F/R Suspension(mm) |
1430/2050 |
Axle Load(kg) |
6000/10000 |
Max Speed(km/h) |
90 |
Chassis Technical Parameter | |||
Chassis Model |
DFL1160BX2 |
Chassis Name |
Truck Chassis |
Chassis Brand |
DONGFENG |
Manufacturer |
DONGFENG AUTOMOBILE CO.,LTD |
Overall Dimension (mm) |
7790×2370×2760 |
Tyre No. |
6 with 1 spare tyre |
App./ Dep. Angle(º) |
20/18 |
Tyre Spec. |
9.00-20 |
Leaf Spring No. |
7/9+6 |
F/R Suspension(mm) |
1430/1860 |
Front Track (mm) |
1880 |
Rear Track (mm) |
1800 |
Drive Type |
4x 2 |
Brake System |
Air brake |
Steering Wheel |
LHD |
Gear Box |
6 speed forward and 1 reverse |
Engine Technical Parameter | |||
Engine Model |
ISDe 180 30 |
Engine Brand |
Dongfeng |
Fuel Type |
Diesel |
Emission Standard |
Euro III |
Displacement ( mL ) |
4500 |
Power (KW) |
132KW@2500rpm |
Cylinder No. |
6 in line |
Engine Type |
high-pressure common-rail,inter-cooling charged,electric-control system, particle filter |
Superstructure Parameter |
|||
Clean Water Tank Capacity(L) |
4200 |
Sewage Water Tank Capacity(L) |
4600 |
Material of Water Tank |
Carbon Steel |
Hose real |
60m |

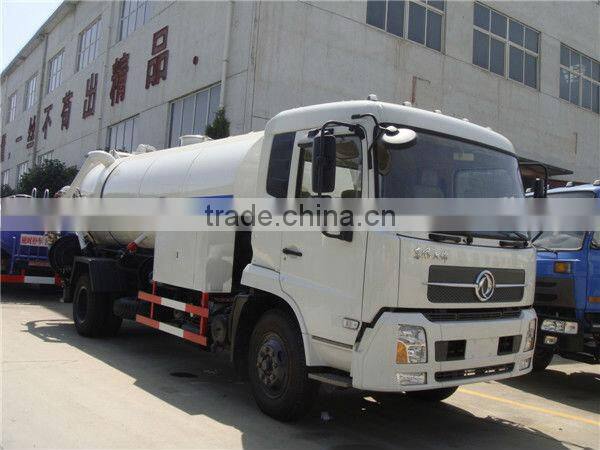

Product Picture
We, Hubei Chengli Special Automobile Co.,Ltd, as a leading truck manufacturer in China, can customize any special vehicle you are interested in. If you want to know more information, please feel free to contact me by call +86-13872889770 or write to exportingamie at hotmail dot com
ISO Certification

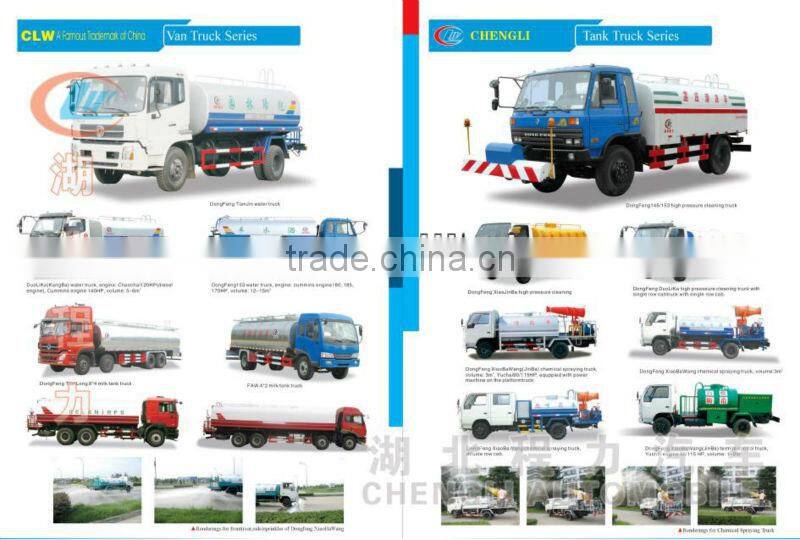

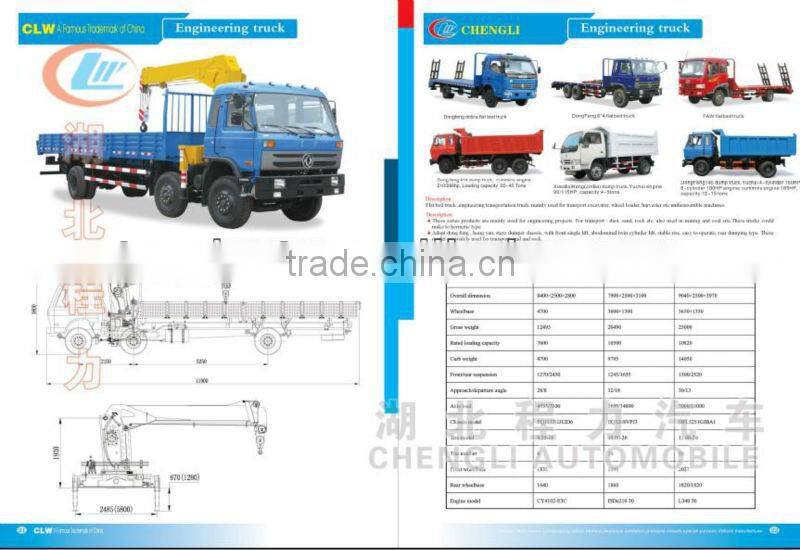

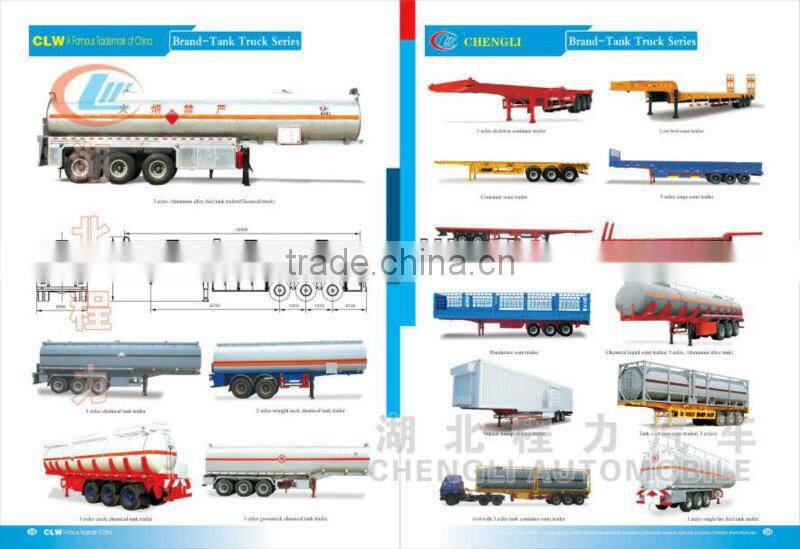

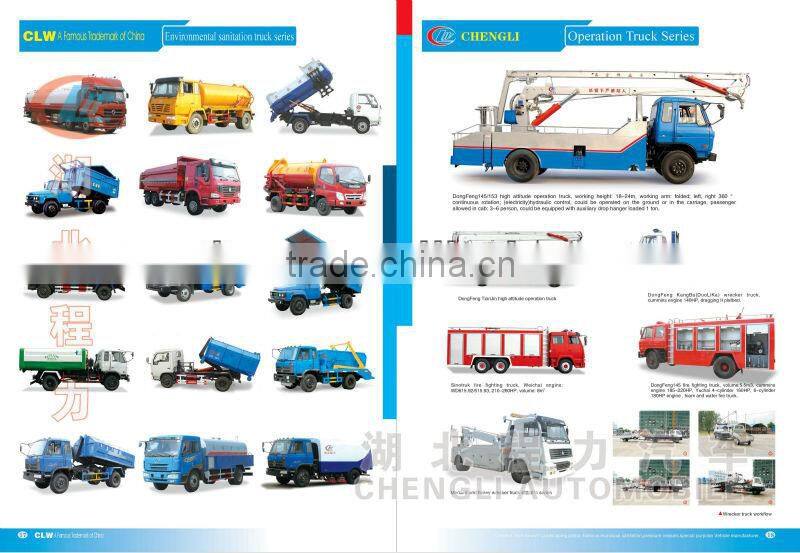

More trucks for your reference
