4000-6000L Vacuum Sewer Sucking Truck

4000-6000L Vacuum Sewer Sucking Truck photo-1
US$ 9,000 - 34,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Transmission Type:
Manual
Condition:
New
Emission Standard:
Euro 3
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Transmission Type Manual
Condition New
Emission Standard Euro 3
Fuel Type Diesel
Tank Volume 5000
Dimension (L x W x H) 5960x2200x2980
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW5081GXW
Horsepower 140
Gross Vehicle Weight 8495

                                           4000-6000L vacuum sewer sucking truck



1.Tank can be lifted hydraulically to 40-45 degree.Rear door can be opened&closed hydraulically.

With full opening design, discharge can be very quick&complete.



2.Overfill system with music horn is euipped to prevent the vacuum pump damage from sewage water

 into vacuum pump when the tank is full.



3.Super power of vacuum pump, seamless die casted sheel cover, designing for container  with

high ability of pressure-resistance,double hydraulic jack system, more strength then cesspit emptier.





Technical parameters



[Main Technical Parameters]

Product Name

Vacuum sewer sucking truck

Tank Capacity(m3)

5.0

Gross Vehicle Weight(Kg)

9400

Rated Payload(kg)

4600

Curb Weight(Kg)

4605

Overall Dimension(mm)

6450x2285x2700

Cab Allowed Persons

3

Steering wheel

LHD

Appr/Dep Angle(°)

22/12

F/R Suspension(mm)

1180/1470

Axle No.

2

Wheelbase(mm)

3800

Axle Load(Kg)

2885/5515

Max Speed(Km/h)

90

Others

1.Equipped with PTO, Vacuum Pump,Pipe System, Hydraulic System,Valves,water-gas separator , oil-gas separator, level inspection window,etc .

2.Tank material is high quality carbon steel and the thickness is 6mm

[Chassis Technical Parameters]

Chassis Model

EQ1090T9ADJ3AC

Chassis Brand

Dongfeng

Appr/Dep Angle(°)

22/13

Tyre No.

6

Spring Leaf No.

11/9+7

Tyre Specification

8.25-16

F/R Suspension(mm)

1180/1715

Axle Load(kg)

3460/5940

Front Track(mm)

1831

Rear Track(mm)

1640

Fuel Type

Diesel

Emission Standard

Euro III

Engine Model

CY4102-E3C

Engine Brand

CHAOCHAI

Power(kw)

91

Displacement(ml)

3856

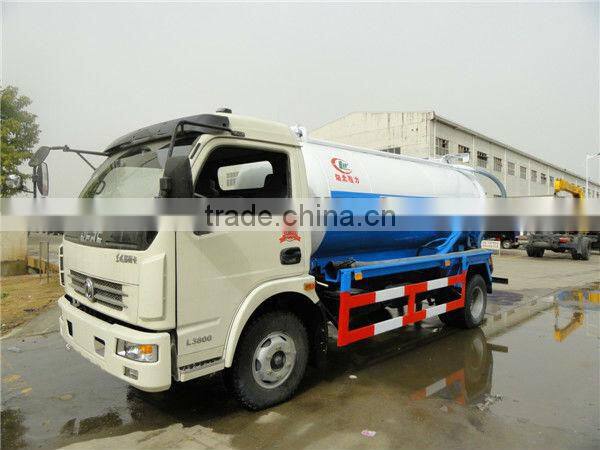

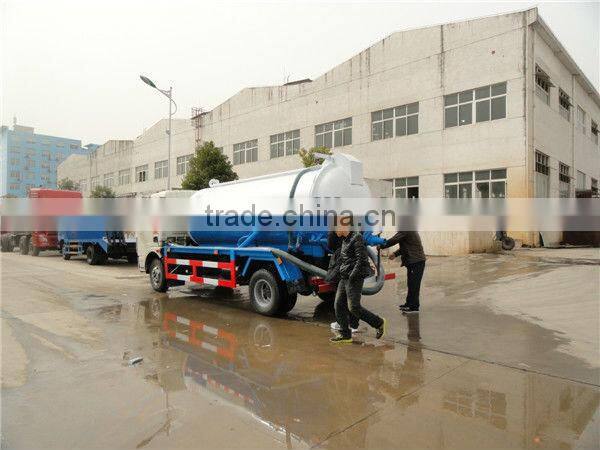

Pictures



 4000-6000L vacuum sewer sucking truck



4000-6000L vacuum sewer sucking truck



4000-6000L vacuum sewer sucking truck



ISO Certification



4000-6000L vacuum sewer sucking truck4000-6000L vacuum sewer sucking truck4000-6000L vacuum sewer sucking truck



More trucks we manufacture



1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck



2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader



3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck



4. Aerial Working Truck/ Crane Truck



5. Road Wrecker



6. Road Sweeper



7. Oil tanker/ Refuelling Truck



8. LPG Storage Tanker



9. Chemical Liquid Tanker



10. Bulk Cement Tanker



11. Milk Transport Truck



12. Concrete Mixer/ Concrete Pump Truck



13. Tractor Head



14. Asphalt Distributor



15. Fire Fighting Truck



16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck



17. Mobile Stage Truck/ LED Advertising Truck



18. Dump Truck/ Tipper



19. Feed Delivery Truck



20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer



Other sanitation trucks we offer



4000-6000L vacuum sewer sucking truck



Advanced Equipment



4000-6000L vacuum sewer sucking truck



Contact information



More products parameters, latest price,pictures, etc. please feel free to contact Ms.Amie Nie. We will do our best offer you the best service, good quality and competitive price.





4000-6000L vacuum sewer sucking truck
