Hot Sale JMC 4x2 Vacuum Road Sweeper Truck

Hot Sale JMC 4x2 Vacuum Road Sweeper Truck photo-1
US$ 33,400 - 34,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CLW
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW5060TSLJ4
Dimension(L*W*H) 5800x1980x2350
Weight 5790
Certification CCC,ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas
hot sale JMC 4x2 vacuum road sweeper truck
Product Description



 Brief introduction of sweeper truck



The sweeper truck is also called road sweeper truck, road sweeper, street sweeping truck, road cleaning  truck, etc. There are two types of road sweepers we manufactured and they are broom sweepers truck, vacuum road sweeper truck. Following is the difference between our broom sweepers truck and vacuum road sweeper truck.





1.In the structure


The brushes sweeper truck is with 4 sets of brushes, water spraying device and suction disc. The vacuum road sweeper truck is without brushes and water spraying device, it only with suction disc.

2.In the function


The brushes sweeper truck must open the water spraying device to restrain the dust before start sweep, but besides the dust, it can sweep the large garbage, almost the 1/3 brick
The vacuum sweeper truck only can work at dry road to suck the dry dust. It mainly used to sweep the dusty street. It can suck the dust whose diameter almost 2.5 micrometres. But it can't sweep the larger garbage.In the fact, you can choose the sweeper truck type according to the road station, with more garbage or with more dust.

3.About the price
The vacuum road sweeper truck price is USD2000 higher than the brushes sweeper truck base on the same model.



The road sweeper trucks we maufacture has good cleaning performancelarge sweep rangelow fuel consumptionconvenient operation, high efficiency,  and other advantages. They are mainly used to sweep the road garbage of street, highway, dock, station, square, cement mill, electric power plant,etc.



Technical parameters of hot sale JMC 4X2 vacuum road sweeper truck



Items

Descriptions

Specifications and Types

General

Truck Name

Sweeper truck

Drive Type

4*2, left hand drive

Gross Vehicle Weight(kg)

5790

Curb Weight (kg)

4600

Overall Dimensions L*W*H(mm)

5800×1980×2350

Engine

Engine Model

JX493ZLQ4

Engine Brand

JMC

Fuel Type

Diesel

Power

80kw/109HP

Emission Standard

Euro IV

Displacement(ml)

2771

Engine Type

4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling

Chassis

Chassis Brand

JMC

Front/Rear Axle Load(KG

2200/3590

Tire No.

6

Tire Specification

7.00R16 Steel tire

Wheelbase (mm)

3360

Axle No.

2

Gear Box

5 speed forward with 1 reverse, manual

Brake

Air break

Radiator

Suitable for tropical climate

Front/rear suspension(mm)

1015/3590

Leaf Spring No.

7/5+5

Sweeping system

Min Sucked dust

PM10

Suction rate

95%

Waste bin volume

2.6m3

Dust cleaning tank volume

2.6m3

Sweeping width

2.8m

Sweeping speed

5-15km/h

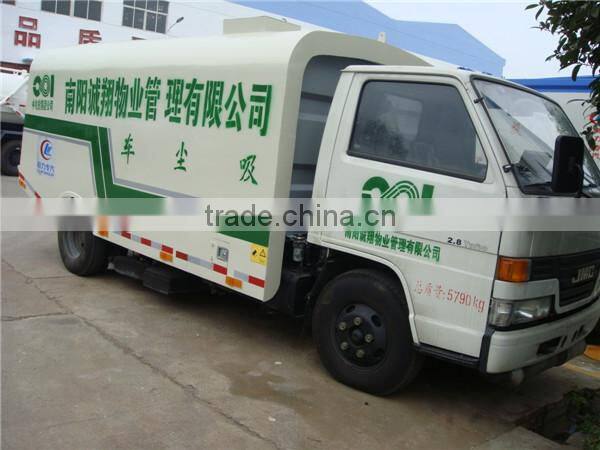

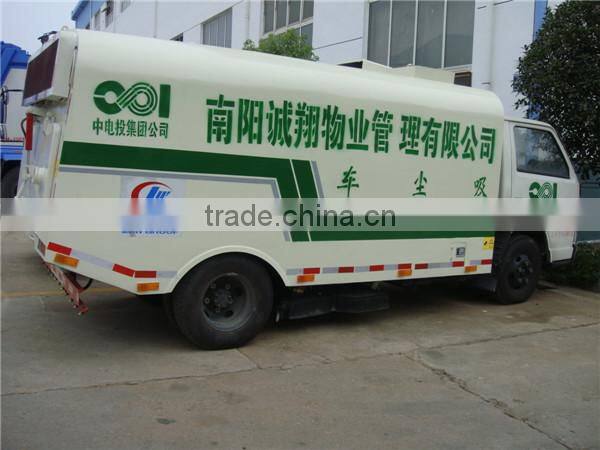

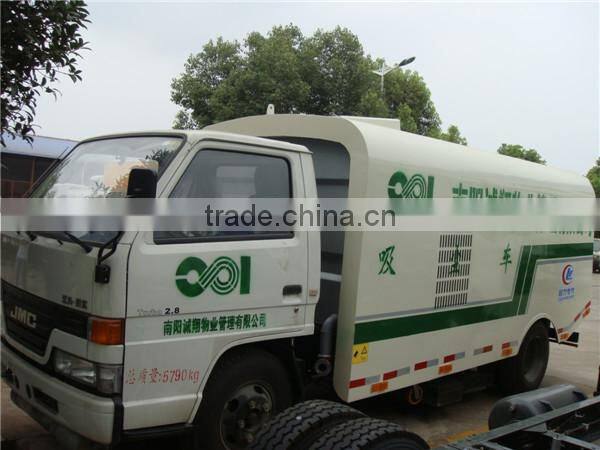

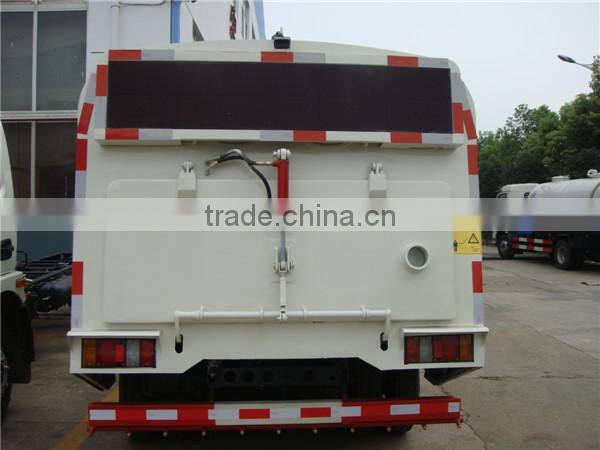

Pictures of jmc vacuum road sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck

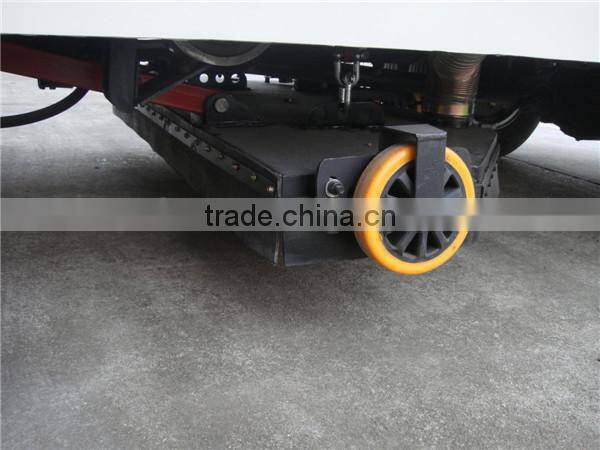

Suction disc of vacuum sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck



Products Note:



1. Above parameters is just for reference, we can customize the truck according to your requriement.



2.All of our trucks are new and with 12 months quality guarantee.







Company Information



We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.



We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.



Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.



As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.



hot sale JMC 4x2 vacuum road sweeper truck



ISO Certificate



hot sale JMC 4x2 vacuum road sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck



hot sale JMC 4x2 vacuum road sweeper truck





Contact Us

If you are interested in milk transport truck and other trucks, please feel free to contact with me, my skype:chenglitruck02 and tel 0086 13824309425

hot sale JMC 4x2 vacuum road sweeper truck
