Chengli 4x2 Dongfeng Euro3 190hp 10 tons RHD sweeper truck
- 500 Set / Sets per Month
- any port in China
- T/T L/C D/P D/A Credit Card PayPal
-
FAW 4x2 6 wheel 16cbm machanical road sweeper trucks
-
Shacman X9 4x2 road cleaning truck sweeper
-
Sinotruk howo road sweeper truck 10cbm 12cbm
-
Isuzu 700P diesel engine sweeper truck japan road sweeper truck
-
Foton 4x2 mini 6 wheel broom sweepers truck 2800 liters
-
Dongfeng KINLAND 6x4 6x6 price of road sweeper truck
Product Details
| Condition: | New | Place of Origin: | Hubei, China | Brand Name: | CLW |
| Model Number: | CLW5160TSL3 | Dimension(L*W*H): | 7950x2480x3100 | Weight: | 9045 |
| Certification: | CCC,ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Chengli 4x2 Dongfeng Euro3 190hp 10 tons RHD sweeper truck
The sweeping truck is also called road sweeper, street sweeper truck, sweeper truck, road sweeping truck, road sweeper truck, road sweep machine, road sweeping vehicle, etc.The street sweeper truck which made by Chengli Special Automobile Co.,Ltd is an ideal cleaning tool
which equipped with powerdevice, cleaning device, suction device, spraying&hydraulic system on
Dongfeng chassis,JMC chassis, Qingling chassis, Foton chassis,etc. The sweeper truck we produce has large sweep range, low fuel consumption, convenient operation and other advantages.
The sweeping truck is mainly used to sweep the road garbage of street, highway, dock, station,
square,cement mill, electric power plant,etc.
1. Street sweeper truck structure drawing
1.Van body assembly 2.Dust suction box assembly 3. Dump cylinder 4.Auxiliary engine battery 5. Sweeper disc assembly 6. Hydraulic Slave 7.Bottom frame 8. Chassis 9. Electro/hydraulic control valve assembly 10.Hydraulic oil tank 11.Auxiliary engine assembly 12. Air blower 13.Fuel tank 14. Radiator 15. Auxiliary fuel-water separator 16.Centrifugal clutch 17. Water pump 18. Magnetic valve 19. Rear door
2.Technical parameters of Dongfeng 4x2 road sweeper truck
Items | Descriptions | Specifications and Types |
General | Truck Name | Road sweeper truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 16000 | |
Curb Weight(kg) | 9045 | |
Overall Dimensions L*W*H(mm) | 7950×2480×3100 | |
Engine | Engine Model | B190 33 |
Fuel Type | Diesel | |
Power | 140KW/190HP | |
Emission Standard | Euro III | |
Displacement(ml) | 5900 | |
Engine Type | 6 cylinders in line,4 stroke,water cooling,charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | DONGFENG |
Cabin | Single and half row cab | |
Front/Rear Axle(kg) | 5950/9950 | |
Tire No. | 6 | |
Tire Specification | 10.00-20 Nylon tire | |
Wheelbase (mm) | 4500 | |
Axle No. | 2 | |
Gear Box | 6 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Steering Wheel | left hand drive | |
Air conditional | Optional | |
Sweeping System | Dust tank volume(m³) | 6 |
Water tank volume(m³) | 4 | |
Tank material | SUS304 stainless steel | |
Sweeping width | More than 3.5m | |
Sweeping capacity | About 52500m²/h |

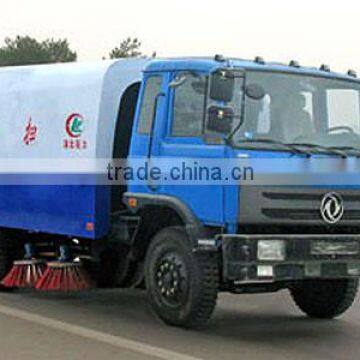

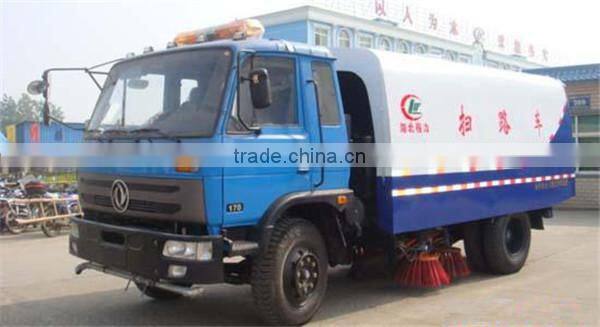

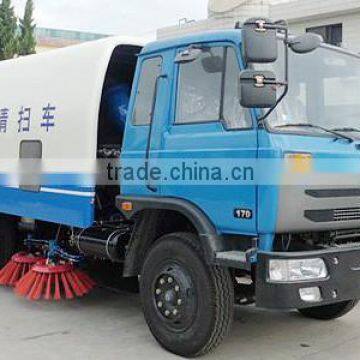

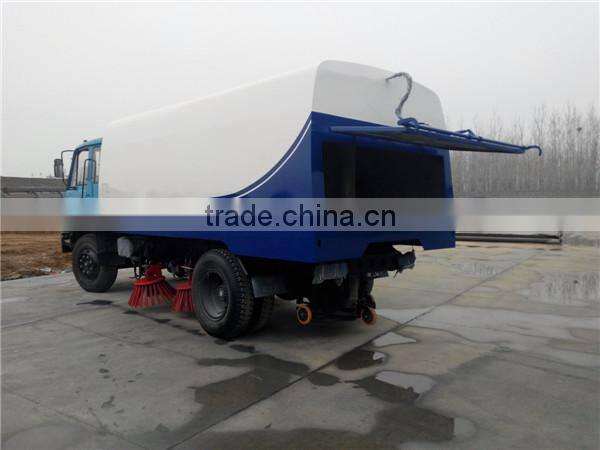

3.Chengli factory sale 4x2 190hp Dongfeng street weeper truck pictures

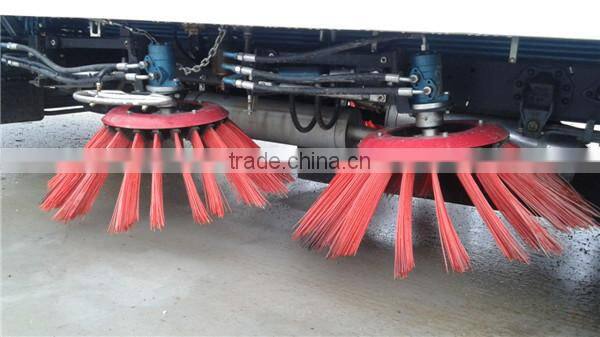

Road sweeper brushes

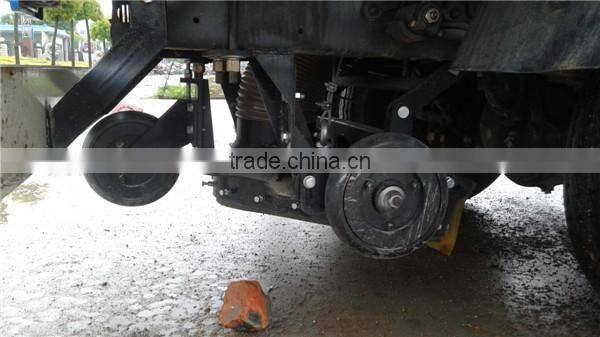

Sweeper suction disc

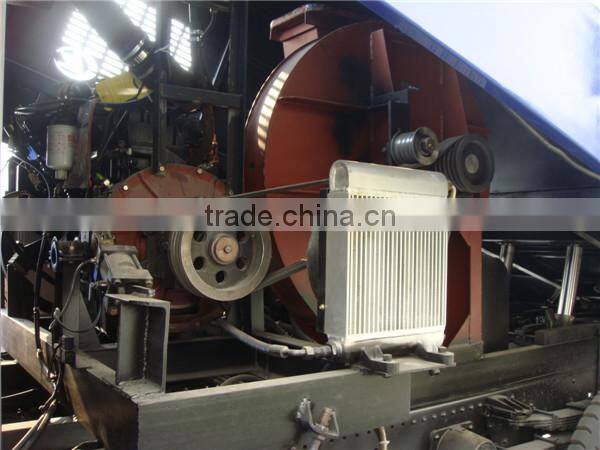

Auxiliary engine and clutch
Product Note:
Above parameters of small diesel street sweeper truck for sale is just for reference. As a professional manufacturer of road sweeper truck, we can customize the sweeper truck according to your requriement.
Besides street sweeper truck with roller brush, we also produce vacuum street sweeper ,multifunctional floor sweeper,electric sweeper,etc.
Chengli Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our brand is CLW .Our company has ind ependent export authority, and has a lot of overseas clients.
Our leading products include more than 8 series and 100 types of trucks such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors.
At the same time, we deal with wholesale chassis. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001,Chinese Top 500 Certificate and CCC certificates (China Compulsory Certification).
Chengli series trucks have occupied the i ling to serve for you, and is looking forward to your coming to visit our company.
Tips:
1. All of our trucks are new and customized to meet customer's requirement.
2. All of our trucks are with 12 months quality guarantee.
3.CKD and SKD are supplied.
4.Technical support are provided.
