High Quality Road Sweeper Clean Machine Truck

High Quality Road Sweeper Clean Machine Truck photo-1

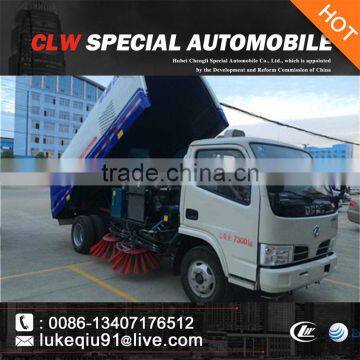

High Quality Road Sweeper Clean Machine Truck photo-2

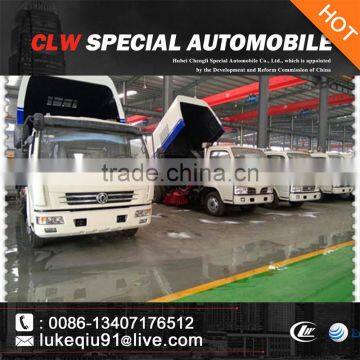

High Quality Road Sweeper Clean Machine Truck photo-3
US$ 14,000 - 15,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CLW
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW5080TSL4
Dimension(L*W*H) 6518*2250*2520
Weight 8200
Certification ISO CCC
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

dongfeng CLW 4*2 pavement sweeper truck for sales




Overall parameters
Type of Vehicle
dongfeng CLW 4*2 pavement sweeper truck for sales
Dimension(L*W*H)
5980*2140*2500mm
GVW
7300(Kg)
Curb Weight
4600(Kg)
Rated Loading Weight
2445KG












Chassis parameters
Chassis Model
DFA1070SJ35D6
Manufacture
Dongfeng
Cab
single or double
front/rear suspension
1032/1618(mm)





Engine
Engine Model
YC4FA90-40
Fuel
diesel-oil
Quantity of cylinder
4
Horse Power
90HP
Rated Power
66kW
Air Displacement
2.982L
Emission
EURO 4
Driving Type
4*2
Steering Wheel
left/right hand driving
Gear-box
6
Brake Type
air
Quantity of Axle
2
Wheel Base
3300 mm
Axle load
2920/4380
Quantity of Tire
6+1
Tire Type
7.00-16






Other equipement parameters
Sweeping Width (m)
≥3.3
Water Tank Volume(L)
2000
Garbage Tank Volume(L)
2000
Working Speed(km/h)
5~20
Maximum Working Area(m2/h)
40000
Maxiumu Suction Size(mm)
120
Sweeping Efficiency
≥95%
Working Condition:
1,Altitude: 0-4500m
2,Temperature: -350C~+450C
3,Relative humidity: 80%
4,Wind force: ≤8 degree
Detailed Images

A street sweeper or street cleaner may refer to a a person's occupation, or a machine that cleans streets. A street sweeper cleans the streets, usually in an urban area.
Street sweepers have been employed in cities since sanitation and waste removal became a priority. A street-sweeping person would use a broom and shovel to clean off litter, animal waste and filth that accumulated on streets. Later, water hoses were used to wash the streets.
Machines were created in the 19th century to do the job more efficiently. Today, modern street sweepers are mounted on truck bodies and can vacuum debris that accumulates in streets.


Our Company

Our company


Hubei Chengli Group is located in Chengli auto industry park, Pingyuan town, southern suburb of Suizhou, Hubei. Suizhou is known as Shennong's native land, chime's hometown and "China's Special Vehicle Capital".
It is also the manufacturer of domestic well-known special vehicles used in landscape, petrochemical industry, the municipal environmental sanitation, and pressure vessel.
The registered trademark of which is "Chengliwei", and the product code is "CLW". It's the important partner of Dongfeng and Jiefang. And mainly engaged in manufacturing all kinds of special vehicles and selling full vehicle and fittings to large-scale manufacturers.
 The company is a high-tech enterprise in hubei province and has passed the certification of ISO9001, ISO16949, GJB9001 and CCC authentication of automobile products.

Advantages of our products

1.Our company ChengLi Special Automobile Co.,LTD has manufactured special truck for decades.
2.Our company possesses some advanced technologies and mature craftworks.
3.The truck produced  by us has high quality and low price.

4.Our  trucks are equiped with high quality and efficient equipments.
5.Our trucks are completely produced according to your demands and needs, they are special, professionnel and unique  for you.

Factory show

Our company has more than 2000 well-trained workers in the factory to deal with the orders from all over the world. And we have a  professonnel engineer team,  QC team to insure your products perfect.

Intruduction of other productions

The Group Chengli special truck has a rich kinds of products, 18 series and over 300 products, such as water truck, fuel truck, fecal suction truck, dumper, LPG, van truck, semi-trailer, fire fighting truck, wrecker, flat transport truck, pressure vessel, high presseure cleaning truck, bulk cement truck, chemical liquid truck, sweeper truck, garbage truck, water/insulatead/milk truck, mixser truck, high–altitude truck etc…

Our customers

Africa and Asia are the two major exporting regions of our's. We mostly export our product to the following countries:

Tajikistan, Nigeria, Angola, Mongolia, Garner, Philippines, Kenya, Papua, New Guinea, Zimbabwe, Saudi Arabia, Congo, Laos, Kyrgyzstan, Owe Ning, Burma, Sultan, Indonesia, Zambia, Vietnam, Kazakhstan, Kampuchea, North Korea, Liberia, Algeria, Azerbaijan, Mexico, Uzbekistan, Maldives, Fiji, Namibia, The Democratic Republic of the Congo, Afghanistan, Chile, Equatorial Guinea, Mozambique, Djibouti, Peru Bolivia, Mauritanian, The Ivory Coast, Eritrea, Russia, Benin, Iraq, Brazil, Libya, Qatar, Vanuatu, Australia, Suriname, Iran, Cuba, Cameroon, New Zealand, The Marshall Islands, South Africa, Ethiopia, St. Kitts and Nevis, Sri Lanka, Niger, Malaysia, Trinidad and Tobago, Botswana.

Certifications

Our partners


Packing & Delivery


Packaging Details: nude,waxed packing,roro ship and so on,depending on your requests.

Delivery Detail: 30 workdays

1. Factory direct supply: reliable quality and fast delivery;
2. Warranty:from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.

FAQ

1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.

2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.

3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.

4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.


5. How long could we receive our goods?

 It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.

6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person.
