20000 Liter 20 m3 Butane Gas Tank 10 Ton

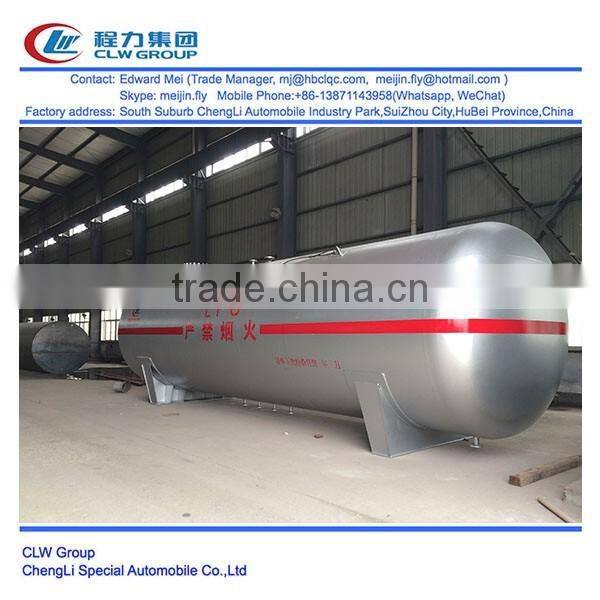

20000 Liter 20 m3 Butane Gas Tank 10 Ton photo-1

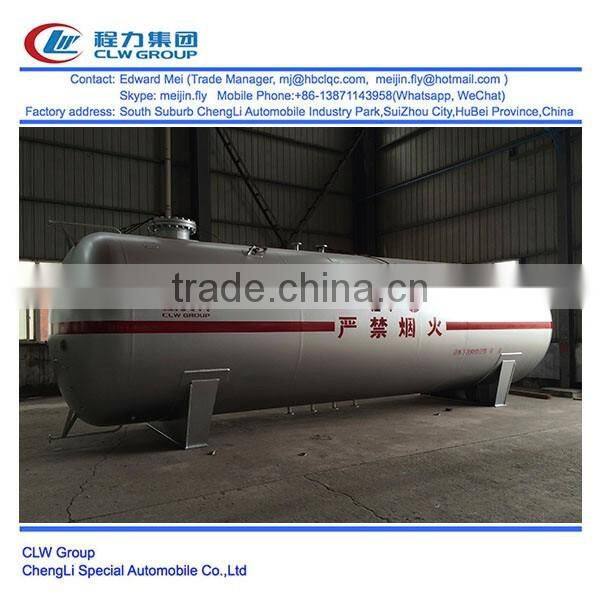

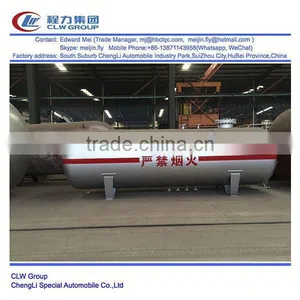

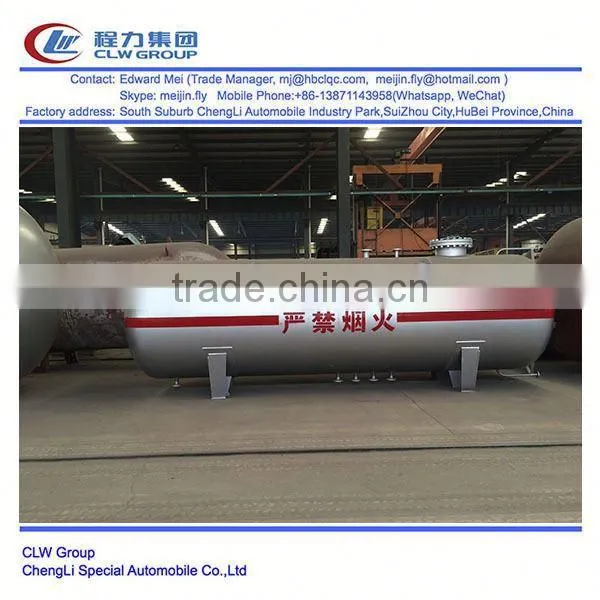

20000 Liter 20 m3 Butane Gas Tank 10 Ton photo-2

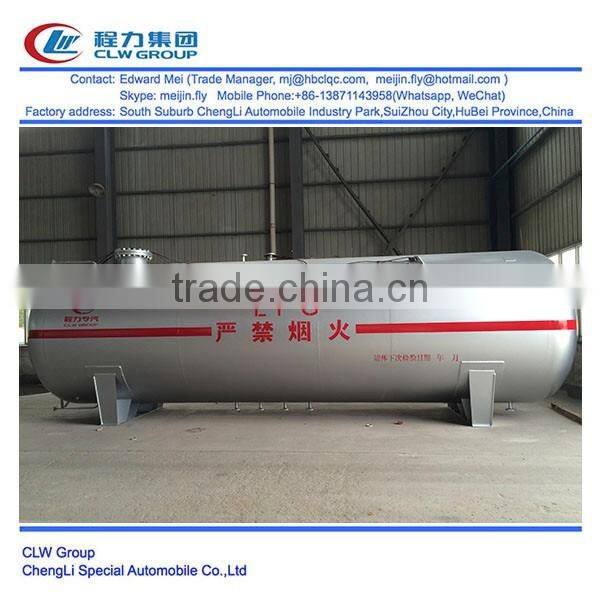

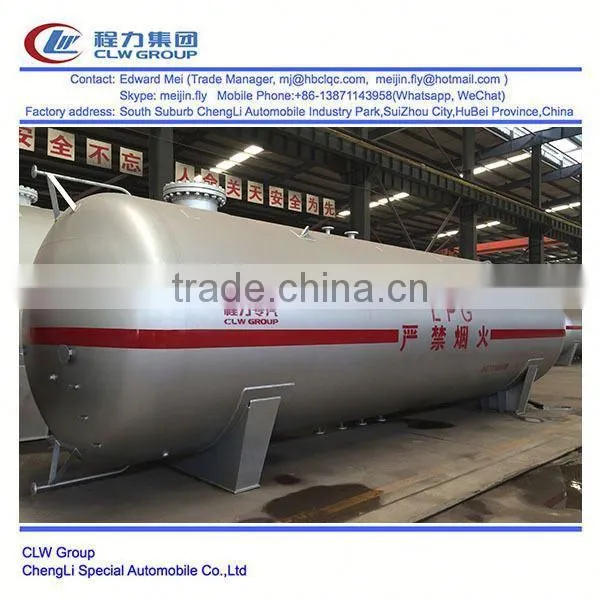

20000 Liter 20 m3 Butane Gas Tank 10 Ton photo-3
US$ 12,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CLW
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW
Dimension(L*W*H) 6154*2124*2410
Capacity 20000 liter
Weight 5050kg
After-sales Service Provided Engineers available to service machinery overseas

20000 liter 20 m3 butane gas tank 10 ton


CLW Group_ChengLi Special Autmobile Co.,Ltd , which is a big and famous special function truck manufacturer in China, we also proudce petroleum industry storage tanks for liquid pressure gas ( LPG), such as the propane gas.Isobutane,Propylene,DME, and so on.

Currently we proudce the LPG storage tank from 5000 liter to 120000 liter, LPG transporting trailer 30000 liter to 60000 liter, LPG transporting truck 5000 liter to 35000 liter, LPG mobile filling truck 5000 liter to 35000 liter.

With the manufacturer China GB150, ASME. Welcome for your inquiry.

Product Description

20000 liter 20 m3 butane gas tank 10 ton

Item Unit Specification
Model   CLW20-12-12
Loading object   Propane Gas
Material   Q345R
Designed loading Parameter Option Q345R, 16MnIII, Q370R
Kg/m3 420~ 500
Dimension mm 6154*2124*2410
Net Weight Kg 5050
Designed Pressure Mpa 1.77
Max Working Pressure Mpa <=1.6
Designed Temperature C -20~50
Volume m3 20
Body thick mm 12
Cover thick mm 12
Man Hole mm 450
Top Safety Valve Port mm 80
Life Year Year 20
Input and output
Liquid input Port mm DN50 ( 2 Inch) 2.5Mpa
Liquid Output Port mm DN50 (2 Inch) 2.5Mpa
Bottom Air gas input Port  mm DN50 (2 Inch) 2.5Mpa
Waste Liquid Output Port mm DN50 (3 Inch) 2.5Mpa
Top Gas Let Out Port mm DN50 (3 Inch) 2.5Mpa
Liquid Level Indicator Port mm DN20 2.5Mpa
Essential Device for option
Safety Valve, Temperature Gague, Pressure Gauge
Option~ flange
Production Standard
China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard
Designed Valid Year, at least 20 year

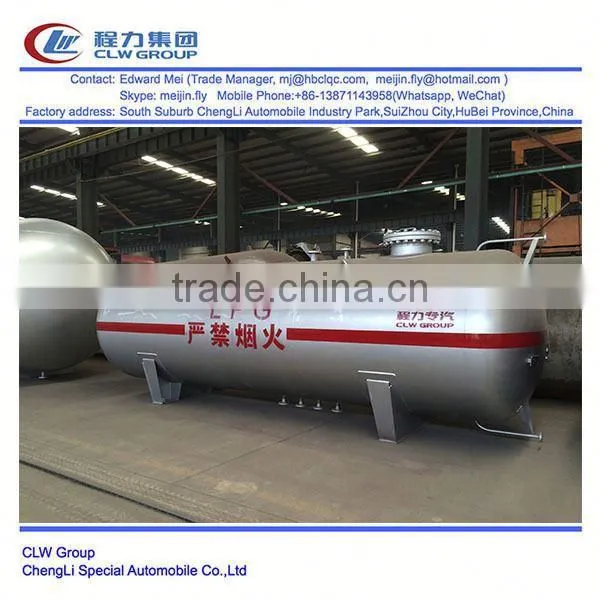

More photos showing

20000 liter 20 m3 butane gas tank 10 ton

20000 liter 20 m3 butane gas tank 10 ton20000 liter 20 m3 butane gas tank 10 ton20000 liter 20 m3 butane gas tank 10 ton

More option design

20000 liter 20 m3 butane gas tank 10 ton

20000 liter 20 m3 butane gas tank 10 ton20000 liter 20 m3 butane gas tank 10 ton20000 liter 20 m3 butane gas tank 10 ton
