Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.
gas tank storage,gas tanker capacity,gas tankers
Items |
Unit |
Parameter |
|||||||||||||||
Product |
LPG Tank |
||||||||||||||||
Model |
GLG2400-50 |
GLG3000-80 |
GLG3200-100 |
||||||||||||||
Loading subject |
propane |
propane |
propane |
||||||||||||||
Whole Dimension |
mm |
11657*2428*3028 |
11866*3036*3610 |
13020*3740*3240 |
|||||||||||||
Tank Dimension |
mm |
DN2400*14 thick*11657 length |
DN3000*18 thick*11866length |
DN3200*20 thick*13020 length |
|||||||||||||
Tank Volume |
m 3 |
50 cubic meter |
80 cubic meter |
100 cubic meter |
|||||||||||||
Curb Weight |
kg |
10706 |
17900 |
22901 |
|||||||||||||
Designed pressure |
Mpa |
1.77 |
1.77 |
1.77 |
|||||||||||||
Working pressure |
Mpa |
<= 1.6 |
<= 1.6 |
<= 1.6 |
|||||||||||||
Working temperature |
C |
<= 50 |
<= 50 |
<= 50 |
|||||||||||||
Water testing pressure |
Mpa |
2.22 |
2.22 |
2.22 |
|||||||||||||
Air testing pressure |
Mpa |
1.77 |
1.77 |
1.77 |
|||||||||||||
Tank materia |
Q345R , 16 Mnlll, Q370R |
||||||||||||||||
Manufacturer Standard |
China GB 150 pressure vessel manufacturer standard. |
||||||||||||||||
Remark |
Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, |
||||||||||||||||
gas tank storage,gas tanker capacity,gas tankers

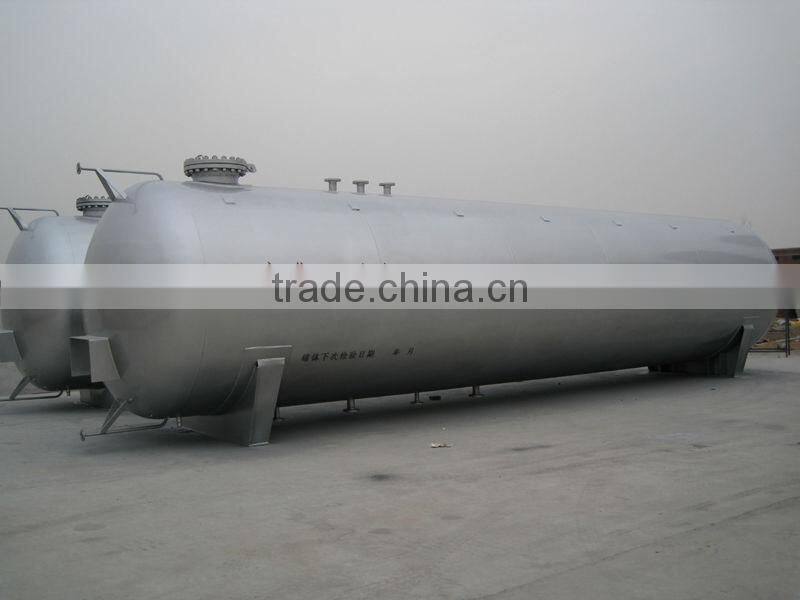

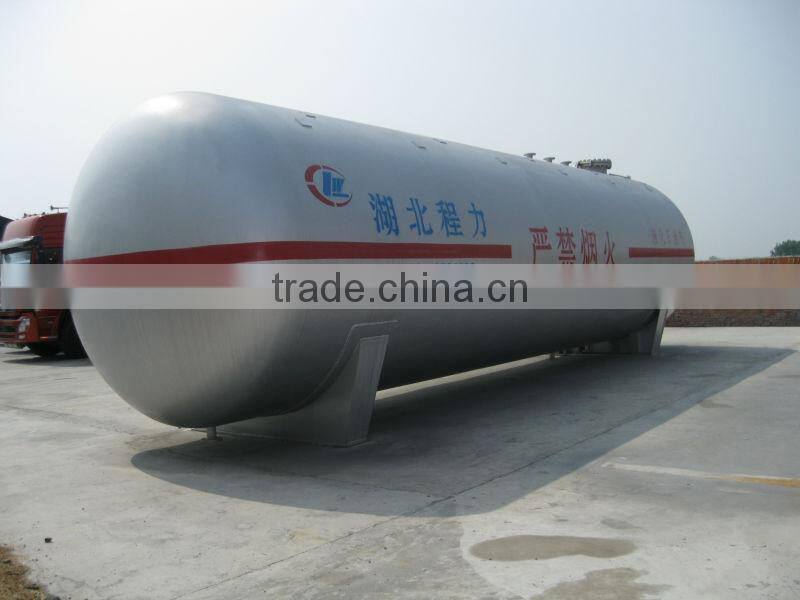

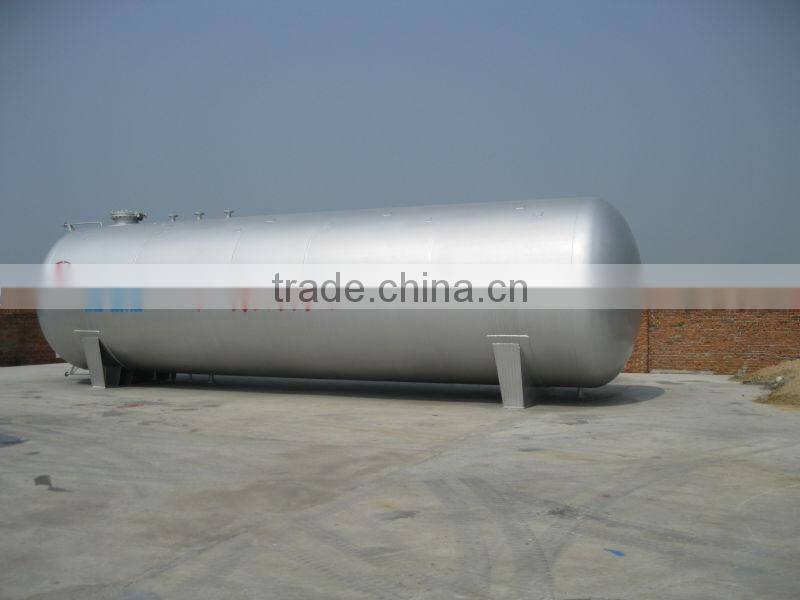

50m3 lpg storage tank , lpg gas tank for sale, high pressure lpg gas cylinder,lpg domestic tanks
--------------------------------------------

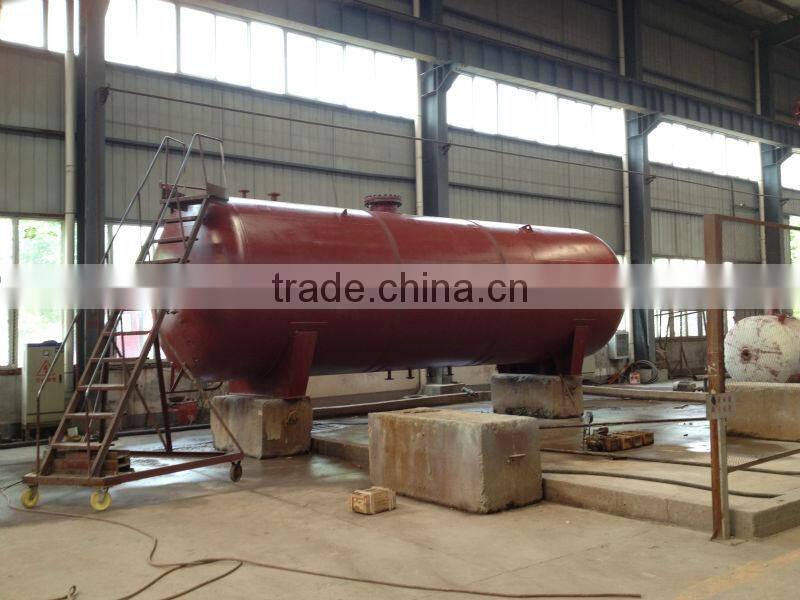

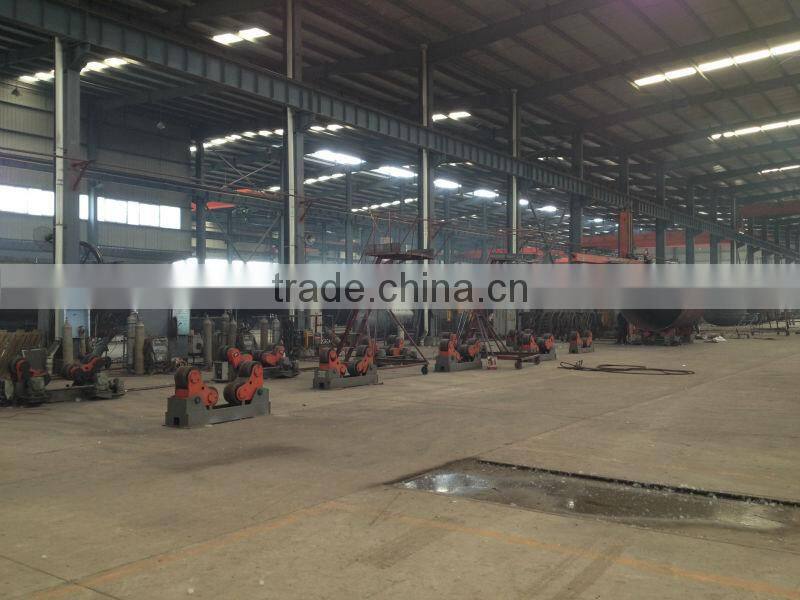

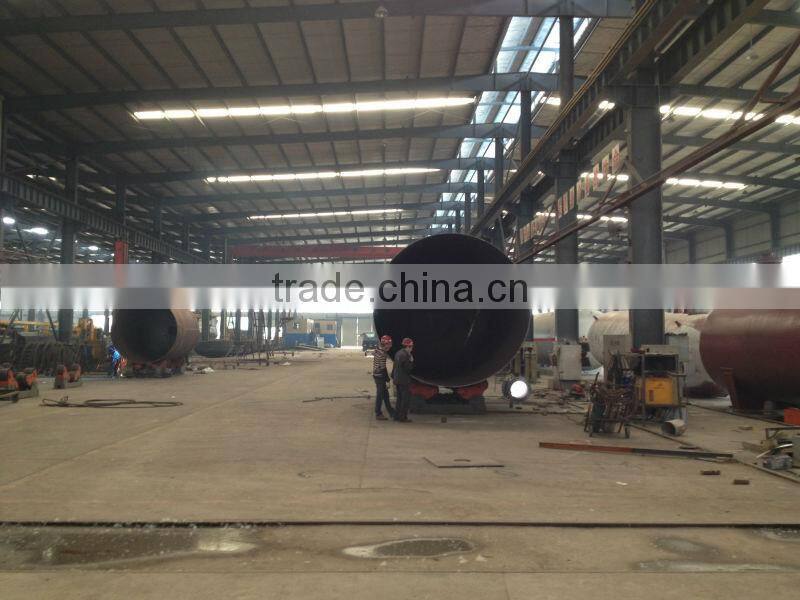

LPG Factory photos showing
---------------------------------------------
Materials rolled into tank, Q345R, Q370R, 16MnIII,
Water Pressure testing.

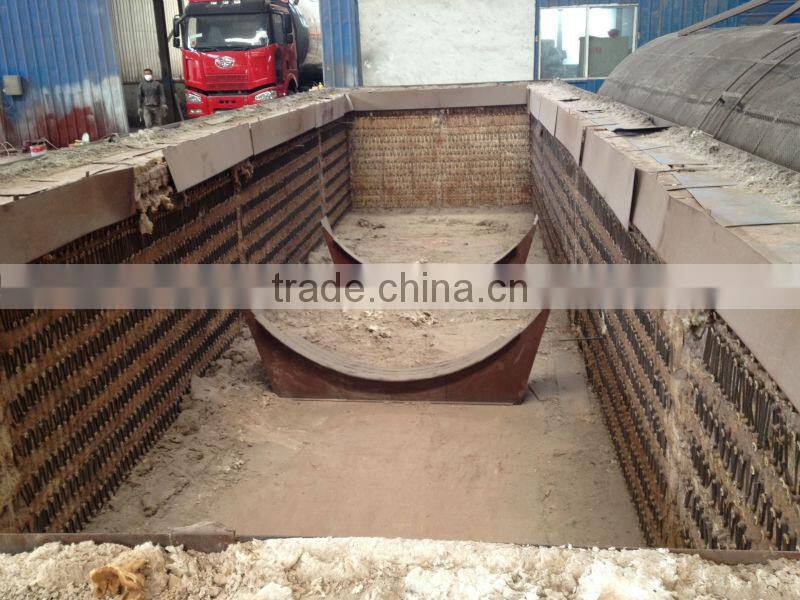

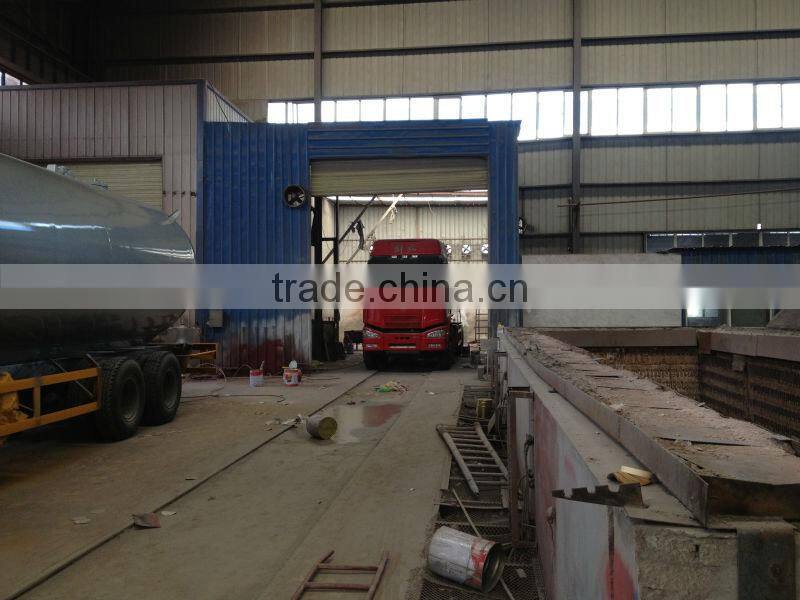

Tank heating testing room.

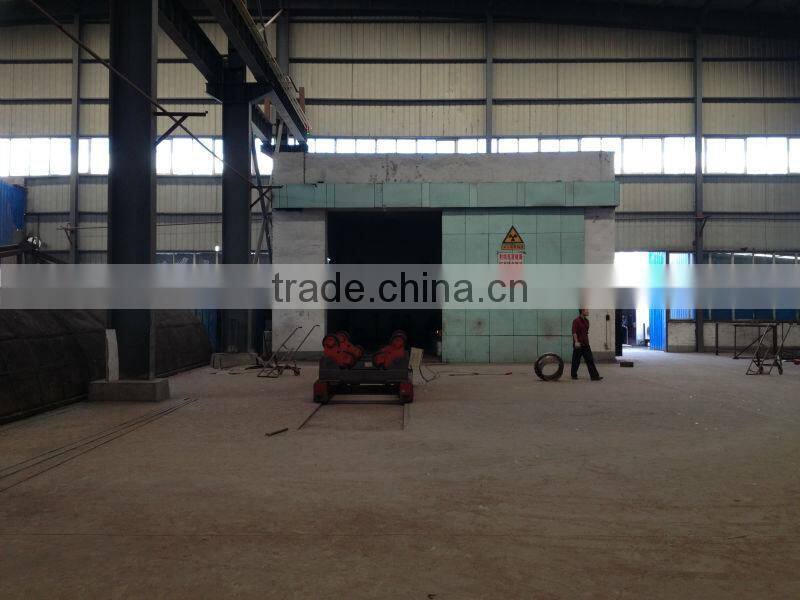

X-ray testing for the tank side cover welding.
-----------------------------------------------------------
Manufacturer Standard: GB150, China. which is stricter than ASME standard.
We also could produce the product according the ASME standard.
-----------------------------------------------------------
Certificate: CCC, ISO, BV, which is showing on our website.
-----------------------------------------------------------
Welcom for you inquiry.
...
