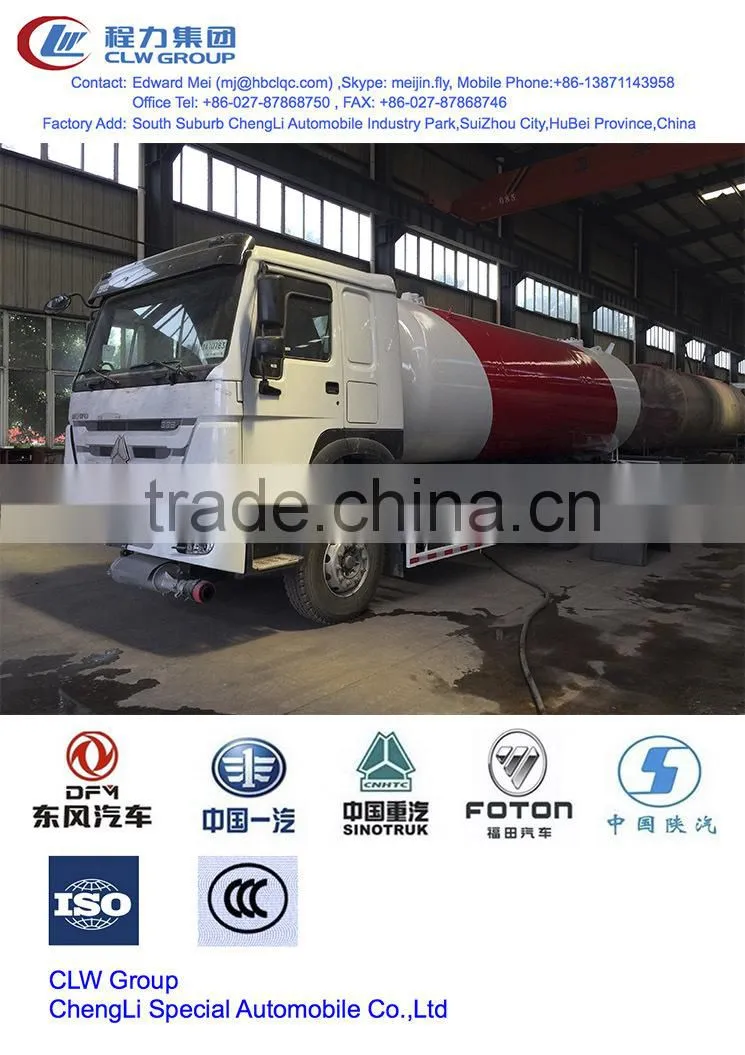

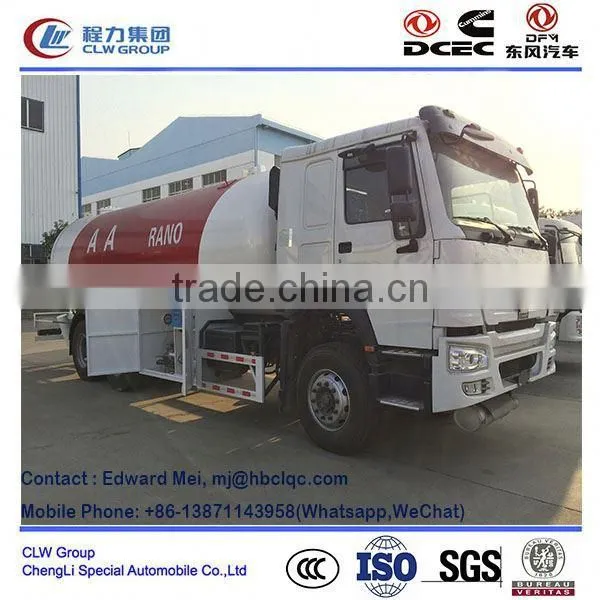

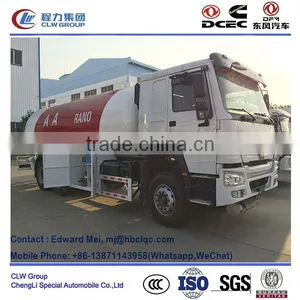

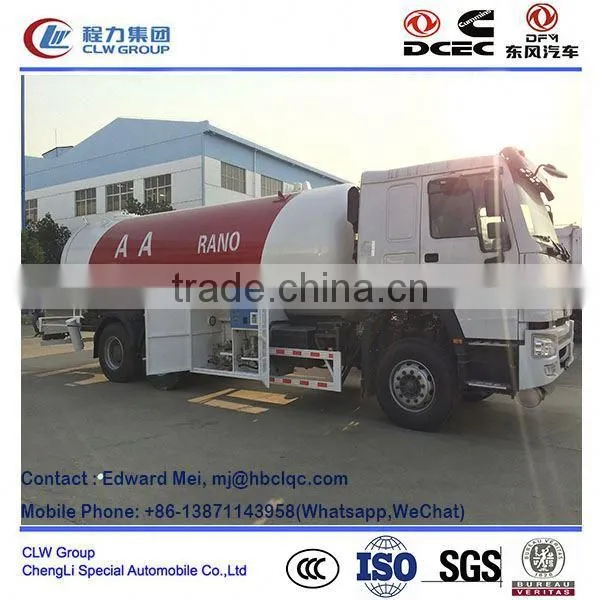

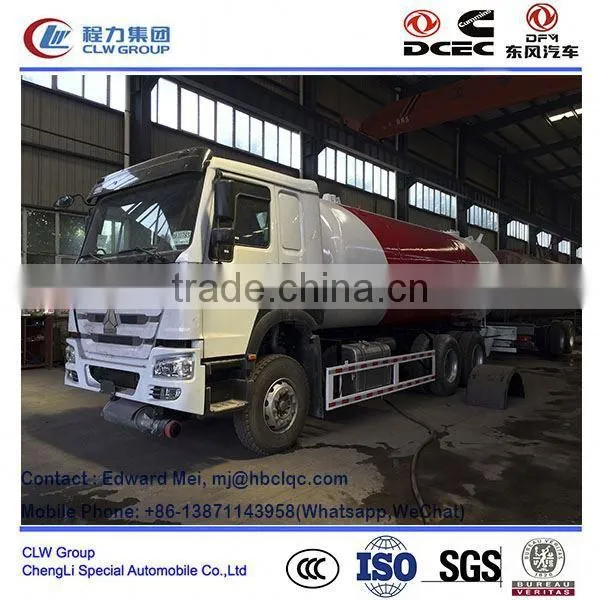

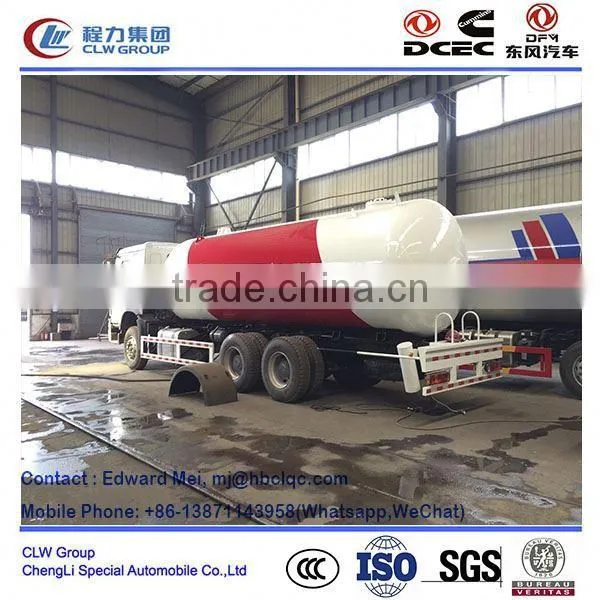

25000 liter Howo LPG mobile tanker, 25000 liter Howo gas tank truck
LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.
Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.
Howo 25000 liter LPG gas tank truck, Howo 25000 liter LPG mobile tanker, 25000 liter Howo gas tank truck
Howo 25000 liter LPG gas tank truck, Howo 25000 liter LPG mobile tanker, 25000 liter Howo gas tank truck
| Item | Unit | Description | ||||||||
| Model | Dong Feng brand LPG Truck | |||||||||
| Dimension | mm | 10200*2500*3450 | ||||||||
| Tank Dimension | mm | 7534×2124 / 24.81 cubic meter | ||||||||
| Curb Weight | kg | 14385 | ||||||||
| Wheel Base | mm | 4350+1300 | ||||||||
| F/R track base | mm | 1940/1860 | ||||||||
| F/R Axle-Load | Kg | 7000/13000/13000 | ||||||||
| Approach/Departure angle | . | 25/11 | ||||||||
| Traction system | 4x2 | Tire Specification/Number | 12.00R20 / 10+1 Units | |||||||
| Max speed | 90 km/h | Number of axles | 3 | |||||||
| Engine model | WD615.97E | Emission/kw | 9726ml / 216 KW, 290 Hp | |||||||
| Diesel , 6 Cylinders, Diesel, Direct-line, Turbocharge and aftercooling | ||||||||||
| Engine Manufacturer | Weichai Engine Power Co.,Ltd | |||||||||
| Steering | Power | Transmission | HW15710, 10F&2R | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Dirve system | Left hand or Right hand driven | |||||||||
| Air Condition | Yes | CD , Radio, Mp3 | ||||||||
| LPG Tank Design | ||||||||||
| Load Substance: | Oil Gas (propane) | Designed Pressure: | 1.77Mpa | Designed TEMP: | 50℃ | |||||
| Load parameter: | 0.42T/m3 | Material: | Q345R,16MnIII, Q370R | |||||||
| Remark: |

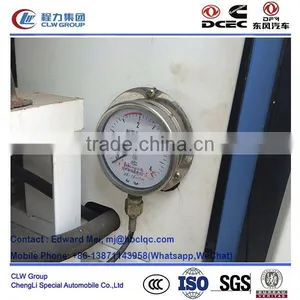

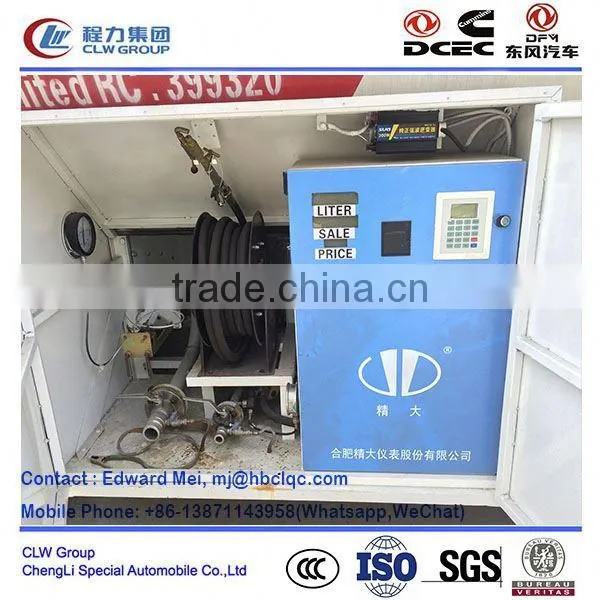

Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, Valve box,Fire extinguisher, plastic pipe of staticproof, Well-secured fenders and mudguards,Tire well-secured,fenders and mudguards. One side liquid output port, Option~ Two side output port. Option~ installing recharge and discharge device, Pump,and others |
|||||||||
Howo 25000 liter LPG gas tank truck, Howo 25000 liter LPG mobile tanker, 25000 liter Howo gas tank truck
Materials rolled into tank, Q345R, Q370R, 16MnIII,
Water Pressure testing.
Tank heating testing room.
X-ray testing for the tank side cover welding.
-----------------------------------------------------------
Manufacturer Standard: GB150, China. which is stricter than ASME standard.
We also could produce the product according the ASME standard.
-----------------------------------------------------------
Certificate: CCC, ISO, BV, which is showing on our website.
-----------------------------------------------------------
Howo 25000 liter LPG gas tank truck, Howo 25000 liter LPG mobile tanker, 25000 liter Howo gas tank truck
Welcom for you inquiry.
....
