US$ 10,000 - 45,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Capacity:
5~120 m3
Place of Origin:
Hubei, China
Contact Supplier Request Quote Chat Now
Chengli Special Automobile Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Capacity 5~120 m3
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW
Dimension(L*W*H) 7508*2428*2600
Weight 7410
Certification CCC, ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

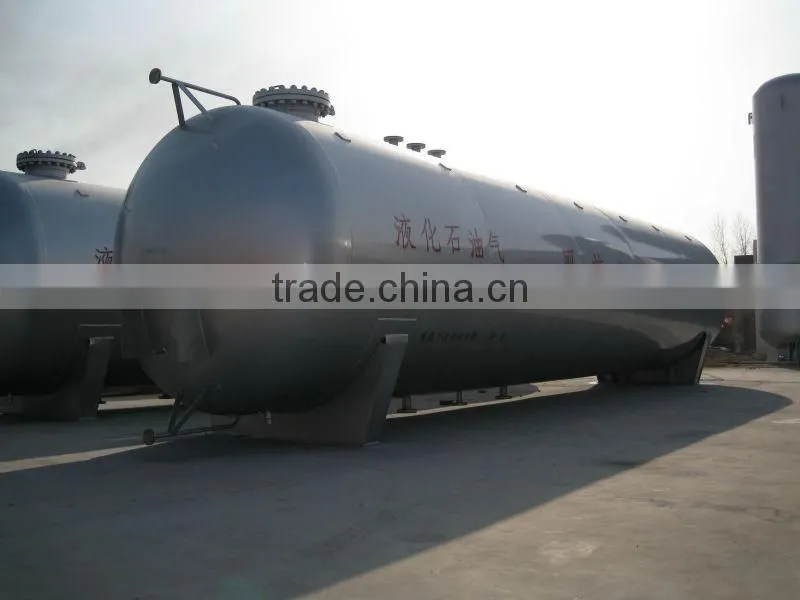

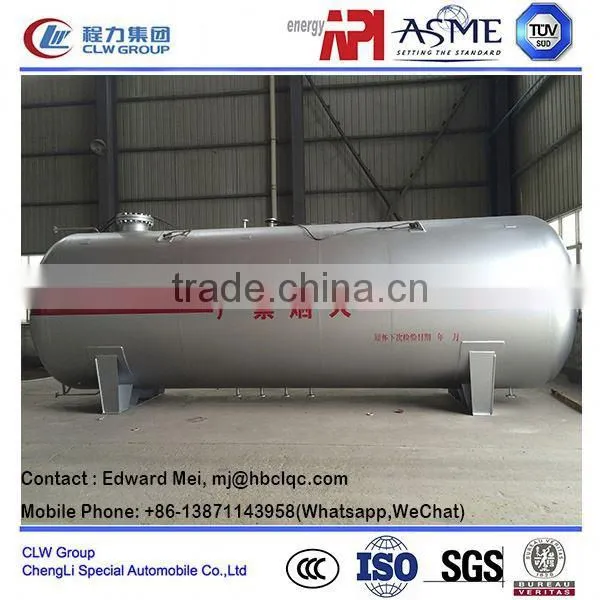

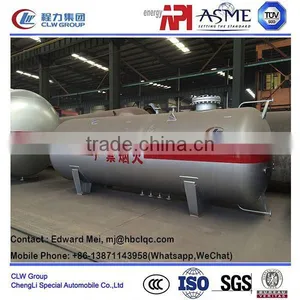

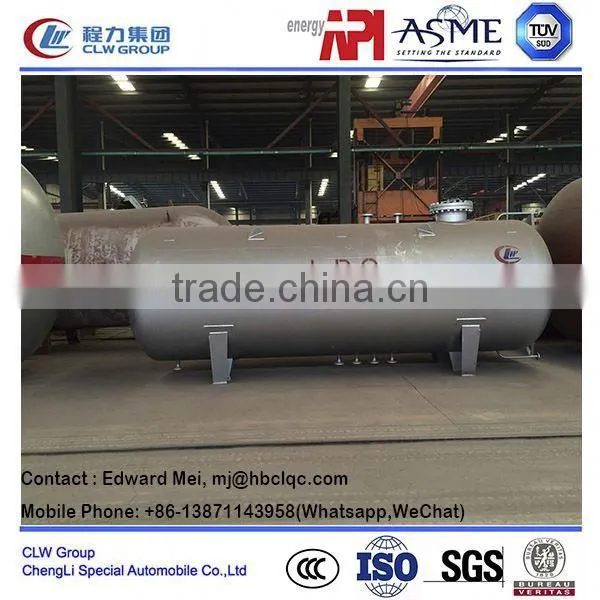

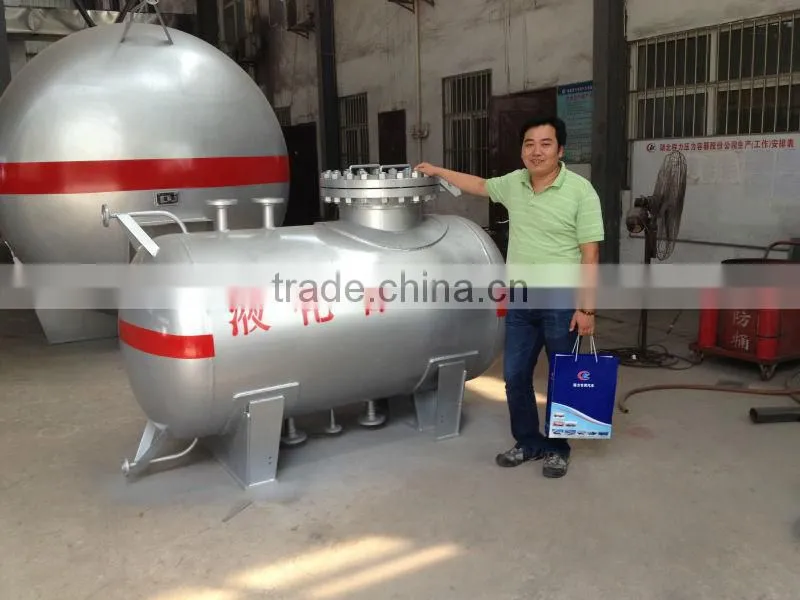

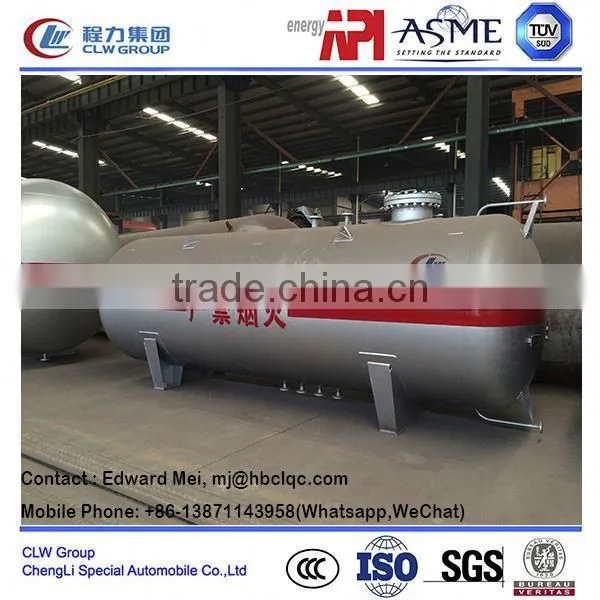

10 m3 , 25m3, 32 m3  lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank



LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.

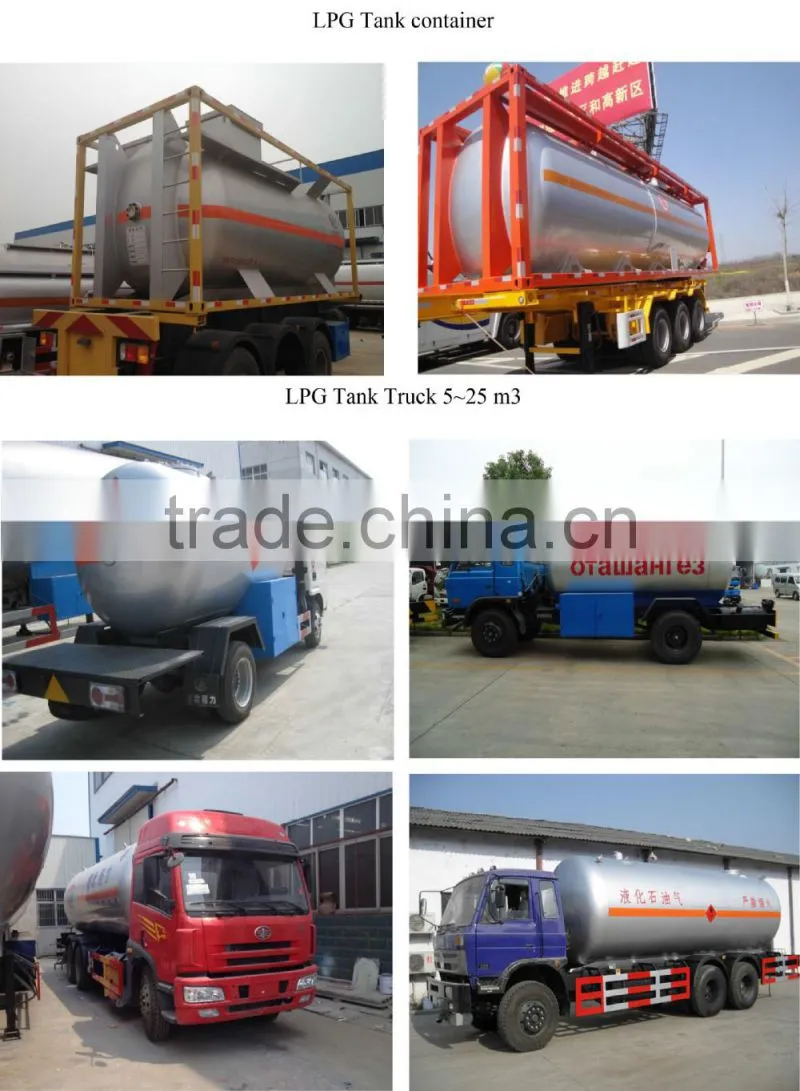

Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.

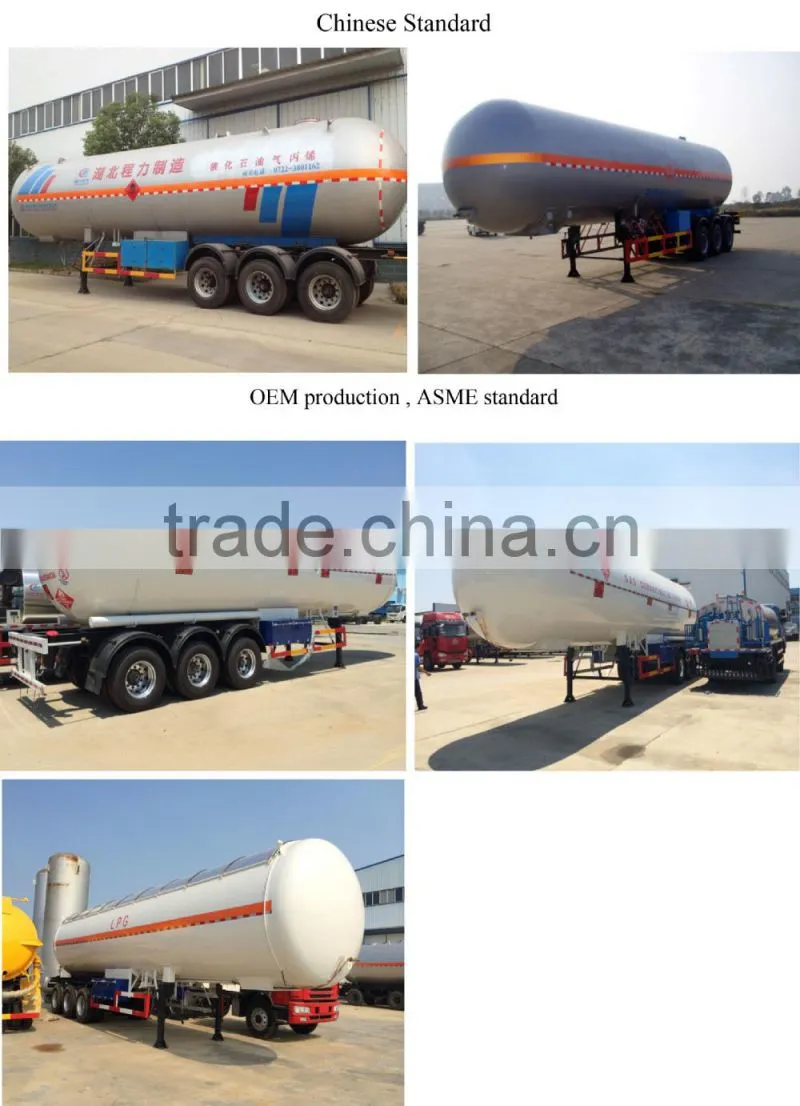

The LPG tank trailer volume from 30~60 m3 with two axles or three axles.

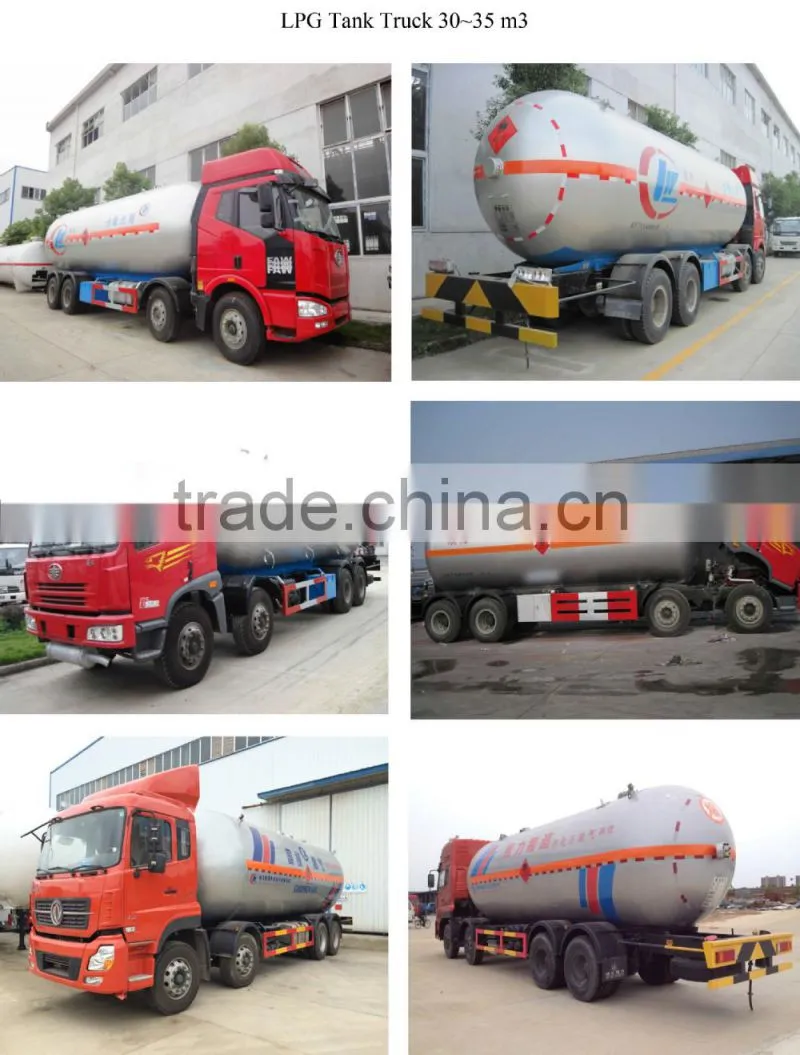

The LPG tank truck with the volume from 5~35 m3.



10 m3 , 25m3, 32 m3 lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank10 m3 , 25m3, 32 m3 lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank



10 m3 , 25m3, 32 m3 lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank



Main specification

10 m3 , 25m3, 32 m3  lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank

Items Unit Parameter
Product   LPG Tank
Model   GLG1600-10 GLG2100-25 GLG2400-32
Loading subject   propane propane propane
Whole Dimension mm 5940*1620*2040 7570*2124*2600 7508*2428*2600
Tank Dimension mm DN1600*10 thick*5940 length DN2100*12 thick*7570 length DN2400*14 thick*7508 length
Tank Volume m3 10 cubic meter 25 cubic meter 32 cubic meter
Curb Weight kg 3165 5900 7410
Designed pressure Mpa 1.77 1.77 1.77
Working pressure Mpa <1.6 < 1.6 < 1.6
Working temperature C < 50 < 50 < 50
Water testing pressure Mpa 2.22 2.22 2.22
Air testing pressure Mpa 1.77 1.77 1.77
Tank materia   Q345R , 16 Mnlll
Manufacturer Standard   China GB 150 pressure vessel manufacturer standard.
Remark  Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve,



related product show

10 m3 , 25m3, 32 m3  lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank

10 m3 , 25m3, 32 m3 lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank10 m3 , 25m3, 32 m3 lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank10 m3 , 25m3, 32 m3 lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank10 m3 , 25m3, 32 m3 lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank









10 m3 , 25m3, 32 m3 lpg storage tank,10 m3 , 25m3, 32 m3 gas lpg cylinder, gas lpg tank, 10 m3 , 25m3 ground lpg storage tank






...
