dongfeng 4x2 fuel truck
1. Dongfeng brank
2. 3800 wheelbase
3. 120HP
Product Description
| Chassis | ||||||
| Chassis brand: | Dongfeng,EQ1060TJ20D3 | |||||
| Drive type: | Manual, left hand drive,optional right hand drive | |||||
| Drive wheel: | 4*2 | |||||
| Tyre: | 7.00-16, 6+1pieces | |||||
| Control system: | Electrically hydraulic system | |||||
| Transmission: | Five speed levers, 5 speed forward with 1 reverse | |||||
| Chassis dimension: | 5820*1940*2080mm | |||||
| Braking system: | Air braking | |||||
| Clutch: | Uniwafer, dry clutch, hydraulic remote control | |||||
| Wheel base: | 3800mm | |||||
| Axis number: | 2 pieces | |||||
| Cab Passengers: | 3 passengers | |||||
| Engine | ||||||
| Engine: | Chaoyang CY4102-C3F | |||||
| Horse power: | 95HP | |||||
| Exhaust: | 3856CC | |||||
| electric system: | 24V | |||||
| Emission standard: | Euro 3 | |||||
| Max speed: | 80km/h | |||||
| Fuel: | Diesel,optional gasline | |||||
| Main parameters technical specifications | ||||||
| Overall size: | 5990*1960*2400mm | |||||
| Overall G.W.: | 8500kg | |||||
| Curb weight: | 3365kg | |||||
| Fact load: | 5000kg | |||||
| Tank volume: | 5 m3 | |||||
| Tank shape: | Oval | |||||
| Tank material: | Carbon steel | |||||
| Tank color: | any color customer like | |||||
| Tank thickness: | 5mm | |||||
| Srpings: | 8/9+5 | |||||
| Approach/departure angle: | 18/12. | |||||
| Overhang F/R: | 1032/1658mm | |||||
| Axis load: | 2480/4015 | |||||
| Warrenty: | 1 year | |||||
| Certification: | CCC, ISO... | |||||
| Tank Parameter | ||||||
| Transfer of Media: | Gasoline/diesel , density: 840kg/cbm | |||||
| Functions: | The tank can be separated several compartments to load | |||||
| different oil or chemical varieties | ||||||
| Fuel dispenser: | Optional single counting, double counting, and tax control | |||||
| fuel dipenser | ||||||
| Oil Pump | According to the purpose of tankers, you can choose | |||||
| centrifugal pumps, gear pump, copper gear pumps. | ||||||

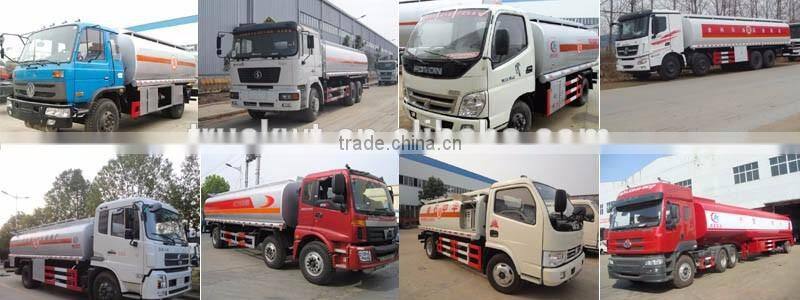

Oil Truck Series
Certifications:
Products Show
Factory
FAQs
Q1. What is your truck warranty?
A: Our warranty is 12 months, from the date of supply. We'll supply Lifetime service for all the trucks we supply to customer.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5.Quality and Price
we are strictly control quality from raw material to finished products. And ensure high quality of your required products. Also we manage to control the cost and save every penny for your party.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
If you are interested in Dongfeng oil truck and other trucks, please feel free to contact with me, my skype:chenglitruck02 and 0086 13824309425
