very hot sale 30000 liters to 60000 liters Farm Fuel Trailer with compartments /Petrol Tanker Semitrailer/crude oil
- 200 Set / Sets per Month
- Any port in China
- T/T L/C D/P D/A Credit Card PayPal
- Sedan SUV transport semi-trailer export semi-trailer Russian European style semi-trailer
- Low flatbed semi-trailer Hydraulic ladder semi-trailer Automatic low flatbed export trade
- Exporting trailers to Russia European style car transport Semi trailer price
- Multi axles modular low bed semi trailer
- AUTONE wingspan van semitrailer
- Container Semi Trailers
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, CCC, SGS, ISO, COC,ECT |
Size: | 13000*2500*3950 mm | OEM No.: | CLW001 | Max Payload: | 60000 |
Place of Origin: | Hubei, China | Brand Name: | Chengli CLW brand | Model Number: | CLW9140CSS |
Product Description
30,000 liters to 60,000 liters Farm Fuel Trailer with compartments /Petrol Tanker Semitrailer/crude oil
We have well experienced in reseaching and developing differenttrailers:container trailer, low bed trailer, side wall semi trailer, stake semi trailer, tank trailer and heavy duty trailer etc.
Stainless steel for tank body
Axle:German or American style from 12 tons to 20 tons
Suspension:Mechanical suspension, air suspension or bogie suspension.
Tyre:11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
King pin:Optional for 2" or 3.5" Kingpin
Volume:From 30,000 Liters to 60,000 Liters
Landing Gear:"Jost" landing gear
Fuel tank truck trailer specification:
FUEL TANKER TRAILER SPECIFICATIONS | |
( 3 axles fuel tank semi trailer) | |
Overall dimensions (L*W*H) | 13000*2500*3950 mm |
Load capacity | Approx 40000 kg |
GVW | Approx 50000 kg |
Mass in working order | Approx 10000 kg |
Axle specification | 13T*3pcs (FUWA axle) |
Axle load | -/24000 kg (3 axles) |
Wheel base | 7200+1310+1310 mm |
Front / Rear track base | -/1840/1840/1840 mm |
Suspension system | Mechanical suspension, optional air suspension. |
Front / Rear suspension | -/1600 mm |
Approach / Departure angle | -/12 ° |
Tire specification | 12R22.5 ×12pcs |
Spring few films | -/8/8/8, or -/10/10/10 |
King pin | 90 # China brand kingpin, optional JOST. |
Landing leg | 28T load landing leg, optional JOST. |
Braking system | Optional: China brand 4S/2M ABS / WABCO ABS |
Voltage | 24 V |
FUEL TANKER SPECIFICATION | |

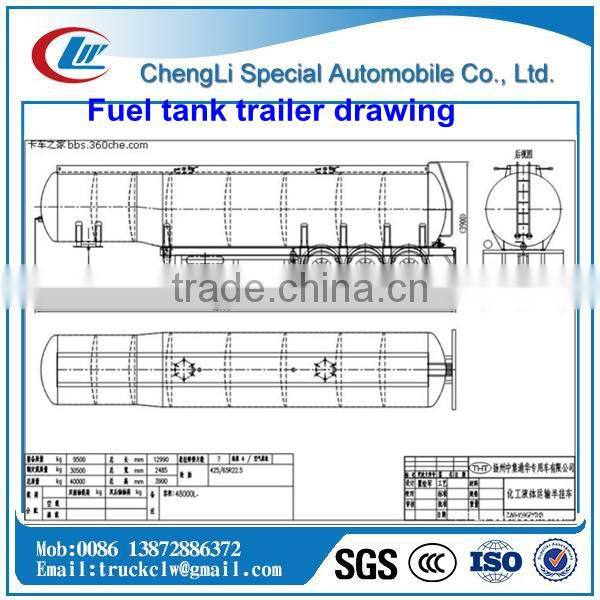

Tank Shape | Round square. (goose neck running gear) |
Tank dimensions (L*W*H) | 4100*2490*1900+8600*2490*2200 mm (square round shape) |
Load capacity | 50000 Liters / 50000L |
medium: gasoline / diesel | |
Compartment | 5 compartments or according to your requirements |
Tank Material | Carbon steel, Stainless steel or ALUMINIUM Alloy |
Baffle plate | 6pcs |
Manhole | DN500 (optional few manhole, by the branch warehouse, EURO standard) |
Optional equipments | Pump / Vapour recovery system / Vent / Branch warehouse / bottom valve |
ACCESSORIES | |
Mudguards | PVC Mudguards |
Side protection | Nil. |
Fire extinguishers carriers | 2pcs |
Spare tire carrier | Spare Wheel Carrier:2 including a riser |
Tool box | 1 tool box with our factory’s standard free tools |
2.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.
3.What benefits will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
4.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.
5.Please explain more about the Package and Shipping.
There's no package but we will spary wax before shipment against saltwater corrosion.
Regarding to the shipping method, as the size of truck trailer is not small, most kinds of trailers must be delivered by Ro-ro vessel or bulk vessel. But few kinds of trailers could be delivered by container vessel. Different trailers, different shipping methods.

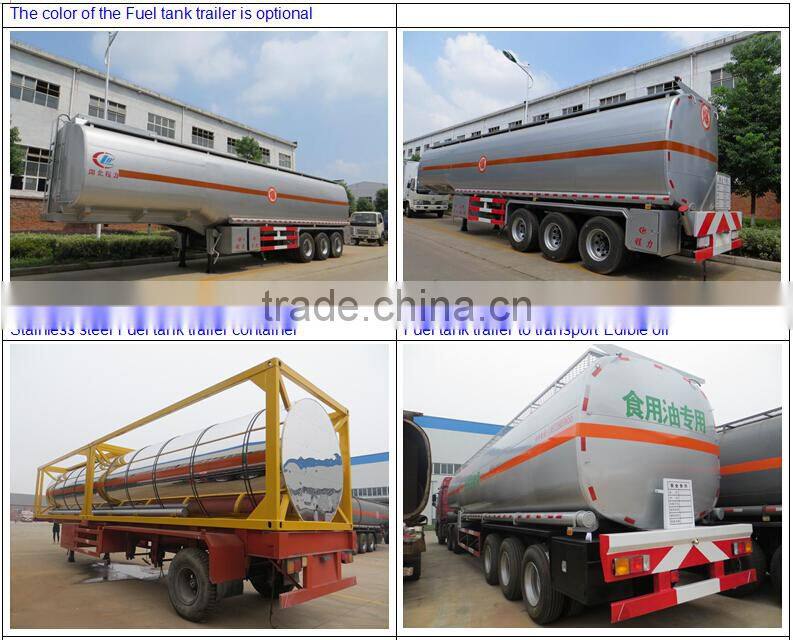

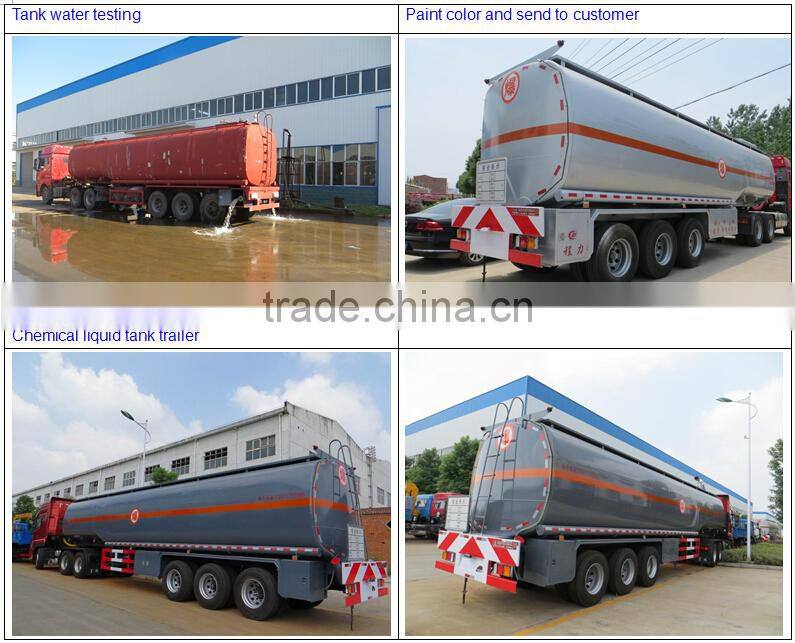

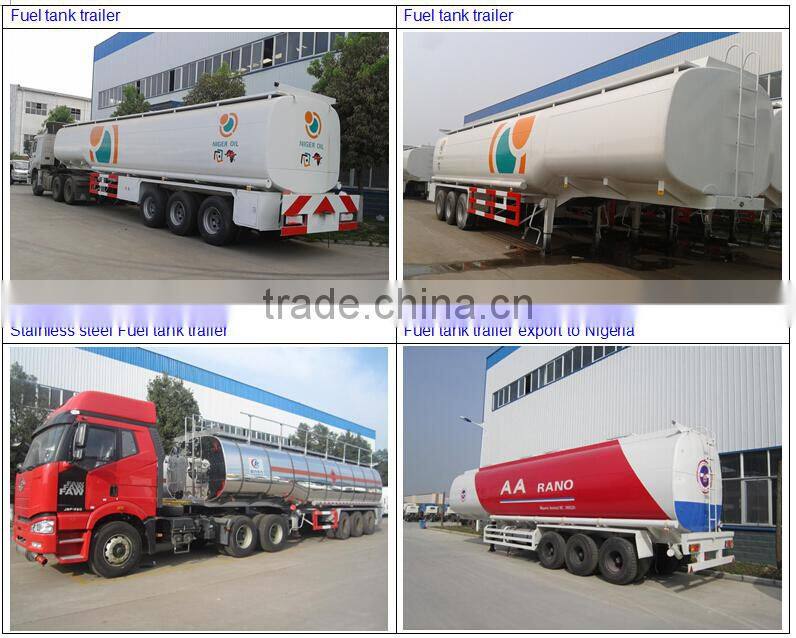

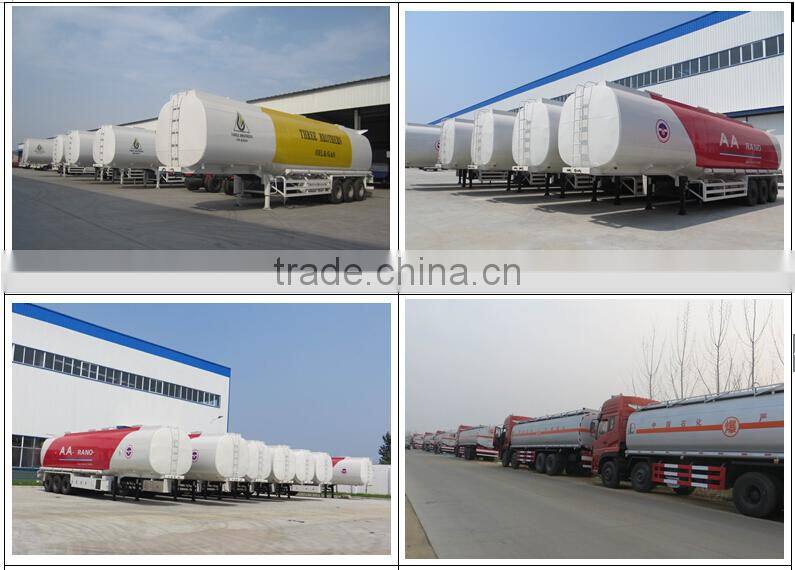

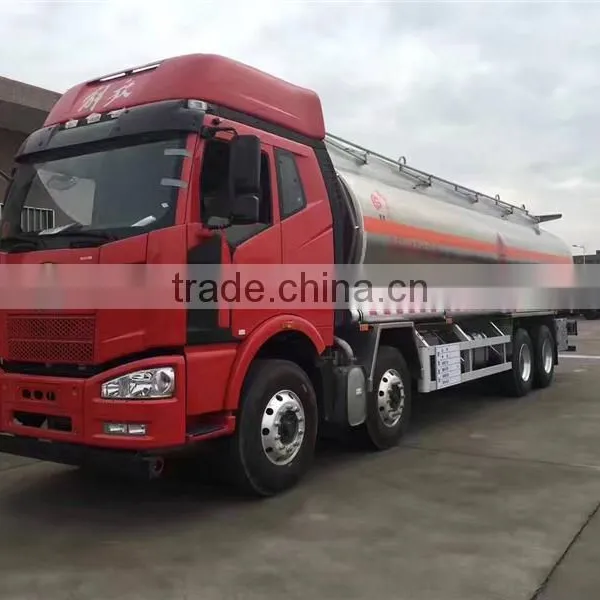

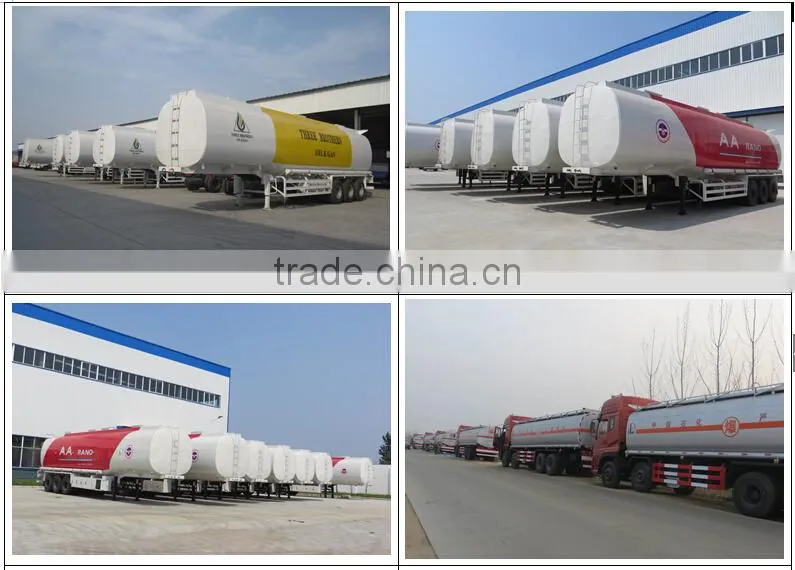

Fuel tank truck trailer pictures:
Advantageous Characteristic of the product:
1.It will impose no pollution to transportation media and is great in corrosion resistance, so it specially adequate for high quality oils transportation.
2.Closed plate struture is adopted in the top of tank body which is configured with anti-skidding footstep, so it can be more safe and reliable.
3.End socked of tank body is butterfly type cripling end socked, reaching beautifulform and high strength.
4.The rear part of tank body is configured with pneumatic hoist rail which is humanized design ensuring convenient and safe poeration.
5.The top of tank body is configured with pneumatic hoist rail which is humanized design ensuring convenient and safe operation.

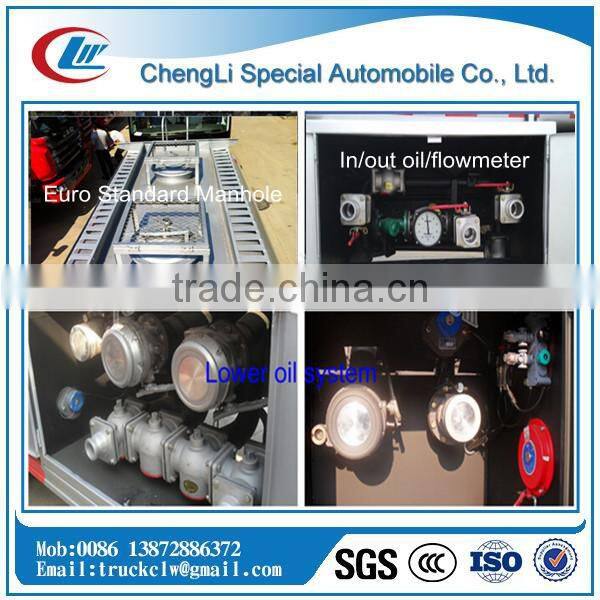

6.It is configured with European style anti-explosion manhol cover and sea valve, possessing the characteristics of overflowing prevention in tip-over and safety.

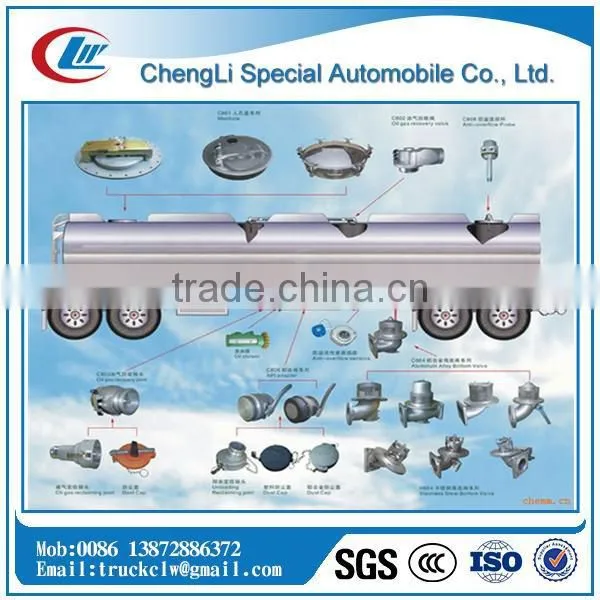

7.It can be assembled API oil drain valve, oil-gas recovery system, overflowing protection system and other refueling dvice as needed, possessing the characteristics of repid loading and unloading and environmental protection.
Customer Visiting:
1.Q:Trading or Factory?
A:Hubei Chengli Special Automobile Co., Ltd., is one factory for special vehciles in China
2. Q:Factory Location?
A:We are located in Suizhou City, Hubei Province, China, covering nearly 80,000 square meters, with own office builing, canteen, workshop, tesing square,etc.
3.Q:Visit there?
A:You will be welcomed here for factory inspection here, you could take Plane to the capital city airport, and we will meet you there, or take Train here directly, we will meet you at the train station.
4.Q: Ability?
A:We have experienced engineer and skillful team workers here for your vehicle.
5.Q:Production time & stock?
A:Please find us that we could check for you the order arrangement here, and instant stock condition.
