10000L to 15000L fuel oil delivery trucks for sale
The fuel oil delivery trucks also called oil tanker, tanker truck, oil truck, fuel tanker, fuel tanker truck,etc. It mainly used to transport oil, fuel or refuel for aircraft or other vehicles as a mobile refuel station.
The oil tank truck is one of our main products.With over ten years experience in special vehicle industry, we creat the Chinese famous brand-----CLW.
CLW oil tank truck with different chassis, eg: DONGFENG, SINOTRUCK, CNHTC, FOTON, NORTH BENS, JAC, JMC, etc.
The Fuel Tanker series we produce:
-----Oil tank truck
-----Refueling trucks
-----Edible oil tank truck
-----Insulation oil transportation tank truck
-----Crude oil delivery trucks
-----Fuel tank full trailer
-----Fuel tank semi trailer
-----Mild steel oil tanker
-----Stainless steel oil tank
-----Aluminum fuel tank
-----Fuel tank container
-----Mobile refueling station
-----Horizontal storage fuel tanker
-----RHD fuel tank truck

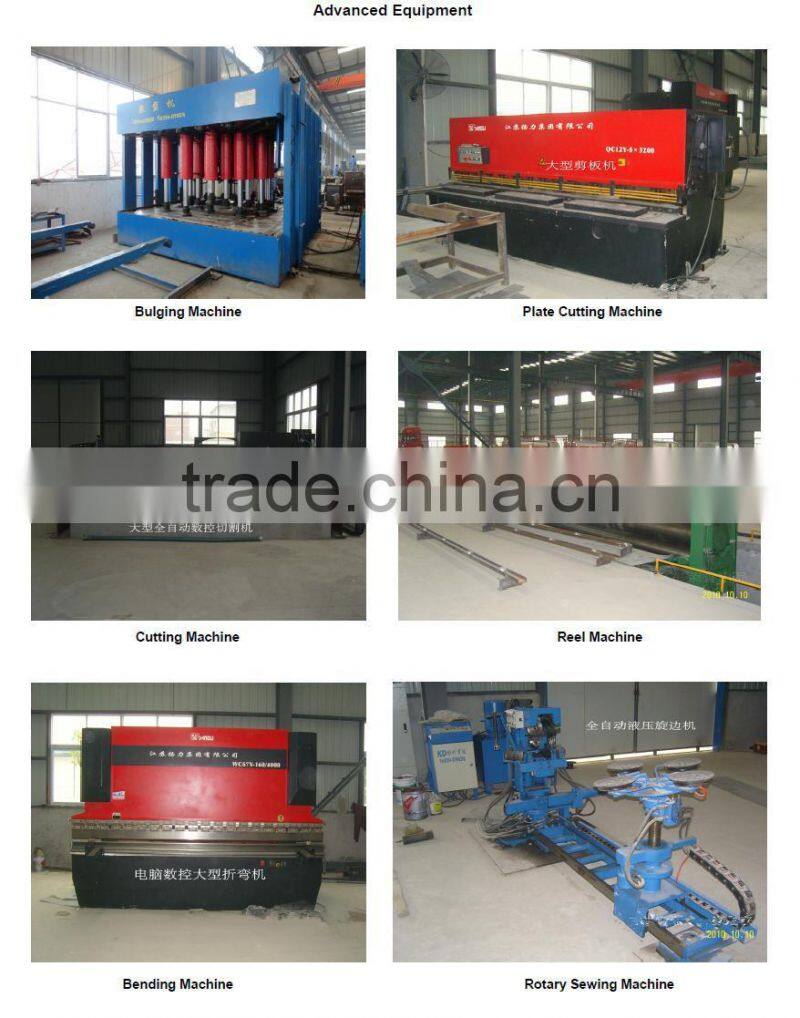

Advanced Equipment of our oil truck

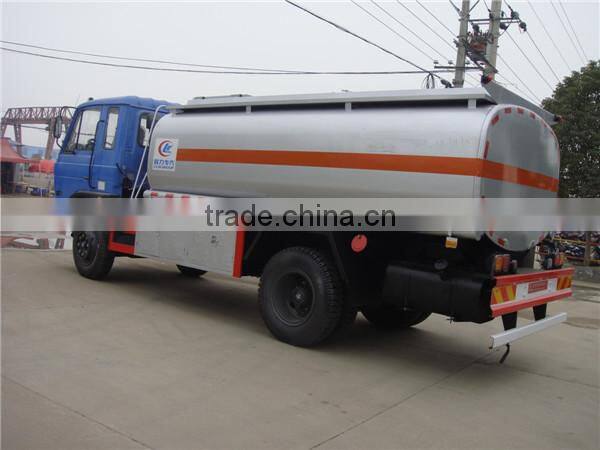

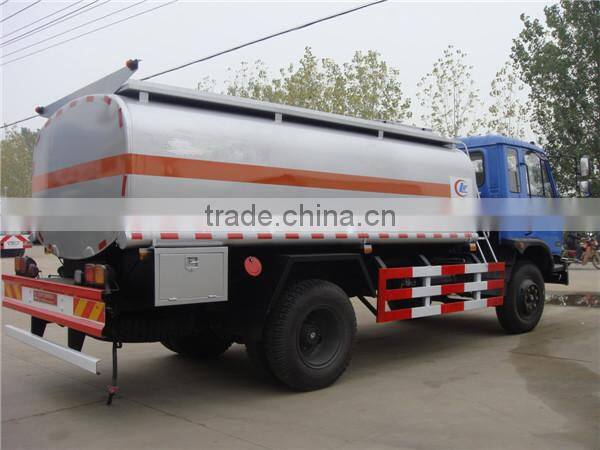

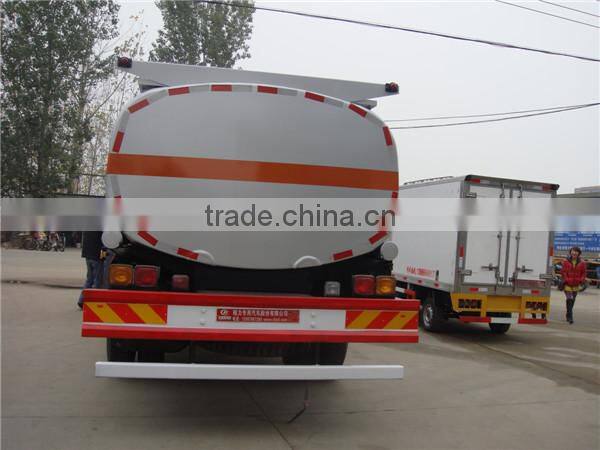

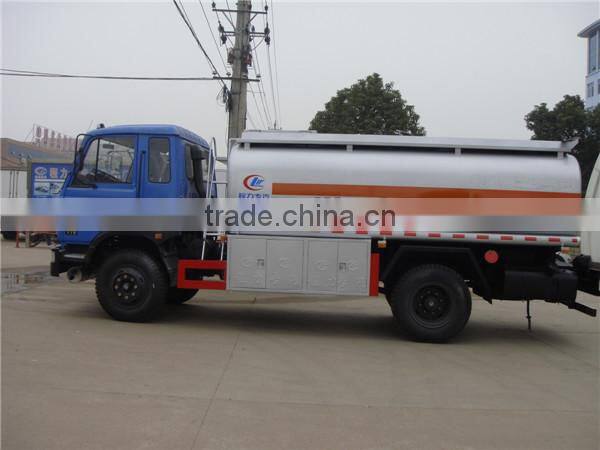

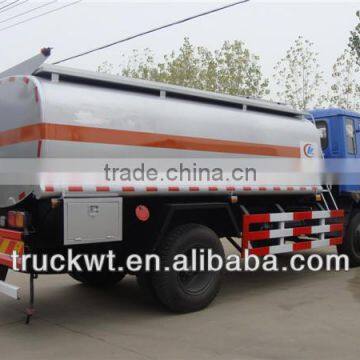

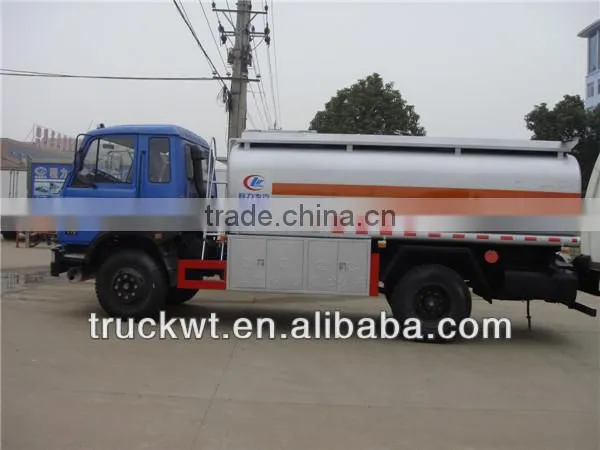

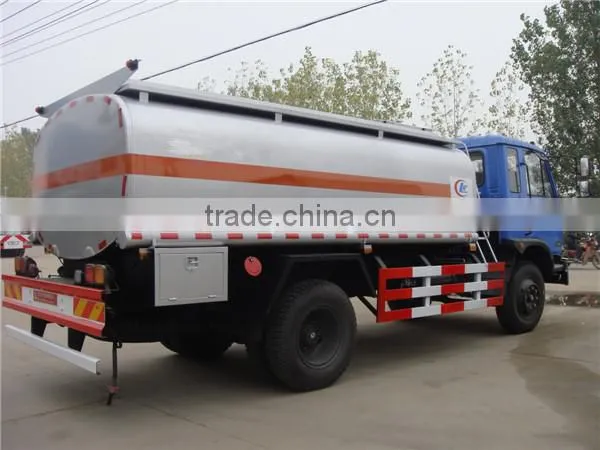

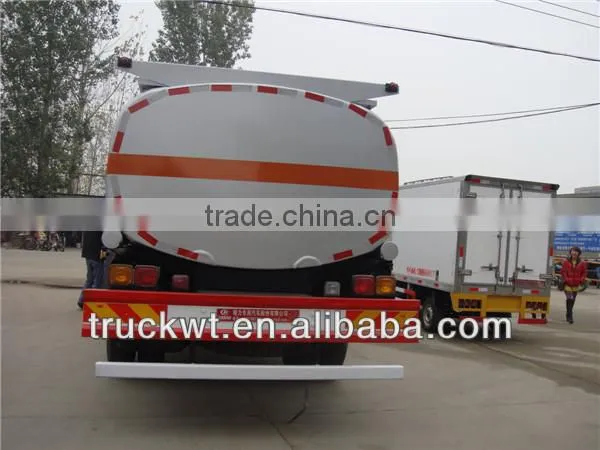

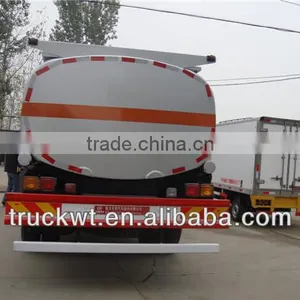

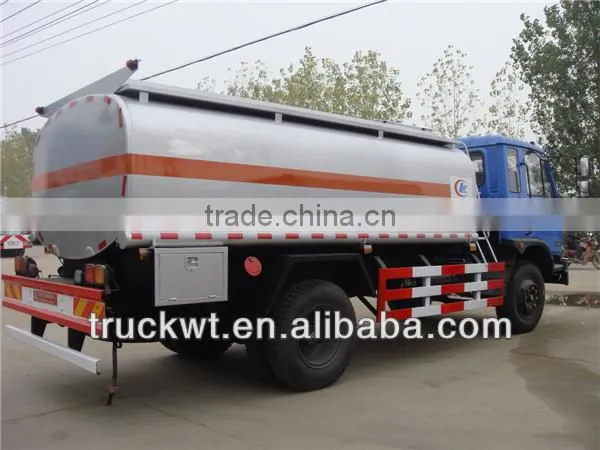

Pictures of 10000L oil tank truck
Technical parameters of 10000L oil tanker
Main Technical Parameter | |||
Product Name | Oil Truck | Gross Vehicle Weight (kg) | 12450 |
Rated Payload (kg) | 6810 | Curb Weight (kg) | 5445 |
Tank Capacity(L) | 10200 | Cab Allowed Persons | 3 |
Axle No. | 2 | Wheelbase (mm) |
|
App/Dep Angle(º) | 28/20 | Axle Load(kg) | 4850/7600 |
F/R Suspension(mm) | 1250/2100 | Overall Dimension(mm) | 7300x2470x2800 |
Chassis Technical Parameter | |||
Chassis Model | EQ1121GKJ | Chassis Name | Truck Chassis |
Chassis Brand | Dongfeng | Manufacturer | Dongfeng Automobile Co.,Ltd |
Overall Dimension (mm) | 7020×2462×2740 | Tyre No. | 6 with 1 spare tyre |
App./ Dep. Angle(º) | 30/28 | Tyre Spec. | 9.00-20 |
Leaf Spring No. | 8/10+8 | Front Track (mm) | 1900 |
Fuel Type | Diesel | Rear Track (mm) | 1800 |
Drive Type | 4x2 | Brake System | Air brake |
F/R Suspension(mm) | 1250/1820 | Axle Load(kg) | 4730/7720 |
Engine Technical Parameter | |||
Engine Model | B170 33 | Emission Standard | Euro III |
Displacement ( ml ) | 5900 | Power | 125kw/170hp |
Superstructure Parameter | |||
Tank Capacity(L) | 10,200 | Tank Thickness(mm) | 5.0 |
Head Thickness(mm) | 6.0 | Tank Material | Carbon Steel |
Remarks:*** Basic equipments: PTO, gear pump, access ladder, anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers etc. ***Optional: ABS, Refueling machine,emergency valve, flow meter, rolling hose, nozzle, compartment quantity; epoxy coating inside the tanker; Tank material: carbon steel, stainless steel, aluminums alloy….. Bottom loading system….. | |||
This is the technical paramters for one of our 4x2 dongfeng 10000L to 14000liters oil tanker truck . If you want to add other equipment or want to get the latest oil tanker truck price, please feel free to call at +86-13872889770 or contact Ms.Amie Nie through following contact information.

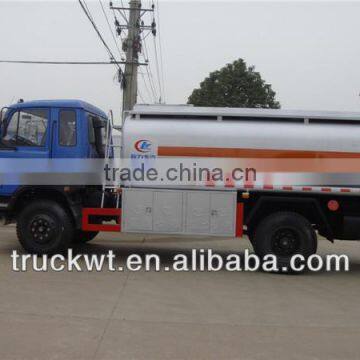

More pictures of products

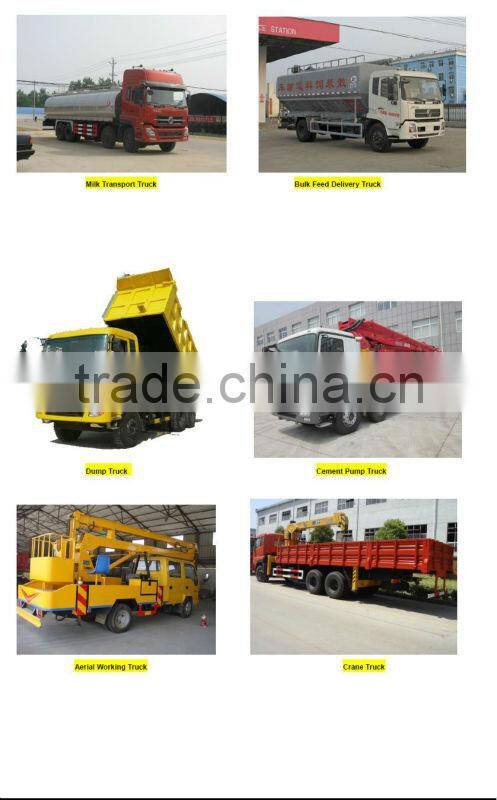

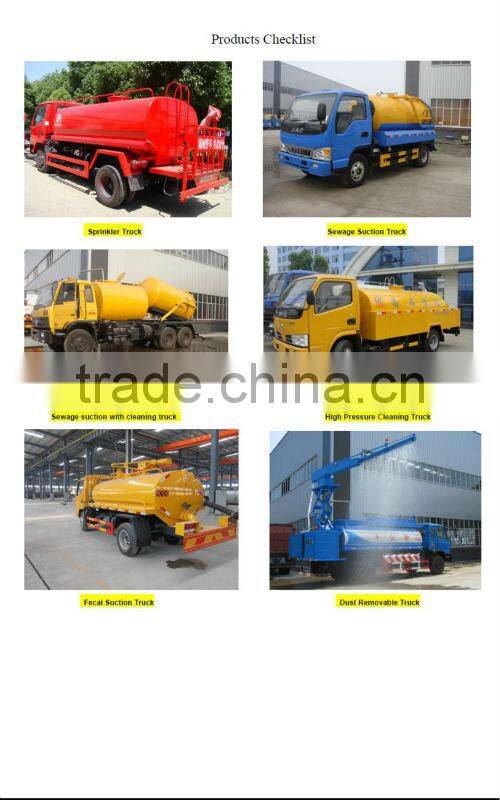

More trucks we manufacture
1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer
Production certificate for dangerous chemical package and vessel
ISO Certification of our factory
Contact information
