6x2 JieFang 25000ltrs heavy fuel oil truck tanker
As a professional special vehicle manufacturer, our fuel oil truck have some advantages,
our tank utilize the high quality steel and with built-in anti wave board to reduce the impact force
and keep it smooth during transportation.

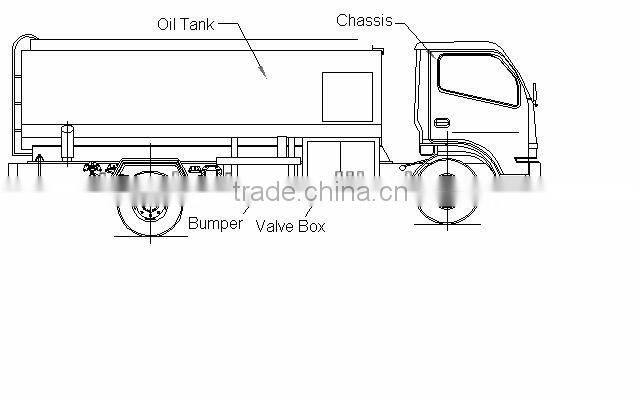

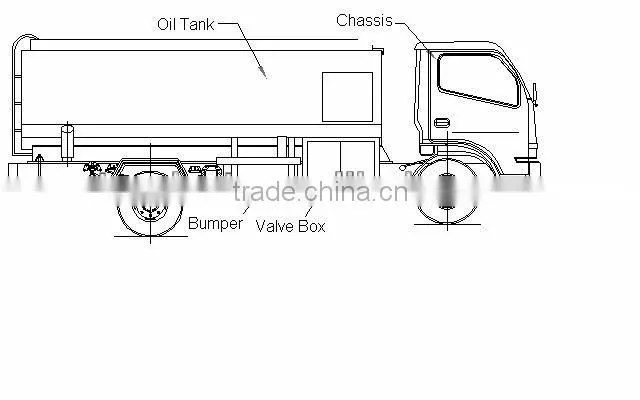

The structure of our fuel oil truck tanker is as follows:

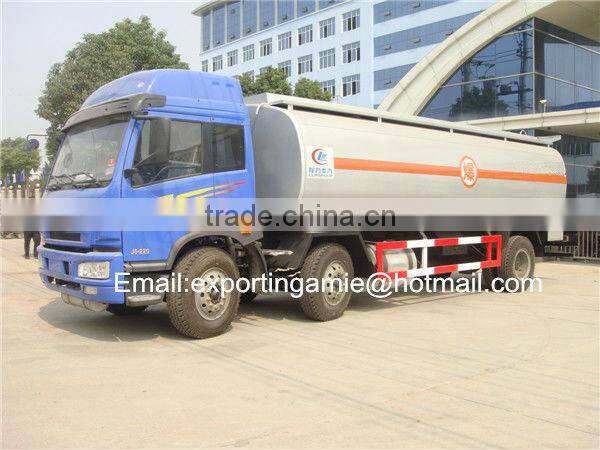

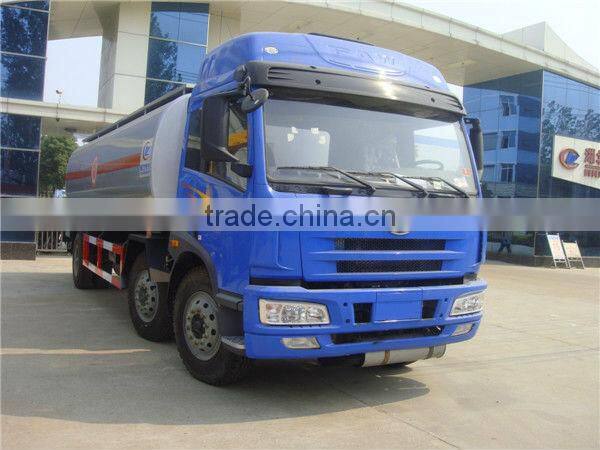

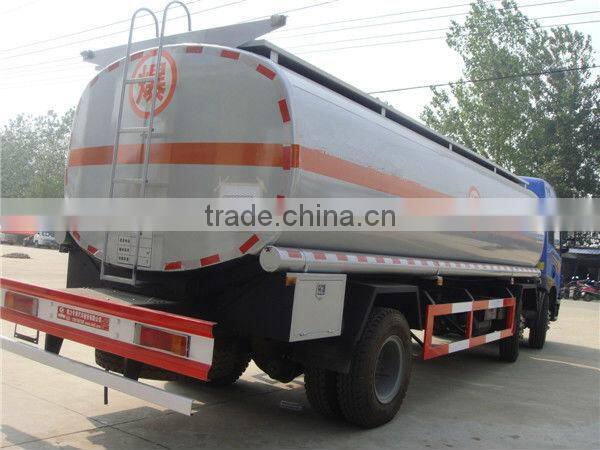

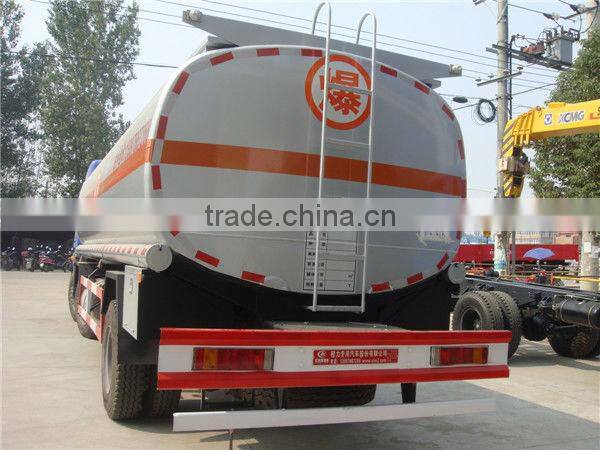

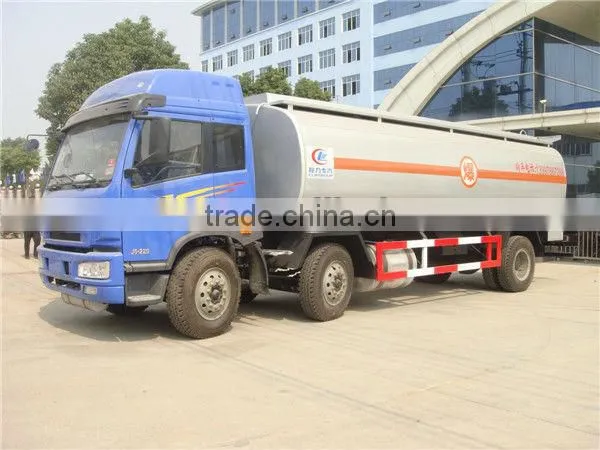

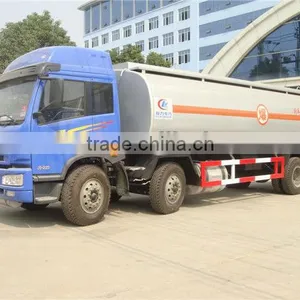

1.Photoes of our 6x2 JieFang 25000ltrs heavy fuel oil truck tanker
2. Technical Parameters
Main Technical Parameter | |||
Product Name | Fuel oil truck | Gross Vehicle Weight (kg) | 25000 |
Rated Payload (kg) | 14675 | Curb Weight (kg) | 10195 |
Tank Capacity(L) | 25000 | Cab Allowed Persons | 3 |
Axle No. | 3 | Wheelbase (mm) | 4500 |
App/Dep Angle(º) | 16/10 | Axle Load(kg) | 6750/6800/11450 |
F/R Suspension(mm) | 1375/2425 | Overall Dimension(mm) | 10300x2500x3260 |
Chassis Technical Parameter | |||
Chassis Model | CA1251P1K2L7T3EA80 | Chassis Brand | JIEFANG |
Overall Dimension (mm) | 11690×2490×2720 | Tyre No. | 8 with 1 spare tyre |
App./ Dep. Angle(º) | 18/12 | Tyre Spec. | 10.00-20 |
Leaf Spring No. | 12/12/10+9 | Front Track (mm) | 1942/1942 |
Fuel Type | Diesel | Rear Track (mm) | 1847 |
Drive Type | 6x2 | Brake System | Air brake |
F/R Suspension(mm) | 1375/2765 | Axle Load(kg) | 6750/6750/11500 |
Engine Technical Parameter | |||
Engine Model | CA6DE3-22E3F | Emission Standard | Euro III |
Displacement ( ml ) | 6618 | Power | 164kw/220hp |
Superstructure Parameter | |||
Tank Capacity(L) | 25000 | Tank Thickness(mm) | 5.0 |
Head Thickness(mm) | 6.0 | Tank Material | Carbon Steel |
Remarks:*** Basic equipments: PTO, gear pump, access ladder, anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers etc. ***Optional: ABS, Refueling machine,emergency valve, flow meter, rolling hose, nozzle, compartment quantity; epoxy coating inside the tanker; Tank material: carbon steel, stainless steel, aluminums alloy….. Bottom loading system….. | |||
Above parameters of 6x2 jiefang heavy fuel oil truck tanker is just for your reference. We can customize the oil tanker according to your requirement. Please don't hesitate to let me know if you have any demand.
3. Certification
4. Payment Terms and Delivery
Payment term 1: 30% Deposite, 70% T/T before shipment
Payment term 2: 100% irrevocable L/C at sight
Delivery: About 7 to 10working days
5. Products Scope:
1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer
6. Detailed Contact Information
