DONGFENG 2 Axis 3 ton All Wheel Drive Fire Truck
All Wheel Drive Fire Truck, is also called firetruck or fire fighting truck, is used exclusively as extinguishing or other emergency rescue vehicle Fire truck is currently most main tool for fire deprtments to fight fire , and is the most basic mobile firefighting equipment. According to the different types of extinguishing media, fire truck can be divided into water tank fighting truck, foam fighting truck, dry powder fighting truck, etc. We can manufacture kinds of fighting truck from 0.5ton to 22ton, and we also can manufacturer rescue Fire truck, communication command truck, inflatable Fire truck. etc.
Product Notes:
1 DONGFENG 4*4 two-row chassis,95hp
2 Extinguishing Media:water or foam ,volume: 2-3ton
3 High quality fire pump :CB10/20, fire monitor:PS20
4. Factory direct sale
Main parameter
Product name | DONGFENG 2 Axis 3 ton All Wheel Drive Fire Truck | |
Vehicle Main Dimensions | Cab type | DONGFENG two row ,A/C |
Overall dimension(L×W×H)(mm) |
6271*1890*2765 | |
Tanker volume(ton) | water or foam 2ton -3ton | |
Wheelbase (mm) | 3300 | |
Axle number | 2 | |
Drive type | 4*4 | |
Steering type | LHD/RHD | |
Max. Drive Speed (km/h) | 85 | |
Curb weight (kg) | 3876 | |
Chassis parameter | Chassis Model | EQ1070T |
Chassis manufacturer: | DONGFENG Automobile Co., Ltd | |
Front/ rear Axle loading capacity(kg) | 2000kg/4500kg | |
Transmission | Manual 5 Forward & 1 reverse. | |
Brakes | Service brake: air brake | |
Tire | Seven units of 7.00R16 | |
Engine parameter | Brand | DONGFENG Chaoyang |
Model |
CY4102-C3F
| |
Fuel type | Diesel | |
Engine Type | 4-cylinder in-line with water cooling;4-stroke | |
Horse Power(kw)/(hp) | 70(95HP) | |
Displacement(ml) | 3856ml | |
Emission Standard | Euro 2 | |
Superstructure parameter | 1. equipped CB10/20 fire pump(rear)(diversion time≤35s) | |
2. Water tanker volume: 3m3, or foam 1m3, water 2m3,tanker material: high quality carbon steel | ||
3. equipped with PS20 type fire monitor,(pressure:1.0MPa,flow:20L/s,shot range≥50m,rotation angle: left or right 360°,up or down-30°~80°) | ||
4. steel pump room/equipments box ,4 units Aluminum curtain door | ||
5. other equipment: 1100mm long rows of lights in the top of cab | ||

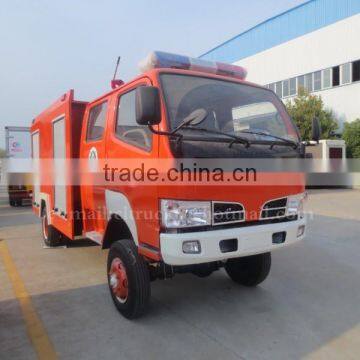

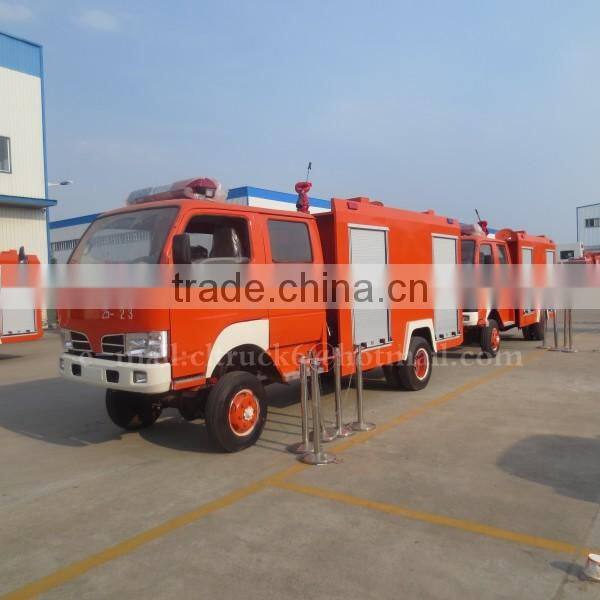

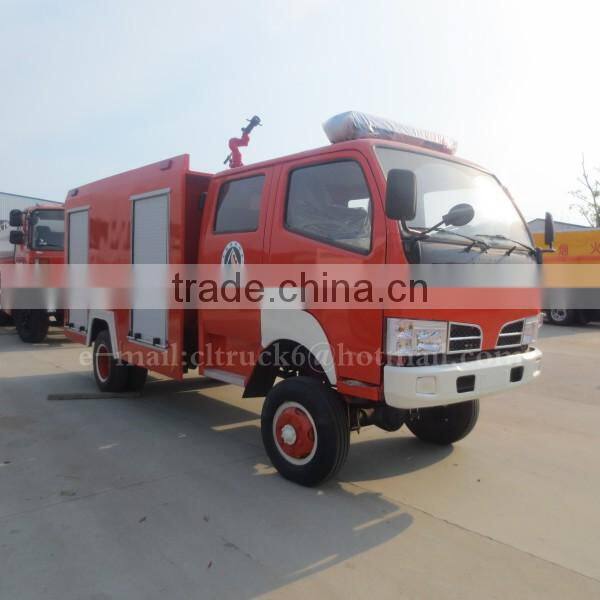

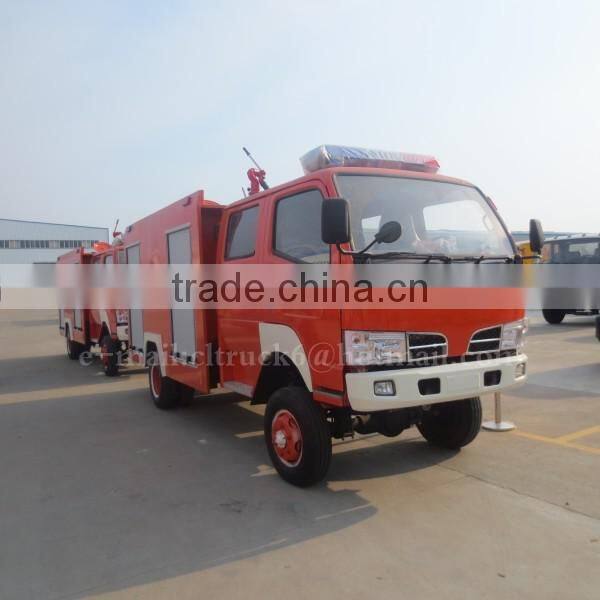

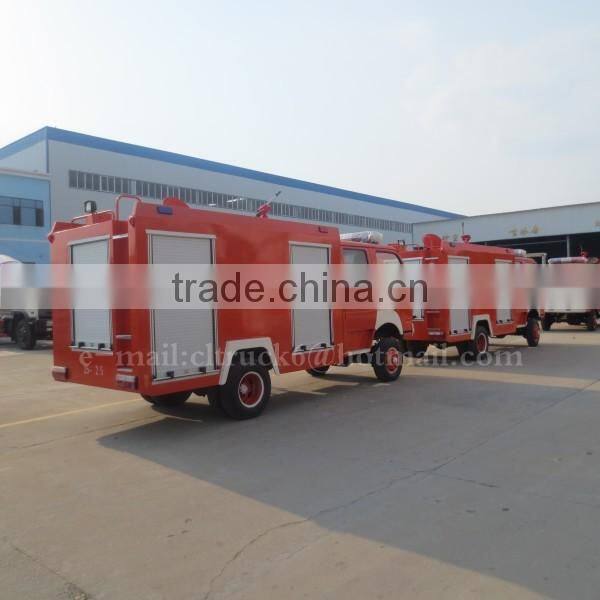

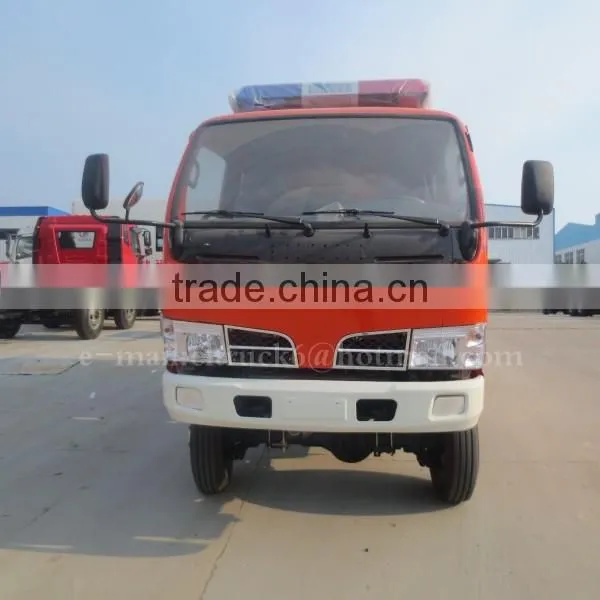

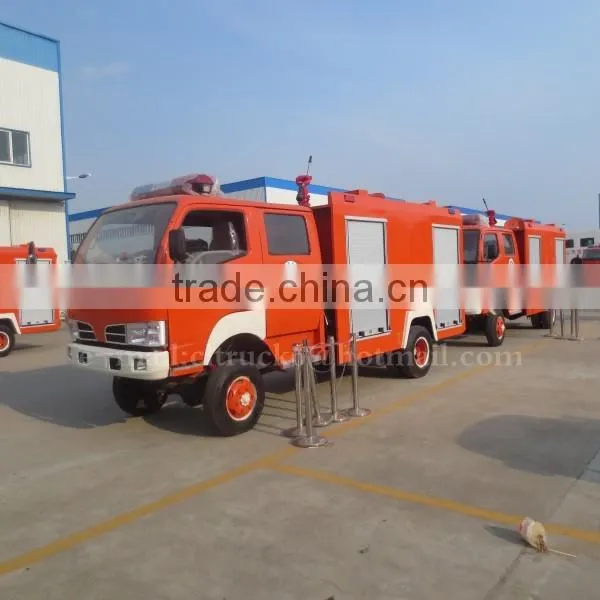

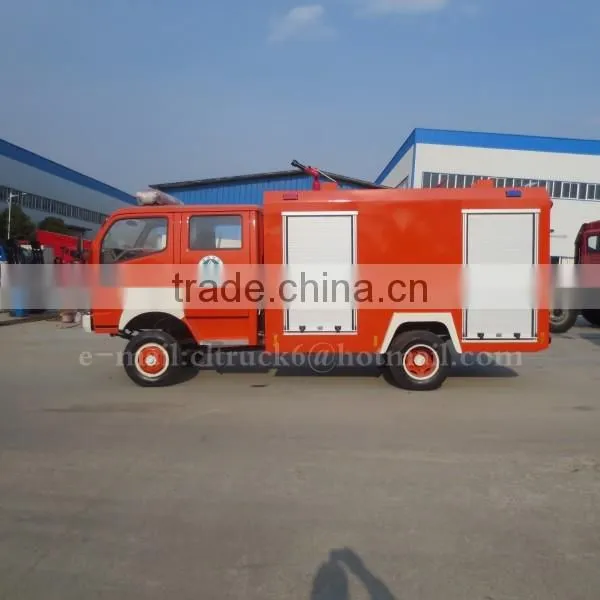

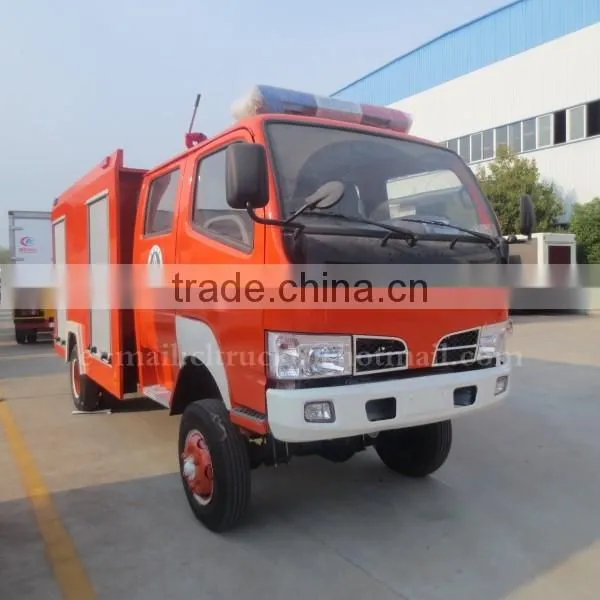

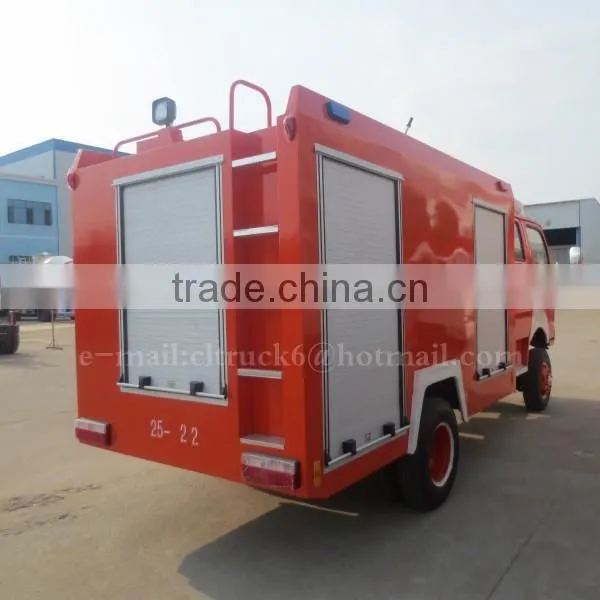

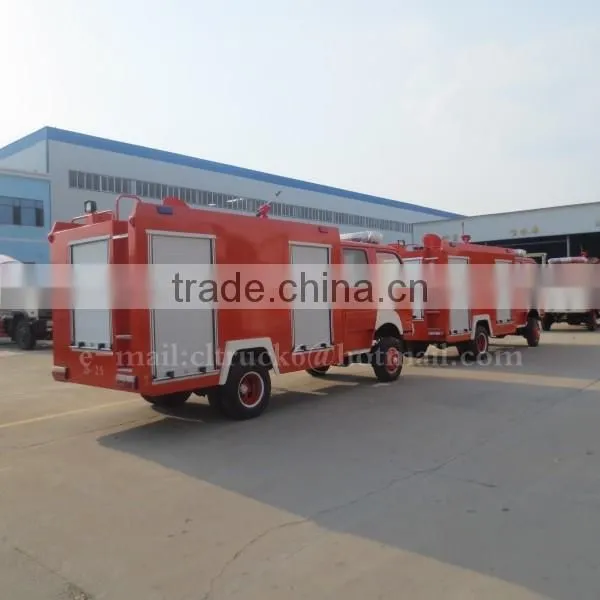

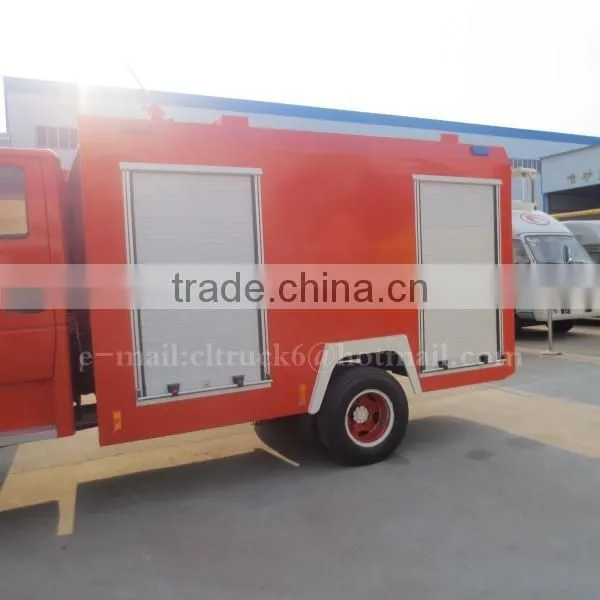

More picture of DONGFENG 2 Axis 3 ton All Wheel Drive Fire Truck:
1, Packaging: nude or waxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer’ order or requirement
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Our Certificates:
Production equipments:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
