Home > Products > concrete mixer truck > Concrete Mixer Truck, Cement Mixer Truck, 8~10 Cbm Drum, 6*4 Driven System

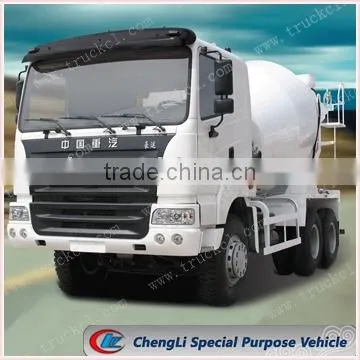

Concrete Mixer Truck, Cement Mixer Truck, 8~10 Cbm Drum, 6*4 Driven System
US$ 10,000 - 40,000
/ Unit
1 Unit(Min. Order)
- any port of China
You May Like
-
28 m Concrete Pump Truck, 28 m Dongfeng Concrete Pump Truck,truck Mounted Concrete Pump
-
28 m Dongfeng Concrete Pump Truck,truck Mounted Concrete Pump
-
Dongfeng 5 m3 Concrete Mixer Truck
-
Howo Cement Mixer Truck,Howo Concrete Mixer Truck, 5~6 Cbm Mixer Drum Tank
-
8 Cbm Cement Mixer Truck,8 Cbm Concrete Mixer Truck,8 Cbm Drum Mixer Truck
-
Cement Mixer Truck,concrete Mixer Truck,6~8 Cbm Drum
Product Details
| Condition | New | Place of Origin | Hubei, China | |
| Brand Name | CLW | Model Number | CLW | |
| Weight | 25000kg | Dimension(L*W*H) | 9250*2496*3935mm | |
| Power(W) | 247 | Certification | ISO,CCC | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
concrete mixer truck, cement mixer truck, 8~10 cbm drum, 6*4 driven system. Left hand Or Right hand.
| Item | Unit | Description | ||||||||
| Model | CLW5250GJBZ3 | |||||||||
| Dimension | mm | 9760*2500*3990 | ||||||||
| Tank Dimension | m3 | 9 | ||||||||
| GVW | kg | 14370 | ||||||||
| Wheel Base | mm | 4025+1350 | ||||||||
| F/R track base | mm | 2022/1830 | ||||||||
| F/R Axled-Load | Kg | 7000/18000 ( concatenation) | ||||||||
| Approach/Departure angle | . | 16/15 | ||||||||
| Traction system | 6x4 | Tire Specification/Number | 11.00R20-16PR/ 11 Unit | |||||||
| Max speed | 90 km/h | Number of axles/ability | 3 | |||||||
| Engine model | WD615.95E | Emission/kw | 9726ml/247Kw, 336Hp | |||||||
| 6 cyclinder, direct line, turbocharge and watercooling. | ||||||||||
| Engine Manufacturer | China SINOTruck Group. | |||||||||
| Operation control system | Electrically hydraulic | Transmission | 12 speed with over drive | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Dirve system | Right hand | |||||||||
| Air Condition | YES | CD, Radion. | ||||||||
| Remark: | 1.Water Tank for drum 500L, Speed reducer: Italy PMP. Hydraulic pump:Italy PMP. Hydraulic Motor:Italy PMP. | |||||||||
....
