Home > Products > concrete mixer truck > 28 m Concrete Pump Truck, 28 m Dongfeng Concrete Pump Truck,truck Mounted Concrete Pump
28 m Concrete Pump Truck, 28 m Dongfeng Concrete Pump Truck,truck Mounted Concrete Pump
US$ 10,000 - 150,000
/ Unit
1 Unit(Min. Order)
- any port of China
- T/T
You May Like
-
28 m Dongfeng Concrete Pump Truck,truck Mounted Concrete Pump
-
Dongfeng 5 m3 Concrete Mixer Truck
-
Howo Cement Mixer Truck,Howo Concrete Mixer Truck, 5~6 Cbm Mixer Drum Tank
-
8 Cbm Cement Mixer Truck,8 Cbm Concrete Mixer Truck,8 Cbm Drum Mixer Truck
-
Cement Mixer Truck,concrete Mixer Truck,6~8 Cbm Drum
-
Nissan Cement Mixer Truck, Nissan Concrete Mixer Truck, 8~9 Cbm Mixer Drum.
Product Details
| Condition | New | Place of Origin | Hubei, China | |
| Brand Name | CLW | Model Number | CLW | |
| Weight | 16000 | Dimension(L*W*H) | 10380X2500X3998 | |
| Power(W) | 96kw | Certification | CCC, ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

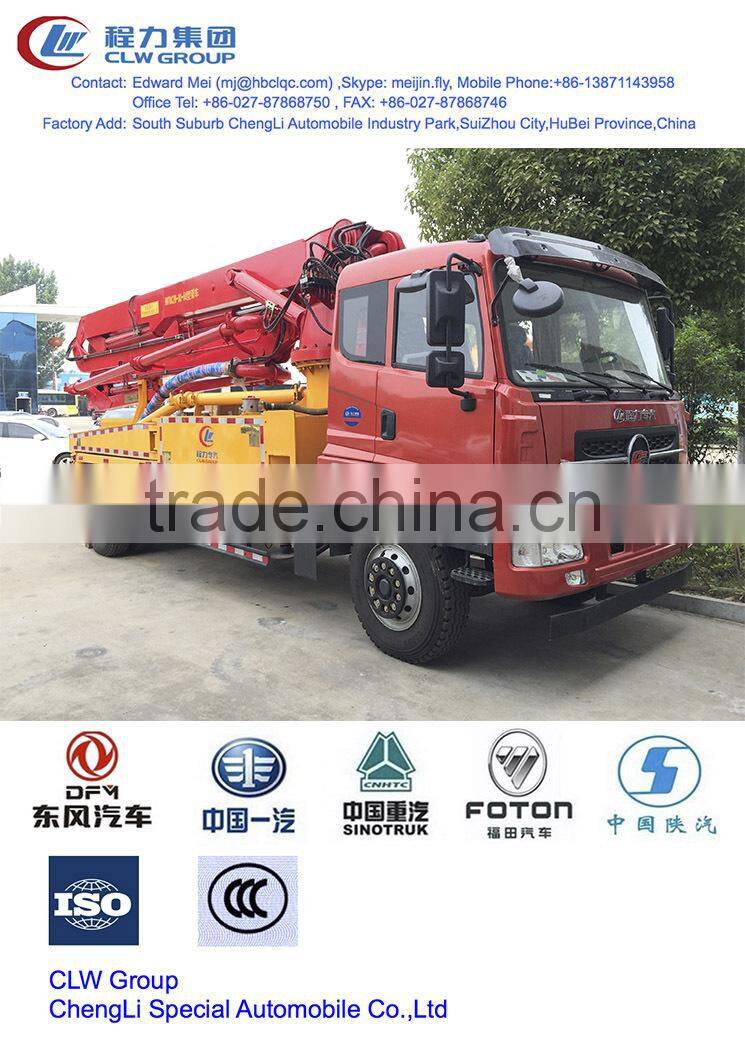

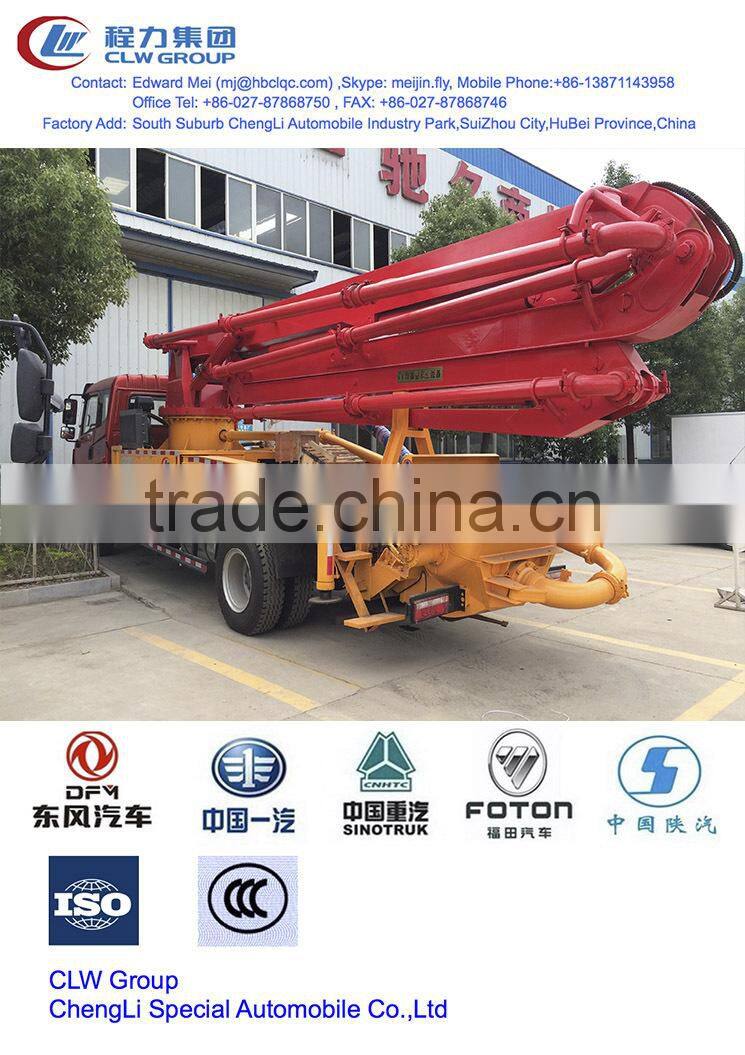

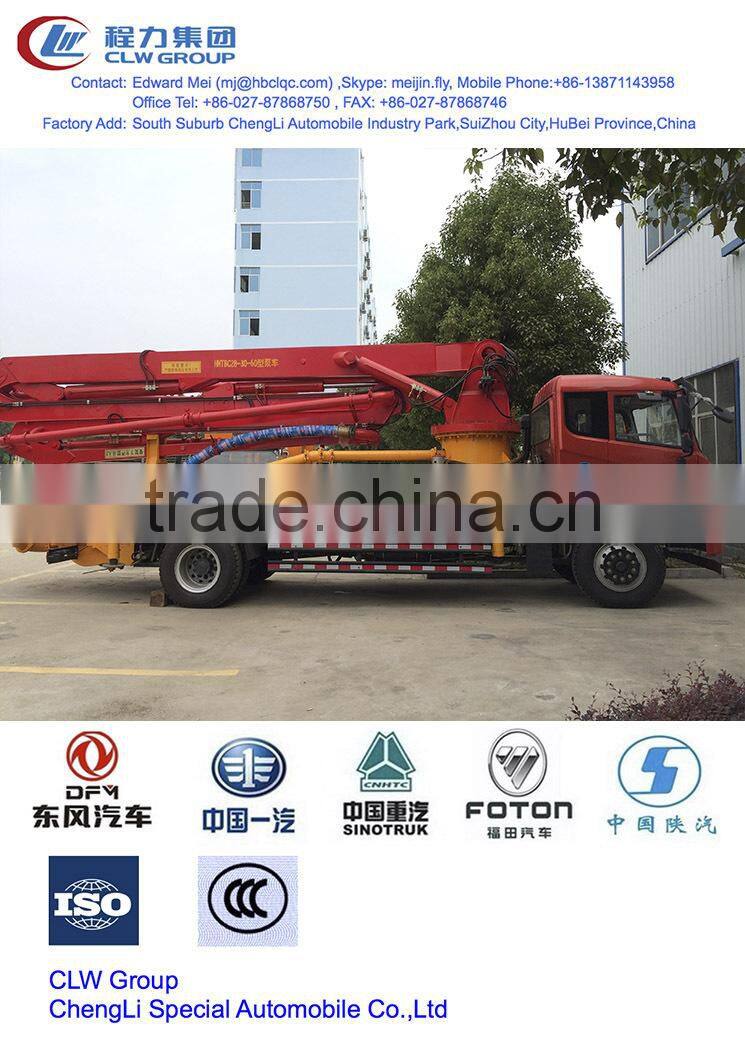

28 m concrete pump truck, 28 m dongfeng concrete pump truck,truck mounted concrete pump
Cement mixer truck, concrete mixer truck, which is used for concrete making and transporting.
The cement mixer truck with four main parts. concrete pump, speed reducer,Temperature controller,hydraulic motor,Currently our company produce the concrete mixer truck with the mixer drum from 1000 liter~6000 liter.
Product Description
28 m concrete pump truck, 28 m dongfeng concrete pump truck,truck mounted concrete pump
| Item | Unit | Description | ||||||||
| Model | Dongfeng brand concrete pump truck | |||||||||
| Dimension | mm | 10350*2500*3550 | ||||||||
| Gross Weight | kg | 16000 | ||||||||
| Wheel Base | mm | 5200 | ||||||||
| F/R track base | mm | 1810 / 1940 | ||||||||
| F/R Axle-load | Kg | 5000 / 11000 | ||||||||
| Approach/Departure angle | . | 33/19 | ||||||||
| Traction system | 4x2 | Tire Specification/Number | 9.00-20 / 6 +1 Units | |||||||
| Max speed | 90 km/h | Number of axles | 2 | |||||||
| Engine model | YC6J180 | Emission/kw | 7260 ml/ 134Kw, 180 Hp | |||||||
| Diesel, 6 cylinder , direct-line, turbocharge and water cooling. | ||||||||||
| Engine Manufacturer | GuangXi YuChai Engine Power Co.,Ltd | |||||||||
| Steering | Power | Transmission | 6F&1R | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Dirve system | left hand or Right hand | |||||||||
| Air Condition | Option | Radio, CD. | ||||||||
| Concrete pump specification | ||||||||||
| Power | 60 M3 /H | |||||||||
| Ourput port pressure | 9-11 Mpa | |||||||||
| flowing Concrete | 40 mm | |||||||||
| Concrete slump | 14 ~ 23 cm | |||||||||
| Pump output time | 26 times/ min | |||||||||
| Pump rated work pressure | 30 Mpa | |||||||||
| concrete bucket volume | 500 L | |||||||||
| Concrete Duct diameter | 125 mm | |||||||||
| Working range | 28 m height, radius 25 m | |||||||||
| working angle | 360 degree | |||||||||

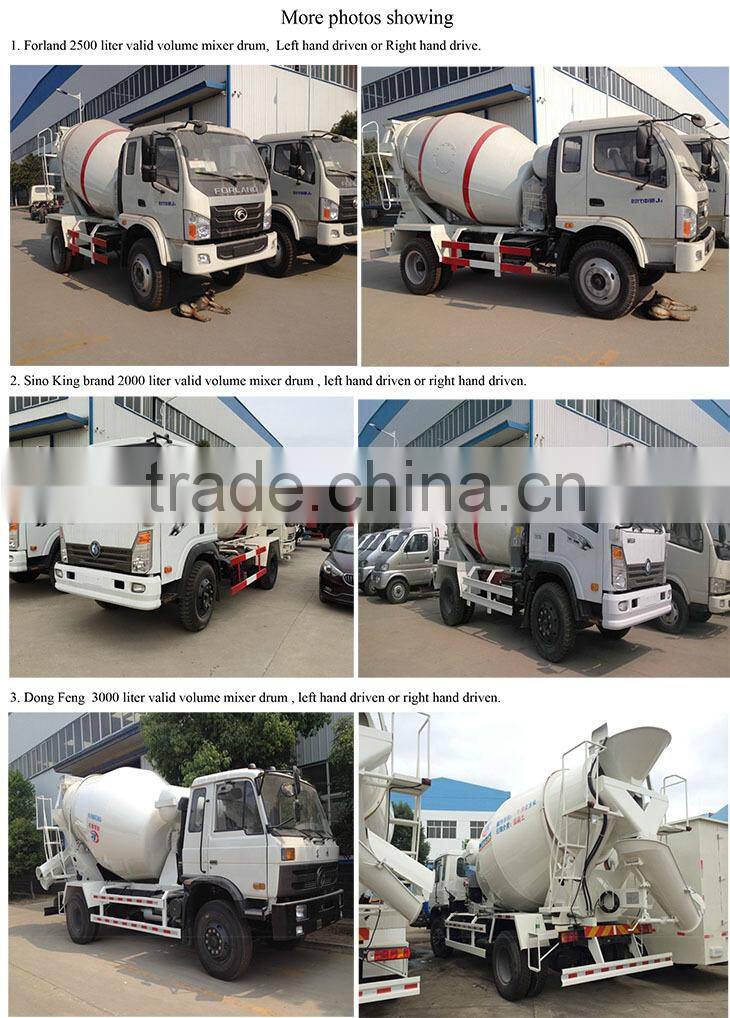

More photos showing
28 m concrete pump truck, 28 m dongfeng concrete pump truck,truck mounted concrete pump
Related product show
28 m concrete pump truck, 28 m dongfeng concrete pump truck,truck mounted concrete pump
...
...
