290HP 6*4 DONGFENG 9m3 cement mixer Truck
9m3 Cement Mixer Truck , is also called cement truck, concrete mixing truck, cement mix truck, concrete mixing transport truck, mainly used in transporting mixed concrete used in construction with mixing drum.
Product Notes:
1. This truck adopt plow shape mixing angle, perfect carbon steel, rugged wear;
2. Feed,discharge fast speed, stir well;
3. Main component adopt imported Italy PMP equipment , high quality
4. DONGFENG 6*4 chassis,290hp, mixing volume: 9-10m3
5. Competitive price
Main Parameterof 290hp 6*4 DONGFENG 9m3 cement mixer Truck
Main technical parameter | |||
Product Model |
DONGFENG 9m3 cement mixer Truck |
Product Brand |
DONGFENG -CLW |
Mixing Volume(m3) |
9 |
Overall Dimension(L*W*H)(mm) |
9200×2500×3760 |
Curb weight(kg) |
11815 |
Wheelbase(mm) |
3800+1350 |
Axle number |
3 |
Max Speed (km/h) |
90 |
Cab type |
Flat proof, single sleeper, air conditioning |
Cab capacity |
3 |
Chassis Technical Parameter | |||
Chassis Model: |
DFD1254 |
Chassis Manufacturer: |
DONGFENG Motor Co., Ltd |
Gear box |
FAST 9 shift(9 forward and 1 reverse |
Transmission type: |
Manual |
Steering Type |
LHD or RHD with hydraulic power steering |
Traction Type: |
6*4 |
Brake System |
Exhaust brake, breathe brake |
Leaf Spring number: |
9/10 |
Number of tire |
10 with a spare |
Tire size/type |
10.00R20 (steel tire) |
Engine specification | |||
Engine Model: |
YC6M290-33 |
Engine Brand |
GUANGXI YUCHAI |
Emission stand |
Euro 3 |
Displacement(ml) |
9839 |
Fuel type: |
Diesel |
Power(kw) |
215(290hp) |
Superstructure parameter |
|
||
2. Equipped with Italy PMPhydraulic pump, hydraulic motor, speed reducer | |||
3. Air pressure supply water system, 400L water tank | |||

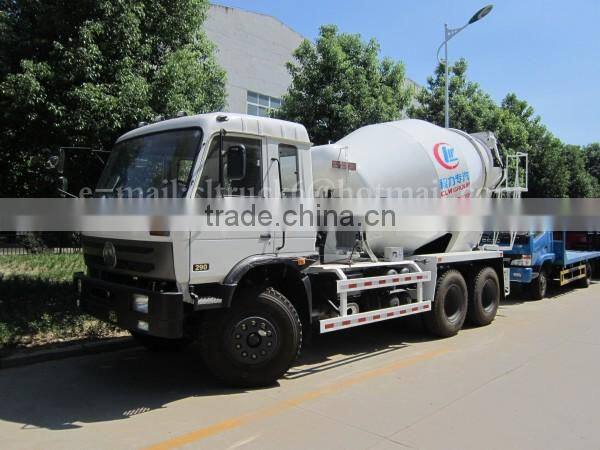

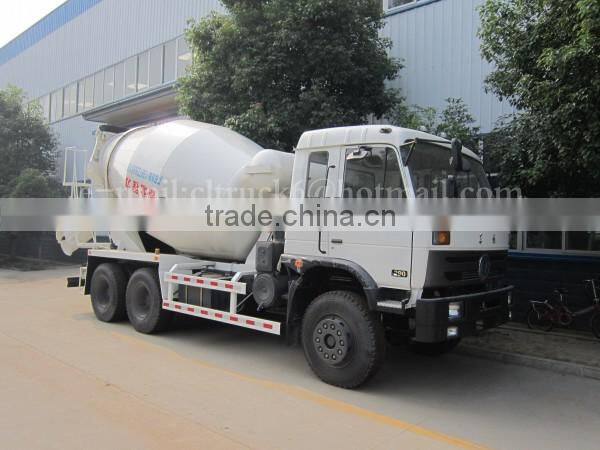

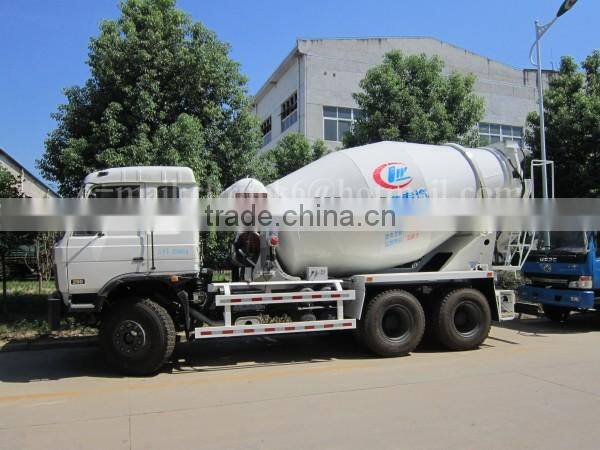

Product Picture of 290hp 6*4 DONGFENG 9m3 cement mixer Truck:
Italy PMP Hydraulic Motor and Hydraulic Pump :
Radiator of 290hp 6*4 DONGFENG 9m3 cement mixer Truck :
Water Tank of 290hp 6*4 DONGFENG 9m3 cement mixer Truck :
Operating lever:
Air pessure water supply
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Cement mixer Truck series:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
