3m3 FONTON FORLAND 4*2 Small Concrete Mixer Truck
Small Concrete Mixer Truck , is also called cement truck, concrete mixing truck, cement mix truck, concrete mixing transport truck, mainly used in transporting mixed concrete used in construction with mixing drum.
Product Notes:
1. This truck adopt plow shape mixing angle, perfect carbon steel, rugged wear;
2. Feed,discharge fast speed, stir well;
3. Main component adopt imported Italy equipment or Chinese brand, high quality
4.Forland light 4*2 Chassis
5. Low price
Main Parameter of FONTON FORLAND 4*2 Small Concrete Mixer Truck 3m3
Main technical parameter | |||
Product Model |
FONTON Small Concrete Mixer Truck |
Overall Dimension(L*W*H)(mm) |
6460×2255×3300 |
Mixing Volume(m3) |
3 |
Curb weight(kg) |
5980 |
Wheelbase(mm) |
3400 |
Approach/ departure angle (° ) |
24/20 |
Cab type |
flat proof |
Cab capacity |
3 |
Front/ rear suspension(mm) |
1230/1830 |
Max Speed (km/h) |
85 |
Chassis Technical Parameter | |||
Chassis Model: |
BJ1143VJPFA-1 |
Chassis Manufacturer: |
Beijing Fonton Daimler Automobile Co., Ltd |
Brake System |
Air brake |
Transmission type: |
Manual with 5 shift |
Front/ rear suspension(mm) |
1230/1830 |
Leaf Spring number: |
10/12+9 |
Axle number |
2 |
Traction Type: |
4*2 |
Tire size |
8.25-20,8.25R20 |
Number of Tire |
6 with a spare |
Engine specification | |||
Engine Model: |
YC4D130-33 |
Engine Brand |
GUANGXI YUCHAI Machinery Co., Ltd |
Emission stand |
Euro 3 |
Displacement(ml) |
6500 |
Fuel type: |
Diesel |
Power(kw) |
96(130hp) |
Warranty |
12 months, from the date of supply |
||
other Equipment or performances |
1. 24V Electric system, electrically hydraulic operation control |
||
2.Tanker Material: Q345 carbon steel | |||
3.Equipped with Italy PMP Brand hydraulic pump ,hydraulic motor, speed reducer or Chinese brand | |||

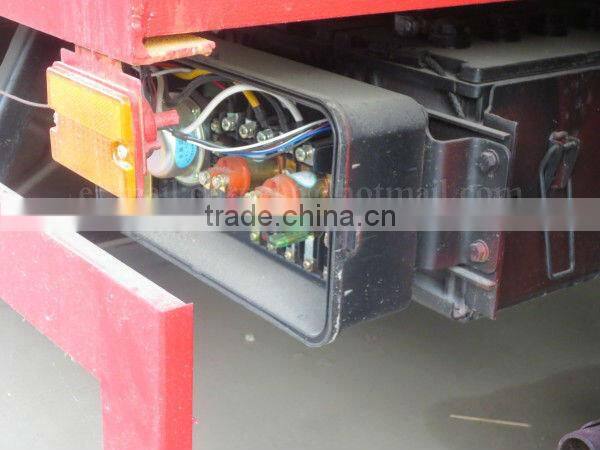

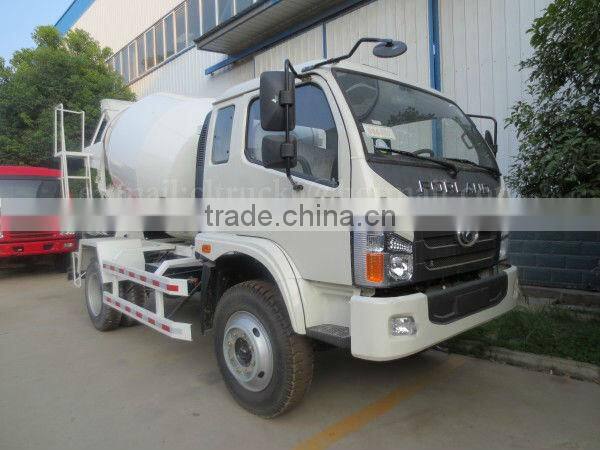

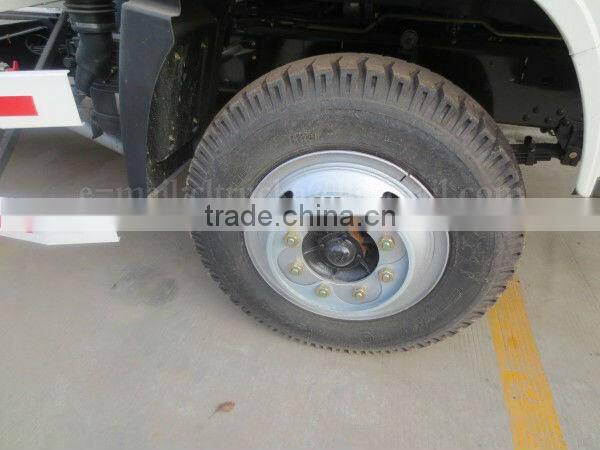

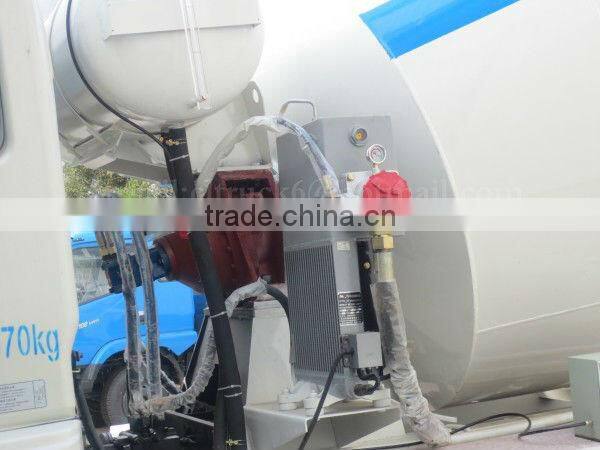

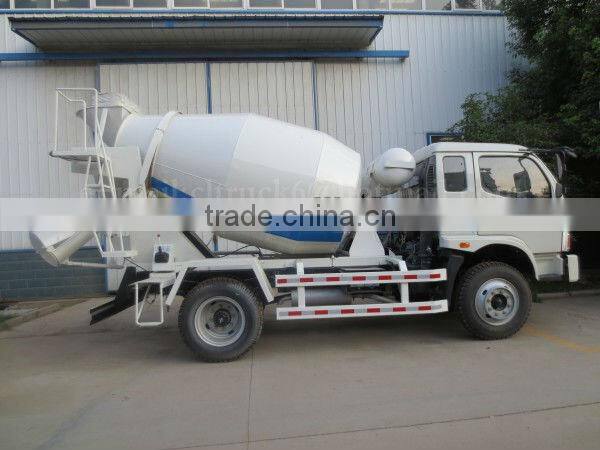

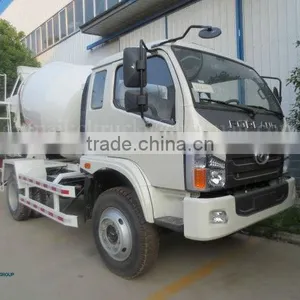

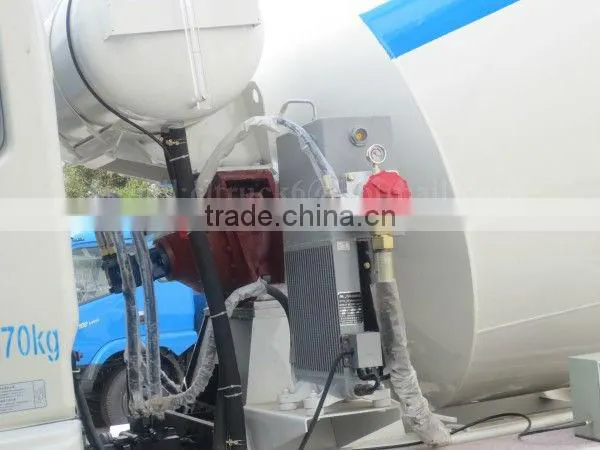

This Small Concrete Mixer Truck show as following:
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Engineering series:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
