China SHACMAN F3000 6x4 concrete transport truck mixer with best price
Brief introduction of concrete truck mixer
The concrete truck mixer is also called concrete mixer truck, concrete mixing truck, ready mix concrete trucks, cement mixer truck,concrete agitator,etc.
The concrete mixer truck we produce adopts Euro modern style, featuring attractive appearance, rational structure and stable performance. The capacity ranges from 3 to 15m3, meeting customers' various needs.
Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
Why we recommend you SHACMAN D'long F3000 heavy-duty truck?
The Shacman D'long F3000 is one pure MAN technology heavy duty truck. It apply CRUISE software and other advanced technology in the design. The most important is Shacman heavy-duty truck is based on a goden industry chian called "4 golden combinations".
* Famous brand engine of USA
* engines of Weichai power
* HANDE axle
* FAST transmission
Technical parameters of SHACMAN F3000 6X4 concrete truck mixer
Main Parameters |
Product Name |
Concrete mixer truck |
Drive Type |
6x4 |
|
Gross Weight(kg) |
25000 |
|
Related Payload(kg) |
10335 |
|
Overall Dimension(mm) |
9680x2500x3980 |
|
Chassis Parameters |
Chassis Model |
SX5255GJBJR404 |
Chassis Brand |
SHACMAN |
|
Cabin |
D’long F3000 Flat-roof |
|
Engine Brand |
WEICHAI |
|
Engine Model |
WP10.336, WP10.340E32 |
|
Engine Power |
336hp or 340hp |
|
Gear Box |
Fast 9 speed forward 1 reverse |
|
Wheelbase(mm) |
4000+1350 or 3975+1400 |
|
Tyre No. |
10 |
|
Tyre Spec. |
11.00R20 or 12.00R20 |
|
Superstructure Parameters |
Mixing Capcity |
12cbm |
Mixing Drum Material |
Q345 |
|
Thickness of Mixing Drum |
Drum body 6mm, head 8mm |
|
Pump |
Italy PMP |
|
Motor |
Italy PMP |
|
Reducer |
Italy PMP |
|
Water Tank Volume(L) |
400 |

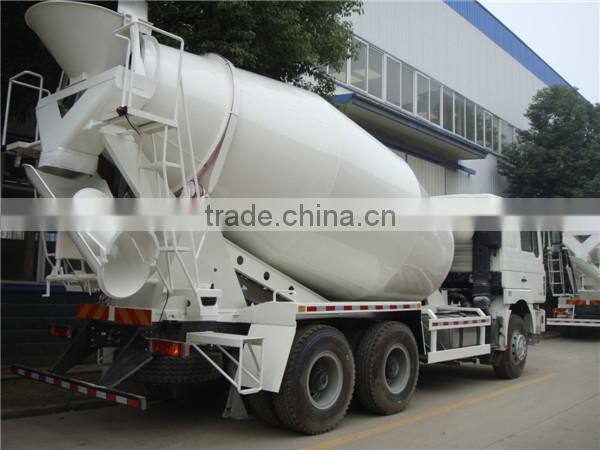

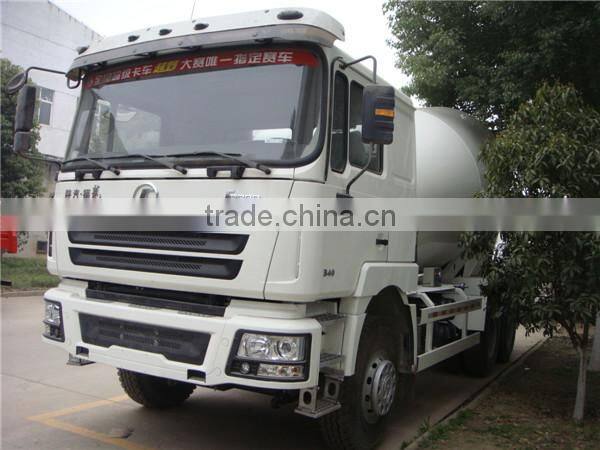

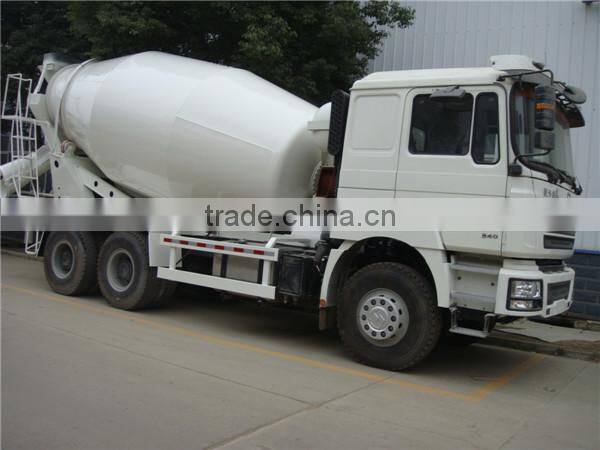

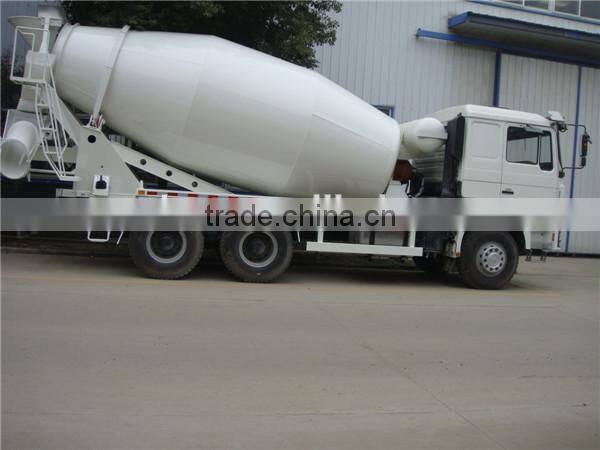

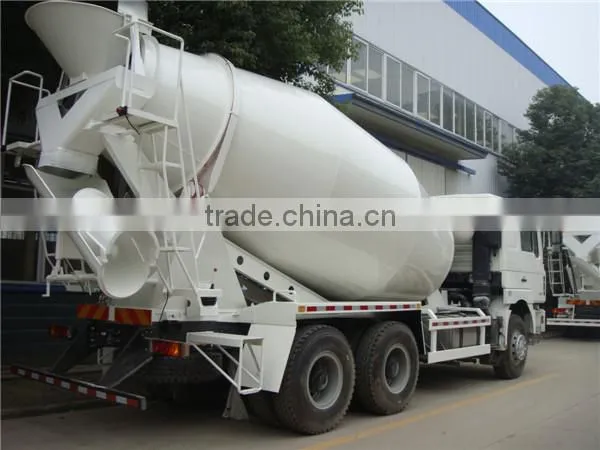

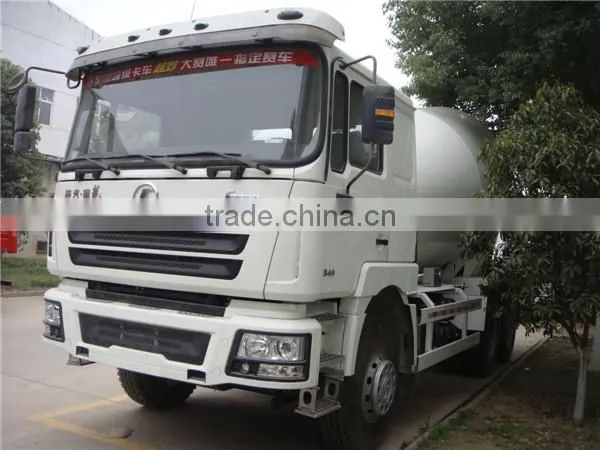

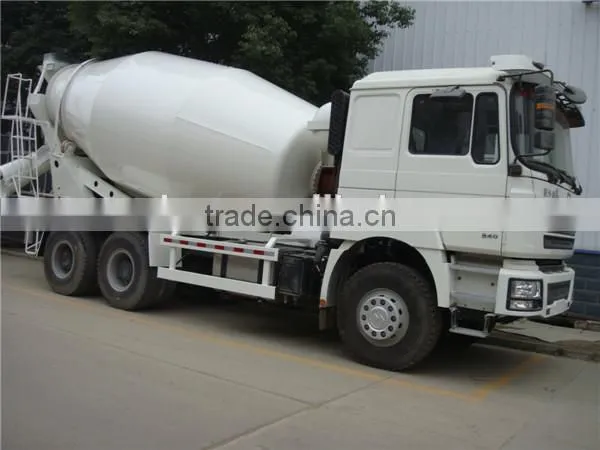

Pictures of SHACMAN f3000 concrete truck mixer
We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.
We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.
Factory Show
Certificates
Contact Us
If you are interested in milk transport truck and other trucks, please feel free to contact with me, my skype:chenglitruck02 and tel 0086 13824309425
