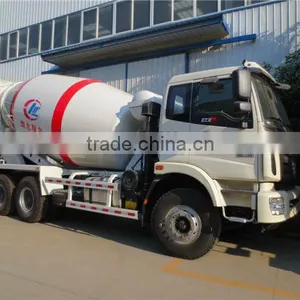

FOTON 6X4 Concrete Mixer
1.Diesel 340hp engine
2.Auman 4x2 chassis
3.Effective capacity: 5-8cbm
4. Mixer drum turn smoothly, no segregation.
5.High quality mixer drum, no leakage.
6.Reinforced truck frame, no vibration during transportation.
7.Large slumps, good flowability, easy to discharge
The technical parameters for 5cbm foton 6x4 concrete mixer for your reference.
Main Technical Parameter | |||||||
Product Name |
Concrete Mixer |
Gross Vehicle Weight (kg) |
25000 |
||||
Rated Payload (kg) |
11565 |
Curb Weight (kg) |
13240 |
||||
Tank Capacity(m³) |
5.0 |
Cab Allowed Persons |
3 |
||||
Axle No. |
3 |
Wheelbase (mm) |
3575+1350 |
||||
Chassis Technical Parameter | |||||||
Chassis Model |
BJ5257GMPJB-S |
Chassis Name |
Truck Chassis |
||||
Chassis Brand |
FOTON |
Manufacturer |
Beijing FOTON Automobile Co.,Ltd |
||||
Overall Dimension (mm) |
8210×2495×2960 |
Tyre No. |
10 with 1 spare tyre |
||||
App./ Dep. Angle(º) |
21/17 |
Tyre Spec. |
11.00-20 |
||||
Leaf Spring No. |
9/12 |
Front Track (mm) |
2010 |
||||
Fuel Type |
Diesel |
Rear Track (mm) |
1847 |
||||
Drive Type |
6x 4 |
Brake System |
Air brake |
||||
Remarks: Equipped with Italy PMP motor, pump and reducer. | |||||||
Engine Technical Parameter | |||||||
Engine Model |
ISLe 340 30 |
Emission Standard |
Euro III |
||||
Displacement ( mL ) |
8900 |
Power (KW) |
250 |
||||
Superstructure Technical Parameters | |||||||
Shape of tank |
Pyriform Structure |
Hydraulic Slave |
Italy PMP |
||||
Decelerator |
Italy PMP |
P.T.O |
Full power type |
||||
Charging rate |
≥3.0m³/min |
Discharging rate |
≥1.2m³/min |
||||
Geometric volume |
10m³ |
Water Tank volume |
400liters |
||||
| Special Fuction Description of Concrete Mixer | |||||
| hydraulic system | adopting equipment imported from Italy,Germany,Japan, layout of system is simple,reliable transportation. | ||||
| water supply system | using pressure water supply type, simplifying structure, saving power, reducing the weight of entire vehicle. | ||||
| mixing drum | adopting plow structure, double helical surface blades, using different blade in different conic part, improved the quality of concrete, tank body with small angle of inclination in installing, reducing the height of center of gravity of the entire vehicle, good driving stability, moreover, smaller angle of inclination is more favorable for dry concrete discharge, reducing residual ratio. | ||||
| operation equipment | including flexible manipulator and connecting rod type manipulator, connecting rod type manipulator can realize multipoint manipulation. | ||||
| feeding/discharging device | feed hopper, discharge chute can be rotated 180 degrees in the horizontal direction, so that it can adapt to different discharge position. | ||||
| tank body spray-paint | tank body surface sprays two-layer polyurethane paint, using stoving varnish technology, uniform coating, strong adhesion, luster is more durable. | ||||

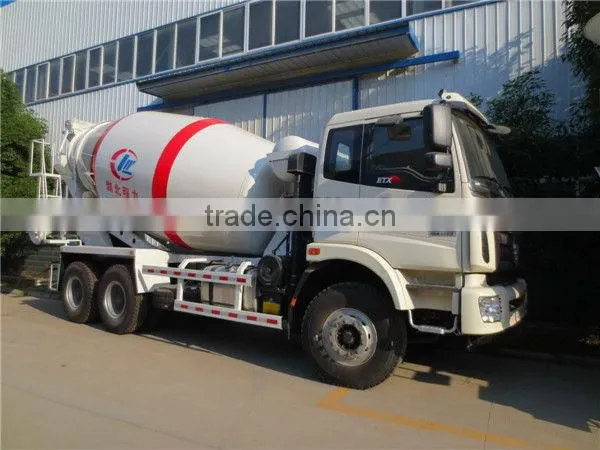

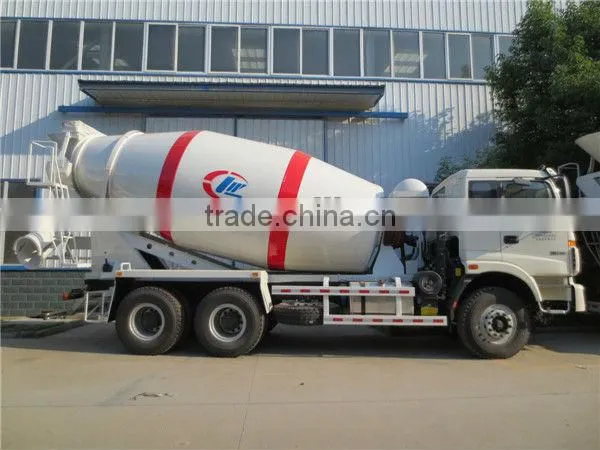

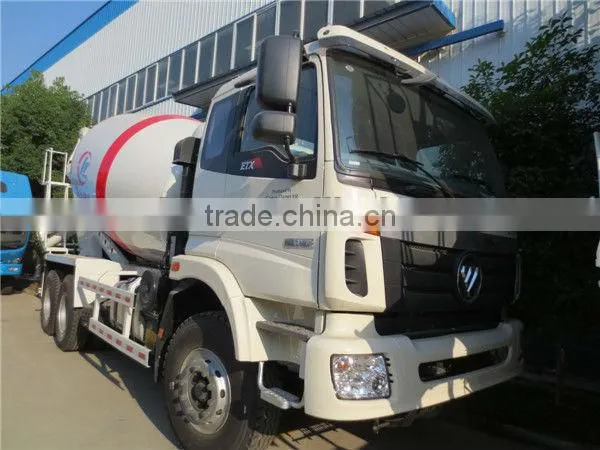

Picture of our foton 6x4 concrete mixer
We, Chengli Special Automobile Co.,Ltd, with more than ten years experiences, advanced equipment, we can supply you more than 300 kinds of special vehicle with high quality, competitive price and best service.
Contact Us
If you are interested in milk transport truck and other trucks, please feel free to contact with me, my skype:chenglitruck02 and tel 0086 13824309425
