Daimler 8X4 Concrete Pump Truck
1. Technical parameters of our concrete pump truck
Main Technical Parameter | ||||
Product Name |
Concrete Pump Truck |
Gross Vehicle Weight (kg) |
41460 |
|
Curb Weight (kg) |
41330 |
Overall Dimension(mm) |
13850x2500x3990 |
|
Tank Capacity(m³) |
5.5 |
Cab Allowed Persons |
2 |
|
Axle No. |
4 |
Wheelbase (mm) |
2020+4280+1350 |
|
Axle Load(kg) |
7730/7730/26000 |
F/R Suspension(mm) |
1440/3415 |
|
App./ Dep. Angle(º) |
22/10 |
Leaf Spring No. |
3/3/5 |
|
Tyre No. |
12 with 1 spare tyre |
Tyre Spec. |
315/80R22.5 |
|
Front Track (mm) |
2054/2054 |
Rear Track (mm) |
1804/1804 |
|
Chassis Model |
Actros 4141 |
Chassis Manufacturer |
Daimler AG |
|
Fuel Type |
Diesel |
Drive Type |
8x 4 |
|
Max Speed(km/h) |
80 |
Emission Standard |
Euro III |
|
Remarks: Equipped with arm frame,rotary turret, feeder hopper, outrigger | ||||
Engine Technical Parameter | ||||
Engine Model |
OM501LA.Ⅲ/17 |
Manufacturer |
Daimler AG |
|
Displacement ( mL ) |
11946 |
Power (KW) |
300 |
|

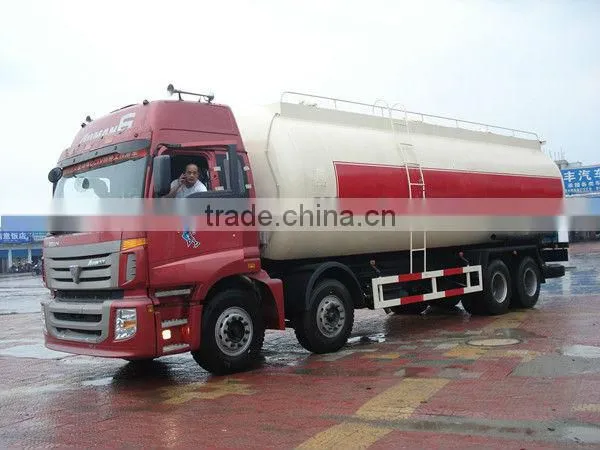

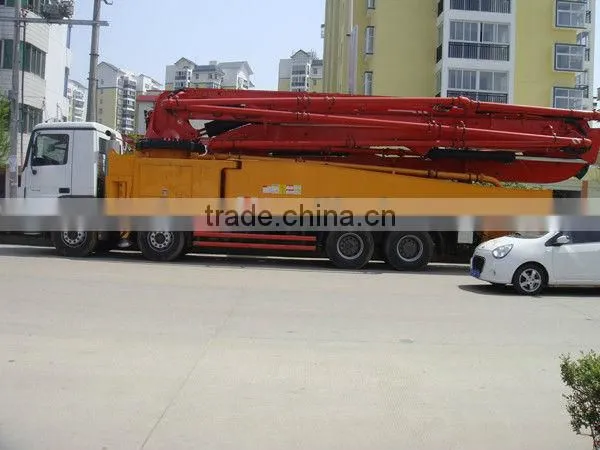

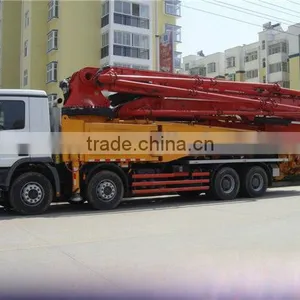

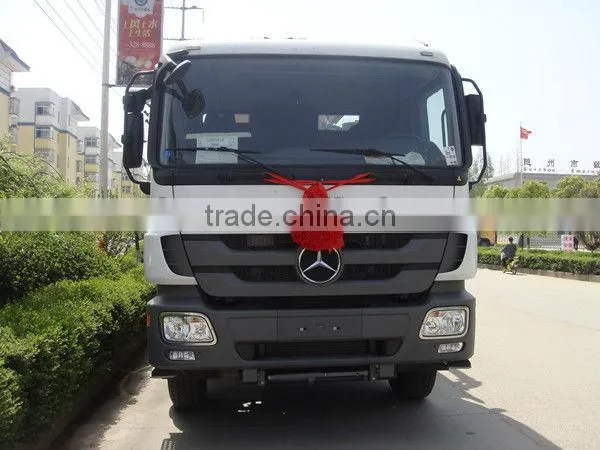

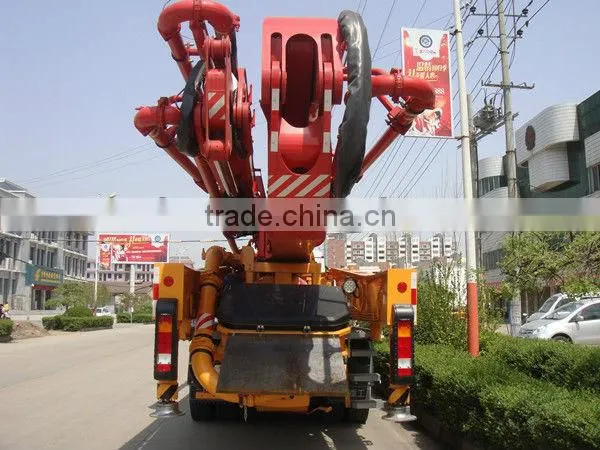

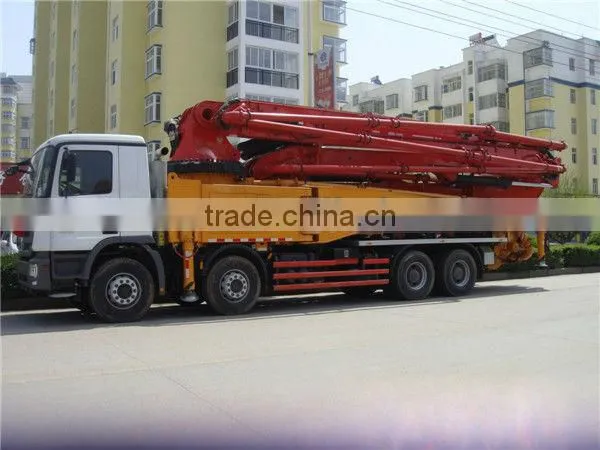

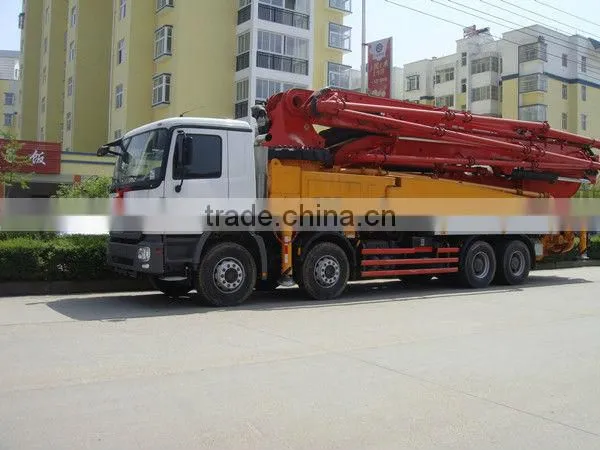

2.Picture of our concrete pump truck

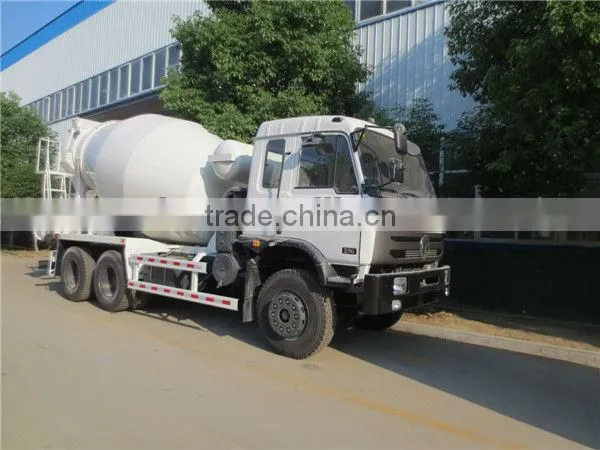

3.More concrete machiney we manufacture
4. Contact information
