Euro 4 dongfeng side 6.8m2 digital advertising screens trucks
Brief introduction of digital advertising screen trucks
The digital advertising screen trucks is also called led truck, outdoor advertising truck, led advertising truck,mobile advertising truck, mobile led screen truck, truck mobile led display,led mobile truck for sale,etc.The mobile led truck consist of chassis, led screen, generator, PC controller, loudspeaker, etc. The led truck is mainly used to display the advertising across the city for market, government, etc.
As a professional and leading led truck manufacturer in China, our mobile led trucks have more advantages than others:
1.P10 or P8 LED full color display screen, high lightness, stable performance.
2.Stereo vivid pictures, clear and dynamic. Also, it with optical system for controlling which can adjust the screen luminance according outdoors light.

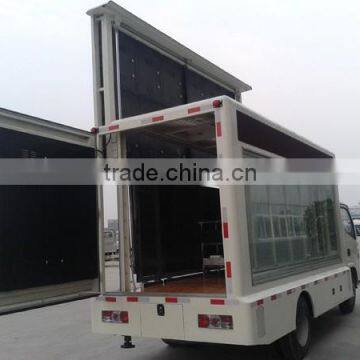

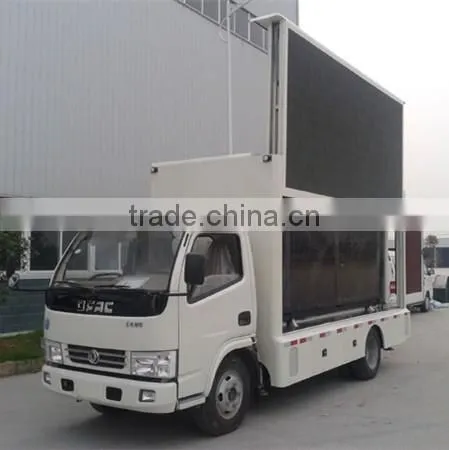

3.Left screen can be lifted 1.5m for stage performance,good visual effect.

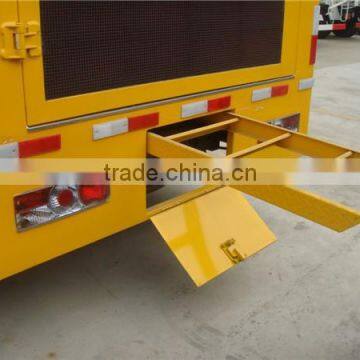

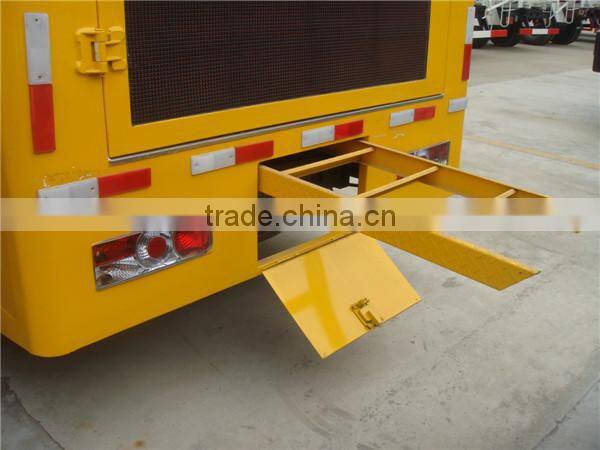

4.Double color scrolling marquee on the rear door. The ladders are hided below the door.
5.Equipped with high quality play devices and waterproof loudspeaker perfect listening effect.
6.Super-silent generator, save electricity, environmental protection
7.4 sets of hydraulic outriggers,electromechanical integration control, operate easily.
Technical parameters of Euro 4 dongfeng side 6.8m2 advertising screens truck
Items |
Descriptions |
Specifications and Types |
General |
Truck Name |
LED screen display truck |
Drive Type |
4*2 |
|
Gross Vehicle Weight(kg) |
4495 |
|
Curb Weight (kg) |
3865 |
|
Overall Dimensions L*W*H(mm) |
5990×1990×2950 |
|
Engine |
Engine Model |
4B28BTCI |
Engine Brand |
Chang Chai |
|
Fuel Type |
Diesel |
|
Power |
70kw/95HP |
|
Emission Standard |
Euro IV |
|
Displacement(ml) |
3856 |
|
Engine Type |
4 cylinders in line, turbo-charged diesel engine,inter-cooling |
|
Chassis |
Chassis Brand |
dongfeng |
Tire No. |
6 |
|
Tire Specification |
7.00-16LT Nylon tire |
|
Wheelbase (mm) |
3300 |
|
Axle No. |
2 |
|
Gear Box |
5 speed forward with 1 reverse, manual |
|
Brake |
Air brake |
|
Steering Wheel |
left hand drive or right hand drive steering wheel |
|
Radiator |
Suitable for tropical climate |
|
Front/rear suspension(mm) |
1032/1658 |
|
Leaf Spring No. |
8/9+5 |
|
LED Screen |
Screen type |
High light P10 full color led screen,water-proof |
LED screen no. |
2 sides |
|
Side screen dimension(mm) |
3840x1760 |
|
Rear screen area(m²) |
2.56 |
|
Others |
1.Equipped with super silent generator,computer console, 4x60W water-proof column loudspeaker, high power amplifier. 2.LED full color P10 high lightness display screen, the lifetime of LED is 100 thousand hours and the lightness is up to 7000cd.LED transistor are all famous brand in China. 3.One side display screen can be lifted by hydraulic cylinders. 4.One side of scroll light box, several pictures can switched to display automatically. 5.With built-in mobile stage which can be foldable. |
|

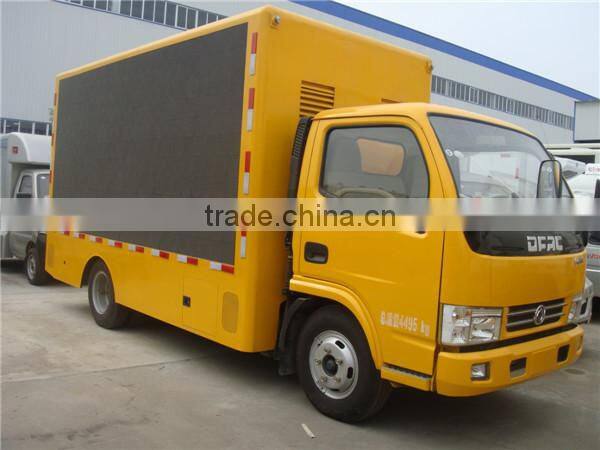

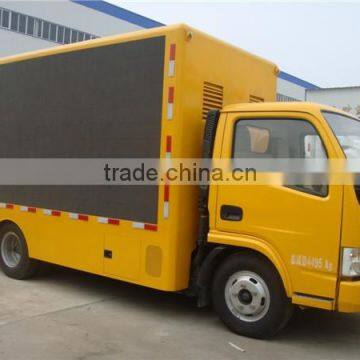

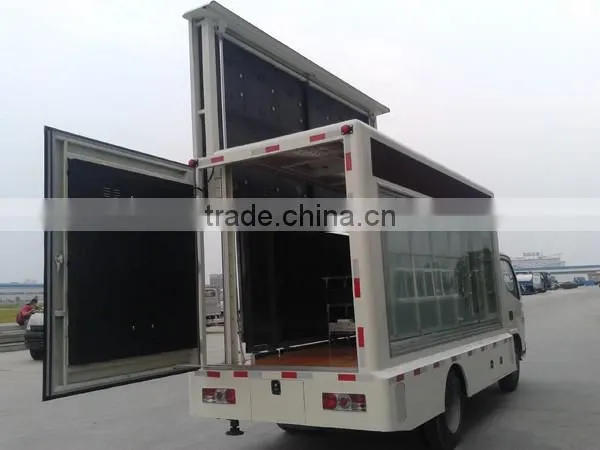

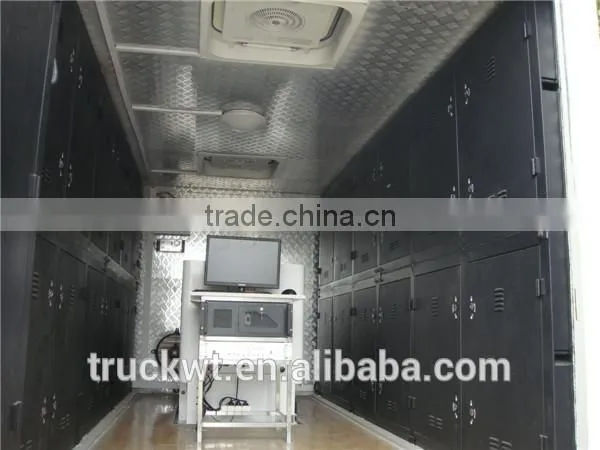

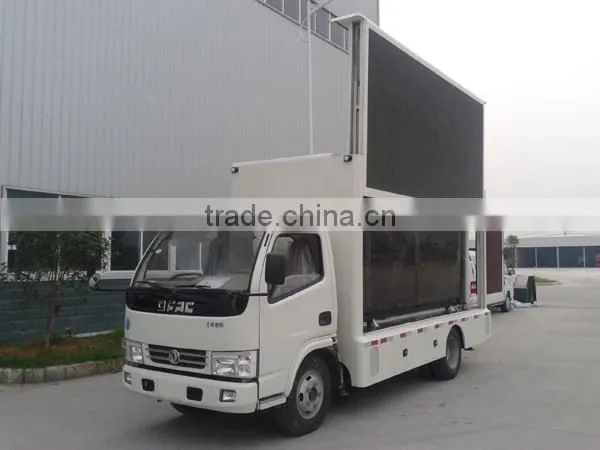

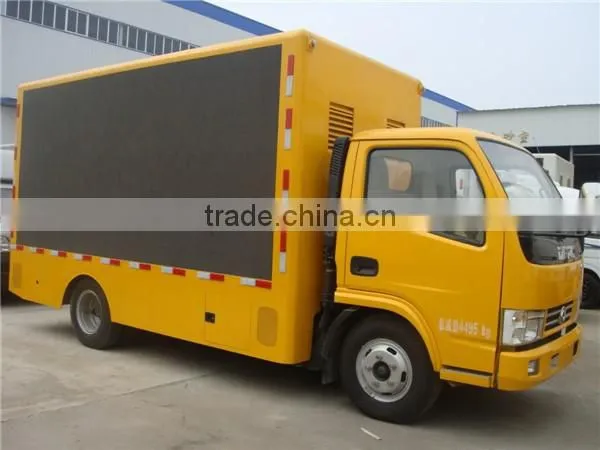

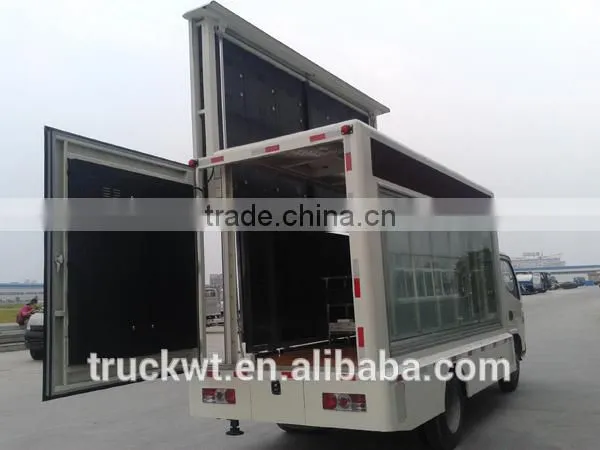

Pictures of small dongfeng outdoor led advertising truck
Above parameters of foton 4x2 led advertising truck is just for reference. more information of our led truck, please feel free to contact me so that we can offer you the best price.

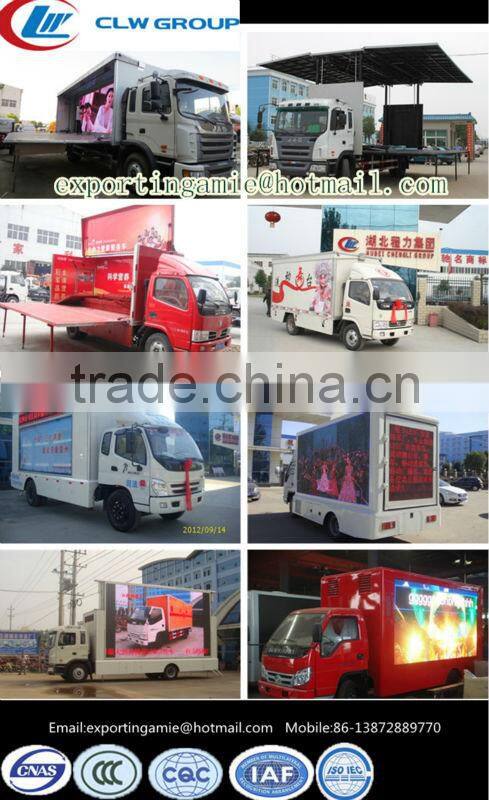

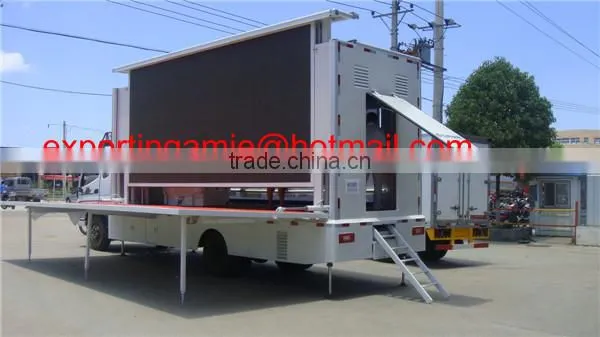

Other types of mobile led truck
We,Chengli Special Automobile Co.,Ltd as a professional special vehicle manufacturer in China can customize the truck mobile led display screen truck according to your requirement. The mobile led truck we manufacture have several types.
1.One side of full-color display screen, one side of light box which with 2 to 7 picture scroll.
2.two side of full-color display screen and one of them can be lifted.
3.One side of light box, one side of full-color led display screen with mobile stage.
We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks.
We located in Suizhou City, Hubei Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.

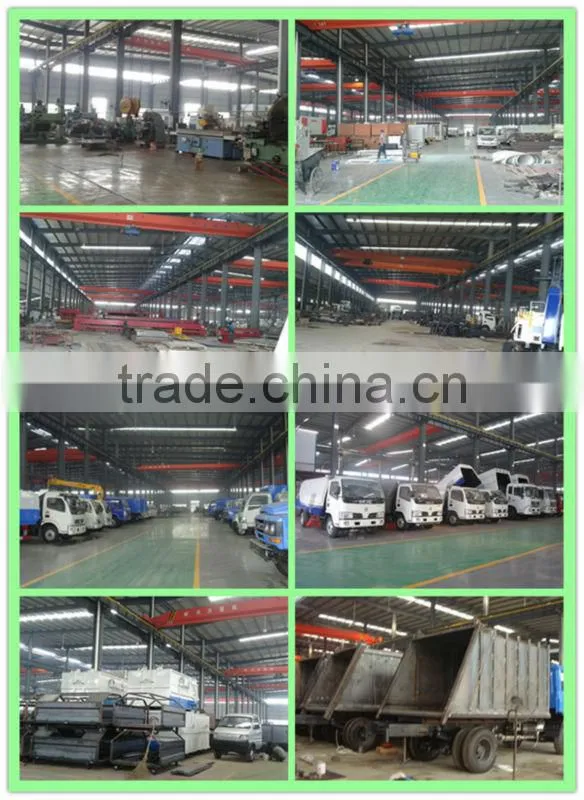

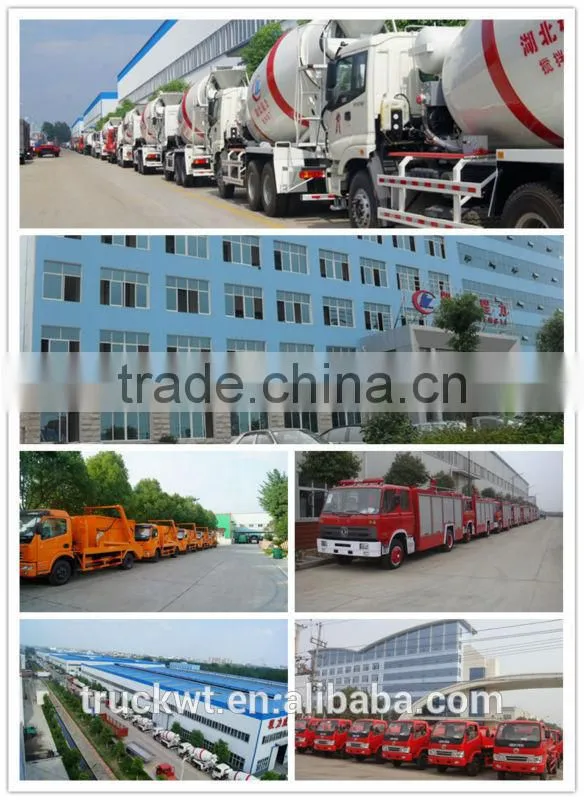

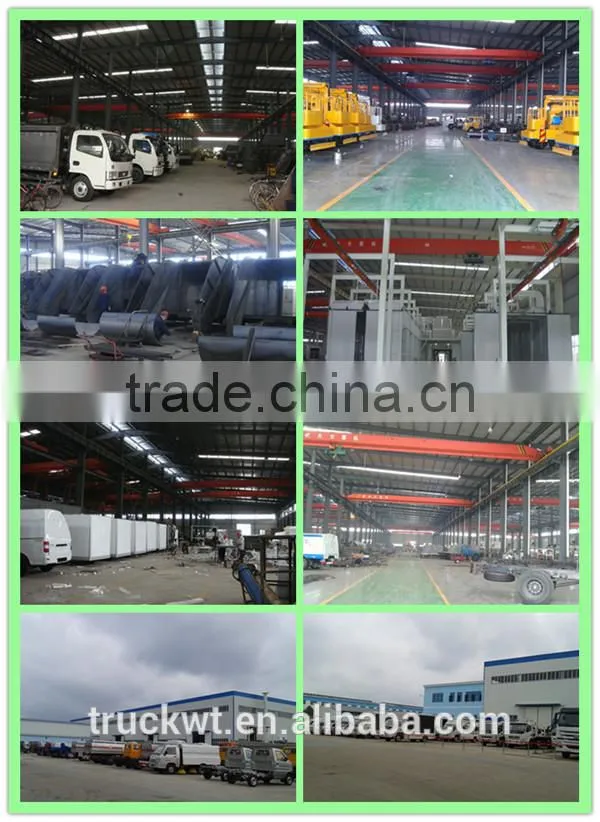

Factory Show
Factory Certificate
Products:
1. Water Tanker
2. Garbage Truck
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer
TIPS:
1. All trucks are new and be customized to meet all your requirment.
2. All trucks are with 12 months quality guarantee.
Contact information
More pictures, price, product information or factory information, please don't hesitate to contact Ms.Amie Nie. Also, welcome to our factory for more details.
