5 ton JMC 4*2 Explosive Transportation Truck
Production Notes:
1.The compartment is divided into a two-tier metal frame structure, the external cold rolled steel, inner wall of the aluminum alloy plate masked ,dissection for isolating heat stop burning material filling. If you need to install the uprising container, it is necessary to increase the open side door, sidewall has a rain function of natural ventilation window, the bottom of the shop to prevent burning guide static plastic sheet to ensure safety.
2 The smoke alarm is the special equipment for sensing inside fire. It is installed inside the top of the fire smoke appears, the alarm buzzer in the cab to ensure the timely elimination of the danger.
3 To install the burglar alarm which above the door frame ,the buzzer inside the cab sends out alarm sounds when the door is opened.When you do not use, you can turn off the cab control switch. You can also guarantee that in a moving way, the entire vehicle is under control.
4 The entire truck's engine of its exhaust device adopts a front-mounted, and install exhaust spark arrester to prevent heat source adverse effects of explosives.The Chassis equipped with two drag static conductive tape. The outside of the compartment installation show profile marker lights, and portable fire extinguishers and other safety devices.
Main Technical Parameter of 5 ton JMC 4*2 Explosive Transportation Truck
Main Technical Parameter | |||
Product Model |
CLW5060XQY3Explosion Proof Truck |
Overall Dimension(L*W*H)(mm) |
5995×1980×2850 |
Wheelbase(mm) |
3360 |
Body internal Dimension(L*W*H)(mm) |
4200×1850×1750 |
F/ R suspension(mm) |
1065/1570 |
Front/Rear tread(mm) |
1385/1425 |
Gross weight (kg) |
Approx 5880 |
Number of Axles |
2 |
Payload(kg) |
Approx 3200 |
Steering Type |
LHD with Power steering |
Curb weight(kg) |
2550 |
F/R axle load(Kg) |
2300/3580 |
Approach/ departure angle (° ) |
19/10 |
Max Speed (km/h) |
79 |
Cab capacity |
2 |
Cab Type |
With air conditioning |
Chassis Model |
JX1061TG23 |
Chassis manufacturer |
JIANGLING Automobile Co.,ltd |
Gear Box |
JC528T6 6 forward and 1 reverse |
Transmission type |
Manual |
Brake System |
Oil brake |
Traction Type |
4*2 |
Leaf Spring number |
7/5+5 |
Tire size/type |
7.00R16LT |
Engine Model |
JX493ZLQ3 |
Engine manufacturer |
JIANGLING Automobile Co. Ltd |
Fuel type |
diesel |
Displacement(ml) |
2771 |
Emission stand |
Euro 3 |
Power(KW) |
85(115hp) |
Equipment & Performance |
1. Compartment top closed, not open, Explosion name transported is blasting explosives, electric detonators, etc. Explosives category: 1.1B,1.1D |
||
2. With ABS, equipped with speed limit device(79km/h) | |||
Warranty |
12 months, from the date of supply |
||

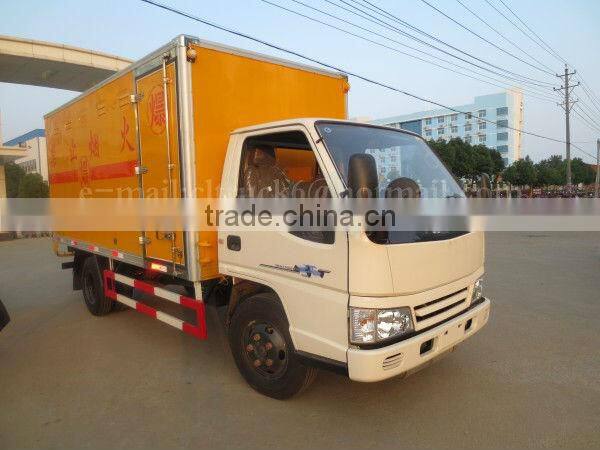

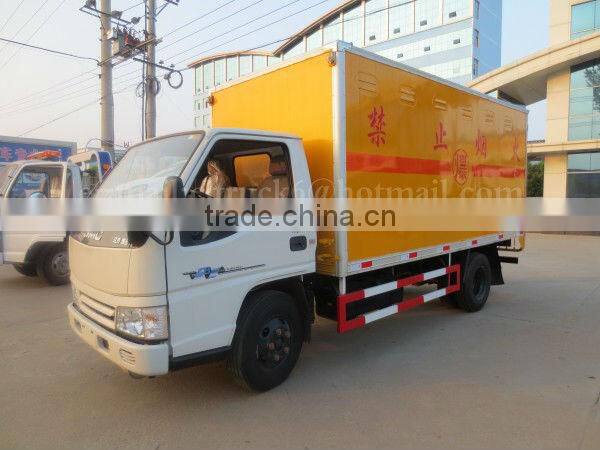

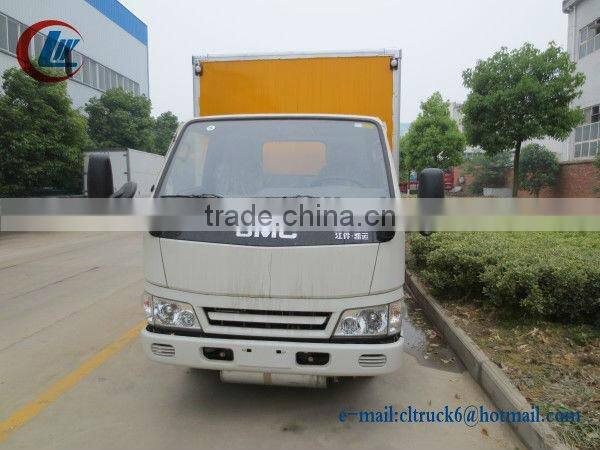

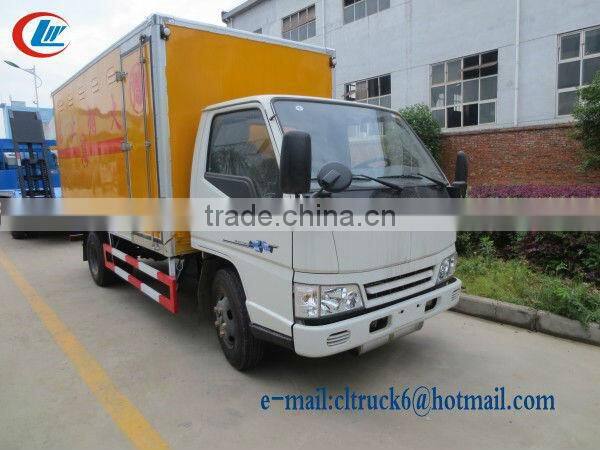

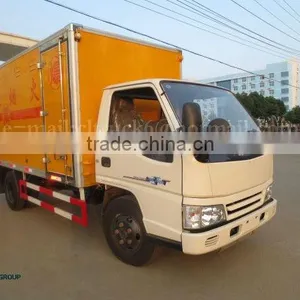

This Explosive Transportation Truck show as following:
More Explosive Transportation Truck show as the following :
ChengLi Special Automobile Co., Ltd , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Our leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, we have roundly passed the certificaton of ISO 9001-2008, the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since our company was established in Sep.2004, we always strives for the survival by the quality, pursue of development by efficiency. In the past about ten years, we had 30% market share of the sanitation trucks in China market. From 2004 year, we have entered the international market. And we have established long-term cooperative relationship with many countries. In Kyrgyzstan, Papua New Guinea, Libya and Niger, you can find out many fuel trucks, LPG tankers and dump trucks made by our company. In Sudan, Nigeria, Congo and West Africa, you can find out many water trucks, garbage trucks and crane trucks made by our company. In North America, Ghanaian, Kazakhstan and Mongolia, you can find out many dump trucks, crane trucks and freezer trucks made by our company. Tomorrow, we hope we can find out our trucks in your country.
Our Certificates:
Production Equipments:
The above information is just for your reference, if you have any other questions or need more truck picture or detailed information, please feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check my contact information as below:
