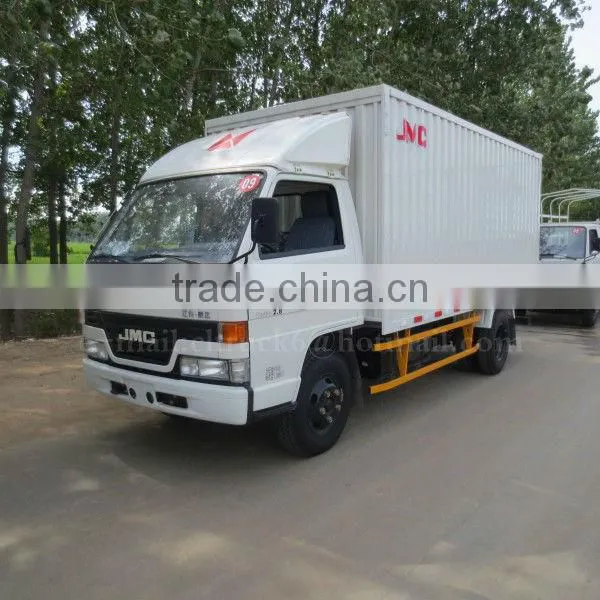

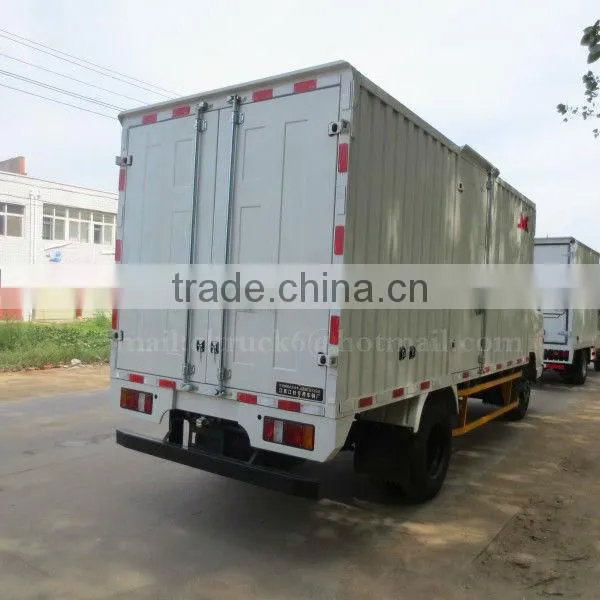

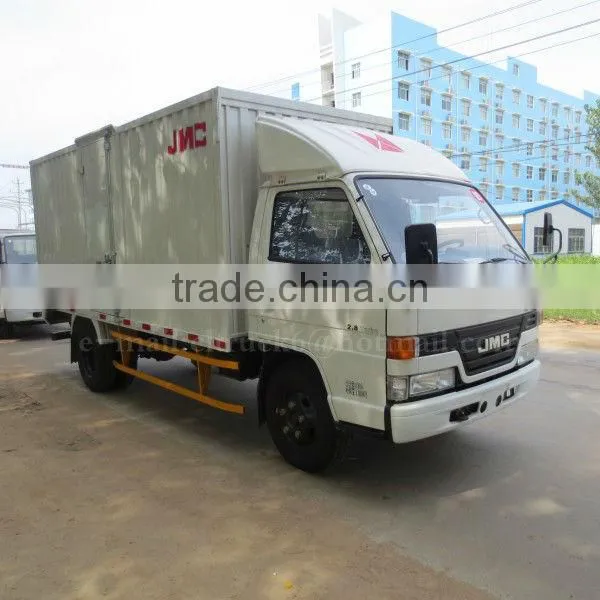

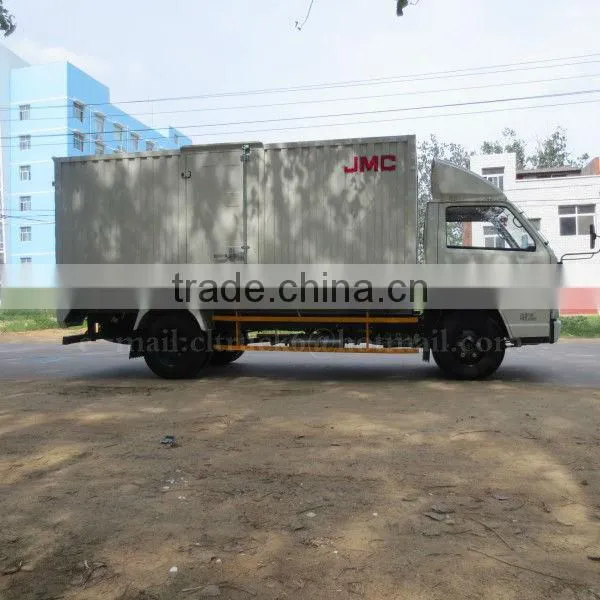

JMC 4x2 Small Van Transport Truck 13 m3

Whole truck Main Technical Parameter

Product Model

JMC Van Transport Truck

Overall Dimension(L*W*H)(mm)

5995×1920×2750

Wheelbase(mm)

3360

Body internal Dimension(L*W*H)(mm)

4260×1760×1730

F/ R suspension(mm)

1015/1620

Number of Axles

2

Actual Payload(kg)

Approx 4000

Approach/ departure angle (° )

27/15

Curb weight(kg)

2470

Max Speed (km/h)

95

Cab capacity

2

Cab Type

single row, air conditioning, radio

Chassis parameter

Chassis Model

JX1060TG23

Chassis manufacturer

JMC Automobile Co., Ltd

Gear Box

JC 5 shift

Transmission type

Manual

Steering Type

LHD (power steering)

Traction Type

4*2

Brake System

oil brake

Number of Tire

6 with a spare

Leaf Spring number

7/5+5

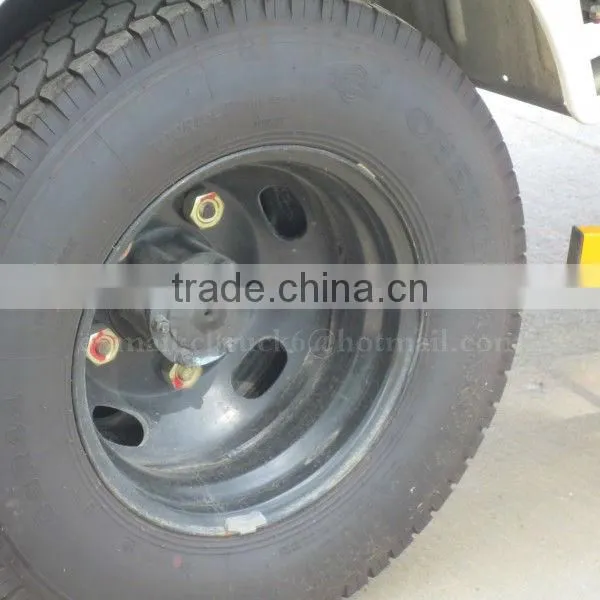

Tire size/type

7.00R16LT

Engine parameter

Engine Model

JX493ZLQ3A

Engine manufacturer

JMC Automobile Co., Ltd

Fuel type

diesel

Displacement(ml)

2771

Emission stand

Euro 3

Power(kw)

75(102hp)

Superstructure Parameter

1. Body material: corrugated iron

2. Body color: optional

Warranty

12 months, from the date of supply
