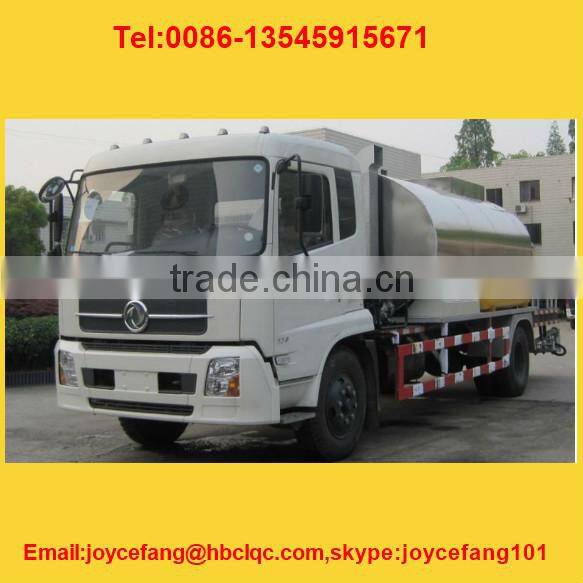

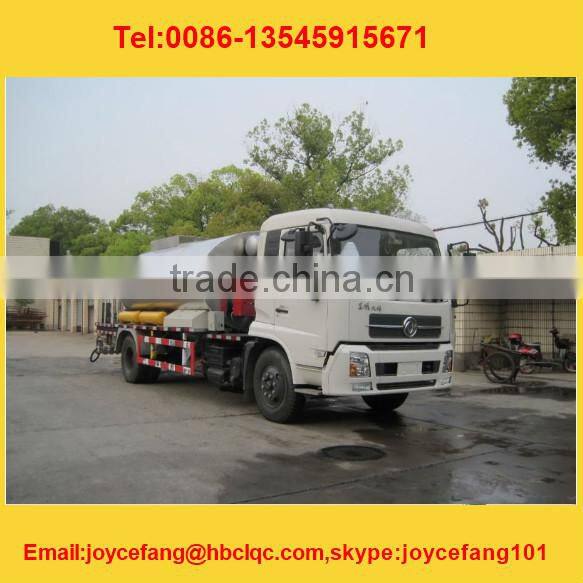

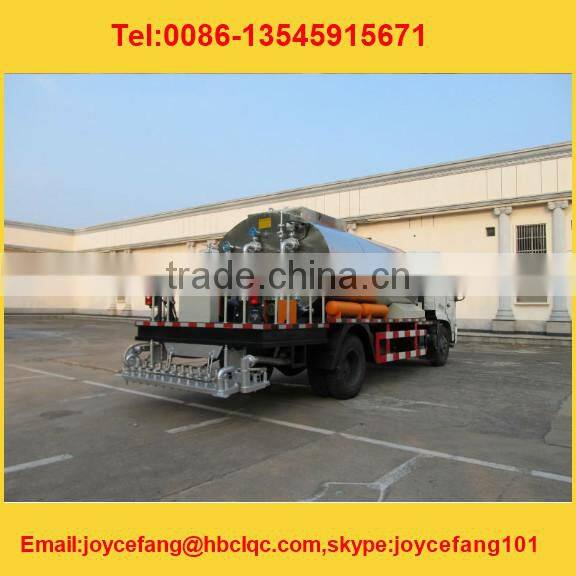

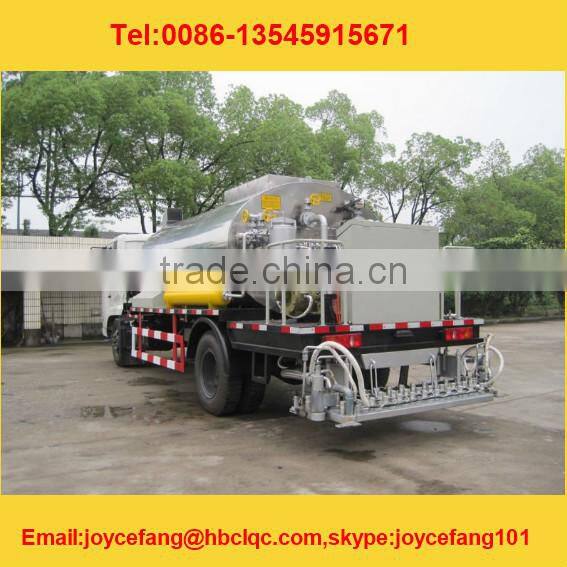

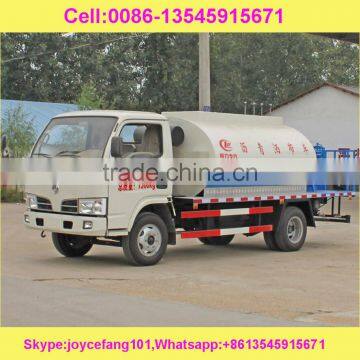

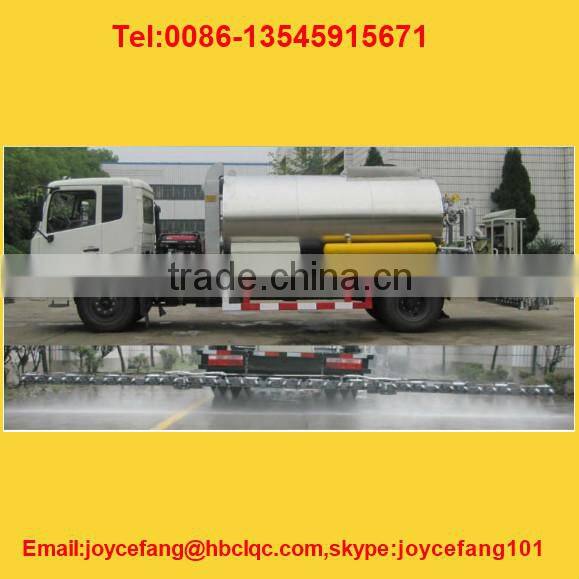

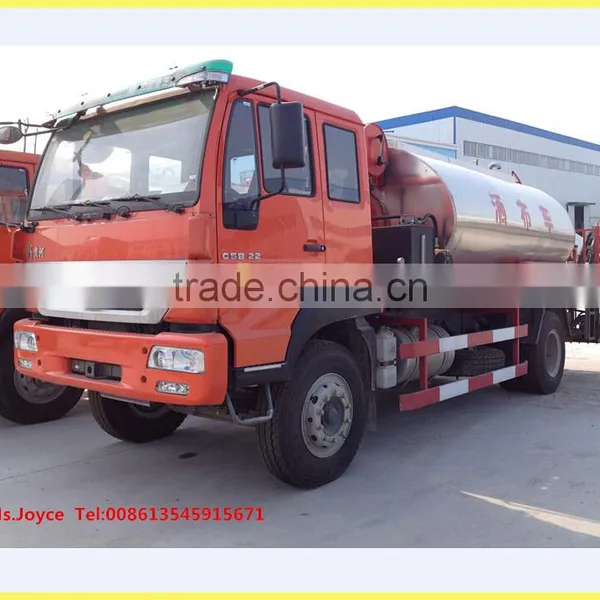

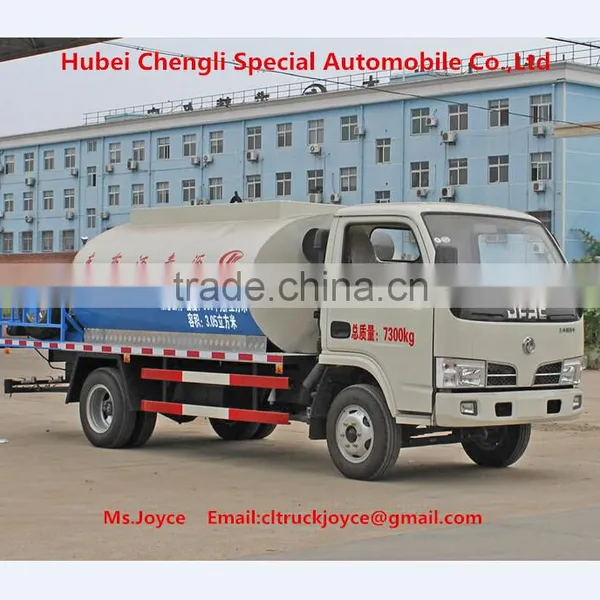

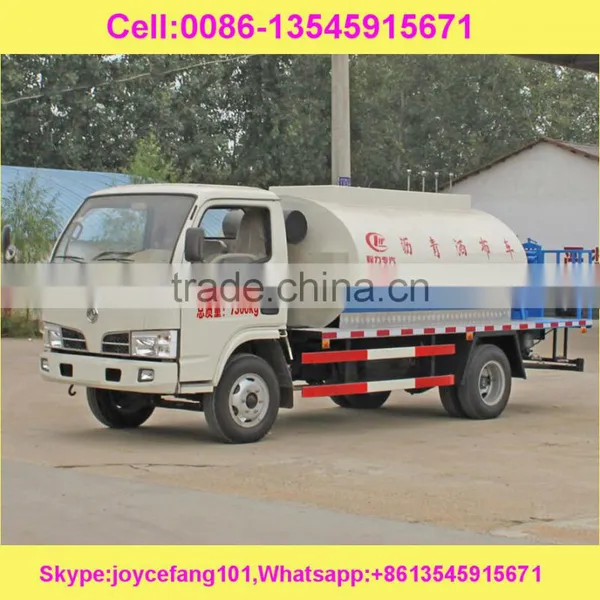

Asphalt Pothole Repair Truck For Sale
Asphalt Sprayer is an intelligent high tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.
Original wedge positioning stainless steel combination nozzle sprays in the fan shaped area and positions accurately.
It is wear resisting and the quality is reliable. It is fast and convenient to replace.
Equipped with high power auxiliary generator
Asphalt pipeline has systemic circulation. It is suitable for spraying emulsified asphalt and heated asphalt.

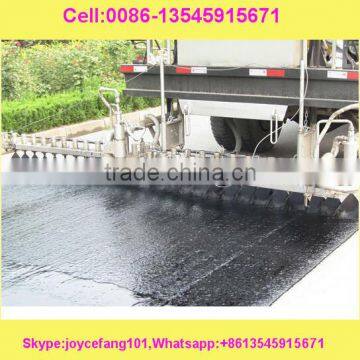

Three overlapping spraying ensures more uniform spreading with higher precision.
PTO power take off method is used. Zero distance spraying can be realized.
PARAMETER OF Asphalt Pothole Repair Truck For Sale
Mass parameter: | |||
Kerb Weight(kg) | 9750 | Total Weight(kg) | 16000 |
Rated loading Weight(kg) | 6055 | Dimension(mm) | 8998×2490 ×3200 |
Chassis Parameter: | |||
Chassis Model | DFL1160BX | Tyre model | 9.00-20,9.00R20 |
Wheelbase (mm) | 5000 | Tread mm | 1815/1800 |
Front Overhang(mm) | 1430 | Rear Overhang(mm) | 2568 |
Approach angle,Departure angle | 20°/14° | Minimum Ground Clearance (mm) | 250 |
Engine parameter: | |||
Engine model | B190 33 | Manufacturer | Dongfeng Cummins Engine Co. , Ltd. |
Max. Power(kw) | 140/2400 | Max. Torque(N.m) | 550/1300-1800 |
Fuel | Diesel | Displacement(ml) | 5900 |
Spray specification: | |||
Tank Capacity(m³) | 8 | Spray width | 6000mm |
Hydraulic pump model | CBQ-F540 | Spray Value | 0.5-3.0(Kg) |
Hydraulic motor | L2F63W2P2 (Liyuan) | Insulation Thickness | 50mm |
Controller | ZM-Ⅰ | Nozzles | 39 |
Burner | G20(Riello) | Asphalt pump | QGB450 |
Generator(Converter) | EC6500CX |
| |
PERFORMANCE OF Asphalt Pothole Repair Truck

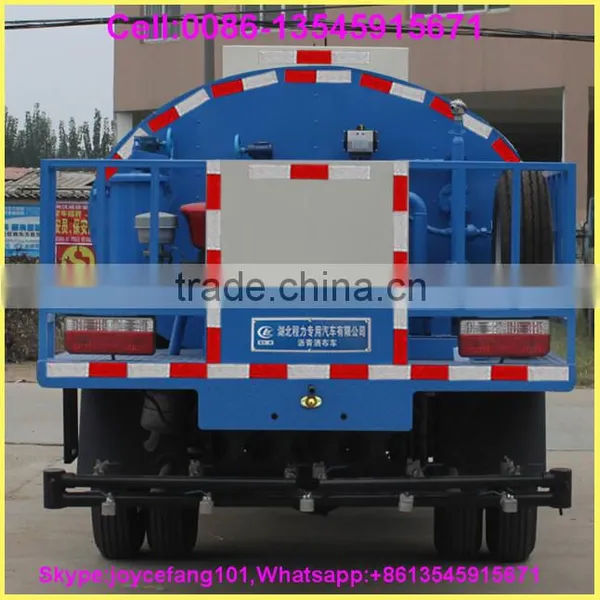

1 Nozzle:
a,Installation of stainless steel nozzle, can be positioned correctly and easy to replace
b,Stainless steel nozzle be used more time than other nozzle.
c,When spraying asphalt, bitumen consumption can be reduced and keep the quality of spray keep the
2 Heat Conducting Oil System:
a.The new Heat Conducting Oil System can heat asphalt and pump faster
b.Especially in use of spraying emulsified asphalt,speed up the heating efficiency and save fuel
3 Controller:
a.Control system is more friendly and easier to be operated.
b.Intelligentzied model is suitable for asphalt pavement construction which can improve performance achievement of the international advanced standard..
4 Cleaning:Can use diesel fuel or high-pressure air cleaning of pipes and pumps
5 Environmental protection, reduce the consumption: In the spraying end, using high pressure air makes asphalt of residues in pipe row back to the tank, Avoid residual asphalt pollution of the environment, and save the asphalt consumption.
Asphalt Pothole Repair Truck For Sale Manufacture :Chengli Special Automobile Co.,LTD
Asphalt Pothole Repair Truck For Sale Details, Pls Contact Me :
