H2SO4,HCL,HNO4, 8*4 25cbm Chemical Liquid Truck

Name: H2SO4,HCL,HNO4, 8*4 25cbm Chemical Liquid Truck
Brand: Dongfeng
SKU: 141639098
Availability: InStock

US$ 35,000 - 60,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Storage:

Other, Chemical, medical liquid(H2SO4,HCL,HNO4 ),water,oil,milk

Drive Wheel:

8x4

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Storage Other, Chemical, medical liquid(H2SO4,HCL,HNO4 ),water,oil,milk

Drive Wheel 8x4

Horsepower 251 - 350hp

Transmission Type Manual

Fuel Type Diesel

Tank Volume 15001 - 30000L

Engine Capacity 8300ml

Dimensions (L x W x H) (mm) 11980*2500*3400,3700mm

Brand Name Dongfeng

Place of Origin Hubei, China

Model Number CLW5311GHY3

Gross Vehicle Weight 15202

H2SO4,HCL,HNO4, 8*4 25cbm chemical liquid truck

1.volume: optional

2.temperature :-20°C--60°C

ction: Medical liquid truck widely apply to medical liquid transportation, tank container

transportation, drinking water , oil, milk transportation with safe, healthy, effective characteristics

4.can offer plastic lining , aluminum tank ,rotational molding ,carbon steel, stainless steel

production according to the customers’ requirement

Parameters of used chemical liquid truck :

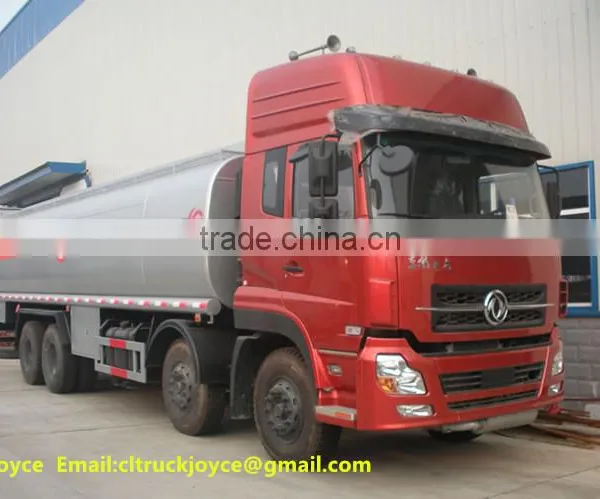

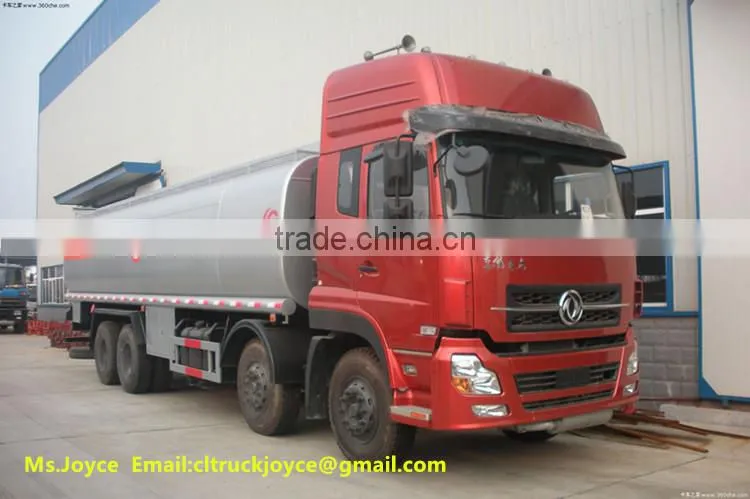

Model Name	Dongfeng chemical tanker truck 25cbm CLW5311GHY3
Driving Type	8×4,left hand drive
Weights
Rated payload weight(kg)	15665
Curb weight(kg)	15205
Axle loading9(kg)	6500/6500/18000
Dimensions
Wheelbase(mm)	1950+4250+1300
Overall Dimension(mm)	11980×2500×3400,3700
Box dimension (mm)	×× 20cbm
Max speed(km/h)	75
Engine
Engine model	C260 33
Engine type	4 stroke water-cooled,
No. of cylinders	straight-6 cylinders
Displacement(L)	8.3L
Max. output (kw)	191kw
Drive Line
Transmission	9JS119T-B,9 forwards,1 reverse gear,manual operation
Fuel tanker(L)	400 stainless steel
Cab
Air container	Have
Standard configuration	sound
Axle
Front axle	5+5 tons
Rear axle	10+10 tons
Tire specification
Tire specification	12.00R20 standard tire,12 tires+1 spare tire
Specification of chemical tanker truck
Tanker shape	Ellipse water tanker
Tanker material	According to liquid medium
Manhole	Man way access hole on top of tank;1 units DN500mm manhole
Man walk way	With skid resistance man walk way on top of tank
Horse reels	Two 75 ft hose reels at each side of the truck
Pump	Optional
