60 Watt Polycrystalline Solar Panel

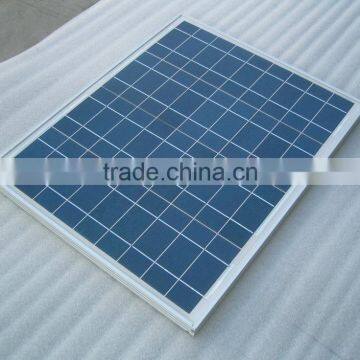

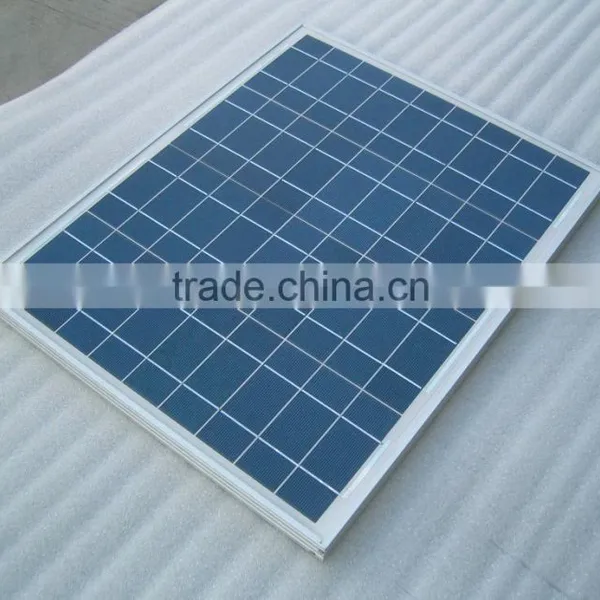

60 Watt Polycrystalline Solar Panel photo-1
US$ 28 - 30 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SIPL
Model Number:
SPM-60PB201
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW / Jiangmen / Guangzhou / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name SIPL
Model Number SPM-60PB201
Specification Normal
Application Commercial
Output Voltage (V) 17.4V
Load Power (W) Depend
Solar Power (W) 60W
Work Time (h) as long as sun is shining

Product Features

Natural solar energy generates power for your home electric appliances, you can save dollars from consuming conventional electricity!



Characteristics & Mechanical Configurations:



Maximum Power (Pm)60W
Power Tolerance-5% to +5%
Voltage at max power (Vmp)17.4 V
Current at max power (Imp)   3.45 A
Open Circuit Voltage (Voc)21.6 V
Short Circuit Current (Isc)3.79 A
Operating Temperature- 40°C to +85°C
Maximum System Voltage1000 V
Maximum Series Fuse Rating5 A



Standard Test Condtion: Irrandiance 1000W/SQM, Module temperature 25°C, AM=1.5



Solar CellPolycrystalline sillicon solar cell 156X156 mm
No.of Cells and Connections36=4*9 pcs
Dimension of Module630*670*25 mm
Weight  4.6 kg
Junction BoxIp65 rated
Packing Configuration4pcs/ctn, 670*700*125 mm



Resistances: 227g stell ball fall down from 1m height and 60m/s wind



Warranty: Pm is not less than 90% in 10 years and 80% in 25 years



 60 Watt Polycrystalline Solar Panel





Features of Our Products & Services:

1 High-efficiency 156*156mm silicon cell

2 Transparent low iron tempered glass with high transmittance performance

3 Anti-aging EVA, TPT

4 Anodized aluminum alloy frame

5 Product high performance & good quality

6 Designs to meet unique demands of customer's



Simply tell us your requirements, we will tailor-make the products per request!



60 Watt Polycrystalline Solar Panel
