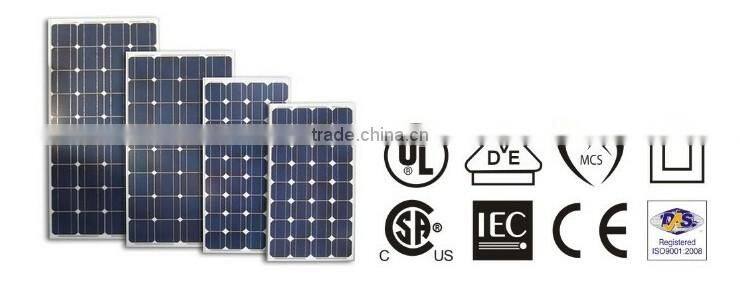

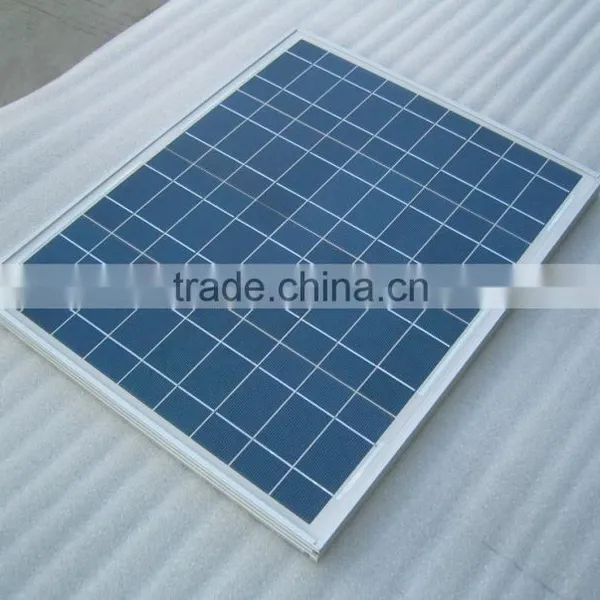

50 Watt Polycrystalline Solar Panel
- Shenzhen
- Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SIPL | |
| Model Number | SPM-50PB201 | Specification | Normal | |
| Application | Commercial | Output Voltage (V) | 17.4V | |
| Load Power (W) | Depend | Solar Power (W) | 50 watt | |
| Work Time (h) | as long as sun shining |
Product Description
Product Features:
Natural solar energy generates power for your home electric appliances, you can save much dollars from consuming conventional electricity!
Characteristics & Mechanical Configurations:
| Maximum Power (Pm) | 50W |
| Power Tolerance | -5% to +5% |
| Voltage at max power (Vmp) | 17.4 V |
| Current at max power (Imp) | 2.87 A |
| Open Circuit Voltage (Voc) | 21.6 V |
| Short Circuit Current (Isc) | 3.16A |
| Operating Temperature | - 40°C to +85°C |
| Maximum System Voltage | 1000 V |
| Maximum Series Fuse Rating | 3 A |
Standard Test Condtion: Irrandiance 1000W/SQM, Module temperature 25°C, AM=1.5
| Solar Cell | Polycrystalline sillicon solar cell 156X156 mm |
| No.of Cells and Connections | 36= 4*9 pcs |
| Dimension of Module | 670*530*25 mm |
| Weight | 4.3 kg |
| Junction Box | Ip65 rated |
| Packing Configuration | 4pcs/ctn, 700*560*125 mm |
Resistances: 227g stell ball fall down from 1m height and 60m/s wind
Warranty: Pm is not less than 90% in 10 years and 80% in 20 years
Features of Our Products & Services:
1 High-efficiency Taiwan Motech 125*125mm or 156*156mm silicon cell
2 Transparent low iron tempered glass with high transmittance performance
3 Anti-aging EVA, TPT
4 Anodized aluminum alloy frame
5 Product high performance & good quality
6 Designs to meet unique demands of customer's
Simply tell us your requirements, we will tailor-make the products per request!
