Wall Mounted Solar Panel Powered Large Industrial Exhaust Fan

Wall Mounted Solar Panel Powered Large Industrial Exhaust Fan photo-1
US$ 756 - 823 MOQ: 3 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SIPL
Model Number:
SN2013021-solar exhaust fan
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW / Jiangmen / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name SIPL
Model Number SN2013021-solar exhaust fan
Type Fan
Product Introduction

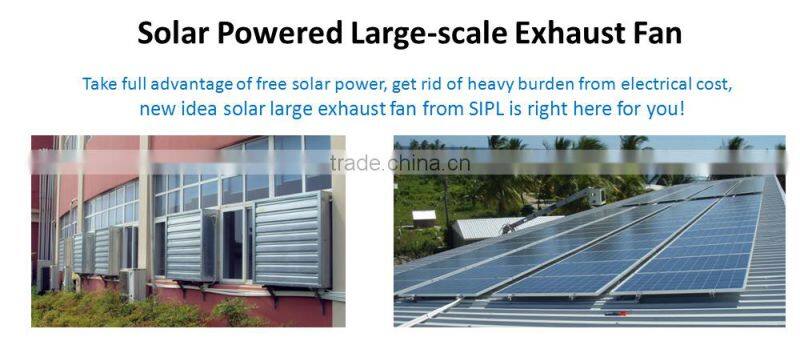

The solar modules mounted on roof-top will generate electricity to support the fans’ working.
You can save money and ease the heavy burden for those boring electricity bills now!
Detailed Images

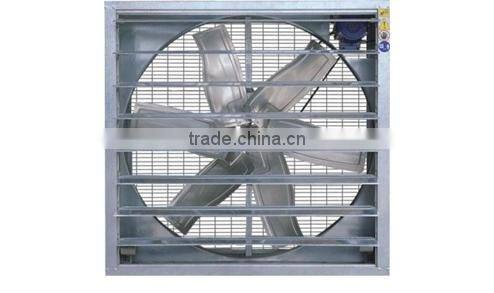

Exhaust Fan

Fan blade: Dia.950mm, aluminum
Fan motor: Brushless DC motor
Motor Speed: 420 RPM
Fan host size: 1060*1060*400mm
Pressure: 60 Pa
Noise: Lower than 70dB

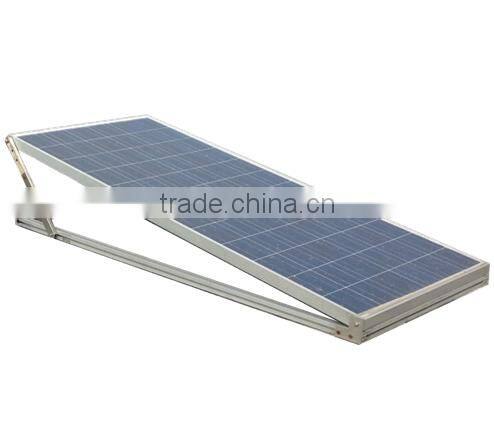

Solar Panel

Solar panel power: 300 watt

Solar panel size: 1956*992*50mm
Meterial: polycrystalline solar module
Flexibility: with angle adjustable mounting bracket

Wiring: 15m cable to connect fan host & solar panel

Feature & Benefits

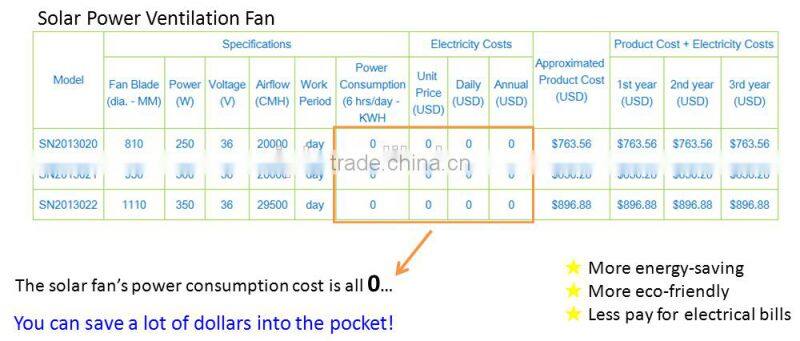

1.Totally by free solar power

You can use the inexhaustible solar source freely to support operation of all kinds large scale ventilating fans. Therefore, the regular commercial electricity bill in old days is no longer a must pay!

2. Once Pay, Benefit Long

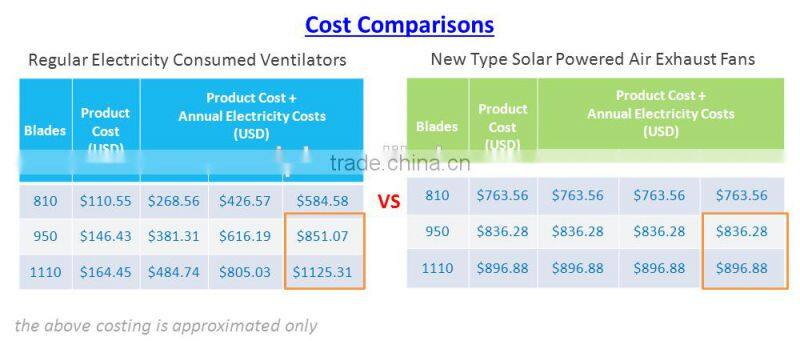

The regular ventilating fan may cost you less than to buy the product, but it keeps asking you to pay every day. Comparatively, you may have to pay much for the solar exhaust fan at a time, but it is free to work for you forever, and will pay you back soon after years.

3. Innovative ventilation for a better place to live

This negative pressure fan powered by solar not only helps to save your money, but also it is an innovative ventilation, featuring energy conservation , environmentally friendly and more security.

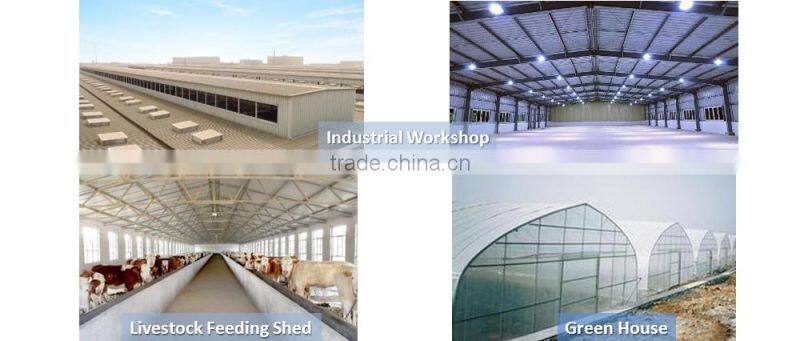

Application

As long as the sunlight is available, where a large exhaust fan is needed to improve

ventilation, where a new solar type exhaust fan can be a better solution!

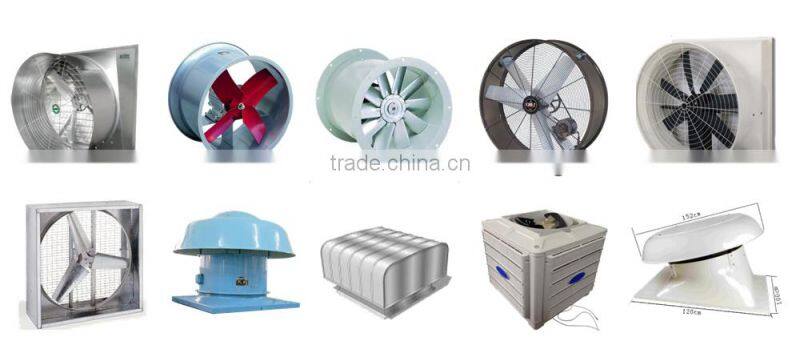

More Selection

Fan Size

Dia.810mm / 950mm / 1110mm fan blades

Solar panel power

250W / 300W /350W

Service Time

Working in sunny daytime:     Fan + Solar Panel
Working in Day & Night:          Fan + Solar Panel + Power Adapter
                                                    Fan + Solar Panel + Storage Battery

Tailor-Make Service

Simply telling us your requirements, we’ll help you to turn all kinds of regular electric industrial fans into cost-free solar exhaust fans!

Warranty

Fan Host:designed lifespan 20 Years, warranty 10 Years
Solar Panel:designed lifespan 25 Years, warranty 15 Years
Motor:designed lifespan above 7 years, warranty 5 Years
Battery / Power Adapter:designed lifespan above 5 years, warranty 2 Years
