Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > Stainless Steel Axial Fan Blades Solar High Power Factory Smoke Exhaust Fan

Stainless Steel Axial Fan Blades Solar High Power Factory Smoke Exhaust Fan

Stainless Steel Axial Fan Blades Solar High Power Factory Smoke Exhaust Fan photo-1
US$ 756 - 992 MOQ: 5 Sets
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Other, Wall mounted or stand
Blade Material:
Other, Aluminum fan blades
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW / Jiangmen / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Electric Current Type DC
Mounting Other, Wall mounted or stand
Blade Material Other, Aluminum fan blades
Place of Origin Guangdong, China
Brand Name SIPL
Model Number SN2015020-solar large exhaust fan
Voltage 36V
Power 300W
Air Volume 26000CMH
Speed 8m/s
Certification GS, Other, GS, Low voltage safe solar fan.
After-sales Service Provided No overseas service provided
Product Introduction

The solar modules mounted on roof-top will generate electricity to support the fans’ working.
You can save money and ease the heavy burden for those boring electricity bills now!

Detailed Images

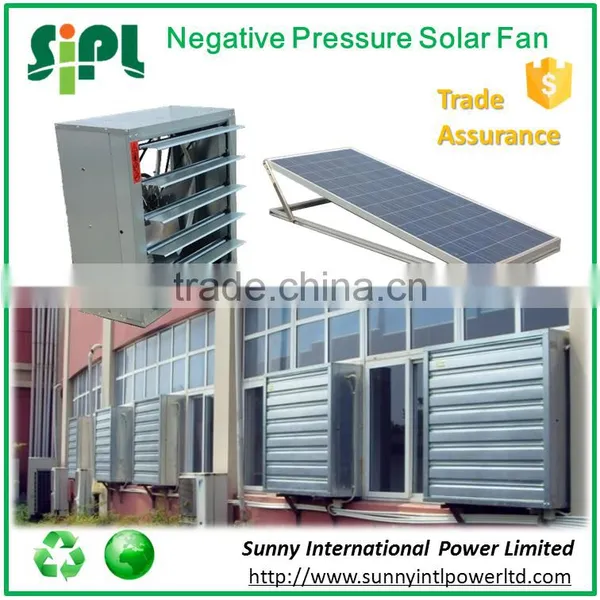

Exhaust Fan

Fan blade: Dia.950mm, aluminum
Fan motor: Brushless DC motor
Motor Speed: 420 RPM
Fan host size: 1060*1060*400mm
Pressure: 60 Pa
Noise: Lower than 70dB

Solar Panel

Solar panel power: 300 watt

Solar panel size: 1956*992*50mm
Meterial: polycrystalline solar module
Flexibility: with angle adjustable mounting bracket

Wiring: 15m cable to connect fan host & solar panel

AC/ DC Power Adapter

* To extend the fan's working hour, a AC/DC power adapter can be added,  to use grid power as backup energy in sunless periods. So it can be realized that this solar exhaust fan keeps running all day round as per your need.

Feature & Benefits

1.Totally by free solar power

You can use the inexhaustible solar source freely to support operation of all kinds large scale ventilating fans. Therefore, the regular commercial electricity bill in old days is no longer a must pay!

2. Once Pay, Benefit Long

The regular ventilating fan may cost you less than to buy the product, but it keeps asking you to pay every day. Comparatively, you may have to pay much for the solar exhaust fan at a time, but it is free to work for you forever, and will pay you back soon after years.

3. Innovative ventilation for a better place to live

This negative pressure fan powered by solar not only helps to save your money, but also it is an innovative ventilation, featuring energy conservation , environmentally friendly and more security.

Application

As long as the sunlight is available, where a large exhaust fan is needed to improve

ventilation, where a new solar type exhaust fan can be a better solution!

More Selections

Fan Size

Dia.810mm / 950mm / 1110mm fan blades

Solar Panel Power

250W / 300W /350W

Service Time

Working in sunny daytime:     Fan + Solar Panel
Working in Day & Night:          Fan + Solar Panel + Power Adapter
                                                    Fan + Solar Panel + Storage Battery

Tailor-Make Service

Simply telling us your requirements, we’ll help you to turn all kinds of regular electric industrial fans into cost-free solar exhaust fans!

Warranty

Fan Host:designed lifespan 20 Years, warranty 10 Years
Solar Panel:designed lifespan 25 Years, warranty 15 Years
Motor:designed lifespan above 7 years, warranty 5 Years
Battery / Power Adapter:designed lifespan above 5 years, warranty 2 Years
